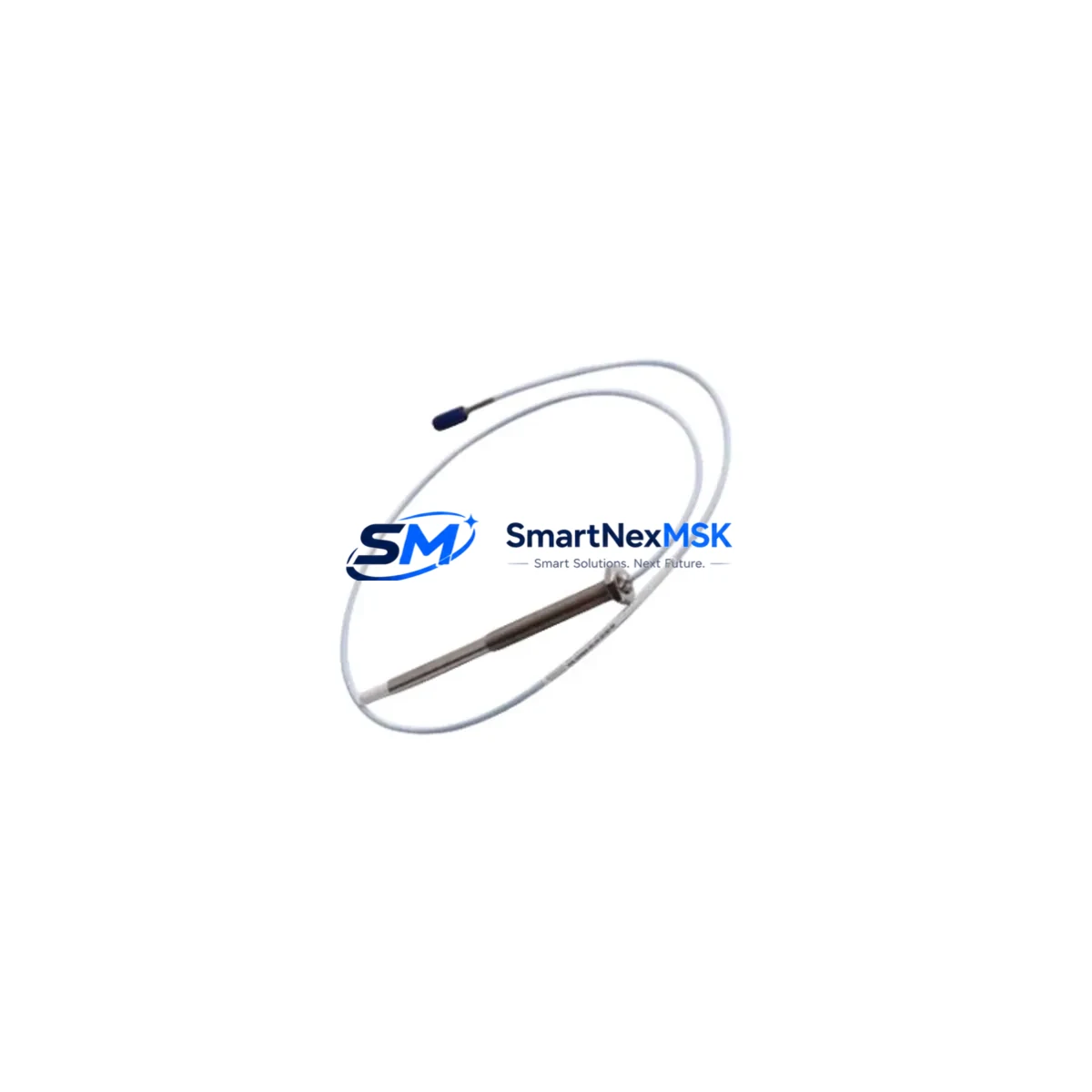

The Bently Nevada 3300/5/1 is an original eddy-current proximity probe engineered for continuous vibration and position monitoring in rotating machinery applications. As a core sensing element within the 3300 NSv Series measurement system, this probe delivers precise non-contact displacement measurements critical to turbine protection, compressor monitoring, and pump shaft surveillance in process-critical environments. For maintenance engineers managing aging machinery protection systems, securing a verified 3300/5/1 spare is a foundational step in any downtime-reduction strategy.

Industrial facilities operating gas turbines, steam turbines, centrifugal compressors, and large rotating equipment depend on the 3300 NSv system’s ability to detect shaft vibration, axial position, and differential expansion in real time. A failed or degraded proximity probe can trigger false shutdowns, mask genuine fault conditions, or — in worst-case scenarios — allow catastrophic bearing failures to go undetected. Stocking a tested, original 3300/5/1 spare eliminates this risk and ensures your machinery protection loop remains intact during planned and unplanned maintenance events.

Each unit shipped from SMARTNEXMSK undergoes pre-shipment functional verification and is backed by a 12-month warranty, giving procurement engineers confidence in both quality and long-term supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing a 3300/5/1 proximity probe during a scheduled outage or emergency callout, experienced maintenance engineers treat the probe replacement as an opportunity to audit the entire vibration measurement loop. The probe alone does not operate in isolation — it functions as part of a signal chain that includes the 3300 NSv extension cable (typically 3 m or 5 m armored coaxial), the 3300 NSv proximitor/driver module, and the 3500/42M Proximitor Monitor or equivalent rack card seated in the 3500 Series monitoring rack.

During probe replacement, it is best practice to inspect the 3500/20 Power Supply module that feeds the monitoring rack, as power fluctuations are a common root cause of probe signal drift and false alarms. Verify that the 3500/92 Communication Gateway or 3500/93 Data Manager is logging probe gap voltage correctly before returning the machine to service. If the facility uses a System 1 Evolution condition monitoring platform, confirm that the new probe’s gap voltage is within the calibrated linear range and that alarm setpoints are re-validated post-installation.

For control cabinet inspections concurrent with probe replacement, check the terminal strip and field wiring connecting the proximitor output to the DCS or safety system analog input card. Corroded terminals, loose ferrules, or damaged shielding on the coaxial run are frequent contributors to noisy vibration signals that mimic genuine shaft instability. Where the facility uses a Bently Nevada 3500/45 Position Monitor for axial thrust measurement alongside radial vibration probes, inspect both channels simultaneously to avoid repeat outages.

Procurement engineers building a minimum viable spare parts kit for a 3300 NSv-equipped machine train should consider stocking: one spare 3300/5/1 probe per measurement plane, one matched extension cable set, one spare proximitor driver, and a replacement 3500 rack I/O module for the relevant channel type. This four-component kit covers the majority of field-replaceable failures without requiring rack-level disassembly.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and isolate the machinery protection system channel associated with the failed probe. Bypass the trip function at the 3500 Series monitor to prevent spurious shutdowns during probe removal.

Step 2 — Gap Measurement and Documentation: Before removing the old 3300/5/1, record the existing gap voltage using a calibrated voltmeter or the monitor’s front-panel display. This baseline confirms whether the probe failure was mechanical (physical damage, contamination) or electrical (cable break, driver fault).

Step 3 — Probe Removal: Unscrew the probe from the bearing housing using the appropriate spanner. Inspect the probe tip for oil contamination, mechanical contact marks, or corrosion. Inspect the housing thread for damage that could affect the new probe’s seating depth and gap setting.

Step 4 — New Probe Installation: Thread the replacement 3300/5/1 into the housing and set the gap to the manufacturer-specified voltage (typically 10.0 V DC ± 0.2 V for a 1.0 mm gap on steel targets). Use a non-metallic feeler gauge or the monitor’s live gap display to confirm correct positioning before locking the probe in place.

Step 5 — Signal Verification: Reconnect the extension cable and driver. Confirm gap voltage, sensitivity (V/mm), and noise floor at the monitor. Remove the bypass and verify that alarm and danger setpoints are active. Log the as-left gap voltage in the maintenance management system for future reference.

Step 6 — Return to Service: Restart the machine and monitor the vibration trend for the first 30 minutes of operation. Compare readings against historical baseline data to confirm the replacement probe is performing within expected parameters.

This workflow minimizes total downtime to under two hours for a single-probe replacement on an accessible bearing housing, supporting rapid return-to-service objectives in continuous process plants.

Spare Parts Support FAQ

Q1: Is the 3300/5/1 a direct drop-in replacement for older 3300 XL 5mm probes?
The 3300/5/1 is designed for the 3300 NSv measurement system and shares the same 5 mm probe tip geometry as earlier 3300 XL variants. In most installations, it is mechanically interchangeable, but the driver/proximitor module must be confirmed as NSv-compatible. If the existing driver is a legacy 3300 XL proximitor, a driver upgrade to the NSv version may be required to maintain calibrated sensitivity. SMARTNEXMSK can advise on driver compatibility before shipment.

Q2: What pre-shipment testing does SMARTNEXMSK perform on the 3300/5/1?
Each 3300/5/1 unit is bench-tested for gap voltage linearity, sensitivity (V/mm), and connector integrity prior to dispatch. Units are shipped with a test report confirming measured performance against Bently Nevada published specifications. This eliminates the risk of installing a defective spare during a critical maintenance window.

Q3: How should the 3300/5/1 be stored as a long-term spare?
Store the probe in its original packaging or an anti-static, moisture-resistant bag in a temperature-controlled environment (10°C–35°C, <70% RH). Avoid storing near strong magnetic fields or sources of mechanical vibration. Inspect the probe tip and connector annually and replace the desiccant in the storage container every 12 months. Properly stored, the 3300/5/1 maintains its calibration characteristics for 3–5 years in reserve stock.

Q4: What is covered under the 12-month warranty?
SMARTNEXMSK’s 12-month warranty covers manufacturing defects, premature electrical failure under normal operating conditions, and connector integrity. It does not cover damage resulting from incorrect gap setting, mechanical contact with the target, chemical contamination, or installation errors. Warranty claims are processed within 5 business days, with replacement units dispatched upon confirmation of the defect.
