Bently Nevada 330101-00-08-05-02-00 Safety-Enhanced Proximity Probe

Bently Nevada 330101-00-08-05-02-00 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

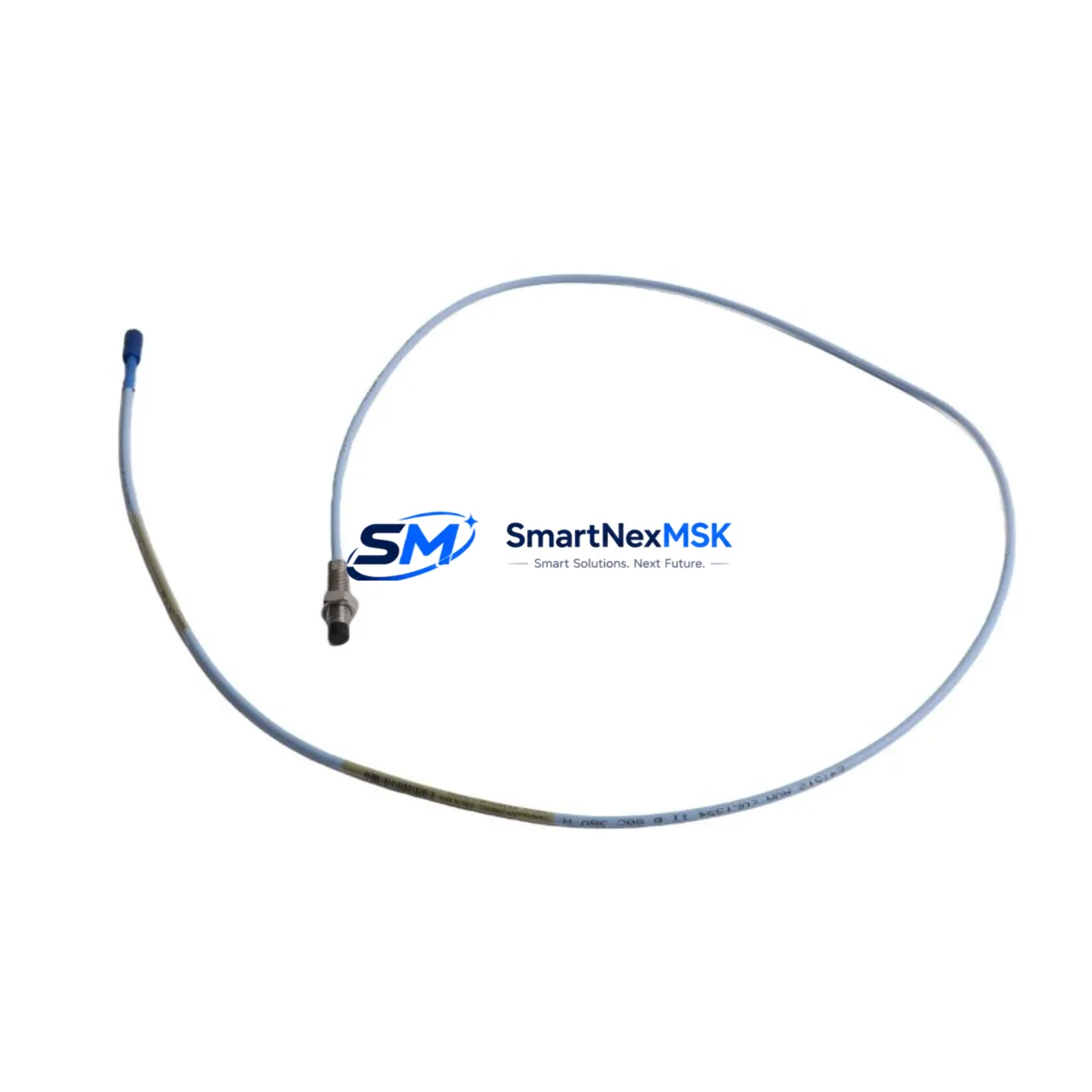

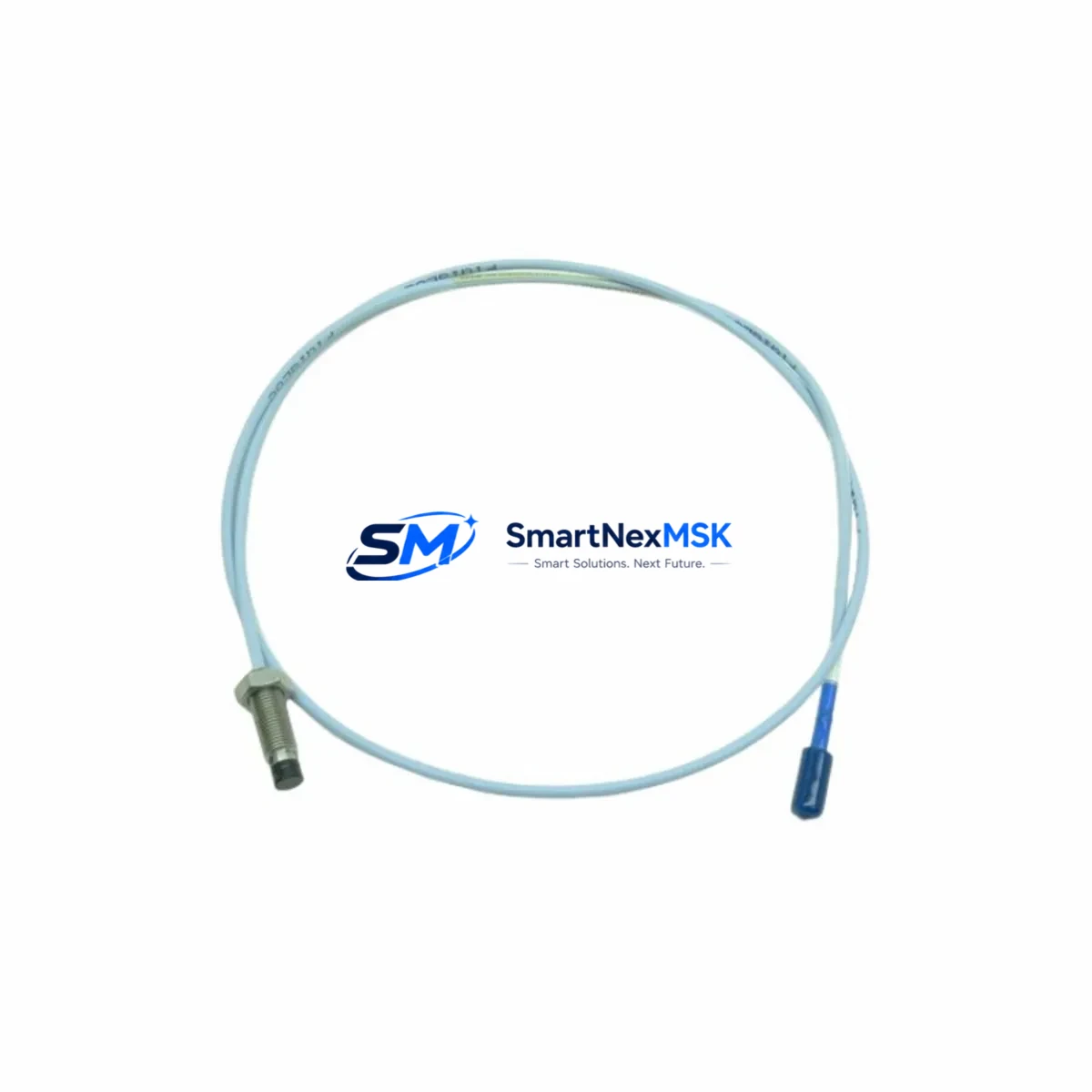

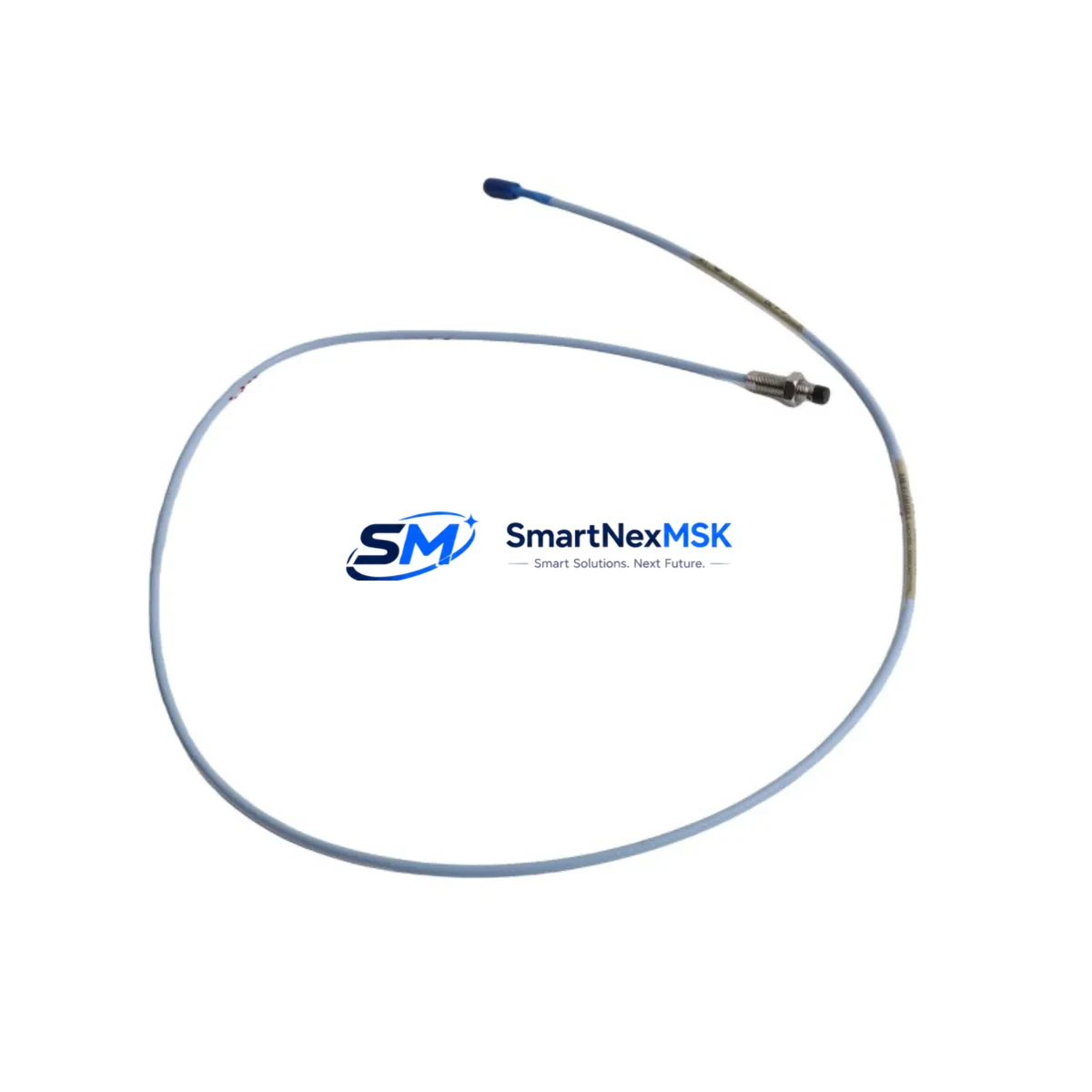

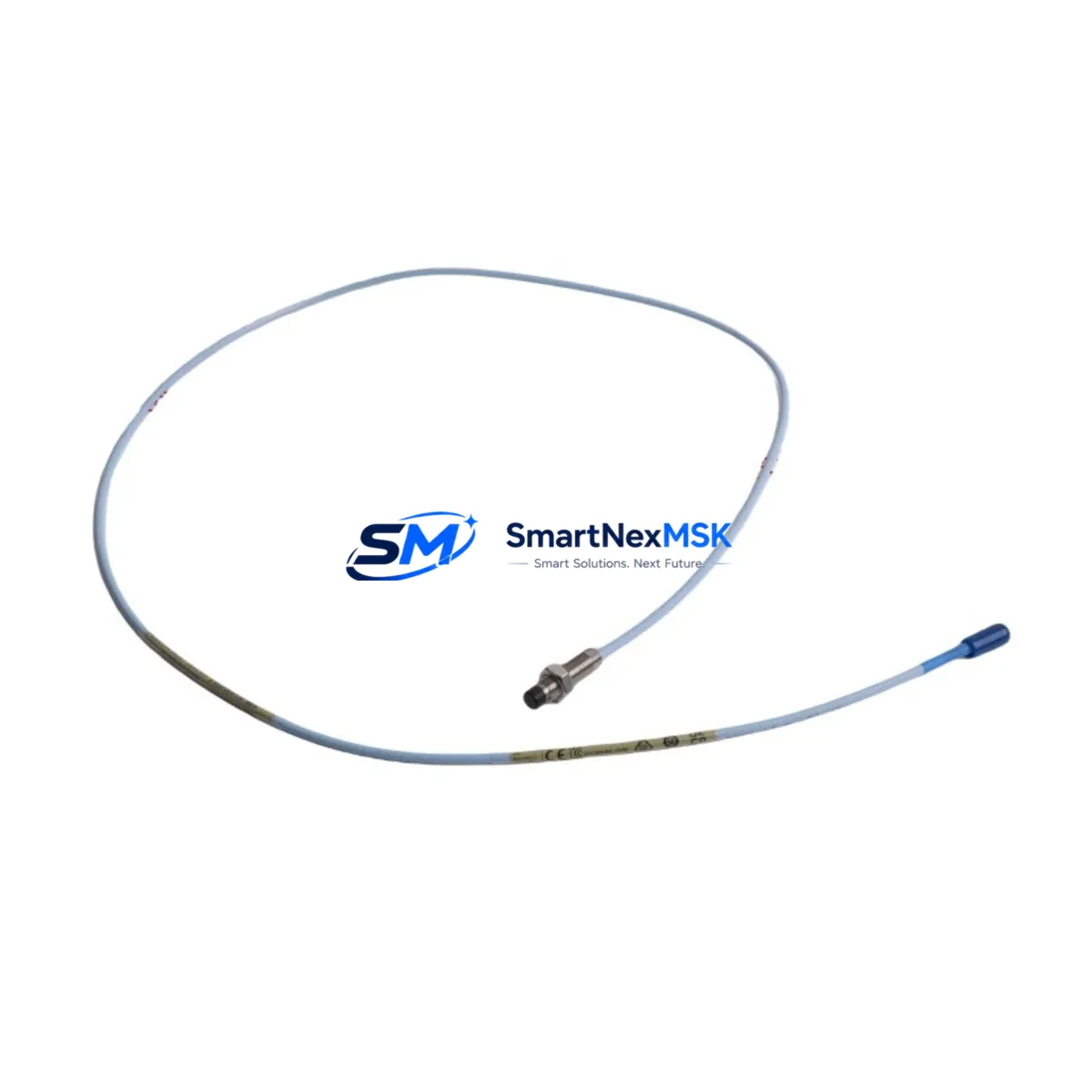

The Bently Nevada 330101-00-08-05-02-00 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, safety-critical shaft vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high-temperature, high-vibration, and chemically aggressive conditions, this probe is a cornerstone component in turbomachinery protection systems, compressor trains, and critical rotating equipment across petrochemical, power generation, mining, and metallurgical facilities.

In safety-instrumented systems and critical interlock loops, signal integrity is non-negotiable. The 330101-00-08-05-02-00 delivers consistent, drift-free output across its full operating range, minimizing the risk of spurious trips, missed alarms, and unplanned shutdowns. Its ruggedized construction resists electromagnetic interference (EMI), radio-frequency interference (RFI), and ground loop noise — common threats in heavy industrial control cabinets where variable frequency drives, high-current bus bars, and relay coils operate in close proximity.

Every unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification, including gap voltage linearity testing and output signal validation, ensuring the probe performs to Bently Nevada factory specifications from day one of installation.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered turbomachinery protection cabinet, the 330101-00-08-05-02-00 probe operates as the primary sensing element within a complete Bently Nevada 3300 XL measurement chain. It connects to the Bently Nevada 3300 XL Proximitor® Sensor (such as the 330180-X1-05), which conditions the raw eddy-current signal into a calibrated voltage output suitable for the Bently Nevada 3500/42M Proximitor® Monitor — the rack-mounted module responsible for alarm and trip relay actuation.

To ensure power supply stability within the control cabinet, the monitoring rack is typically fed through a Bently Nevada 3500/15 Power Supply Module, which provides regulated, redundant DC power to all I/O and processing cards. Surge and transient protection at the cabinet entry point is commonly achieved using Phoenix Contact TRABTECH surge protection devices or equivalent DIN-rail mounted SPDs, safeguarding sensitive signal conditioning electronics from lightning-induced transients and switching surges on long field cable runs.

For facilities operating under IEC 61511 or ISA-84 safety integrity requirements, the probe measurement chain is often integrated into a Triconex or Rockwell AADvance Safety PLC via hardwired 4–20 mA or discrete trip relay outputs from the 3500 Series monitor. Fieldbus-connected installations may route vibration data through a Bently Nevada System 1® Evolution software platform for continuous condition monitoring, trend analysis, and predictive maintenance alerting.

Cable routing discipline is critical: the coaxial extension cable from the 330101-00-08-05-02-00 should be segregated from high-voltage power cables and routed through dedicated instrumentation conduit or cable trays. Where cable runs exceed 9 meters, the matched Bently Nevada 330130 Series Extension Cable must be used to maintain system calibration accuracy. Grounding of the probe cable shield at a single point — typically at the Proximitor® sensor — prevents ground loop currents that can introduce noise into the vibration signal and trigger false alarms in the interlock circuit.

Critical Industrial Safety Applications

The Bently Nevada 330101-00-08-05-02-00 is deployed across the full spectrum of heavy industrial and process-critical environments where rotating equipment reliability directly impacts personnel safety, environmental compliance, and production continuity.

Petrochemical and Refinery Plants: In hydrocarbon processing facilities, this probe monitors shaft radial vibration on centrifugal compressors, boiler feed pumps, and reactor agitators. Continuous vibration surveillance enables early detection of bearing wear, rotor imbalance, and seal degradation — conditions that, if undetected, can escalate to catastrophic mechanical failure, process release, or fire. The probe’s high-temperature rating makes it suitable for hot-section applications near furnaces and heat exchangers.

Power Generation: Steam turbine and gas turbine generator sets in thermal and combined-cycle power plants rely on proximity probe arrays for shaft centerline position monitoring and differential expansion measurement. The 330101-00-08-05-02-00, integrated with the 3500 Series monitoring rack, provides the real-time data required for turbine runup, load acceptance, and emergency shutdown sequencing in compliance with API 670 machinery protection standards.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations subject instrumentation to extreme vibration, dust ingress, and wide temperature swings. The ruggedized construction and IP67 protection of this probe ensure reliable signal output even in the harshest mineral processing environments, supporting predictive maintenance programs that reduce unplanned downtime in continuous ore processing circuits.

Water and Wastewater Treatment: High-capacity centrifugal pumps and blower units in municipal water infrastructure require continuous condition monitoring to prevent service interruptions. Proximity probes in these applications support both predictive maintenance and regulatory compliance monitoring, ensuring pump trains remain within safe vibration limits defined by ISO 10816 or ISO 20816 standards.

Metallurgy and Steel Production: Rolling mill drives, continuous casting equipment, and large induction furnace cooling pumps operate under severe electrical noise conditions generated by high-power thyristor drives and arc furnaces. The EMI-shielded coaxial construction of the 330101-00-08-05-02-00 maintains signal integrity in these electromagnetically hostile environments, preventing false trips that would disrupt continuous casting sequences.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the 330101-00-08-05-02-00?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional performance. Warranty claims are supported with direct technical assistance and expedited replacement dispatch to minimize equipment downtime.

Q2: What pre-shipment testing is performed on each probe?
Every 330101-00-08-05-02-00 unit undergoes gap voltage linearity verification and output signal testing against Bently Nevada factory calibration standards before dispatch. A test report is available upon request for quality documentation and incoming inspection purposes.

Q3: Is this probe compatible with existing 3300 XL and 3500 Series installations?
Yes. The 330101-00-08-05-02-00 is a direct-fit replacement within the Bently Nevada 3300 XL measurement system. It is fully compatible with 3300 XL Proximitor® sensors and the 3500 Series monitoring rack without requiring recalibration of the Proximitor® driver, provided the correct extension cable length is maintained for the installed gap range.

Q4: Can long-term supply continuity be assured for ongoing maintenance programs?
SMARTNEXMSK maintains dedicated stock of the 330101-00-08-05-02-00 and related 3300 XL Series components to support planned maintenance shutdowns, emergency replacements, and multi-unit procurement for spare parts programs. Bulk order pricing and reserved stock arrangements are available for facilities with recurring demand.
