Bently Nevada 330101-00-08-10-02-00 3300 XL Spare Probe

Bently Nevada 330101-00-08-10-02-00 3300 XL Spare Probe: Precision Replacement for Industrial Vibration Monitoring

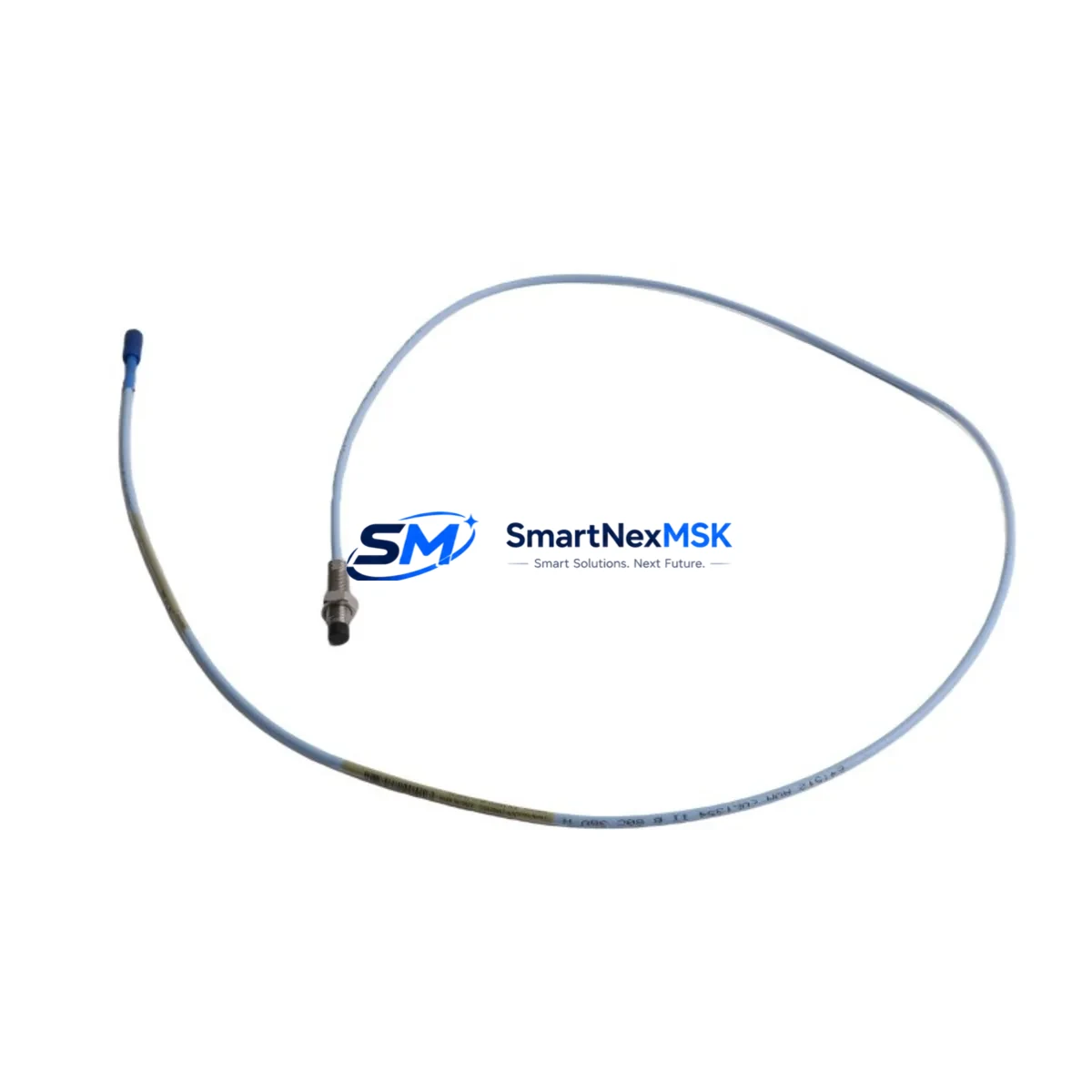

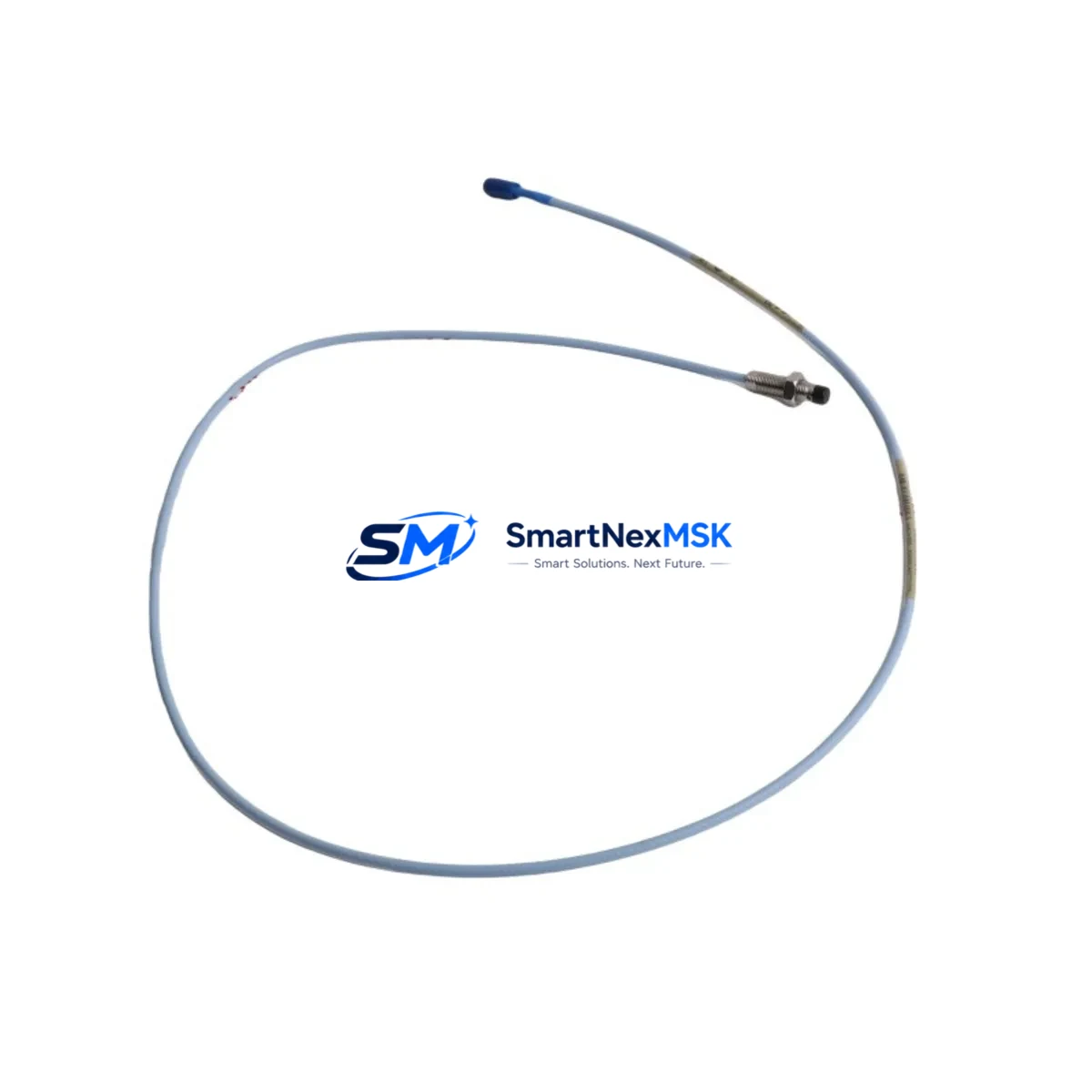

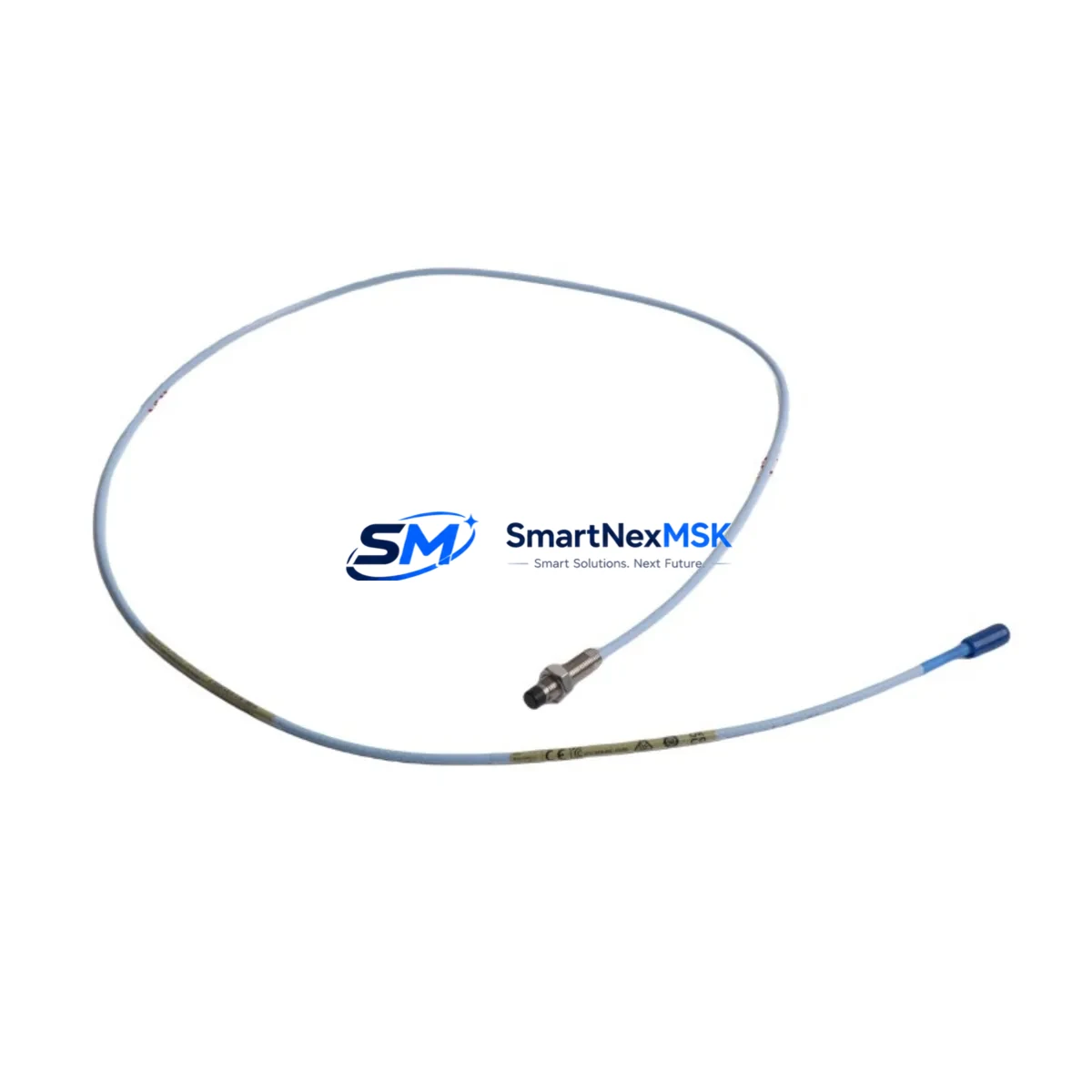

The Bently Nevada 330101-00-08-10-02-00 is an 8mm proximity probe engineered for the 3300 XL Proximity Transducer System — one of the most widely deployed vibration and position monitoring platforms in rotating machinery protection. As a maintenance-ready original spare, this probe is designed to deliver drop-in compatibility with existing 3300 XL signal conditioning chains, enabling rapid field replacement with zero recalibration overhead when matched to the correct extension cable and proximitor module.

For maintenance engineers managing turbines, compressors, pumps, and gearboxes in continuous-process facilities, unplanned downtime caused by a failed proximity probe is a high-consequence event. The 330101-00-08-10-02-00 is stocked as a verified original spare to support both emergency replacement and planned maintenance cycles. Each unit ships after functional inspection and is backed by a 12-month warranty covering manufacturing defects and performance conformance to Bently Nevada 3300 XL system specifications.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-08-10-02-00 in the field, a disciplined maintenance engineer will treat the probe swap as a trigger for a broader inspection of the entire transducer chain. The 3300 XL system is a three-component assembly: the probe, the extension cable (typically a 330130-XX-XX series), and the proximitor driver module (such as the 3300 XL NSv proximitor). A degraded probe is frequently accompanied by cable jacket abrasion, connector corrosion at the BNC or MIL-spec interface, or drift in the proximitor’s output voltage — all of which must be verified before returning the loop to service.

Beyond the transducer chain itself, the control cabinet housing the 3300 XL rack should be inspected concurrently. The rack power supply module — typically a –24 VDC regulated supply — should be load-tested, as voltage sag under full rack load is a common root cause of false vibration trips. Terminal blocks and field wiring terminations within the junction box should be checked for looseness and oxidation, particularly in high-vibration or high-humidity environments. If the machine is also monitored for axial position or differential expansion, the paired 3300 XL keyphasor module and its associated probe (often a 330180 series) should be inspected at the same interval.

For facilities running older Bently Nevada 7200 series or 3500 rack systems alongside 3300 XL installations, it is advisable to audit the signal isolators and barriers between the field transducers and the DCS or safety system inputs. Galvanic isolation modules and Zener barriers degrade over time and can introduce ground loops that corrupt vibration readings. Relay output modules within the 3300 XL rack — used for alarm and trip outputs — should also be exercised and contact resistance verified during any planned outage that involves probe replacement.

Procurement engineers building a spare parts kit around the 330101-00-08-10-02-00 should consider stocking at minimum: one matched extension cable (330130 series, same length as installed), one spare proximitor driver, a set of replacement locknuts and mounting hardware, and a calibration target disk for gap verification. For critical machinery such as steam turbines or centrifugal compressors, a complete hot-standby transducer assembly — probe, cable, and proximitor — is the industry-standard recommendation to achieve sub-30-minute MTTR on a vibration monitoring loop failure.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a work permit and isolate the monitoring loop at the rack. Do not de-energize the entire rack if other channels are in service; use the individual channel bypass function in the 3300 XL rack to suppress the trip output for the affected channel only.

Step 2 — Gap measurement before removal: Record the installed gap voltage (target: –10.0 VDC ± 0.5 V at nominal gap) using a calibrated DVM at the proximitor output terminals. This baseline confirms whether the probe failure was electrical or mechanical.

Step 3 — Probe removal: Loosen the locknut and back the probe out carefully. Inspect the probe tip for impact damage, pitting, or contamination. Inspect the target surface for scoring or runout anomalies that may have caused the failure.

Step 4 — New probe installation: Thread the 330101-00-08-10-02-00 into the bracket and set the gap to the system-specified value (typically 1.0–1.5 mm / 40–60 mil for 8mm probes on steel targets). Torque the locknut to specification. Reconnect the extension cable — verify the 330130 series cable length matches the original to maintain system sensitivity.

Step 5 — Loop verification: With the proximitor energized, confirm output voltage is within the linear range. Check the DCS or historian for a clean, noise-free signal. Remove the channel bypass and confirm alarm and trip setpoints are active before returning the machine to service.

Step 6 — Documentation: Record the replacement in the CMMS with the new probe serial number, installed gap, and output voltage. Update the spare parts inventory to trigger reorder of the consumed unit.

Spare Parts Support FAQ

Q1: Is the 330101-00-08-10-02-00 a direct drop-in replacement for older 330101 series probes?
Yes. The 330101-00-08-10-02-00 is backward compatible with all 3300 XL 8mm standard proximity transducer systems. It will also function with legacy 7200 series proximitor drivers provided the supply voltage and cable length are within specification. Always verify the extension cable part number and total system length before installation to ensure sensitivity remains within the ±10% tolerance band.

Q2: What pre-shipment testing is performed on each unit?
Each 330101-00-08-10-02-00 unit undergoes functional verification prior to dispatch: output voltage linearity across the operating gap range is confirmed, insulation resistance of the integral cable is tested, and the connector interface is inspected for pin integrity and sealing. A test report is available upon request for critical-service applications.

Q3: How should this spare be stored in a maintenance inventory?
Store in the original anti-static packaging in a dry, temperature-controlled environment (10°C–40°C, <70% RH non-condensing). Avoid coiling the integral cable tighter than a 50mm bend radius. Recommended maximum shelf life before re-inspection is 3 years. Label with receipt date and assign to a dedicated vibration monitoring spare parts bin in your CMMS.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects, premature electrical failure under normal operating conditions, and non-conformance to published 3300 XL sensitivity and linearity specifications. It does not cover damage from incorrect installation gap, mechanical impact, chemical contamination, or use outside the rated temperature and voltage range. Warranty claims are processed with return of the defective unit and a completed failure report form.
