Bently Nevada 330101-00-08-10-11-00 Spare 3300 XL: Precision Replacement for Industrial Downtime Control

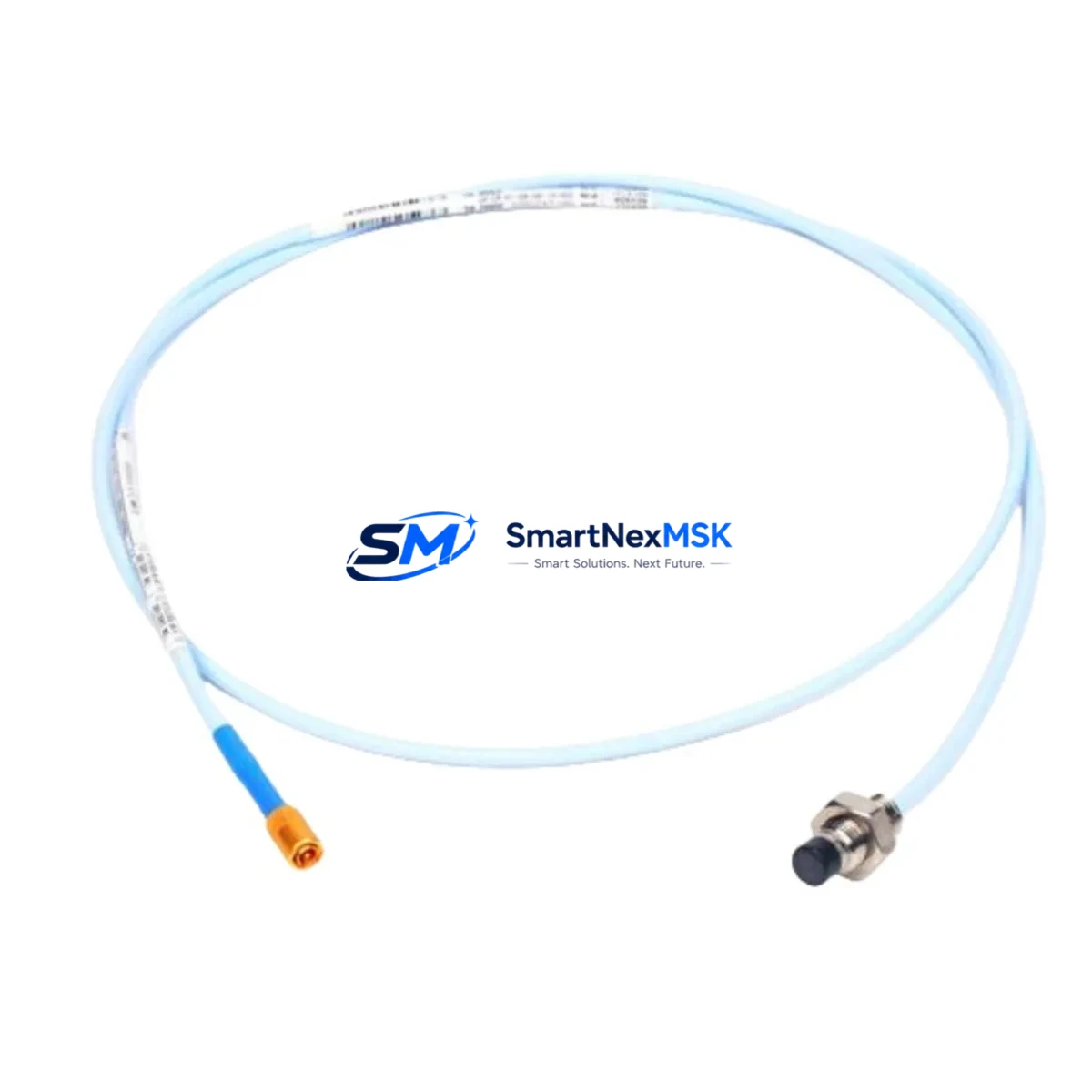

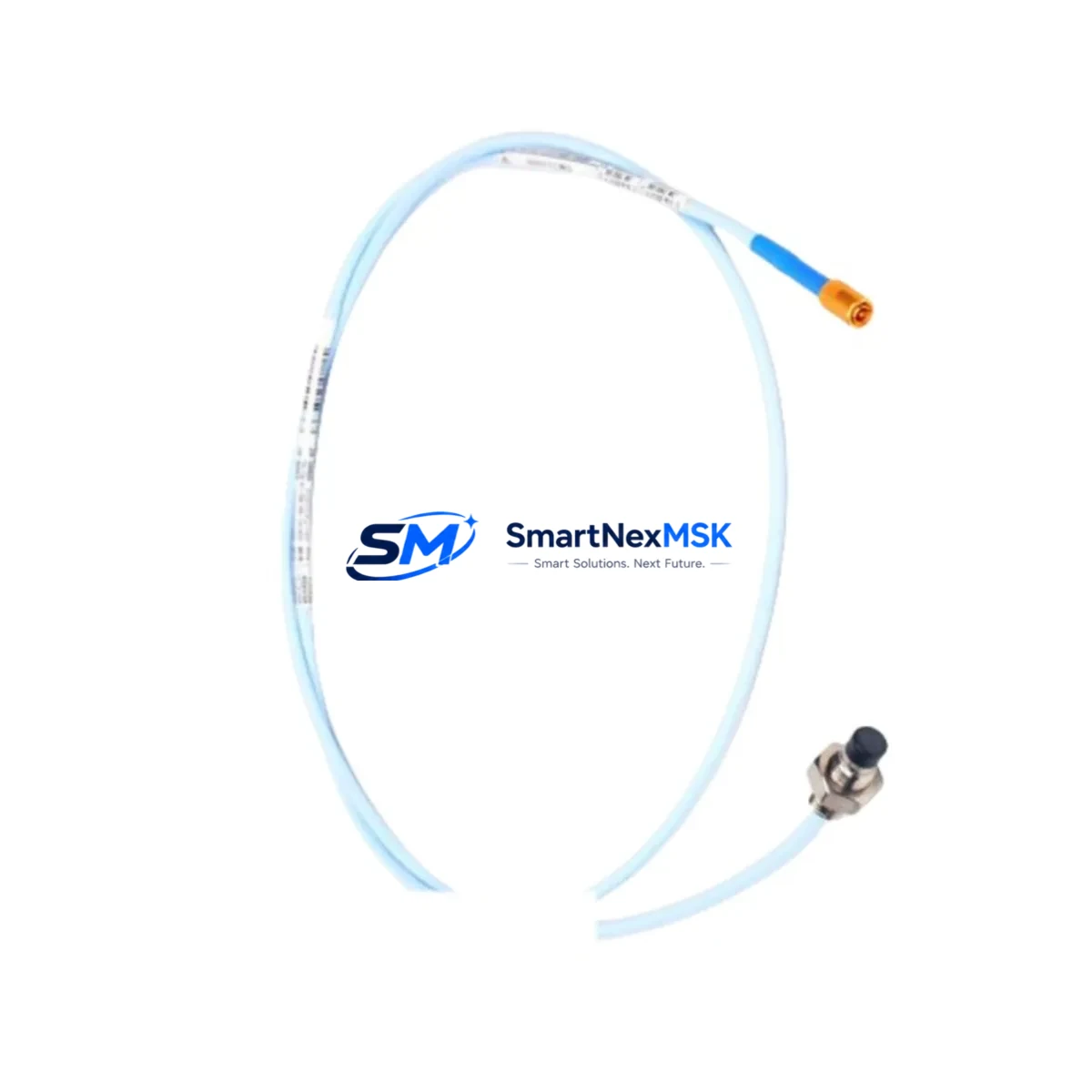

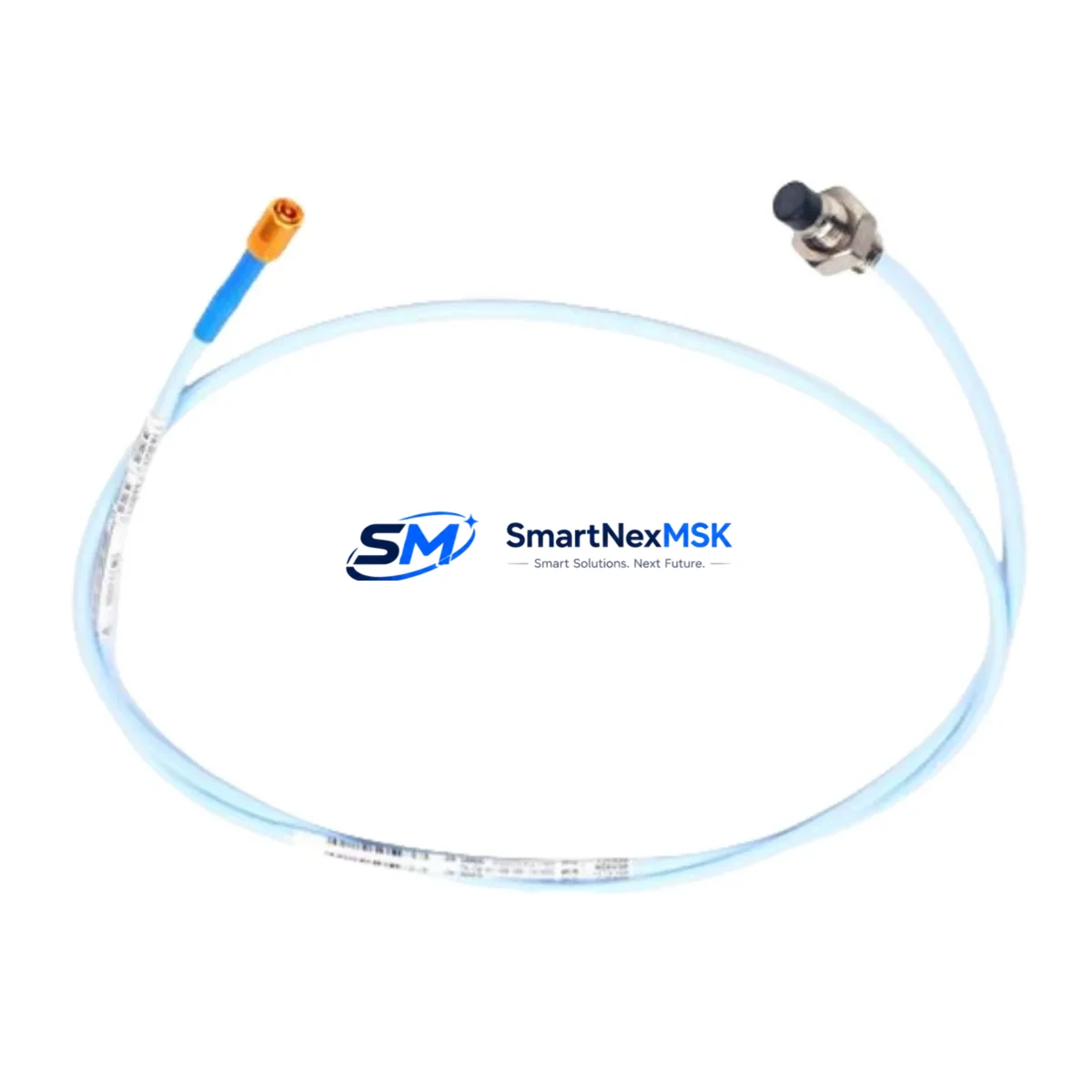

The Bently Nevada 330101-00-08-10-11-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring system. As a maintenance-ready original spare, it is designed to deliver direct drop-in replacement capability for rotating machinery protection panels, turbine monitoring cabinets, and compressor train surveillance systems. For maintenance engineers managing aging machinery protection infrastructure, having a verified, tested unit of the 330101-00-08-10-11-00 on the shelf is a critical element of any planned maintenance or emergency recovery strategy.

This probe operates within the Bently Nevada 3300 XL ecosystem, which includes the 3300 XL 8mm Extension Cable, the 3300 XL Proximitor Sensor, and the 3300 XL Monitor. When replacing the 330101-00-08-10-11-00 in the field, maintenance teams should simultaneously inspect the paired extension cable — typically the 330130 series — for insulation degradation, connector corrosion, or impedance drift that may have contributed to the original probe failure. A probe replacement without cable verification risks repeat faults within the same maintenance cycle.

Procurement engineers sourcing this part should note that the 330101-00-08-10-11-00 is compatible with standard 3300 XL Proximitor housings and does not require firmware reconfiguration at the monitor level. However, gap voltage verification using a calibrated oscilloscope or the Bently Nevada TK-3 calibration kit is strongly recommended after installation to confirm the probe-to-target gap is within the -10 VDC to -18 VDC linear range before returning the machine to service.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for machinery protection systems built around the Bently Nevada 3300 XL platform requires a holistic view of the entire signal chain. When the 330101-00-08-10-11-00 proximity probe is flagged for replacement during a scheduled outage or emergency shutdown, the following components in the same control cabinet or measurement loop should be inspected concurrently to prevent repeat failures and reduce total downtime:

The 3300 XL Extension Cable (330130 series) connects the probe to the Proximitor sensor and is subject to mechanical fatigue at conduit entry points. Inspect for jacket cracking, connector pin corrosion, and continuity. The 3300 XL Proximitor Sensor (330180 series) converts the probe’s oscillator signal to a DC voltage proportional to gap distance; verify its output voltage and oscillator frequency during the replacement window. The 3300 XL Vibration Monitor should have its channel configuration and alarm setpoints reviewed to ensure they remain aligned with the new probe’s calibration data.

Beyond the direct probe circuit, maintenance engineers should also inspect the 24 VDC power supply module feeding the Proximitor — voltage ripple or sag can cause false high-vibration trips. Terminal blocks and field wiring within the junction box should be checked for loose terminations, especially in high-vibration environments. If the system includes a 3500 Series rack or a System 1 condition monitoring platform, confirm that the channel mapping and engineering unit scaling are updated to reflect the replacement probe’s sensitivity factor (typically 7.87 V/mm for 8mm probes).

For facilities running older DCS or safety instrumented systems (SIS) that rely on 4–20 mA retransmission from the vibration monitor, the signal isolator or barrier module in the loop should be tested for output accuracy. Fuse holders and MCBs protecting the monitoring cabinet power rail are often overlooked during probe replacements but are a common source of intermittent supply faults. Stocking a spare 3300 XL Proximitor alongside the 330101-00-08-10-11-00 probe is a best practice for critical machinery trains where unplanned downtime carries high production cost.

Site Replacement Workflow

Replacing the 330101-00-08-10-11-00 in the field follows a structured sequence to minimize downtime and ensure system integrity. Begin by isolating the measurement channel at the monitor and documenting the existing gap voltage and vibration baseline from the historian or DCS trend display. Remove the existing probe from the mounting bracket, noting the thread engagement depth for reference during reinstallation.

Install the replacement 330101-00-08-10-11-00 to the same thread depth, then connect the extension cable and verify the Proximitor output voltage falls within the -10 VDC to -18 VDC linear range at the nominal air gap (typically 1.0–1.5mm for 8mm probes on steel targets). Compare the new baseline vibration reading against the pre-replacement historian data to confirm the channel is functioning correctly before releasing the machine to operations.

For legacy systems where the original 330101-00-08-10-11-00 has been discontinued or is difficult to source, this unit provides a direct functional replacement without requiring changes to the Proximitor driver card, monitor configuration, or DCS I/O mapping. This compatibility preserves the integrity of the existing machinery protection logic and avoids the cost and risk of a full system upgrade during an unplanned outage.

Spare Parts Support FAQ

Q: Is the 330101-00-08-10-11-00 compatible with both the 3300 XL and older 3300 series monitors?
A: The 330101-00-08-10-11-00 is designed for the 3300 XL platform. Compatibility with earlier 3300 series monitors depends on the Proximitor driver version. We recommend confirming the Proximitor part number before ordering if your system predates the 3300 XL generation.

Q: What testing is performed before dispatch?
A: Each unit undergoes functional verification including oscillator frequency check, gap voltage linearity test across the full measurement range, and connector integrity inspection. A test report is available upon request and ships with the unit.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the specified temperature and gap range. Warranty claims are supported with return-and-replace logistics.

Q: Can you supply multiple units for a planned outage spare kit?
A: Yes. We support bulk spare kit orders for planned shutdowns and turnaround maintenance. Lead times and pricing for multi-unit orders are available on request. Long-term supply agreements for critical spare inventories are also supported.
