Bently Nevada 330101-00-08-15-01-00 3300 XL Probe Spare

Bently Nevada 330101-00-08-15-01-00 3300 XL Probe Spare: Precision Spare for Industrial Vibration Monitoring

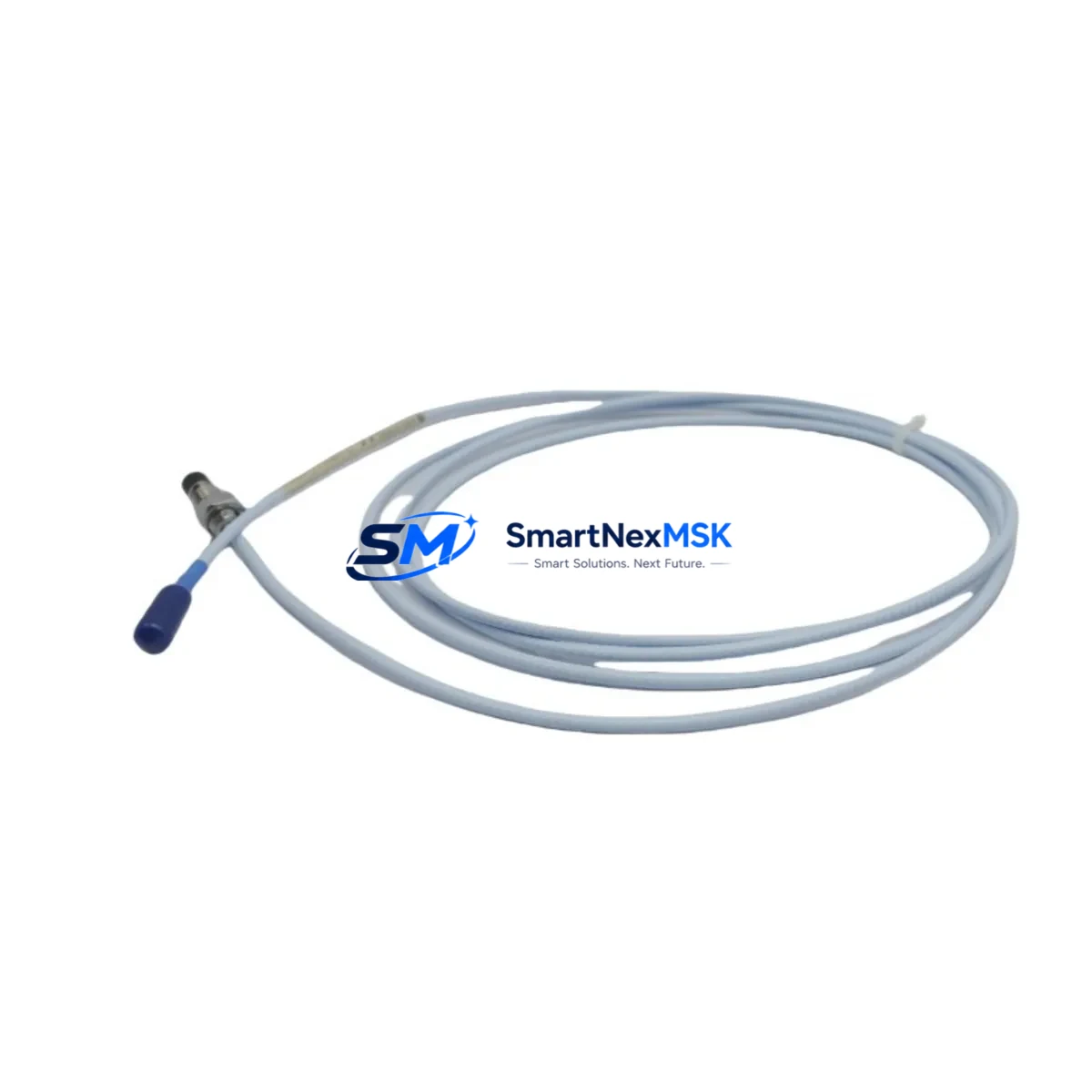

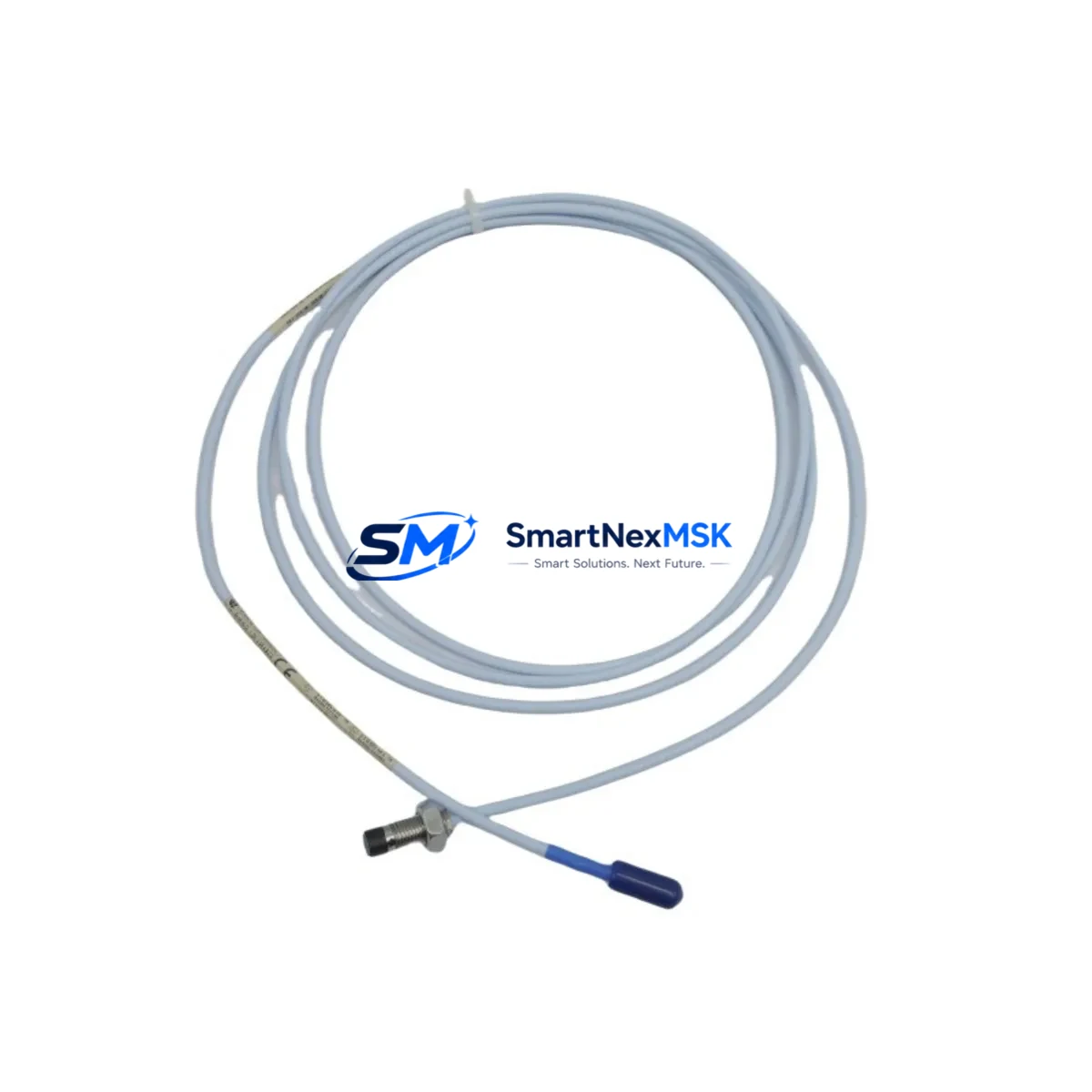

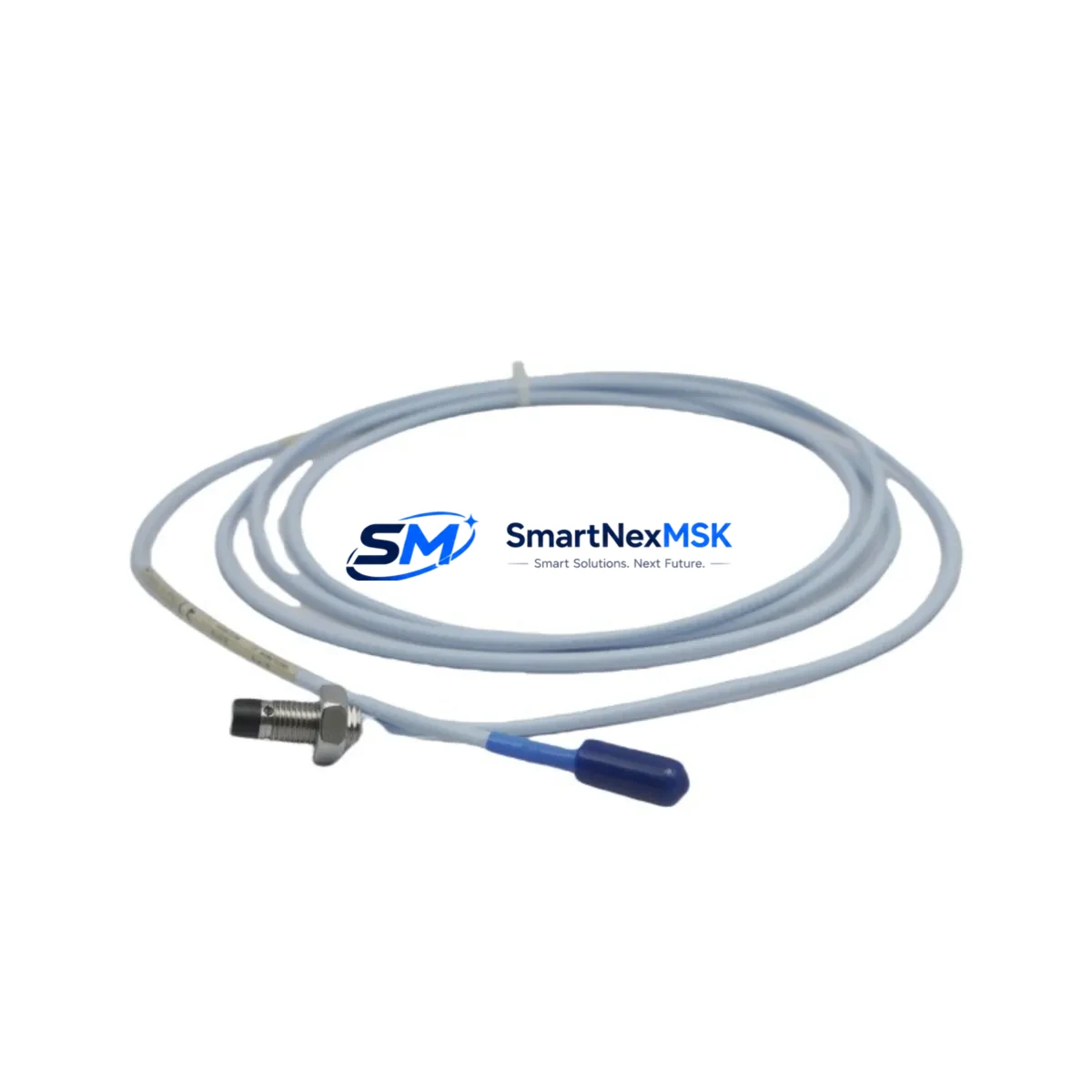

The Bently Nevada 330101-00-08-15-01-00 is an original 8mm Eddy-Current Proximity Probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed for rotating machinery protection in turbines, compressors, pumps, and gearboxes, this probe delivers reliable shaft displacement and radial vibration measurements in demanding industrial environments. As a maintenance-ready spare, it supports rapid field replacement to minimize unplanned downtime and restore machine protection integrity without system reconfiguration.

Whether you are managing a planned outage, responding to a probe failure alarm, or building a critical spare inventory for a turbomachinery train, the 330101-00-08-15-01-00 is a direct, plug-compatible replacement for aging or damaged probes in the 3300 XL monitoring loop. Its 8mm tip diameter, standard 5-metre cable configuration, and -15 VDC bias voltage output ensure seamless integration with existing 3300 XL proximitor/extension cable assemblies without recalibration of the monitoring rack.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-08-15-01-00 proximity probe during a scheduled outage or emergency callout, maintenance engineers should treat the replacement as an opportunity to audit the entire vibration monitoring loop. The probe does not operate in isolation — its accuracy and reliability depend on the condition of every component in the signal chain.

Begin by inspecting the 3300 XL 8mm Proximitor module (typically a 330180-series unit) mounted in the field junction box. Proximitor modules are subject to thermal cycling and moisture ingress; a degraded proximitor will produce erratic gap voltage readings even with a new probe installed. If the proximitor has been in service for more than five years or shows signs of corrosion on the connector pins, replace it concurrently.

Next, examine the 330130-series extension cable connecting the probe to the proximitor. Cable jacket cracking, connector corrosion, or shield continuity loss are common failure modes in high-vibration environments. A damaged extension cable will introduce noise into the displacement signal and trigger false alarms at the 3300/16 or 3500/42M monitor rack. Verify shield continuity and insulation resistance before closing the junction box.

At the monitor rack level, confirm that the 3500/42M Proximitor I/O Module or equivalent 3300-series I/O card is correctly configured for 8mm probe scale factor (7.87 V/mm). If the rack has been recently serviced or firmware updated, re-verify the channel configuration against the original loop drawing. Also inspect the 3500/15 Power Supply module — an unstable -24 VDC supply rail will affect proximitor bias voltage and corrupt vibration readings across all channels in the rack.

For machinery trains where the 330101-00-08-15-01-00 monitors a compressor or steam turbine, it is good practice to simultaneously verify the condition of the 330500-series thrust position probe and the 330750-series key phasor probe on the same shaft. These probes share the same environmental exposure and often reach end-of-life at similar intervals. Replacing all three probe types during a single planned outage eliminates the risk of a secondary probe failure forcing another unplanned shutdown within the same maintenance cycle.

Finally, check the Bently Nevada 3500/22M Transient Data Interface or the plant DCS historian connection to confirm that vibration trend data is being archived correctly. A gap in historical vibration data caused by a faulty probe can mask developing bearing defects and compromise predictive maintenance decisions. Ensure the replacement probe is logged in the CMMS with its installation date, gap voltage at commissioning, and serial number to support future lifecycle tracking.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a hot-work or confined-space permit as applicable. Isolate the monitor channel at the 3500 rack to suppress false trip alarms during probe removal. Do not de-energize the proximitor supply unless required by site safety rules — maintaining bias voltage allows you to verify the new probe gap voltage immediately after installation.

Step 2 — Probe Removal: Disconnect the extension cable at the probe connector. Using the correct spanner, unthread the probe from the bracket. Note the existing gap (number of turns from flush) for reference. Inspect the probe tip for impact damage or target surface contamination that may have contributed to the failure.

Step 3 — New Probe Installation: Thread the 330101-00-08-15-01-00 into the bracket by hand until the tip is approximately 1.0 mm from the shaft surface. Connect the extension cable. Apply power and measure the DC gap voltage at the proximitor output terminal. Adjust the probe gap until the bias voltage reads within the linear range (typically -10.0 VDC ± 0.5 VDC for mid-gap on a 4140 steel target). Lock the probe with the jam nut.

Step 4 — Functional Verification: Restore the monitor channel. Observe the vibration reading at slow-roll speed to confirm a clean, low-noise signal. Compare the reading against the pre-outage baseline. If the reading is elevated, inspect the target area for runout or surface damage before returning the machine to service.

Step 5 — Documentation: Record the new probe serial number, installed gap voltage, and date in the CMMS. Update the spare parts inventory to trigger a replenishment order for the consumed 330101-00-08-15-01-00 unit, maintaining the recommended on-hand quantity for critical machinery.

Spare Parts Support FAQ

Q1: Is the 330101-00-08-15-01-00 a direct replacement for older 330101-series probes?
Yes. The 330101-00-08-15-01-00 is backward compatible with all 3300 XL 8mm monitoring loops. It uses the same connector, cable interface, and scale factor as earlier 330101-series variants. No reconfiguration of the proximitor or monitor rack is required when replacing a like-for-like unit on a 4140 steel target.

Q2: What is included in the 12-month warranty?
Every 330101-00-08-15-01-00 unit supplied by SMARTNEXMSK is covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing including gap voltage linearity verification. A test report is available upon request. Warranty claims are processed with priority to minimize customer downtime.

Q3: How many units should I stock for a critical turbomachinery application?
For a single turbomachinery train with four radial vibration channels, a minimum of two 330101-00-08-15-01-00 probes is recommended as on-hand critical spares. For plants operating multiple trains or in remote locations with extended lead times, a stock of four to six units is advisable. Pairing the probe stock with at least one spare 330180-series proximitor and one 330130-series extension cable ensures the complete monitoring loop can be restored without waiting for parts.

Q4: Can you supply the 330101-00-08-15-01-00 for long-term or blanket purchase orders?
Yes. SMARTNEXMSK supports long-term supply agreements for critical spare parts. We maintain dedicated inventory allocation for repeat customers and can provide scheduled delivery programs aligned with your annual maintenance calendar. Contact our team to discuss volume pricing, consignment stock arrangements, and lead-time guarantees for your facility.
