Bently Nevada 330101-00-08-15-02-CN 3300 XL Spare

Bently Nevada 330101-00-08-15-02-CN 3300 XL Spare: Precision Replacement for Industrial Downtime Control

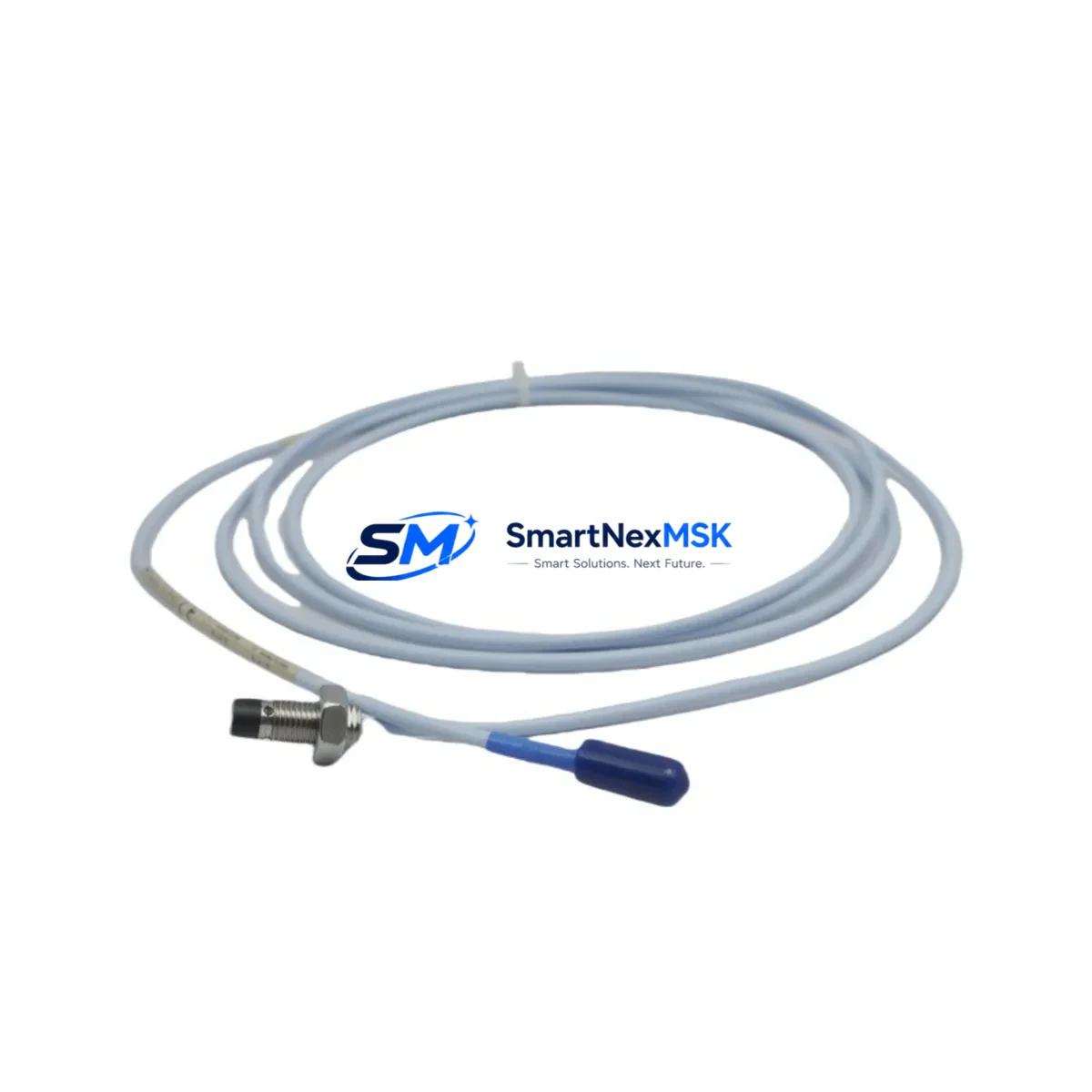

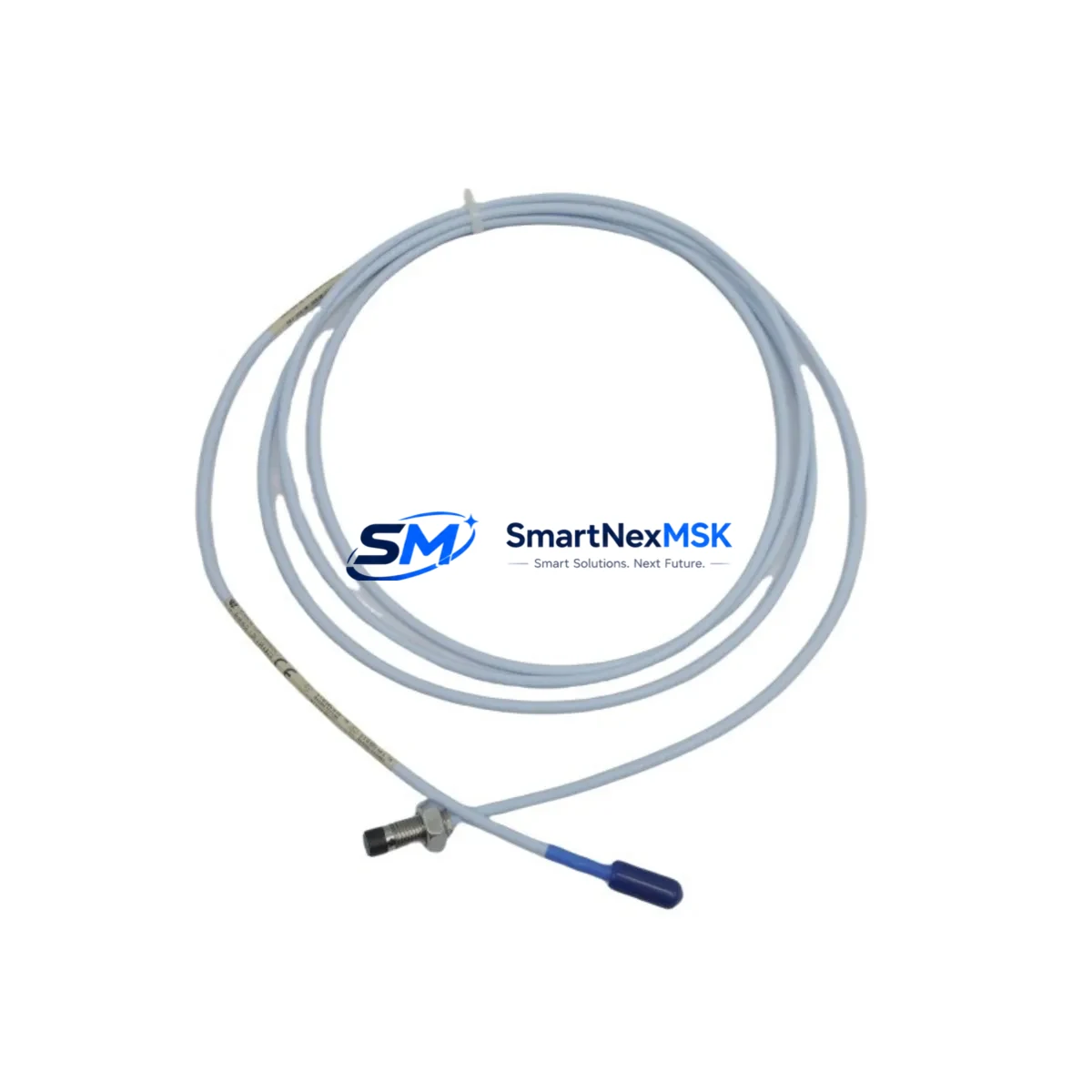

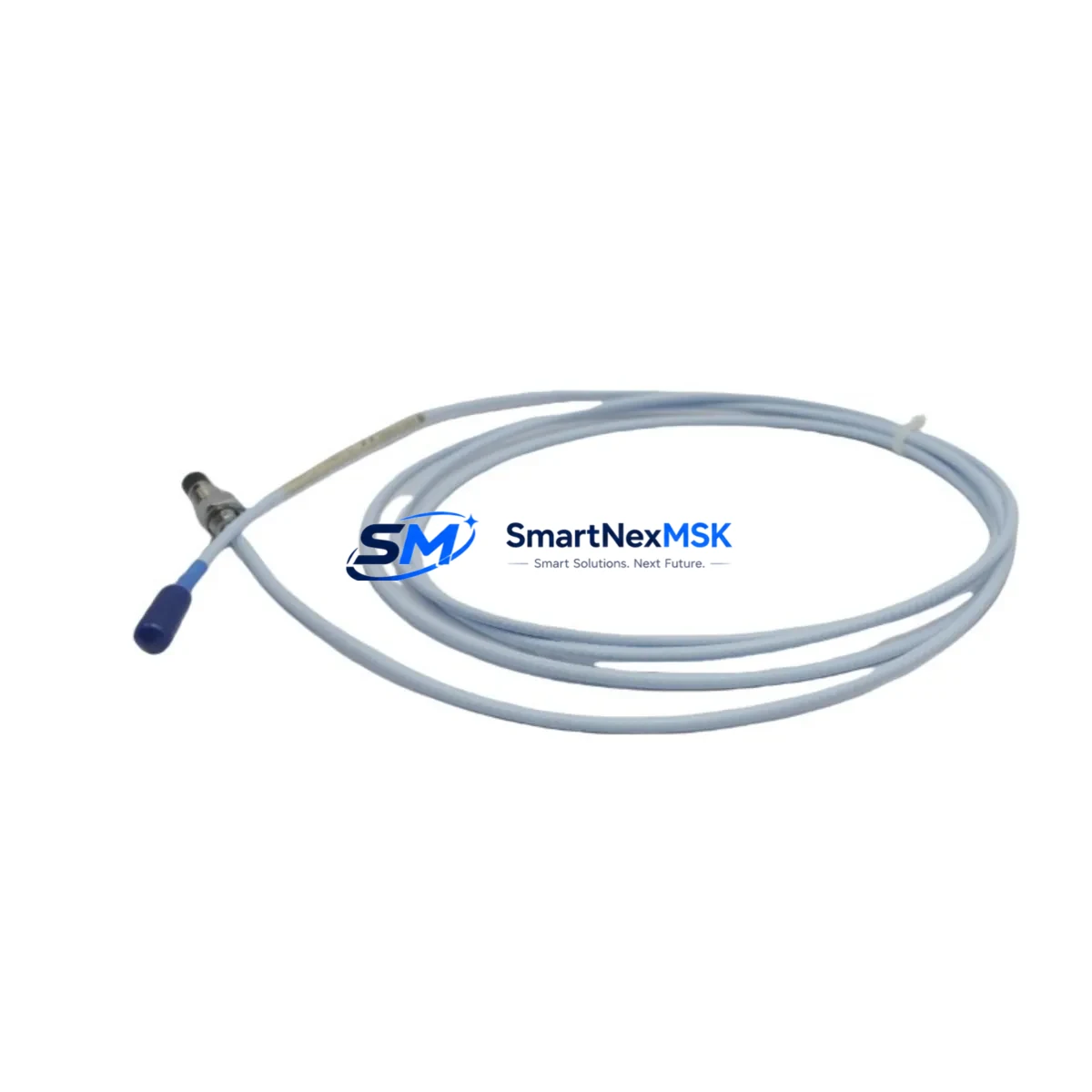

The Bently Nevada 330101-00-08-15-02-CN is an original 8mm Eddy Current Proximity Probe engineered for the 3300 XL Proximity Transducer System — one of the most widely deployed vibration and position monitoring platforms in rotating machinery protection worldwide. Whether you are managing a planned turnaround, responding to an unplanned trip, or building a strategic spare parts inventory for a critical asset, this probe delivers the dimensional accuracy, signal linearity, and environmental robustness required for continuous operation in demanding industrial environments including oil and gas, power generation, petrochemical, and heavy manufacturing.

Maintenance engineers and reliability teams rely on the 3300 XL system for shaft radial vibration, axial position, and differential expansion monitoring on steam turbines, gas turbines, compressors, and large pumps. When a probe fails or degrades — whether due to cable damage, connector corrosion, tip wear, or calibration drift — the fastest path to restoring machine protection is a verified, tested, drop-in replacement. The 330101-00-08-15-02-CN is stocked, tested, and ready to ship, eliminating the lead-time risk that turns a minor fault into an extended outage.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330101-00-08-15-02-CN in the field is rarely an isolated task. A disciplined maintenance engineer will treat a probe replacement as an opportunity to inspect the entire measurement chain and the surrounding control cabinet infrastructure. Begin with the 3300 XL Proximitor Sensor (330180-91-00) — the signal conditioning module that pairs with this probe. If the probe has been operating in a high-vibration or high-temperature zone for an extended period, the Proximitor should be bench-tested for output linearity before reinstallation.

Next, inspect the 3300 XL Extension Cable (330130-080-12-00) that connects the probe to the Proximitor. Cable jacket cracking, connector pin corrosion, and shield continuity failures are common failure modes in hot, oily environments and are frequently misdiagnosed as probe faults. A simple continuity and insulation resistance check can save hours of troubleshooting.

At the rack level, verify the 3500/42M Proximitor I/O Module or equivalent 3300 series I/O card for correct channel configuration, OK relay status, and alarm setpoint integrity. Simultaneously, check the 3500/15 Power Supply Module — an aging or undersized power supply is a common root cause of intermittent probe OK faults that are incorrectly attributed to the probe itself.

For systems integrated with a DCS or safety instrumented system, confirm that the 4–20 mA output signal from the Proximitor is reaching the DCS input card correctly. Inspect terminal blocks, signal isolators, and any MTL or P+F Zener barriers in the loop if the installation is in a hazardous area. A degraded barrier can introduce noise or clamp the signal, causing false alarms.

If the machine is also equipped with a 3300 XL Velomitor or accelerometer for high-frequency casing vibration monitoring, this is an appropriate time to verify its mounting torque and cable integrity as part of the same work order. Bundling these checks reduces future access requirements on sealed or insulated machinery.

For facilities managing legacy 3300 (non-XL) systems alongside newer 3500 series racks, maintaining a cross-referenced spare parts list that includes both 330101 series probes and compatible 330180 Proximitor Sensors is strongly recommended. Mixing XL and non-XL components without recalibration is a known source of measurement error that can go undetected until a machine trip occurs.

Finally, document the as-found and as-left gap voltage readings during every probe replacement. This data, recorded against the Bently Nevada System 1 software historian or your CMMS, provides the trending baseline needed to predict future probe degradation before it causes a protective shutdown.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a confined space or hot work permit as applicable. De-energize the Proximitor channel at the 3500/15 or 3300 power supply. Confirm OK relay has dropped out and the DCS has acknowledged the channel bypass.

Step 2 — As-Found Documentation: Record the existing gap voltage (target: −10 to −18 VDC for standard 8mm probes on steel targets). Photograph the probe tip condition, cable routing, and connector seating. Note any signs of tip wear, corrosion, or mechanical contact with the shaft.

Step 3 — Probe Removal: Loosen the locknut and back the probe out carefully. Avoid rotating the integral cable. Inspect the probe boss threads and clean with a thread chaser if necessary.

Step 4 — New Probe Installation: Install the 330101-00-08-15-02-CN and set the gap to the manufacturer-specified linear midpoint (typically 1.0 mm / −10.5 VDC for 8mm probes on AISI 4140 steel). Torque the locknut to specification and secure the cable with appropriate clamps to prevent vibration-induced fatigue.

Step 5 — System Verification: Re-energize the Proximitor and confirm OK relay pull-in. Verify gap voltage, static output, and alarm relay function at the 3500 rack or local display. Remove the channel bypass in the DCS and confirm the historian is receiving valid data.

Step 6 — As-Left Documentation: Record final gap voltage, update the CMMS work order, and log the replacement in the spare parts consumption record. This supports future inventory replenishment planning and warranty tracking.

This workflow is applicable to both planned outage replacements and emergency corrective maintenance scenarios. The 330101-00-08-15-02-CN is a direct, no-modification replacement for the same SKU in service, eliminating compatibility risk and reducing total replacement time to under two hours for experienced technicians.

Spare Parts Support FAQ

Q1: Is the 330101-00-08-15-02-CN compatible with both 3300 and 3300 XL Proximitor Sensors?
The 330101-00-08-15-02-CN is specifically calibrated for the 3300 XL system. While the physical connector and thread dimensions are similar to earlier 3300 series probes, the sensitivity calibration (7.87 V/mm) is matched to the 3300 XL Proximitor. Using this probe with a non-XL Proximitor without recalibration will result in measurement error. Always verify the Proximitor part number before ordering.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-00-08-15-02-CN unit is tested for output sensitivity, linearity across the full linear range, OK relay threshold, and connector integrity before shipment. A test report is available upon request. Units are shipped in anti-static, moisture-resistant packaging to preserve calibration integrity during transit.

Q3: How should this probe be stored as a long-term spare?
Store in a dry, temperature-controlled environment (15–25 °C) away from strong magnetic fields and mechanical shock. Keep the connector capped and the probe tip protected. Inspect annually for connector pin oxidation and cable jacket condition. Properly stored units maintain calibration stability for 3–5 years.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, calibration deviation beyond OEM specification, and connector or cable integrity failures under normal operating conditions. It does not cover damage resulting from mechanical contact with the shaft, improper installation torque, or operation outside the specified temperature and voltage range. Warranty claims are processed with return shipment support and replacement dispatch within 5 business days.
