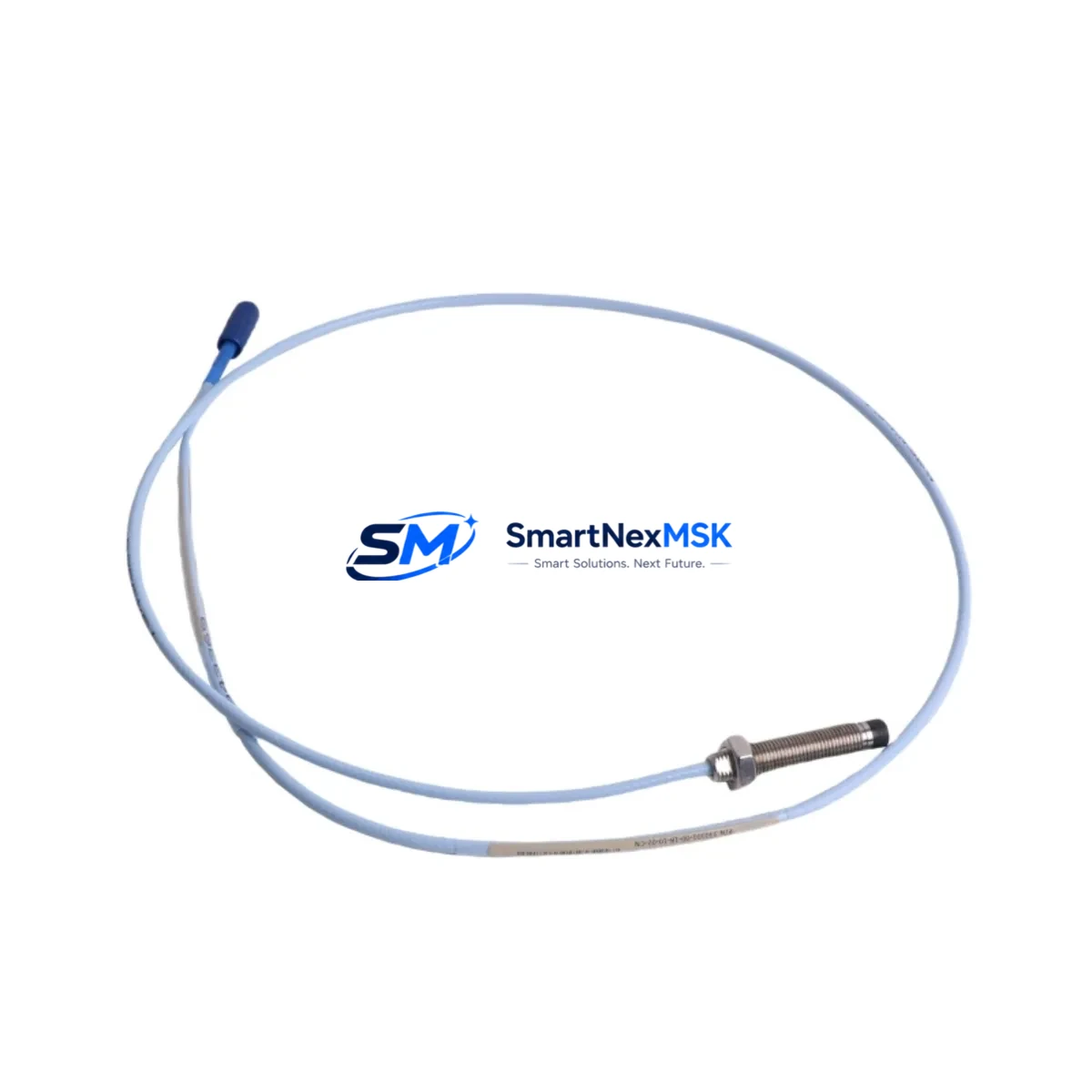

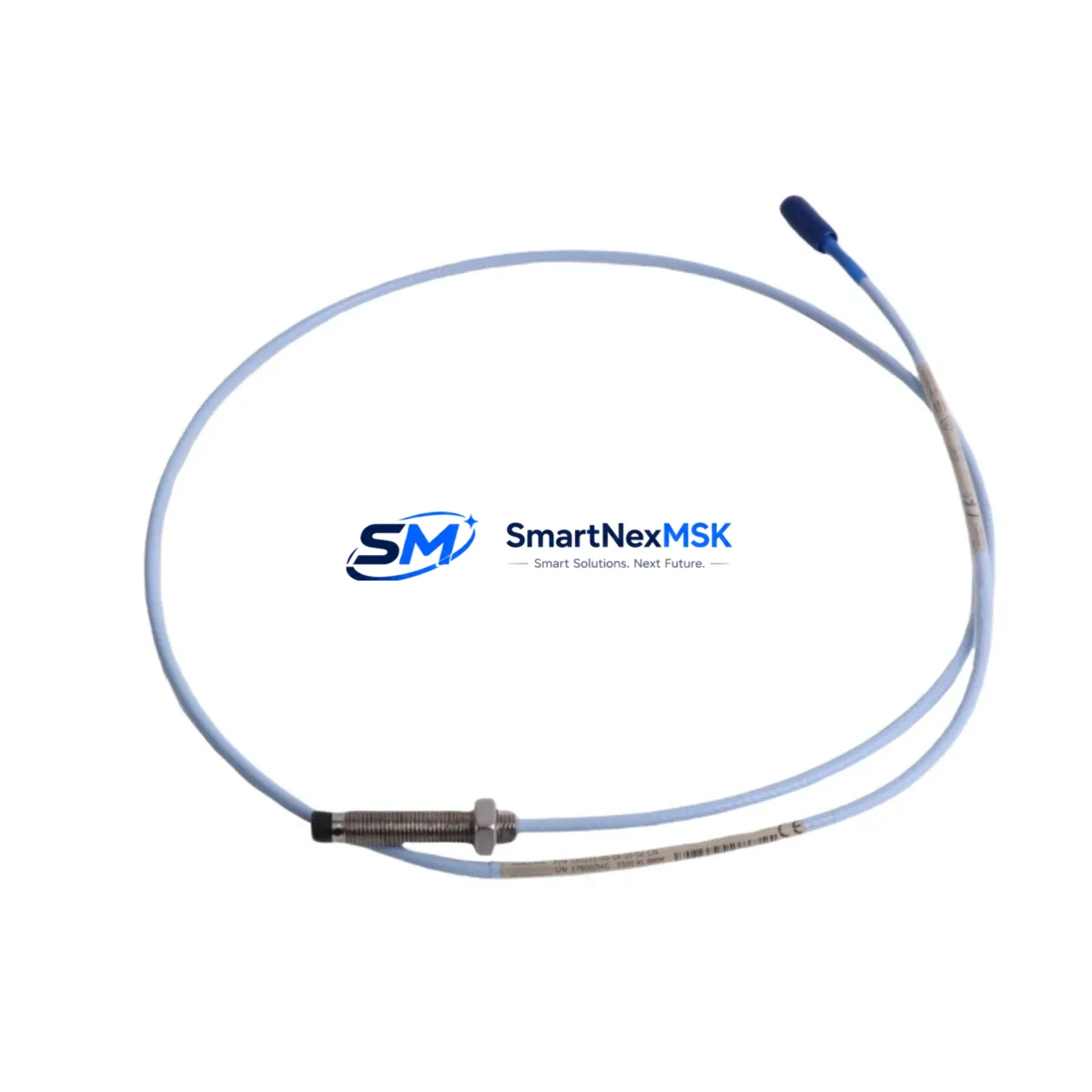

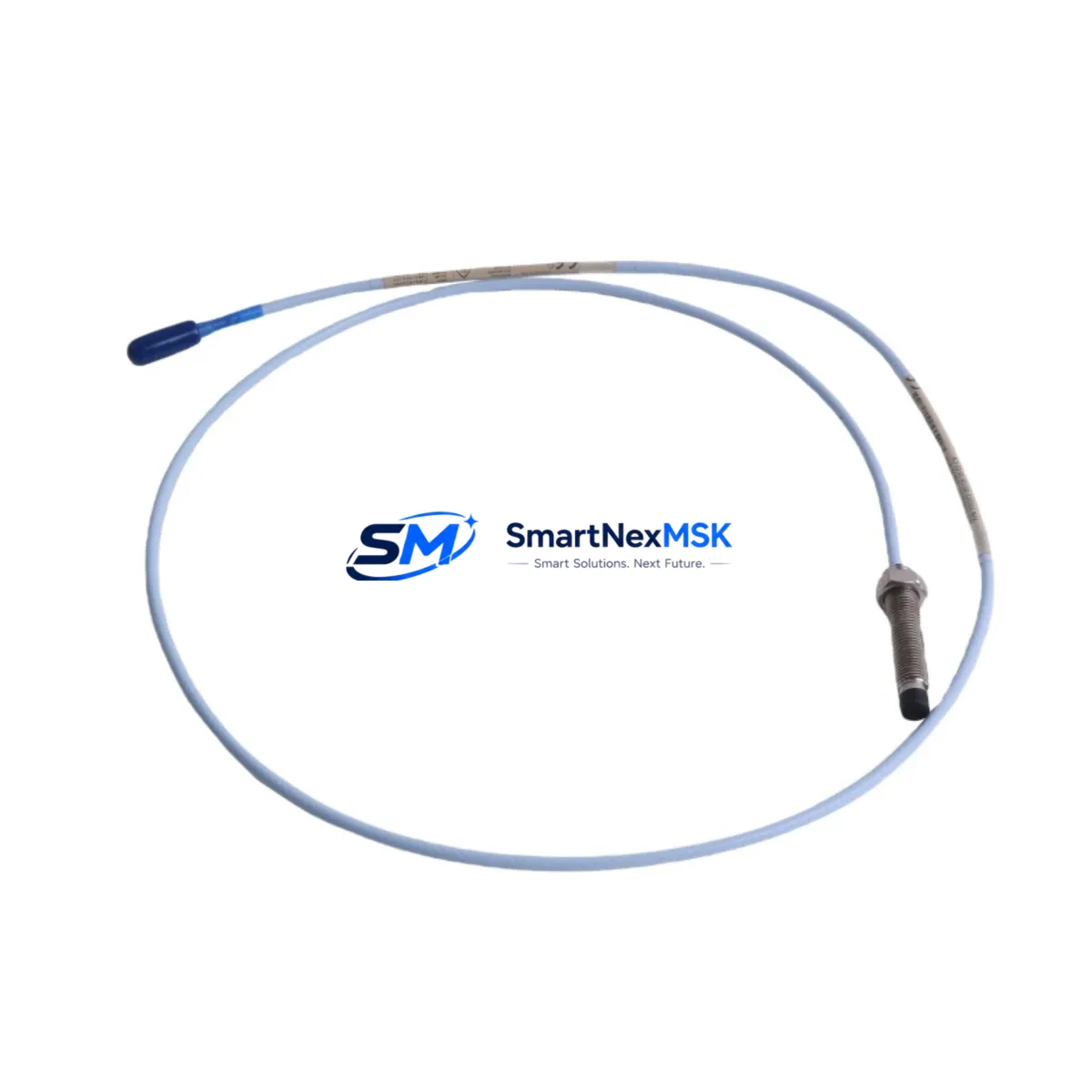

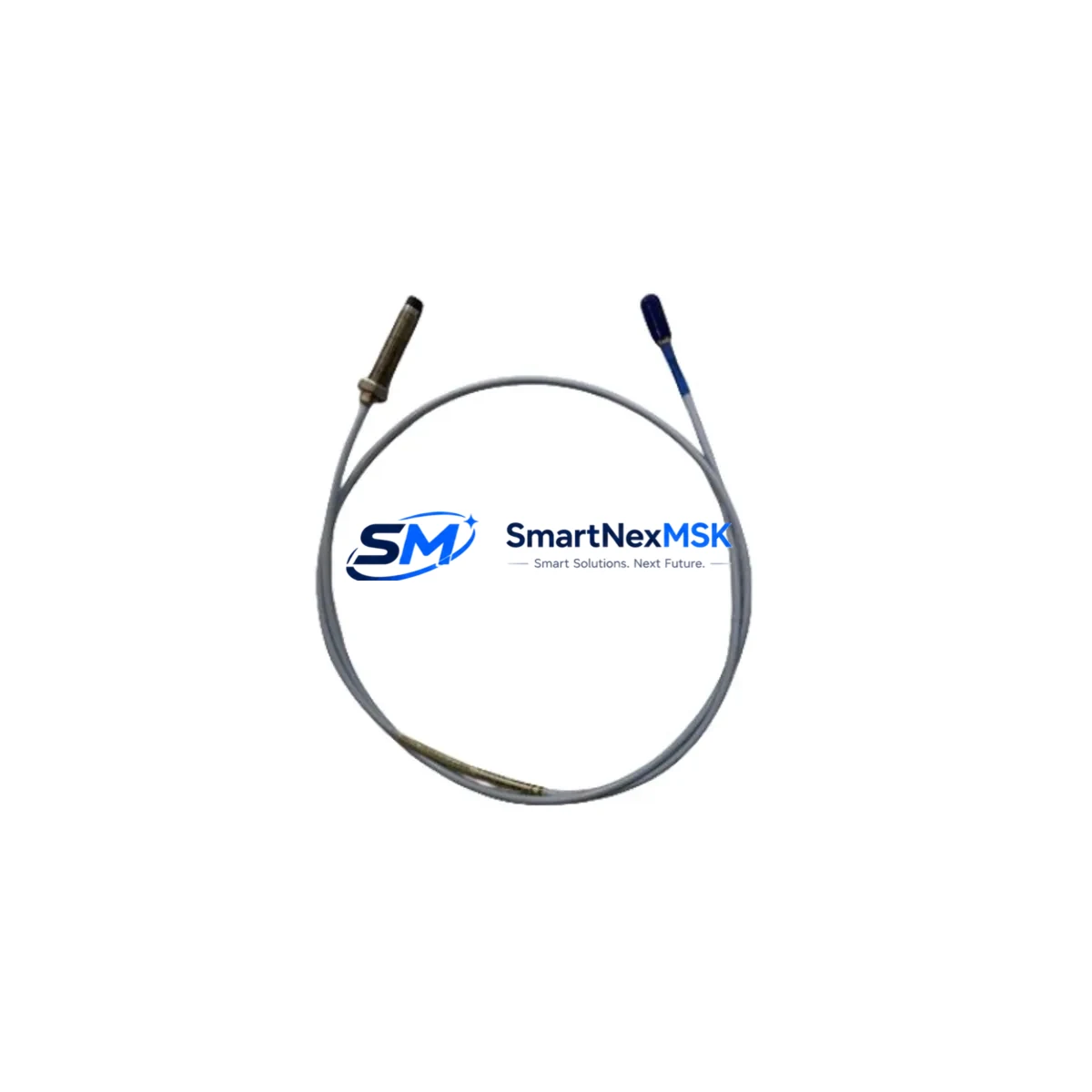

Bently Nevada 330101-00-10-10-02-00 Spare 3300 XL Automation: Precision Spare for Industrial Vibration Monitoring

The Bently Nevada 330101-00-10-10-02-00 is an original eddy-current proximity probe engineered for the 3300 XL continuous vibration monitoring system. Designed for rotating machinery protection in turbines, compressors, pumps, and motors, this probe delivers reliable shaft displacement and position measurement in demanding industrial environments. As a maintenance-ready spare, it enables rapid field replacement without system reconfiguration, minimizing unplanned downtime and protecting critical rotating assets.

For maintenance engineers managing condition monitoring infrastructure, having a verified OEM spare on the shelf is the single most effective strategy for reducing mean time to repair (MTTR). The 330101-00-10-10-02-00 is a direct replacement for worn or damaged probes in existing 3300 XL installations, preserving calibration traceability and system certification integrity. Each unit is tested prior to dispatch and ships with a 12-month warranty covering manufacturing defects and performance conformance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-10-10-02-00 proximity probe in a 3300 XL monitoring loop, a thorough inspection of the surrounding measurement chain is essential to ensure the replacement restores full system integrity. Maintenance engineers should begin by verifying the condition of the 3300 XL Proximitor® Sensor (typically the 330180 or 330130 series), as probe and sensor are a matched system — a degraded sensor will compromise the calibrated output of a new probe.

The extension cable connecting the probe to the Proximitor® (commonly the 330130-080-00-00 or equivalent armored extension) should be inspected for insulation damage, connector corrosion, and continuity. Cable impedance drift is a frequent source of false alarms and calibration offset in eddy-current systems. Alongside the cable, check the barrier terminal blocks and field junction boxes for moisture ingress and terminal oxidation, particularly in outdoor or wash-down environments.

At the rack level, inspect the 3500/42M Proximitor®/Seismic Monitor or equivalent 3300 series monitor card for firmware currency and channel calibration records. If the plant uses a 3500 Rack System, verify that the 3500/20 Rack Interface Module (RIM) and 3500/92 Communication Gateway are functioning correctly, as communication faults can mask genuine vibration alarms. For older installations, the 3300/16 Monitor should be checked for relay output integrity — relay contacts in alarm output circuits are a common wear item in high-cycle environments.

Power supply integrity is critical: the 3500/15 Power Supply Module or equivalent DIN-rail 24 VDC supply feeding the Proximitor® should be load-tested during planned maintenance windows. Voltage sag under load can shift the probe gap voltage and trigger nuisance trips. Additionally, review the signal isolator or 4–20 mA transmitter in the output loop if the vibration signal is retransmitted to a DCS or safety system — signal isolators age and introduce offset errors that are easily mistaken for mechanical deterioration.

For plants running API 670-compliant machinery protection, ensure that the full probe-cable-sensor system is recalibrated as a matched set after replacement, and that calibration records are updated in the CMMS. Stocking a matched spare set — probe, extension cable, and Proximitor® sensor — is the recommended strategy for critical machinery where any delay in restoration carries significant production risk.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and isolate the monitoring channel at the 3500 or 3300 rack. Do not de-energize the full rack if other channels are in active protection service.

Step 2 — Gap Measurement: Before removing the old probe, record the existing gap voltage using a calibrated voltmeter at the Proximitor® output terminals. This baseline confirms whether the fault is in the probe, cable, or sensor.

Step 3 — Probe Removal: Using the correct spanner for the M10 thread, remove the probe carefully to avoid damaging the target surface. Inspect the probe tip for impact marks or chemical attack — this indicates a machinery or process issue that must be addressed independently.

Step 4 — Installation of 330101-00-10-10-02-00: Install the new probe to the manufacturer-specified gap (typically 1.0 mm ± 0.1 mm for standard 8 mm probes). Apply thread-locking compound per site standards. Reconnect the extension cable and verify connector seating.

Step 5 — Calibration Verification: Power the Proximitor® and measure the output gap voltage. Confirm it falls within the linear range (-10 VDC ± 1 VDC at nominal gap). Compare against the system calibration curve. If deviation exceeds ±5%, perform a full system calibration with the matched probe-cable-sensor set.

Step 6 — Functional Test and Return to Service: Restore the monitoring channel, verify alarm setpoints are active, and confirm the DCS or safety system is receiving a valid signal. Update the CMMS with the replacement date, new probe serial number, and calibration data.

This workflow is applicable to both planned turnaround replacements and emergency corrective maintenance, and is designed to minimize channel downtime to under two hours for a prepared maintenance team.

Spare Parts Support FAQ

Q1: Is the 330101-00-10-10-02-00 compatible with both 3300 XL 8mm and 11mm Proximitor® Sensors?
The 330101-00-10-10-02-00 is an 8 mm eddy-current probe designed for use with the 3300 XL 8mm Proximitor® Sensor system. It is not interchangeable with 11 mm probe systems without recalibration and sensor replacement. Always verify the Proximitor® model number before ordering to ensure a matched system replacement.

Q2: What is included in the 12-month warranty, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects, performance non-conformance to published specifications, and premature failure under normal operating conditions. To initiate a claim, contact our sales team with the order number, installation date, and a description of the fault. We will arrange return logistics and provide a replacement or credit within 10 business days of receiving the returned unit.

Q3: How do you verify the unit before shipment?
Each 330101-00-10-10-02-00 unit undergoes pre-shipment electrical testing including coil impedance measurement, insulation resistance check, and gap voltage linearity verification. Test records are available upon request. Units are shipped in anti-static packaging with protective tip covers to prevent transit damage.

Q4: Can this probe be used as a long-term stocking spare for legacy 3300 XL systems that are no longer in active production?
Yes. The 330101-00-10-10-02-00 remains a recommended stocking spare for legacy 3300 XL installations. For plants committed to extending the service life of existing machinery protection systems, we recommend stocking a minimum of two probe-cable-sensor sets per critical machine train. We maintain long-term supply capability and can support blanket purchase orders for multi-year inventory programs.
