Bently Nevada 330101-00-12-05-02-05 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330101-00-12-05-02-05 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

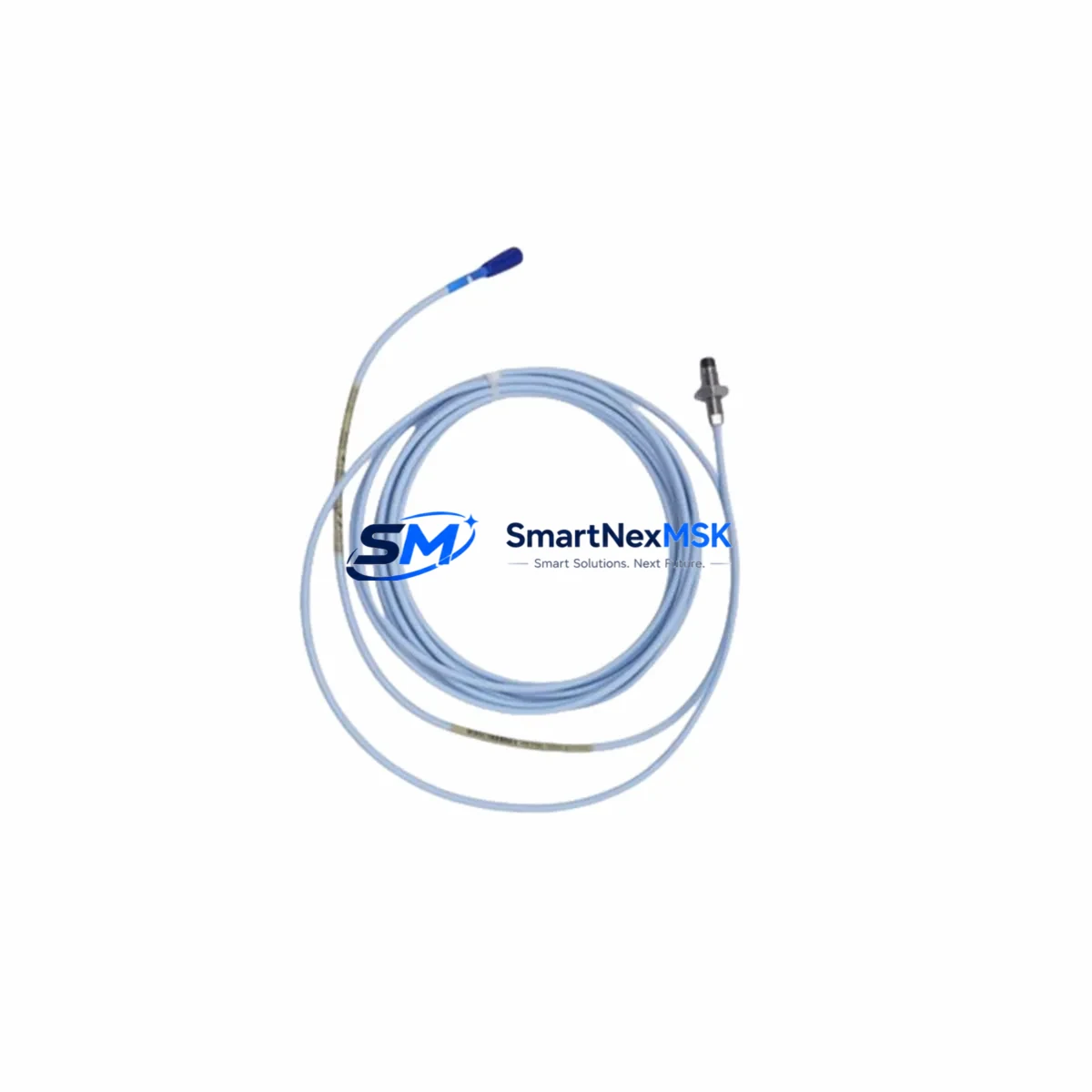

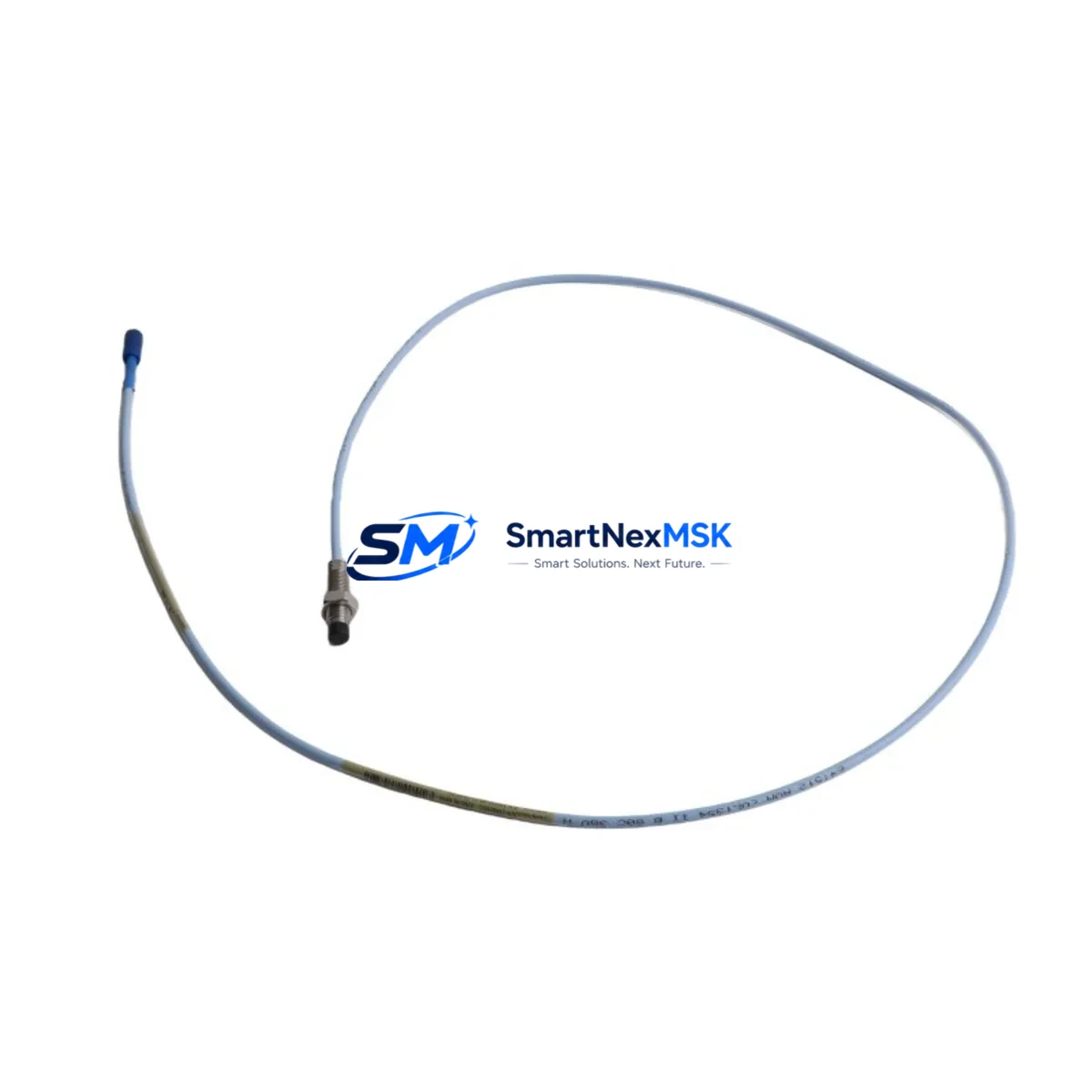

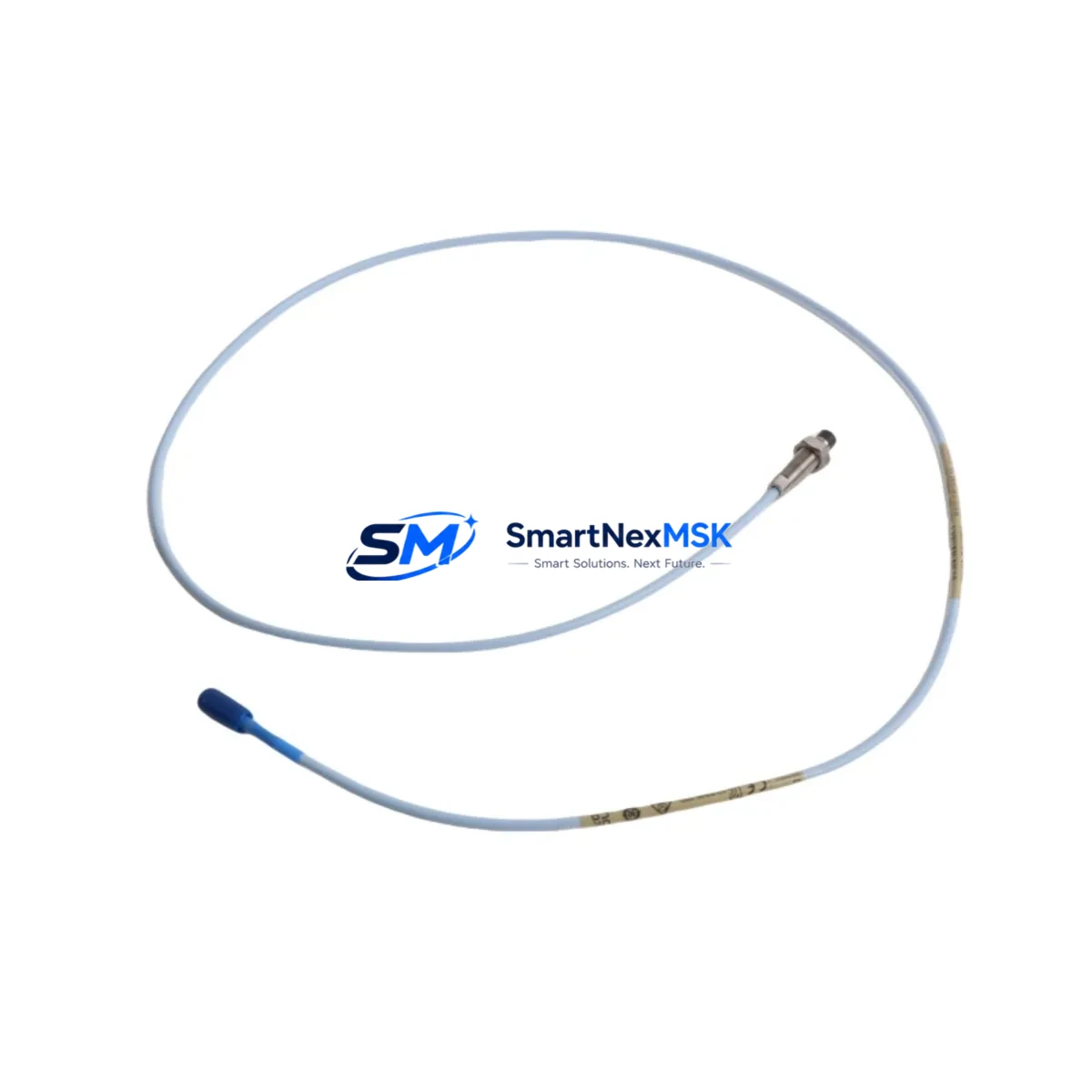

The Bently Nevada 330101-00-12-05-02-05 is a 5 mm non-contact eddy-current proximity probe engineered for seamless integration into Bently Nevada 3300 XL Series vibration monitoring systems. Whether you are replacing a failed sensor on an aging turbine protection loop, upgrading a legacy 3300/05 rack to current 3300 XL architecture, or restoring a mothballed compressor train, this probe delivers the dimensional accuracy, cable impedance, and sensitivity range required for direct, drop-in substitution without recalibration of the host monitor.

SMARTNEXMSK maintains verified stock of the 330101-00-12-05-02-05 and ships with a 12-month warranty covering manufacturing defects and functional performance. Every unit undergoes pre-shipment functional testing against Bently Nevada gap voltage and sensitivity specifications before dispatch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting a Bently Nevada 3300 XL vibration monitoring loop requires a systematic review of every component in the measurement chain. The 330101-00-12-05-02-05 probe is only one element; a successful retrofit also depends on the condition and compatibility of the Bently Nevada 330130-080-00-00 extension cable connecting the probe to the Proximitor. If the existing extension cable has been in service for more than ten years, insulation degradation can introduce impedance mismatches that shift the gap voltage curve and trigger false NOT OK alarms even with a new probe installed. Always measure cable loop resistance and capacitance before reusing field-installed extension cables.

The Bently Nevada 330180-X1-05 Proximitor (5 mm, 3300 XL platform) must be confirmed as the installed driver module. Earlier 3300/05 Proximitor modules are not electrically interchangeable with 3300 XL probes due to differences in internal bias circuitry. If the rack still houses legacy 3300/05 Proximitor cards, a parallel upgrade to the 3300 XL Proximitor is mandatory to maintain system certification. In many turbine protection applications, the 3500/42M Four-Channel Proximitor Monitor or the 3500/45 Position Monitor serves as the host card; both accept the 330101-00-12-05-02-05 probe system without firmware changes when the Proximitor is correctly matched.

Power supply integrity is a frequently overlooked retrofit variable. The 3300 XL Proximitor requires a stable −24 VDC supply rail. Aging Bently Nevada 3300/10 Power Supply modules in older racks may exhibit voltage droop under full-channel load, causing intermittent NOT OK conditions that are misdiagnosed as probe failures. Verify supply output under load before condemning a probe. If the rack power supply is original equipment from the early 2000s, proactive replacement with a current 3300/15 Power Supply module is advisable as part of the same outage window.

For plants migrating from standalone 3300 Series racks to an integrated Bently Nevada 3500 Series machinery protection system, the 330101-00-12-05-02-05 probe remains fully compatible. The 3500 platform accepts the same probe-and-Proximitor assembly; only the monitor card and rack backplane change. During migration, the 3500/20 Rack Interface Module and 3500/22M Transient Data Interface must be configured to recognize the probe system’s sensitivity constant (200 mV/mil) to ensure correct vibration amplitude scaling in the host DCS or historian. If the plant uses a System 1 Evolution software platform for online machinery diagnostics, probe channel configuration is managed through the System 1 device tree and does not require re-entry of sensitivity constants already stored in the 3500 monitor.

I/O mapping is another critical step when the retrofit involves a DCS integration point. Plants running Honeywell Experion PKS, Emerson DeltaV, or ABB 800xA as the primary control platform typically receive vibration OK/NOT OK discrete signals and 4–20 mA analog vibration amplitude signals from the 3500 monitor’s output cards. Confirm that the DCS I/O termination assembly and marshalling cabinet wiring are compatible with the 3500’s output signal levels before the outage begins. Updating the DCS faceplates and alarm setpoints in the HMI to reflect the new probe’s linear range prevents nuisance alarms during the post-retrofit commissioning period.

Where the existing installation uses a Bently Nevada 3300/55 Keyphasor Module for phase-referenced vibration analysis, verify that the Keyphasor probe — typically a separate 330101-00-12-05-02-05 or 330104 series unit — is also within its service life. A degraded Keyphasor signal will corrupt 1× and 2× vibration vectors across all channels in the rack, making post-retrofit baseline data unreliable. Replacing the Keyphasor probe during the same outage eliminates this variable and reduces future diagnostic uncertainty.

Downtime Control During System Migration

Minimizing production downtime during a proximity probe retrofit begins with pre-outage preparation. Before the machine is taken offline, obtain the current gap voltage readings for every probe channel from the 3300 XL or 3500 monitor front panel or System 1 trend display. Document these values alongside the corresponding physical gap measurements at the probe tip. This baseline allows the commissioning team to re-gap the new 330101-00-12-05-02-05 probe to the same nominal position and verify that the replacement gap voltage falls within ±0.5 VDC of the original reading — confirming correct installation without requiring a full vibration survey.

Preserve the existing PLC or DCS logic by exporting a full program backup before disconnecting any field wiring. If the plant control system uses a Rockwell Automation ControlLogix or Allen-Bradley PLC-5 for auxiliary interlock logic tied to the vibration monitor’s relay outputs, ensure the program backup includes all rung comments and I/O force tables. This protects against accidental logic loss if a power interruption occurs during the wiring changeover.

Use a structured wiring changeover sequence: disconnect the old probe cable at the Proximitor terminal block first, then at the field junction box, and finally at the probe body. Label every conductor with the channel designation before removal. Reconnect in reverse order with the new 330101-00-12-05-02-05 assembly. After reconnection, power up the Proximitor and confirm the gap voltage is within the linear range (−10 VDC to −18 VDC) before releasing the machine for restart. This sequence keeps the monitor in a known NOT OK state throughout the swap, preventing false OK signals from reaching the DCS during the transition and maintaining control continuity.

For critical machinery where even a brief unmonitored period is unacceptable, a temporary bypass relay can be inserted in the NOT OK circuit with written authorization from the machinery engineer. Remove the bypass immediately after the new probe is confirmed in service. Document the bypass insertion and removal times in the maintenance management system to satisfy audit requirements.

Retrofit Support FAQ

Q1: Is the 330101-00-12-05-02-05 a direct replacement for the older 330101-00-12-05-02-00?
Yes. The -02-05 suffix denotes the connector style (integral coaxial, 5 mm tip). The electrical characteristics — sensitivity, linear range, and gap voltage — are identical to the -02-00 variant. No recalibration of the host Proximitor or monitor is required for a like-for-like swap.

Q2: What commissioning checks are required after installation?
After installing the new probe, set the physical gap to 1.0 mm (nominal) using a non-ferrous feeler gauge or a calibrated gap-setting tool. Power up the Proximitor and read the gap voltage at the monitor front panel or via System 1. Confirm the reading is between −11.5 VDC and −12.5 VDC. Verify that the monitor’s OK relay is energized and that the DCS receives a valid OK discrete signal. Record the as-left gap voltage in the maintenance management system.

Q3: How is wiring compatibility verified when replacing a probe on a 3500 Series rack?
Confirm that the extension cable part number matches the Proximitor’s required cable impedance specification (typically 330130-080-00-00 for an 8-metre run). Check the terminal block wiring diagram in the 3500 rack documentation for the correct pin assignments: center conductor to the PROBE terminal, shield to COM, and the Proximitor output to the monitor input card. Incorrect shield grounding is the most common wiring error and will cause elevated noise floors on the vibration channel.

Q4: What does the 12-month warranty cover, and how is a claim initiated?
The 12-month warranty covers manufacturing defects and functional performance failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, or mechanical impact. To initiate a warranty claim, contact SMARTNEXMSK at sales@smartnexmsk.com with the order number, the failed unit’s serial number, and a description of the fault symptom. A replacement unit will be dispatched after fault verification, with return shipping of the defective unit arranged at no cost to the customer.
