Bently Nevada 330101-00-15-10-01-00 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330101-00-15-10-01-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

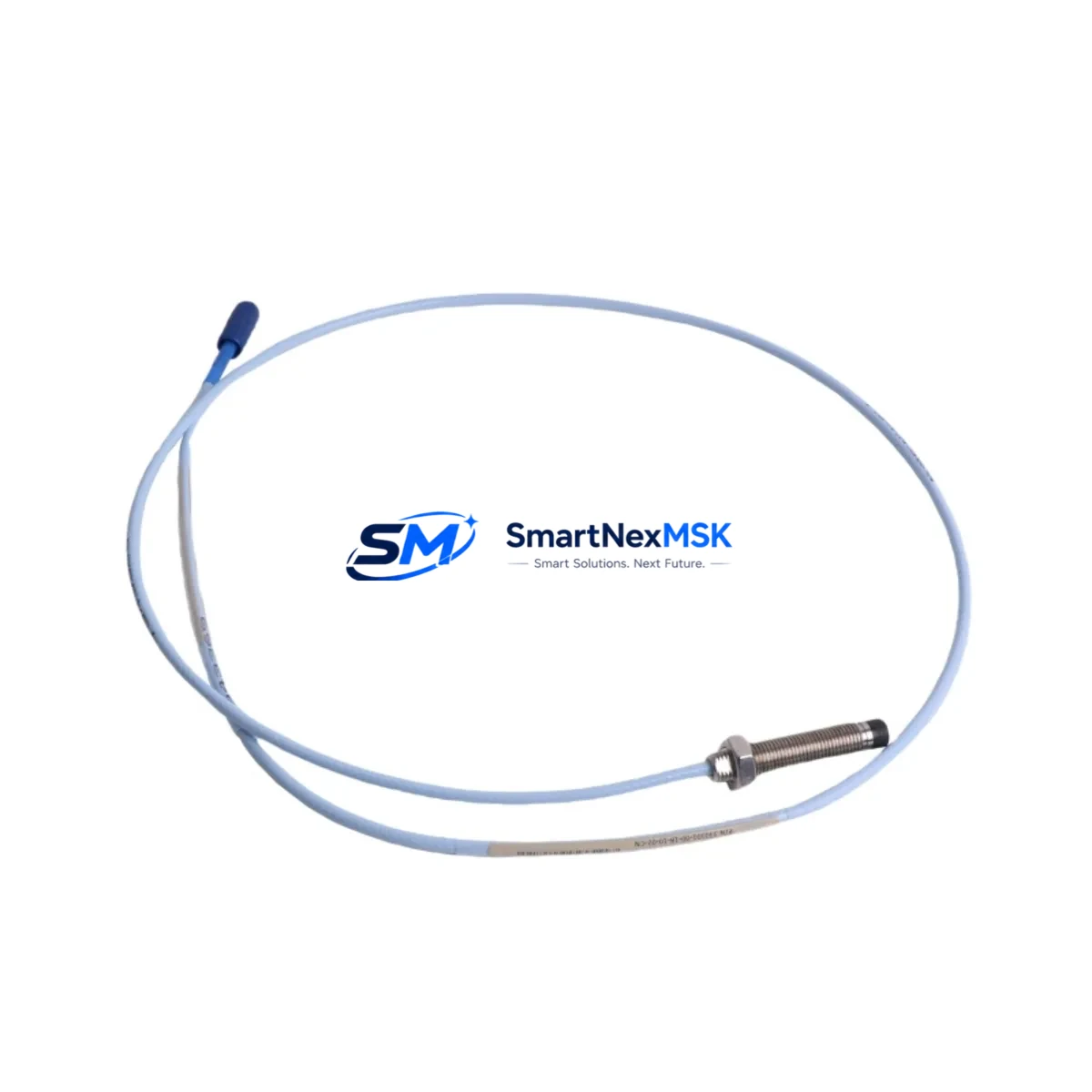

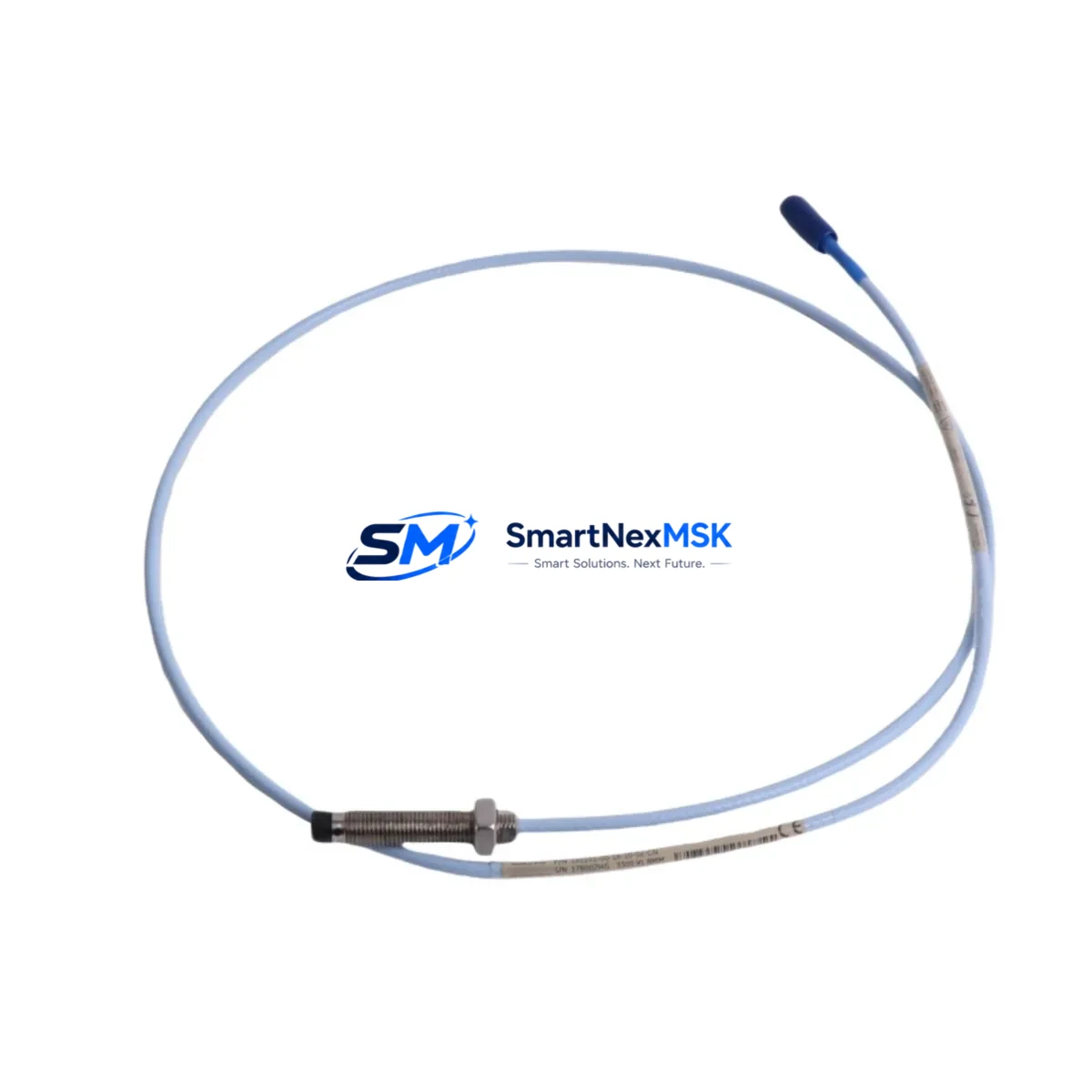

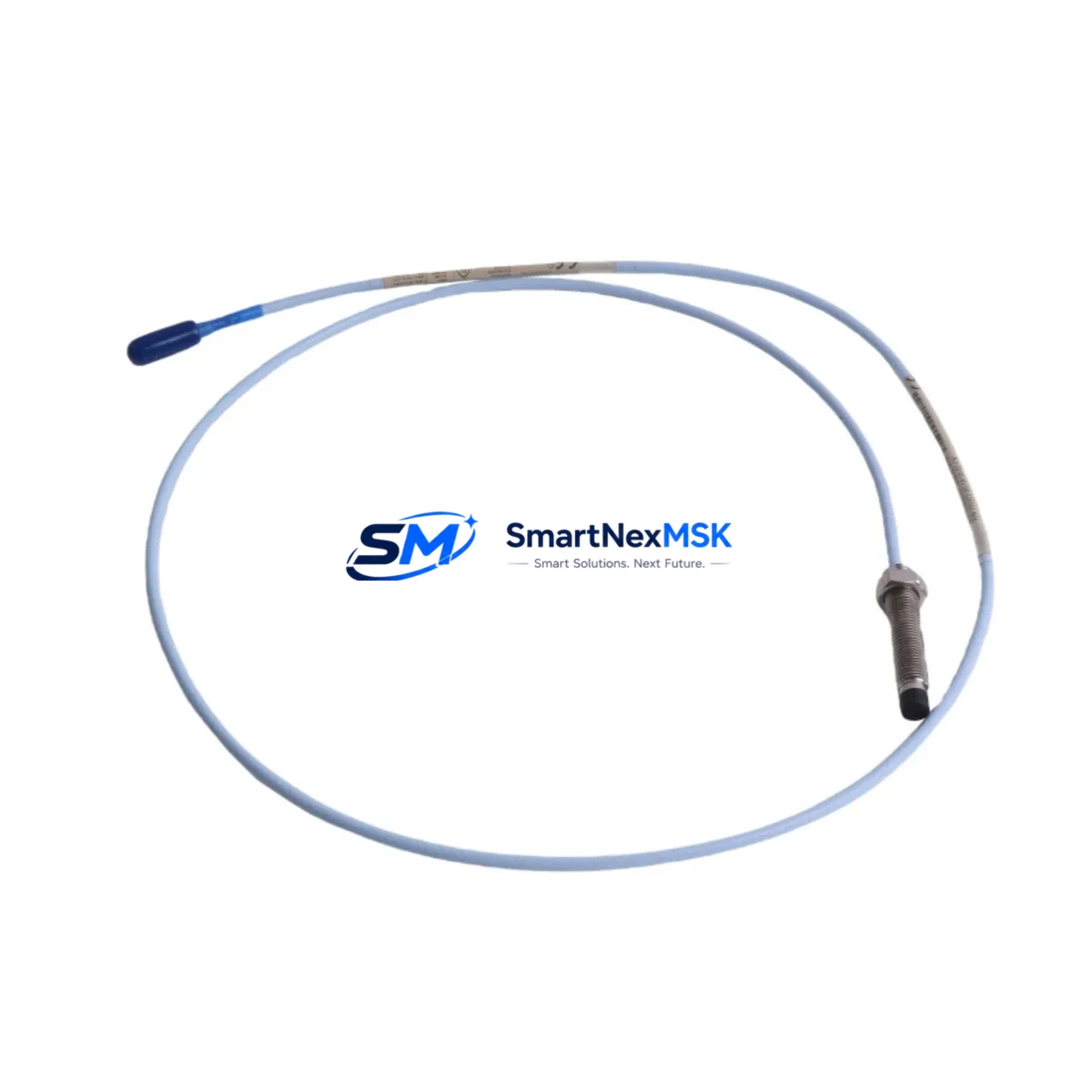

The Bently Nevada 330101-00-15-10-01-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy rotating machinery protection systems reach end-of-life or face discontinued spare parts availability, this drop-in replacement enables plant engineers and reliability teams to execute a smooth, low-risk retrofit without redesigning the existing wiring infrastructure, rack layout, or software logic. Whether you are restoring a turbine protection panel, upgrading a compressor train monitoring loop, or recovering from an unplanned probe failure, the 330101-00-15-10-01-00 delivers the dimensional accuracy, sensitivity, and signal conditioning compatibility required by the 3300 XL architecture.

This probe is designed to interface directly with the Bently Nevada 3300 XL Extension Cable and the 3300 XL Proximitor Sensor, maintaining the standard 5-metre or 9-metre system length configurations. The 8mm tip diameter and 200 mV/mil (7.87 V/mm) output sensitivity are factory-calibrated to match the original specification, ensuring that existing gap voltage settings, alert setpoints, and danger thresholds stored in the 3500/40M Proximitor Monitor or 3500/42M Proximitor Monitor modules remain valid without recalibration. This is a critical advantage during time-sensitive shutdowns where minimising instrument re-ranging and logic re-verification is essential to meeting maintenance windows.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-00-15-10-01-00 begins well before the maintenance window opens. The first step is a full audit of the existing probe loop: confirm the installed extension cable part number — typically the 330130-080-00-00 or 330130-045-00-00 — and verify that cable shielding and connector integrity are acceptable. A degraded extension cable is one of the most common causes of erratic gap voltage readings after a probe swap, and replacing the probe alone will not resolve signal noise introduced by a compromised cable jacket or corroded connector pin.

Next, document the current gap voltage at the Proximitor output. For the 3300 XL 8mm system, the nominal gap is typically set to produce an output of −10 VDC to −11 VDC, corresponding to a physical gap of approximately 1.27 mm to 1.40 mm. Record this value before removing the old probe so that the replacement can be gapped to the same electrical reference point. This eliminates the need to re-enter setpoints in the 3500/40M Proximitor Monitor or adjust the alert and danger thresholds configured in the 3500 Rack Display and Interface Module.

When planning the physical installation, confirm that the probe mounting bracket, lock nut, and armour conduit fittings are compatible with the 330101-00-15-10-01-00 body dimensions. The probe body is 8mm in diameter with a standard M10 × 1 thread, consistent with the original Bently Nevada specification. If the existing bracket shows wear or corrosion, this is the appropriate time to replace it alongside the probe to avoid a repeat outage. In applications where the probe monitors a Keyphasor reference mark, verify that the target material, surface finish, and notch geometry remain within the probe’s linear range — typically 0.25 mm to 2.54 mm for 8mm probes.

For control cabinets housing multiple monitoring loops — such as a turbine train with separate radial vibration, axial position, and Keyphasor channels — the retrofit plan should sequence probe replacements to maintain at least one active channel per measurement plane throughout the work. This is particularly important in facilities where the 3500 System rack is configured with a 3500/20 Rack Interface Module providing continuous data to a DCS historian or safety instrumented system. Interrupting all channels simultaneously may trigger spurious alarms or force a process hold that extends the outage beyond the planned window.

Where the existing system includes a 3500/92 Communication Gateway Module providing Modbus TCP or OPC DA connectivity to a SCADA or DCS, no protocol reconfiguration is required after the probe swap. The analogue signal chain from probe to Proximitor to monitor card remains unchanged, and the gateway will continue to report the same register map to the host system. However, it is good practice to verify that the historian is logging valid data within expected engineering units within the first 30 minutes of restart to confirm end-to-end signal integrity.

In facilities where the 3300 XL system is being migrated toward a newer platform — such as the Bently Nevada 3701 Series or a third-party vibration monitor — the 330101-00-15-10-01-00 can serve as an interim solution to restore monitoring capability while the full migration is planned and budgeted. The probe’s analogue output is compatible with most third-party vibration monitor input cards, provided the Proximitor sensor is retained in the loop. This approach avoids the need to immediately replace the 3300 XL Proximitor Sensor, the rack-mounted monitor cards, and the associated field wiring in a single outage, spreading the capital expenditure across multiple maintenance cycles.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity probe replacement requires a structured pre-outage checklist and a clear understanding of the system’s bypass and inhibit capabilities. Before isolating the probe loop, engage the channel inhibit function on the 3500/40M or 3500/42M monitor card to suppress spurious danger outputs during the swap. This prevents the monitoring system from issuing a false machine trip to the turbine control system or emergency shutdown device while the probe is disconnected.

Prepare the replacement 330101-00-15-10-01-00 probe, the calibrated gap-setting tool, and a portable oscilloscope or Bently Nevada field calibrator before entering the field. Having all tools staged at the work site eliminates return trips to the instrument shop and keeps the loop isolation window as short as possible. In most installations, an experienced instrument technician can complete the physical probe swap, gap setting, and signal verification in under 45 minutes, provided the extension cable and Proximitor sensor are in good condition and do not require replacement.

After re-engaging the probe loop, perform a slow-roll check at the earliest opportunity to verify that the vibration signal is clean, the gap voltage is within the nominal range, and the Keyphasor pulse — if applicable — is triggering correctly on the reference notch. Compare the live waveform on the 3500 Rack Display against the pre-outage baseline stored in the System 1 condition monitoring software or equivalent historian. Any deviation in 1× amplitude or phase angle should be investigated before returning the machine to full load, as it may indicate a probe positioning error, a target surface anomaly, or a residual wiring issue in the extension cable connector.

For facilities operating under a safety instrumented system that monitors the 3500 rack outputs, coordinate the probe replacement with the SIS engineer to ensure that the channel inhibit is properly documented in the management of change record and that the SIS bypass is lifted and verified before the machine is released to operations. This step is non-negotiable in facilities subject to IEC 61511 or equivalent functional safety standards.

Retrofit Support FAQ

Q1: Is the 330101-00-15-10-01-00 a direct drop-in replacement for the original Bently Nevada probe of the same part number?
Yes. This unit is manufactured to the original Bently Nevada dimensional and electrical specification. The 8mm tip diameter, M10 × 1 thread, 3-pin MIL-C-5015 connector, and 200 mV/mil sensitivity are identical to the factory original, allowing direct installation without bracket modification or setpoint re-entry in the 3500 monitor card.

Q2: Do I need to recalibrate the 3300 XL Proximitor Sensor or the 3500 monitor card after installing this replacement probe?
No recalibration of the Proximitor or monitor card is required, provided the replacement probe is gapped to the same nominal gap voltage as the original. After installation, verify the gap voltage at the Proximitor output terminal and confirm it falls within the system’s specified linear range. If the gap voltage deviates by more than ±0.5 VDC from the pre-outage value, re-adjust the probe gap mechanically before re-enabling the channel.

Q3: What pre-shipment testing is performed on this probe, and what warranty is provided?
Each 330101-00-15-10-01-00 unit undergoes functional output verification, sensitivity check, and connector integrity inspection prior to shipment. SMARTNEXMSK provides a 12-month warranty covering manufacturing defects and electrical performance. Units are shipped with a test report on request. Contact sales@smartnexmsk.com for documentation requirements.

Q4: Can this probe be used with third-party vibration monitors if we are migrating away from the Bently Nevada 3500 platform?
Yes, with conditions. The probe’s analogue output is compatible with most third-party vibration monitor input cards that accept a standard eddy-current probe signal, provided the 3300 XL Proximitor Sensor is retained in the loop to provide the required driver electronics. If the migration plan includes replacing the Proximitor with a third-party driver, confirm that the driver’s target calibration curve matches the 330101-00-15-10-01-00 sensitivity specification before commissioning.
