Bently Nevada 330101-00-15-20-02-00 3300 XL 8mm Probe: Retrofit-Ready Upgrade for Legacy Vibration Monitoring Systems

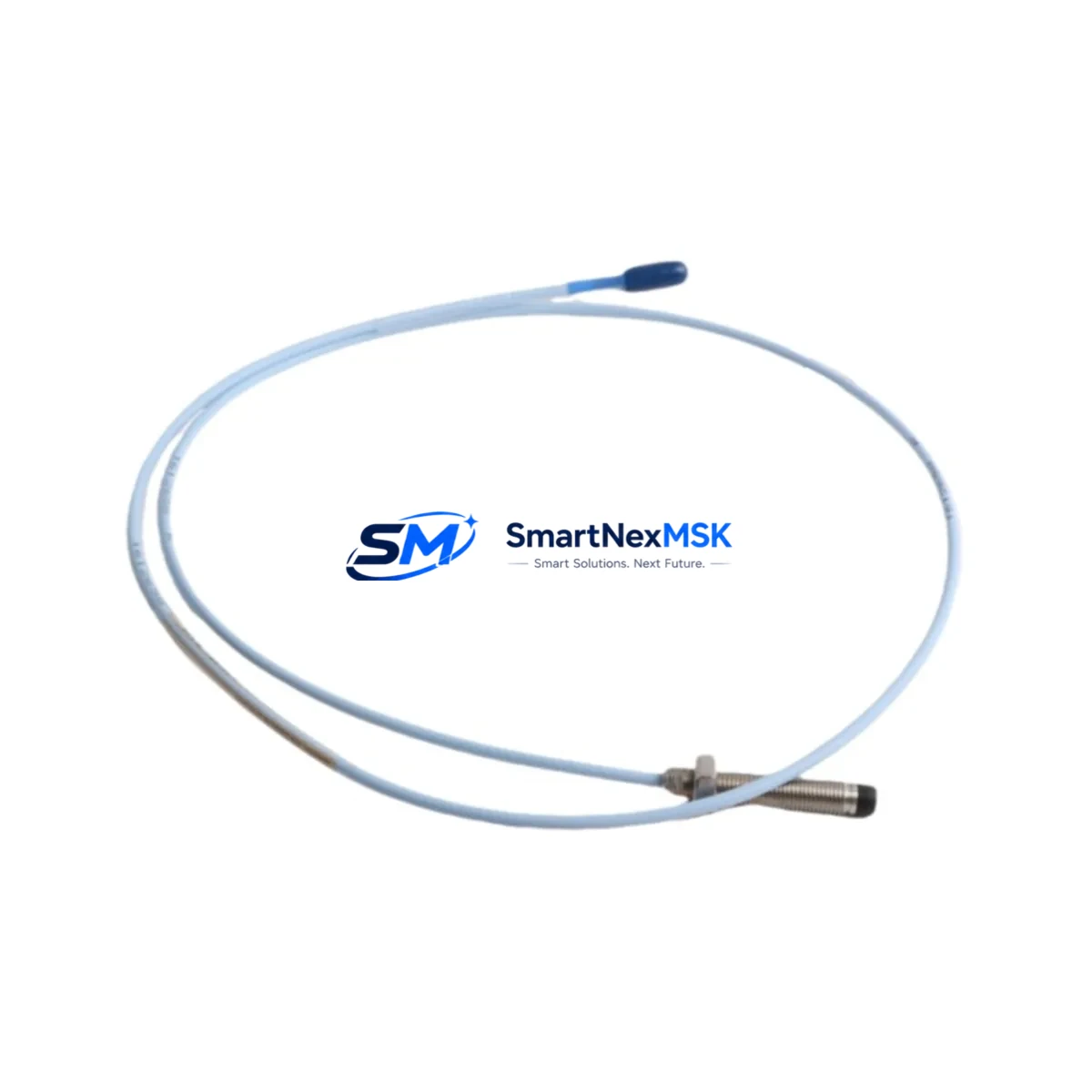

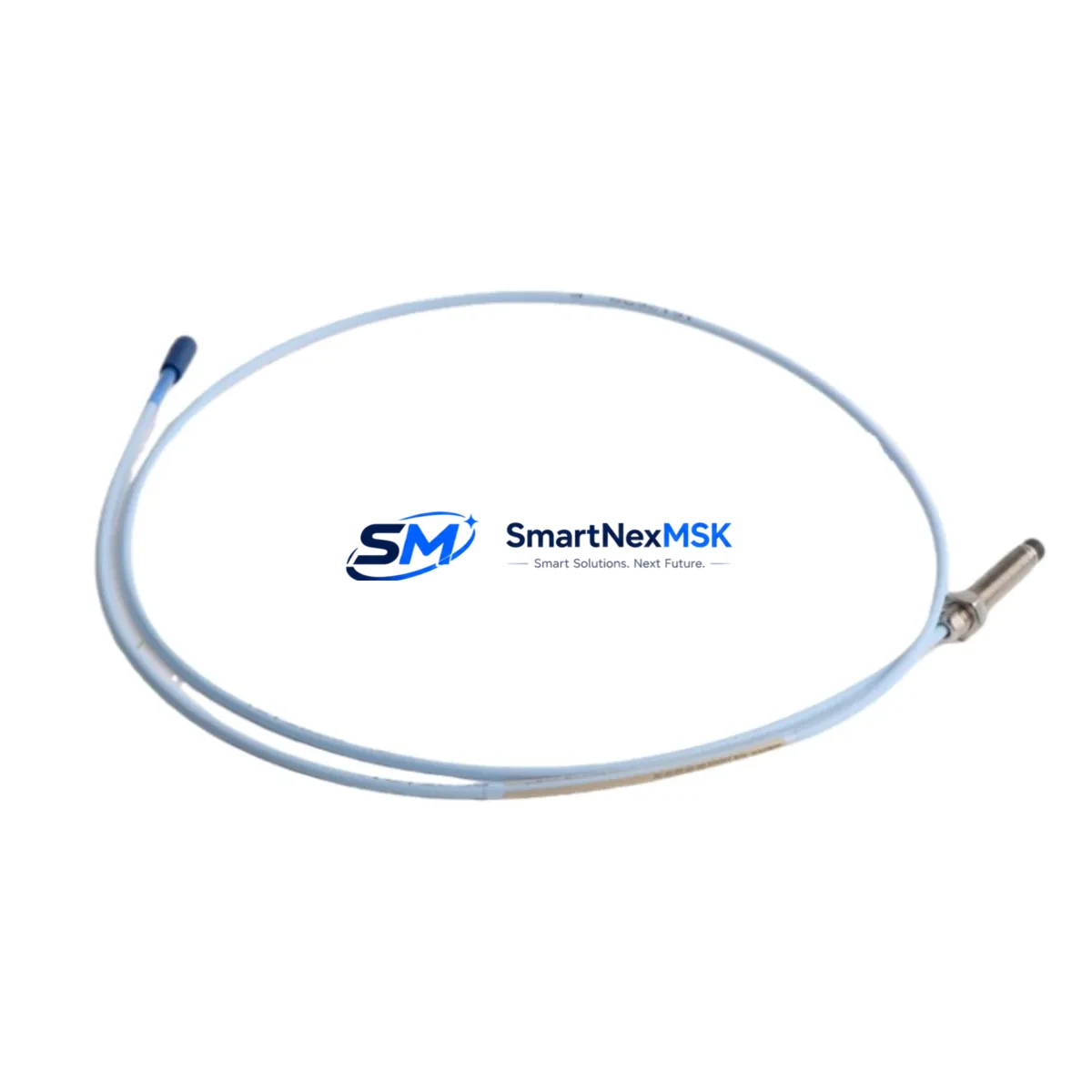

The Bently Nevada 330101-00-15-20-02-00 is an 8mm proximity probe designed for the 3300 XL Series continuous vibration monitoring platform. This unit serves as a direct retrofit replacement for aging or discontinued probes in rotating machinery protection systems, including steam turbines, gas compressors, centrifugal pumps, and large induction motors. Whether you are restoring a failed channel, upgrading a legacy rack, or migrating from an older 3300 Series configuration, this probe delivers the electrical and mechanical compatibility required for a smooth, low-downtime transition.
The 330101-00-15-20-02-00 operates within the standard Bently Nevada eddy-current sensing chain. It is designed to work in conjunction with the 330130 extension cable and the 3300 XL 8mm proximitor/driver module, forming a complete sensing loop that feeds shaft displacement and vibration data to the 3500 Series rack or legacy 3300 rack processors. When replacing a failed probe in an existing installation, engineers must verify that the existing extension cable length matches the replacement probe’s calibrated range — mismatched cable lengths will shift the gap voltage curve and introduce measurement error that can trigger false alarms or mask real machinery faults.
Before installation, confirm the following: the proximitor output voltage at the nominal gap (typically –10 VDC at 1.0 mm gap for 8mm probes), the driver module part number installed in the rack (commonly the 3300 XL 8mm proximitor, part 330180), and the existing conduit or armored cable routing to ensure the replacement probe’s connector orientation matches the field installation. If the original probe used a reverse-mount or side-exit connector, verify the 330101-00-15-20-02-00 connector style before ordering.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| SKU / Part Number | 330101-00-15-20-02-00 |
| Series Compatibility | Bently Nevada 3300 XL, 3300, 3500 Series monitoring racks |
| Probe Diameter | 8mm eddy-current proximity probe |
| Matched Extension Cable | 330130 Series (5m, 9m options — must match calibrated system length) |
| Matched Proximitor/Driver | 330180 3300 XL 8mm Proximitor Module |
| Rack Interface | 3500/40M, 3500/42M, 3300 Series I/O backplane |
| Communication Compatibility | Analog 4–20 mA / –24 VDC supply; compatible with Modbus RTU via 3500 gateway |
| Installation Requirement | Verify gap voltage, cable length, and connector orientation before installation |
| Commissioning Note | Re-calibrate gap after probe swap; confirm OK/NOT OK relay setpoints in rack |
| Warranty | 12-Month Warranty — covers manufacturing defects and electrical performance |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the 330101-00-15-20-02-00 into an existing machinery protection system requires a structured approach that accounts for every component in the sensing chain. The probe itself is only one element — the 330130 extension cable, the 330180 proximitor module, and the 3500 Series rack card must all be evaluated for compatibility and condition before the replacement probe is energized.
In many legacy installations, the 3300 Series rack has been in service for 15 or more years. During a probe replacement, it is common practice to simultaneously inspect the 3500/20 rack power supply module for capacitor aging and output voltage drift, since a degraded power supply can cause the new probe to report erratic gap readings even when the probe itself is correctly installed. Similarly, the 3500/92 communication gateway module — which bridges the rack’s internal bus to plant-level DCS or SCADA systems via Modbus TCP or OPC — should be verified for firmware currency to ensure the replacement probe’s channel data is correctly mapped and transmitted.
For plants running a Honeywell Experion PKS or Emerson DeltaV DCS, the 3500 rack’s analog output cards (such as the 3500/40M or 3500/42M) feed shaft vibration and position data to the DCS I/O marshalling cabinets. After a probe swap, the DCS historian tag associated with that channel should be checked to confirm the engineering unit scaling (typically 0–500 µm or 0–20 mil) has not been reset to default. HMI faceplate displays on the operator workstation should also be verified to confirm the channel is reading live data and not a frozen or failed value from before the replacement.
Where the original installation used a 3300 Series rack rather than the newer 3500 platform, a full rack migration may be warranted. In this scenario, the 330101-00-15-20-02-00 probe can be retained as the field sensor while the rack electronics are upgraded to a 3500/20 power supply, 3500/40M monitor card, and 3500/92 communication module. This approach preserves the existing field wiring and probe mounting hardware while delivering the improved diagnostics, Ethernet connectivity, and API 670 compliance of the modern 3500 platform.
Technicians should also account for the Keyphasor module (3500/25) during any rack-level retrofit. The Keyphasor signal — derived from a once-per-revolution notch or key on the shaft — is used by the 3500 rack to calculate 1X and 2X vibration vectors. If the Keyphasor probe (typically a 330101 or 330105 series unit) is also aged or suspect, replacing it concurrently with the radial vibration probe eliminates a second planned outage. Programming cables such as the 3500 Configuration Software interface cable should be on hand to re-enter trip setpoints, alert levels, and channel configuration after the rack is powered up with the new probe installed.
Downtime Control During System Migration
Minimizing unplanned downtime during a probe replacement or rack migration is the primary operational concern for maintenance engineers. The 330101-00-15-20-02-00 is stocked for immediate dispatch, which eliminates the lead-time risk that is common with OEM direct orders for legacy Bently Nevada parts. Receiving a tested, ready-to-install probe on-site before the maintenance window opens allows the team to pre-stage all materials — including the 330130 extension cable, connector tools, and gap-setting gauge — so that the actual installation time is limited to the mechanical swap and electrical verification steps.
To protect the original control program logic during a rack migration, export the full rack configuration from the 3500 Configuration Software before powering down. This file preserves all channel assignments, trip multiply settings, OK relay logic, and Modbus register maps. After the new hardware is installed and powered, the configuration file can be reloaded in minutes, restoring the exact protection logic without manual re-entry. This approach also provides a documented baseline for the plant’s change management records.
For critical machinery that cannot be taken offline for an extended period, a bypass relay or inhibit function within the 3500 rack can be used to temporarily suppress the trip output on the channel being replaced, allowing the machine to continue running while the probe is swapped. This inhibit must be logged, time-limited, and cleared immediately after the replacement probe is verified to be reading correctly. The 3500/92 communication gateway will report the inhibit status to the DCS, ensuring the control room operator is aware of the reduced protection level during the maintenance window.
All replacement probes supplied by SMARTNEXMSK are function-tested prior to shipment. Each unit is verified for output voltage linearity across the calibrated gap range, connector integrity, and cable continuity. A test report is available upon request. Units are shipped with protective end caps and anti-static packaging to prevent tip damage and electrostatic discharge during transit.
Retrofit Support FAQ
Q: Is the 330101-00-15-20-02-00 a direct drop-in replacement for the original Bently Nevada part?
A: Yes. This unit is manufactured to the same dimensional and electrical specifications as the original Bently Nevada 330101-00-15-20-02-00. It is compatible with the 330130 extension cable and 330180 proximitor module. No wiring modifications are required for a like-for-like replacement in an existing 3300 XL or 3500 Series installation.
Q: What commissioning steps are required after installing the replacement probe?
A: After mechanical installation, set the probe gap to the specified nominal value (typically 1.0 mm for 8mm probes) using a non-ferrous feeler gauge. Verify the proximitor output voltage at the nominal gap (–10 VDC ±0.5 V). Confirm the rack channel is reading correctly in the 3500 Configuration Software and that the DCS historian tag is receiving live data. Clear any inhibit or bypass that was applied during the swap.
Q: What is covered under the 12-month warranty?
A: The 12-month warranty covers manufacturing defects, electrical performance outside published specifications, and connector or cable integrity failures under normal operating conditions. It does not cover damage resulting from incorrect installation, gap setting errors, or operation outside the rated temperature and voltage range. Warranty claims are processed within 5 business days of receipt of the returned unit.
Q: Can this probe be used in a system that has been migrated from a 3300 rack to a 3500 rack?
A: Yes. The 330101-00-15-20-02-00 is fully compatible with both the legacy 3300 Series and the current 3500 Series rack platforms. When migrating from a 3300 to a 3500 rack, the existing field probe and extension cable can typically be retained, with only the rack electronics replaced. Verify that the 3500 monitor card channel configuration matches the probe’s calibrated range and that the Keyphasor input is correctly assigned in the new rack configuration.
