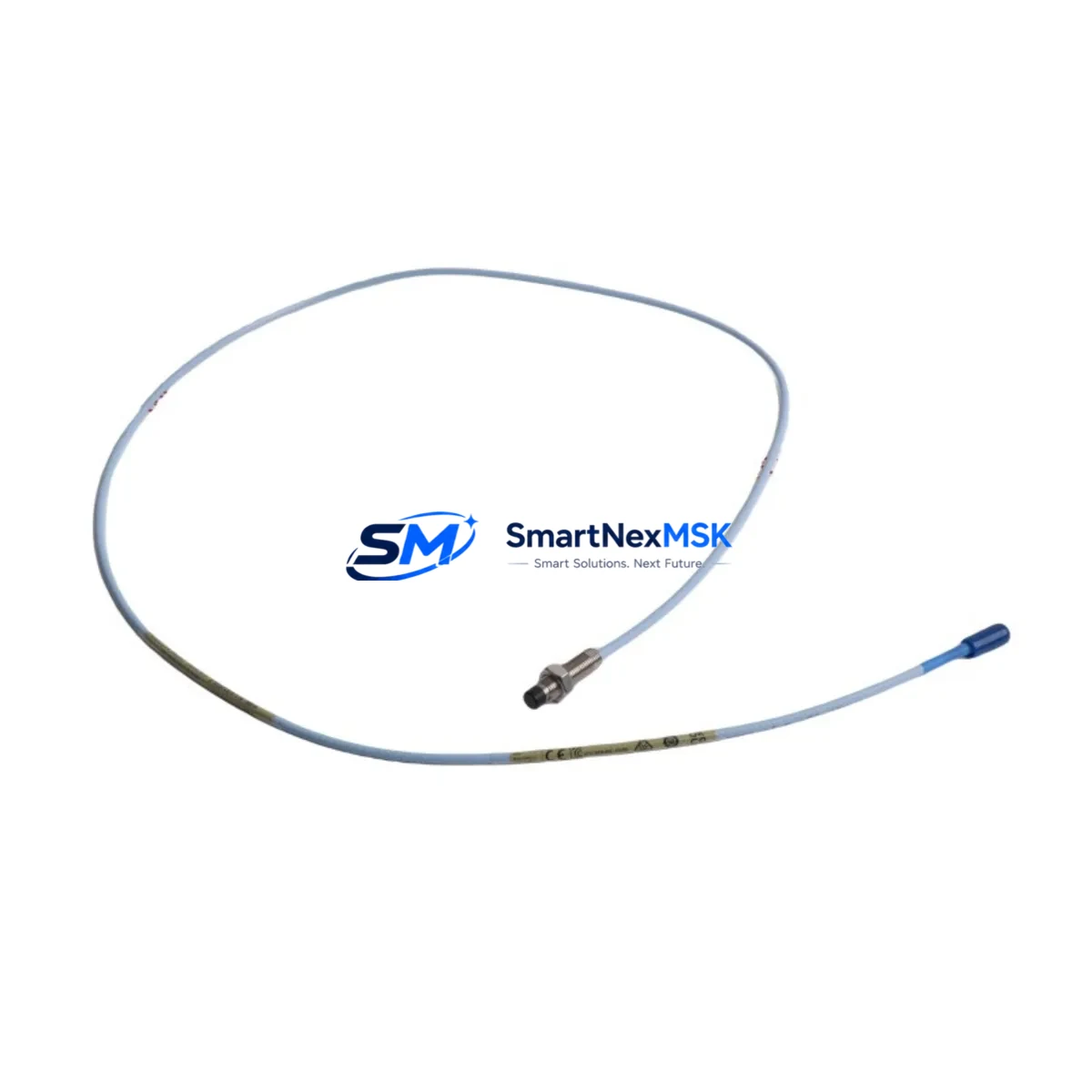

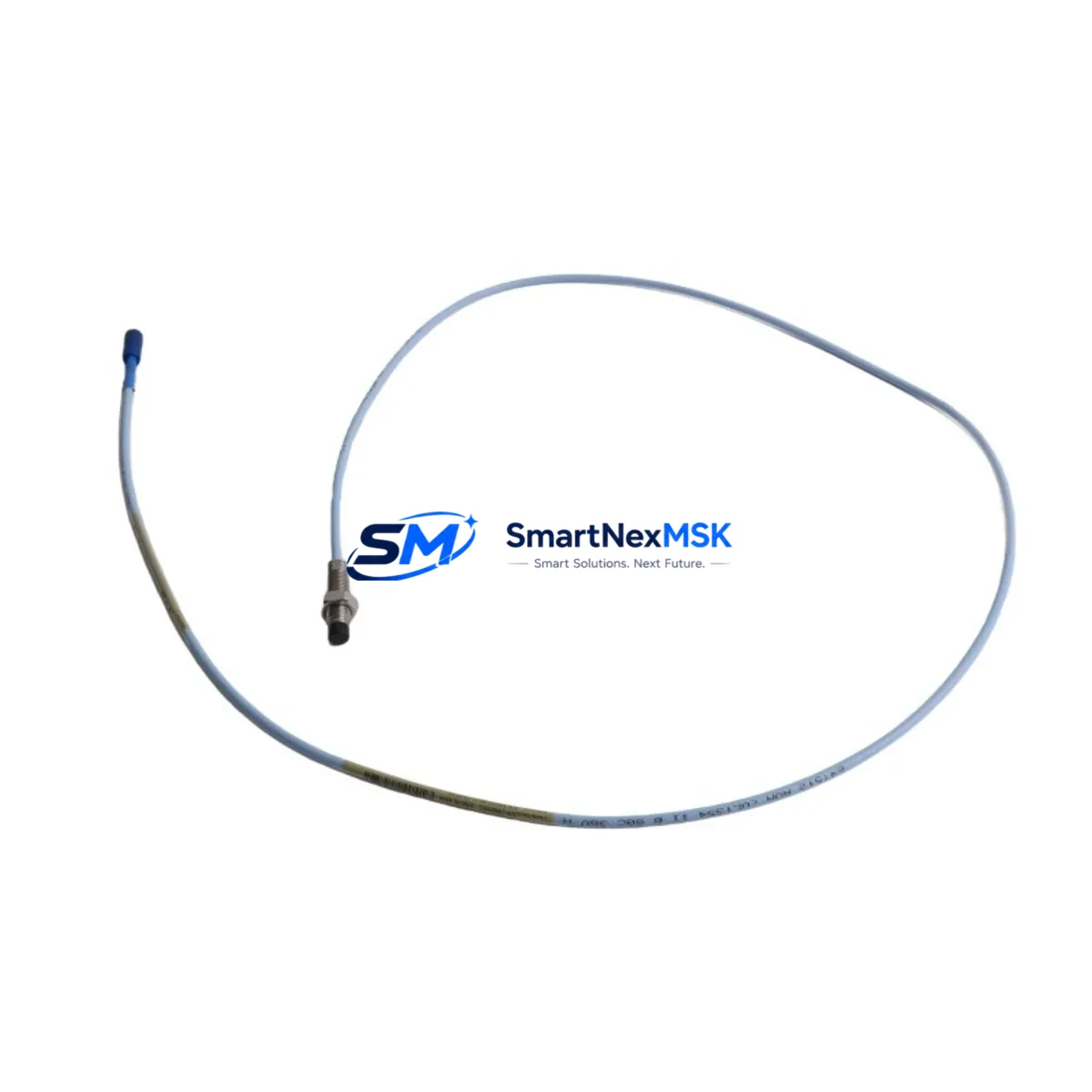

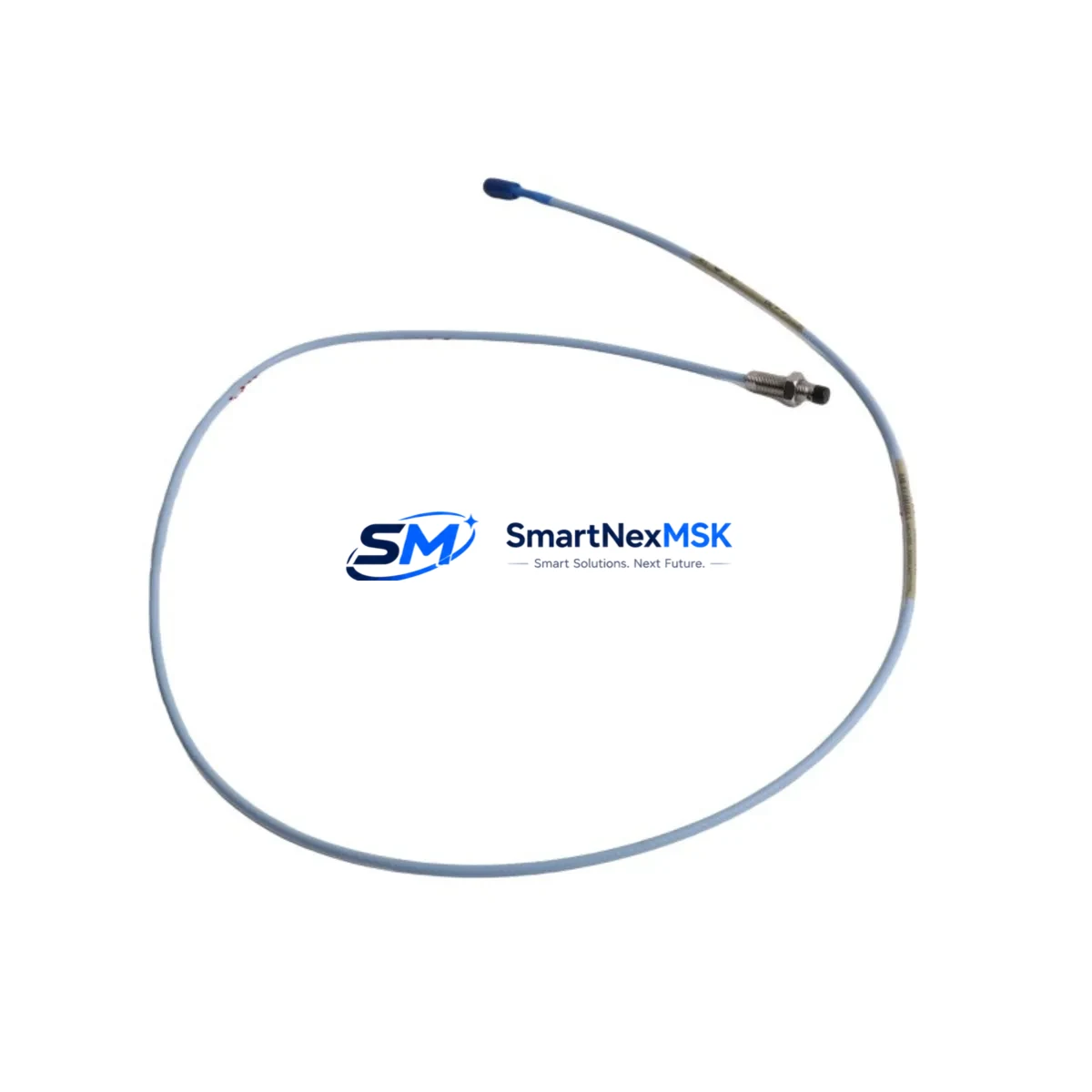

Bently Nevada 330101-00-16-05-01-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems
The Bently Nevada 330101-00-16-05-01-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy machinery monitoring systems age and OEM support windows close, this probe serves as a verified drop-in replacement for facilities undertaking rotating equipment upgrades, control cabinet modernization, and predictive maintenance program migrations. Whether you are replacing a failed unit on a critical compressor train or standardizing your spare parts inventory across multiple turbine skids, the 330101-00-16-05-01-00 delivers the dimensional accuracy, sensitivity, and signal integrity required by the 3300 XL Proximitor system.
This probe is fully compatible with the Bently Nevada 3300 XL 8mm Proximitor Sensor (typically the 330180 series), maintaining the standard 200 mV/mil (7.87 V/mm) scale factor that your existing DCS historian, vibration monitor, and alarm setpoints are already calibrated to. No recalibration of the Proximitor or downstream 3500 Series rack is required when performing a like-for-like swap.
Upgrade Compatibility Table
| Parameter | Detail |
|---|---|
| SKU / Part Number | 330101-00-16-05-01-00 |
| Probe Diameter | 8 mm |
| Cable Length | 5 m (extension cable) |
| Compatible Proximitor | Bently Nevada 330180 Series (3300 XL 8mm) |
| Compatible Monitor Rack | Bently Nevada 3500 Series, 3300 Series |
| Scale Factor | 200 mV/mil | 7.87 V/mm |
| Linear Range | 0.25 mm – 2.54 mm (10–100 mil) |
| Connector Type | Standard BNC / coaxial, compatible with 3300 XL wiring harness |
| Installation | Direct retrofit — no bracket modification required for standard 3300 XL mounts |
| Communication Compatibility | Analog 4–20 mA / voltage output via Proximitor; integrates with DCS, SCADA, and 3500 rack I/O |
| Replacement Recommendation | Direct replacement for worn, damaged, or discontinued 330101-00-16-05-01-00 units |
| Commissioning Notes | Verify gap voltage at installation (typically –10 VDC at mid-range); confirm OK LED on Proximitor |
| Warranty | 12 Months — covers manufacturing defects and signal integrity |
Retrofit Planning for Existing Automation Systems
Successful integration of the 330101-00-16-05-01-00 into an aging machinery protection system requires a structured approach that accounts for both the mechanical and signal-chain elements of the installation. Before removing the existing probe, document the current gap voltage reading from the Bently Nevada 3300 XL Proximitor and record the baseline vibration amplitude and DC gap values from your 3500/42M Proximitor I/O Module or equivalent rack card. This baseline is essential for post-installation verification and for confirming that the replacement probe is operating within the same linear range as the original.
On the wiring side, the 330101-00-16-05-01-00 uses the standard coaxial cable assembly compatible with the Bently Nevada 330130 Extension Cable. Inspect the extension cable and junction box connectors for corrosion or mechanical damage before reuse — a degraded extension cable is a common source of signal noise that is often misattributed to the probe itself. If the extension cable is being replaced simultaneously, ensure the total system cable length (probe + extension) matches the Proximitor’s calibrated range.
For facilities running the Bently Nevada 3500 Series rack with a 3500/20 Rack Interface Module and Modbus or FOUNDATION Fieldbus communication to a DCS, no protocol reconfiguration is needed for a probe-level swap. The Proximitor output remains analog, and the rack’s I/O card handles the signal conversion. However, if your migration plan includes upgrading from a 3300 Series rack to a 3500 Series rack simultaneously, you will need to remap I/O addresses in your DCS configuration and update any associated HMI faceplate tags that reference the old rack slot assignments.
Facilities upgrading control cabinets as part of a broader modernization project should also audit the Bently Nevada 3500/15 Power Supply Module capacity. Adding replacement probes and Proximitors to an existing rack increases the total current draw, and an undersized power supply is a common cause of intermittent OK relay dropouts after retrofit. Confirm that the power supply’s available headroom accommodates the full complement of 3300 XL Proximitors in the rack before energizing the upgraded system.
Where the retrofit involves migrating from an older Bently Nevada 7200 Series or 3300 Series probe system to the 3300 XL platform, pay close attention to the differences in sensitivity and linear range between probe generations. The 3300 XL 8mm system uses a different calibration curve than the 7200 Series, and alarm setpoints configured for the legacy system will need to be reviewed and adjusted in the 3500/42M or 3500/40M Proximitor Monitor configuration software (System 1 or Rack Configuration Software). Failure to update these setpoints is a leading cause of nuisance trips or missed alarms in the first weeks after commissioning.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity probe replacement or broader 3300 XL system retrofit requires pre-staging all replacement components before the maintenance window opens. For the 330101-00-16-05-01-00, this means having the probe, the compatible 330180 Proximitor, and a tested 330130 extension cable on-site and bench-verified before the machine is taken offline. A bench test using a calibrated target and a known-good Proximitor confirms that the replacement probe’s gap voltage curve matches the expected –10 VDC at mid-gap, eliminating the risk of discovering a defective unit during a live outage.
For installations where the 3300 XL system feeds a safety-critical trip channel, coordinate with your control room to place the affected channel in bypass mode through the 3500 Rack Interface Module before disconnecting the probe. This prevents a spurious machine trip during the swap and preserves the integrity of the protection logic for the remaining active channels. Document the bypass action in your permit-to-work system and set a hard time limit for restoration to ensure the bypass is not inadvertently left in place after commissioning is complete.
Once the replacement probe is installed and the gap is set, restore the channel from bypass and monitor the DC gap voltage and vibration amplitude readings in real time through your DCS or System 1 Evolution software for a minimum of 15 minutes before returning the machine to full load. Compare the live readings against the pre-outage baseline to confirm that the probe is tracking correctly and that no wiring or connector issues were introduced during the swap. This structured commissioning sequence typically adds less than 30 minutes to the total outage duration while significantly reducing the risk of a repeat outage caused by an undetected installation error.
Retrofit Support FAQ
Q1: Is the 330101-00-16-05-01-00 a direct drop-in replacement for the original Bently Nevada part?
Yes. This unit is manufactured to the same dimensional and electrical specifications as the original 330101-00-16-05-01-00 and is compatible with the 3300 XL 8mm Proximitor (330180 series) without any modification to the Proximitor, extension cable, or rack configuration. The scale factor, connector type, and linear range are identical to the OEM specification.
Q2: What commissioning checks are required after installation?
After mechanical installation, set the probe gap to achieve a DC gap voltage of approximately –10 VDC (mid-range) as measured at the Proximitor output. Confirm the OK LED on the Proximitor is illuminated and that the vibration amplitude reading in the 3500 rack or DCS is stable and consistent with the pre-outage baseline. If the OK LED is not illuminated, check the total cable length (probe + extension) against the Proximitor’s calibrated range and inspect all coaxial connectors for continuity.
Q3: Can this probe be used with a Bently Nevada 3500 Series rack running Modbus communication to a third-party DCS?
Yes. The 330101-00-16-05-01-00 outputs an analog voltage signal through the Proximitor, which is then processed by the 3500 rack’s I/O module. The rack’s communication protocol (Modbus, FOUNDATION Fieldbus, or Ethernet/IP) is independent of the probe and Proximitor hardware. No changes to the communication configuration are required for a probe-level replacement.
Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, signal integrity failures, and dimensional non-conformance under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the specified linear range. All units are functionally tested prior to shipment. If a warranty claim is required, contact our technical support team with the installation date, gap voltage readings, and a description of the observed fault.
