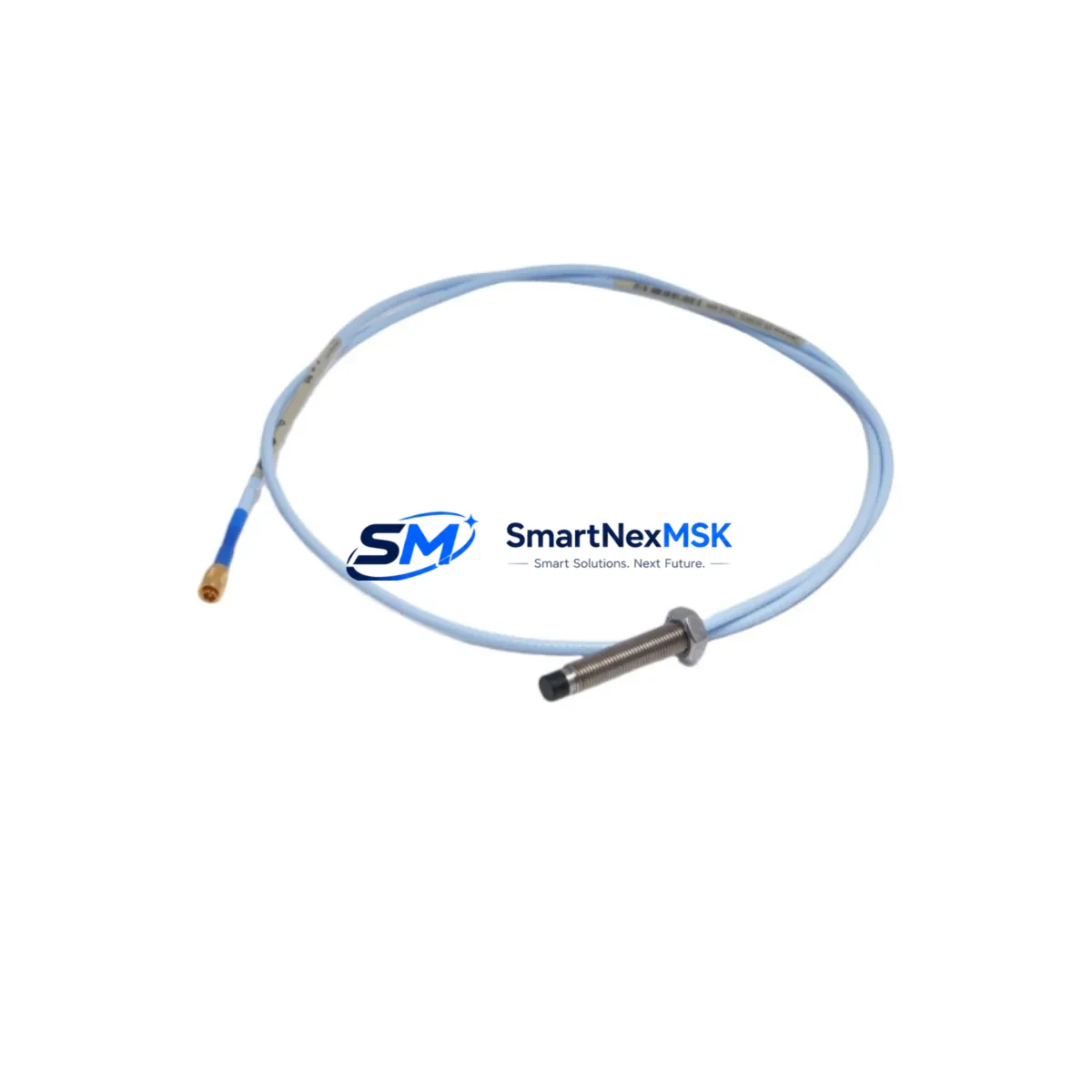

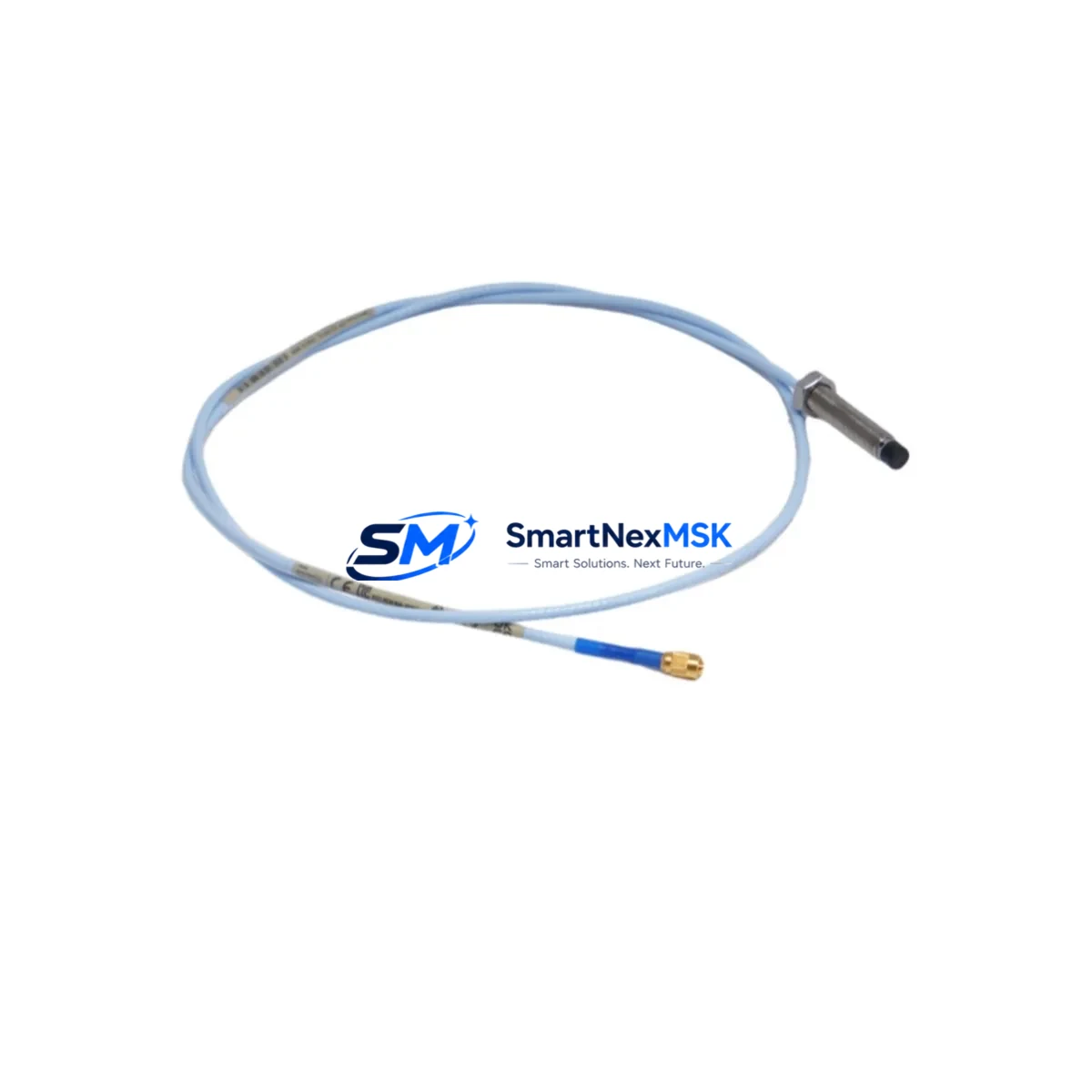

Bently Nevada 330101-00-18-10-12-00 Retrofit-Ready Extension Cable for 3300XL Control Systems
The Bently Nevada 330101-00-18-10-12-00 is an 8mm extension cable engineered for seamless integration within the 3300XL Series proximity measurement system. As legacy 3300 Series installations reach end-of-service milestones, this extension cable serves as a direct, wiring-compatible retrofit solution for facilities undertaking control system modernization, panel upgrades, and predictive maintenance infrastructure overhauls. Whether you are replacing a failed cable in a running plant or pre-staging spares for a scheduled turnaround, the 330101-00-18-10-12-00 delivers verified compatibility with the 3300XL proximitor/driver and its associated probe assemblies.
This extension cable is designed to work within the complete 3300XL measurement chain. In a standard retrofit deployment, the cable connects the 3300XL 8mm probe — such as the 330103-00-08-10-02-00 or 330104-00-08-10-02-00 — to the 3300XL proximitor/driver module mounted in the field junction box or control cabinet. Maintaining the correct cable length and connector type is critical: mismatched extension lengths alter the system scale factor and can introduce measurement error that propagates through the vibration monitoring loop to the DCS or safety system. Before installation, engineers should confirm the total cable assembly length matches the original system calibration record stored in the plant historian or DCS configuration database.
Upgrade Compatibility Table
| Parameter | 330101-00-18-10-12-00 | Notes / Retrofit Guidance |
|---|---|---|
| Series Compatibility | Bently Nevada 3300XL | Direct replacement for 3300XL 8mm measurement chains |
| Cable Length | 18 ft (5.5 m) | Verify against original calibration record; length affects scale factor |
| Connector Type | MIL-C-5015 style | Confirm mating connector on proximitor/driver end before installation |
| Communication Compatibility | Analog 4–20 mA / voltage output | Compatible with 3500 Series rack inputs and legacy DCS analog cards |
| Installation Requirement | Conduit or cable tray routing | Maintain separation from high-voltage power cables to avoid EMI |
| Replacement Recommendation | Replace as complete assembly with probe and proximitor | Do not mix cable lengths from different original assemblies |
| Commissioning Focus | Gap voltage verification at proximitor output | Target –10.0 VDC ±0.5 VDC at nominal air gap per 3300XL manual |
| Warranty | 12-Month Warranty | Covered against manufacturing defects; includes pre-shipment functional test |
Retrofit Planning for Existing Automation Systems
Successful integration of the 330101-00-18-10-12-00 into an existing plant begins well before the cable arrives on site. Retrofit planning should start with a full audit of the existing measurement chain: identify the installed probe model, the proximitor/driver part number, the junction box terminal block layout, and the DCS analog input card assignment. In many 3300 Series installations that are being migrated to 3300XL architecture, the field wiring conduit and terminal blocks can be reused, but the connector at the proximitor end must be verified for compatibility with the new 3300XL proximitor/driver housing.
When upgrading a multi-channel vibration monitoring rack, it is common to replace the extension cables in conjunction with the 3300XL proximitor/driver modules and the associated 3300XL 8mm probes. In parallel, the 3500/42M Proximitor/Seismic Monitor card in the 3500 Series rack may require firmware confirmation to ensure it correctly interprets the updated transducer chain output. If the plant is also migrating from a legacy Bently Nevada 3300 rack to a 3500 Series monitoring rack, the rack backplane, power supply module, and I/O terminal blocks will all require coordinated replacement. The 3500/05 power supply and 3500/20 rack interface module are commonly involved in such rack-level upgrades.
For facilities running a Honeywell DeltaV, Emerson Ovation, or ABB 800xA distributed control system, the analog input cards receiving the proximitor output signal should be verified for input impedance compatibility. In some older DCS configurations, the analog input card termination resistor must be adjusted when switching from a 3300 Series to a 3300XL Series transducer chain. Document all terminal block wiring changes in the plant’s as-built drawings and update the loop diagrams before closing out the work order. Programming cable access to the 3500 rack — typically via the 3500/93 communication gateway or a direct RS-232 programming cable — will be needed to verify and update the rack configuration database after hardware changes are complete.
Pre-shipment functional testing is performed on every 330101-00-18-10-12-00 unit before dispatch. Each cable is tested for continuity, insulation resistance, and connector integrity. Units ship with a test certificate and are backed by a 12-month warranty covering manufacturing defects. In-stock inventory is maintained to support urgent breakdown replacements and planned turnaround schedules.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity measurement system retrofit requires a structured hot-cutover or cold-swap strategy. For critical rotating machinery — compressors, turbines, pumps — where continuous vibration monitoring is a safety or regulatory requirement, the preferred approach is to pre-stage the replacement 330101-00-18-10-12-00 extension cable, the new 3300XL proximitor/driver, and the replacement probe as a complete pre-tested assembly before the machine is taken offline.
During the cutover window, the original DCS analog input channel should be placed in manual or bypass mode to prevent spurious trips while the transducer chain is disconnected. The existing gap voltage reading should be recorded from the 3500 rack display or the DCS historian before disconnection — this value serves as the baseline for verifying correct installation of the new assembly. After the new cable and proximitor are installed and the gap voltage is confirmed within specification, the DCS channel can be returned to automatic mode and the bypass removed. The entire cutover sequence, when pre-planned and parts are pre-staged, can typically be completed within a single four-hour maintenance window, preserving the original control logic, HMI faceplate configuration, and alarm setpoints without modification.
For facilities with a Bently Nevada System 1 condition monitoring platform, the transducer database entry for the replaced channel should be updated to reflect the new assembly serial numbers. This ensures that the System 1 historian maintains a clean audit trail and that future trend analysis is not corrupted by a hardware change event that was not logged in the condition monitoring system.
Retrofit Support FAQ
Q: Is the 330101-00-18-10-12-00 a direct drop-in replacement for the original 3300 Series extension cable of the same length?
A: The 330101-00-18-10-12-00 is designed for the 3300XL 8mm measurement system. If your existing installation uses an older 3300 Series (non-XL) probe and proximitor, the extension cable connector and scale factor calibration must be verified before substitution. In most cases, a full assembly replacement — probe, extension cable, and proximitor/driver — is recommended when migrating from 3300 to 3300XL architecture.
Q: What commissioning checks are required after installing the replacement cable?
A: After installation, verify the gap voltage at the proximitor output terminal (target: –10.0 VDC ±0.5 VDC at nominal air gap), confirm the vibration output signal is within the expected range at the DCS analog input, and check that the 3500 rack channel status shows no fault or alert condition. Update the as-built loop diagram and log the new assembly serial number in the plant maintenance management system.
Q: Can this extension cable be used with a 3500 Series monitoring rack?
A: Yes. The 330101-00-18-10-12-00 extension cable, when used as part of a complete 3300XL transducer assembly, is compatible with 3500 Series rack inputs including the 3500/42M Proximitor/Seismic Monitor. Confirm the rack channel configuration matches the transducer type and scale factor of the 3300XL assembly.
Q: What does the 12-month warranty cover, and is a pre-shipment test certificate included?
A: The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Every unit undergoes pre-shipment continuity, insulation resistance, and connector integrity testing. A test certificate is included with each shipment. Warranty claims are processed through SMARTNEXMSK with a typical response time of one business day.
