Bently Nevada 330101-00-19-10-02-05 Safety-Enhanced Proximity Probe

Bently Nevada 330101-00-19-10-02-05 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

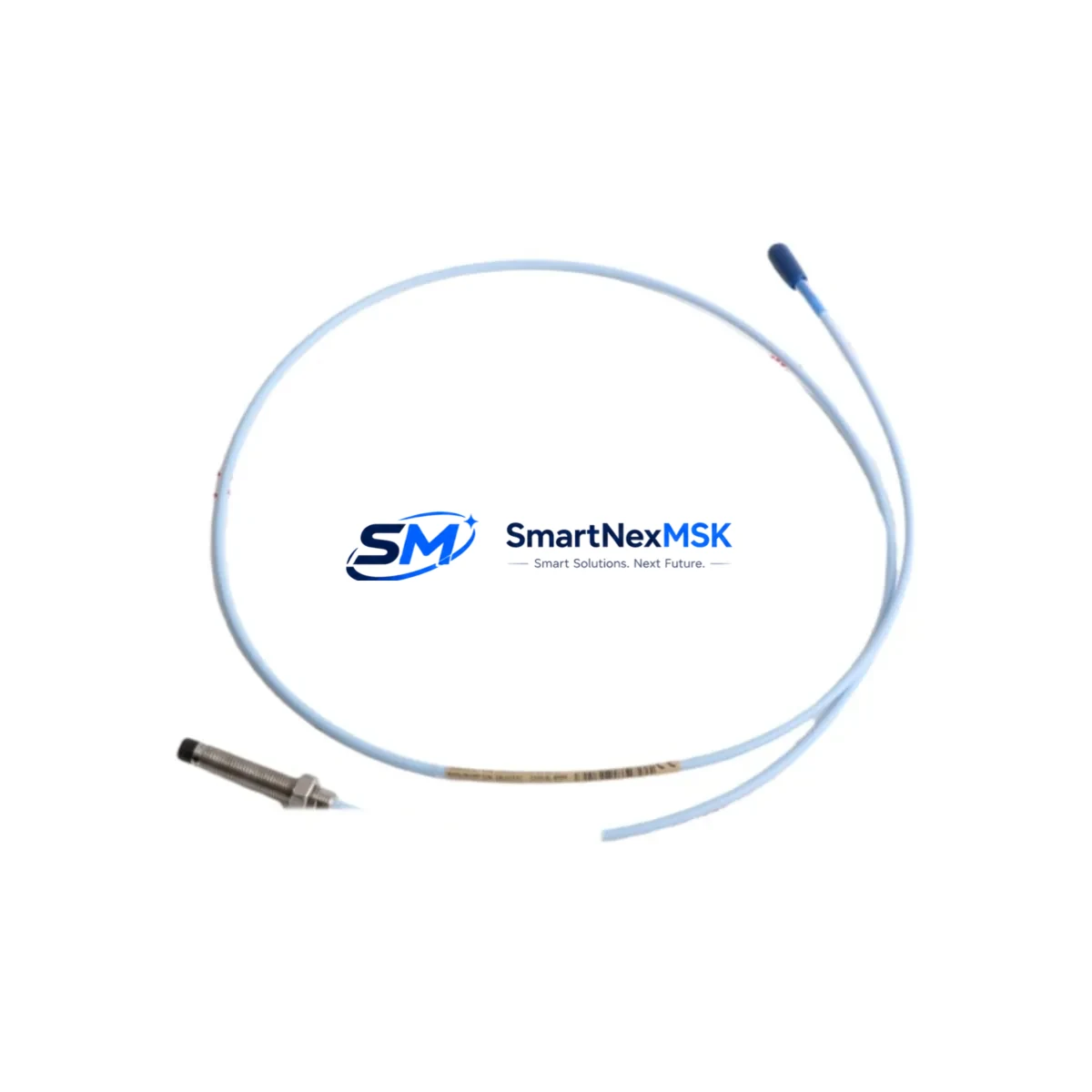

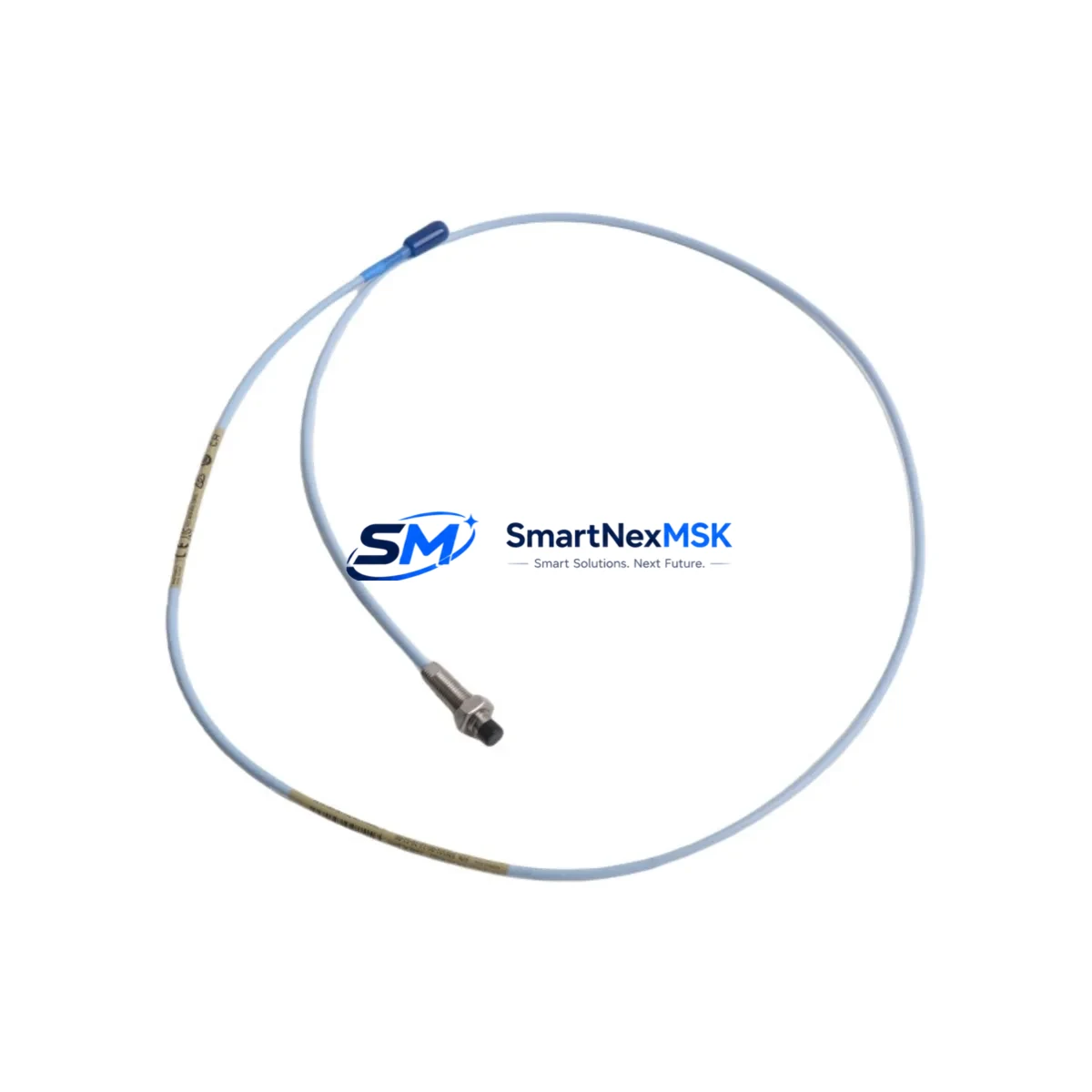

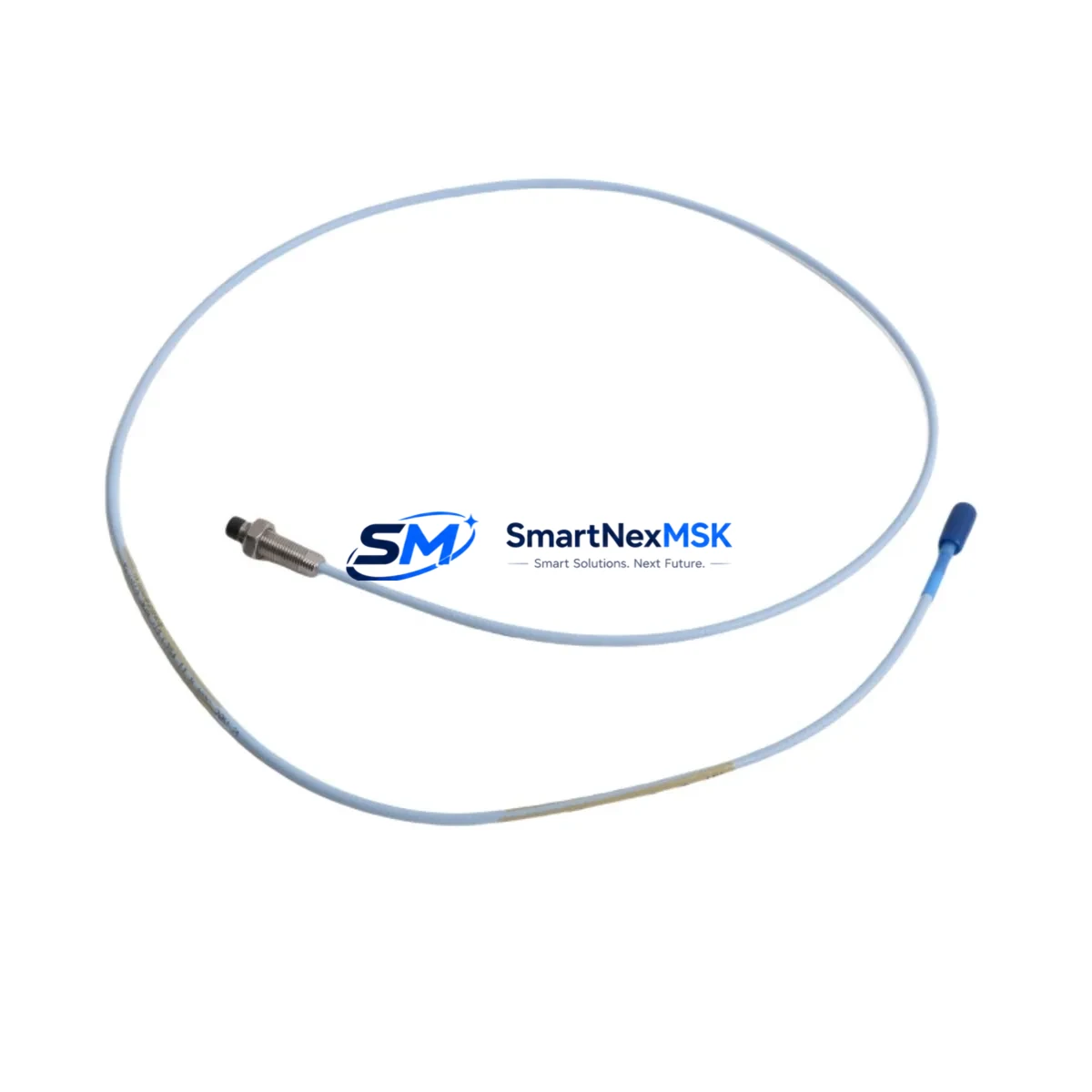

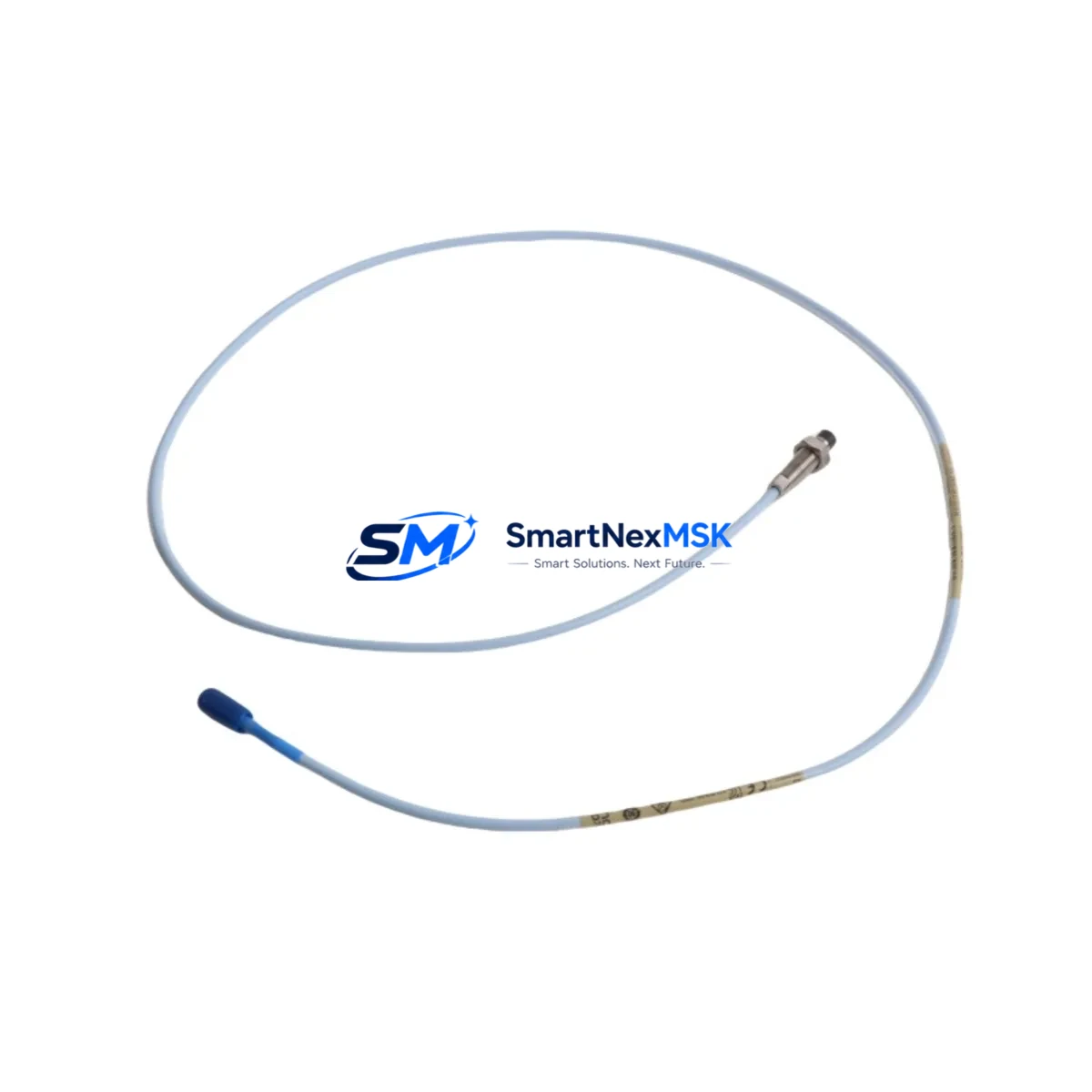

The Bently Nevada 330101-00-19-10-02-05 is an 8mm eddy-current proximity probe from the industry-leading 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high-temperature, high-vibration, and electromagnetically noisy conditions, this probe is a cornerstone component in rotating machinery protection systems across petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, port cranes, and continuous-process manufacturing lines.

Where control interruption is not an option, the 330101-00-19-10-02-05 delivers consistent, drift-free output signals that feed directly into safety interlock loops and machinery protection systems. Its ruggedized construction resists signal drift caused by temperature fluctuations, electrical interference, and mechanical shock — three of the most common causes of false trips and unplanned shutdowns in heavy industrial control cabinets.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered machinery protection cabinet, the 330101-00-19-10-02-05 proximity probe does not operate in isolation. It functions as the sensing front-end of a tightly integrated signal chain. The probe connects to a Bently Nevada 330130 extension cable, which routes the signal to a 3300 XL 8mm proximitor sensor (such as the 330180-91-00), converting the raw eddy-current signal into a calibrated voltage output. This output feeds into a Bently Nevada 3300/16 monitor or a 3500/42M proximitor monitor, where vibration amplitude and shaft position are continuously evaluated against alarm and danger setpoints.

Within the control cabinet, power supply stability is critical. The Bently Nevada 3500/15 power supply module provides regulated, isolated DC power to the monitoring rack, preventing voltage sag or surge from propagating into the measurement chain. For plants operating under IEC 61511 or IEC 62061 functional safety frameworks, the proximity probe signal is often routed through a safety relay module or a Triconex or Rockwell Safety PLC input card to form a certified safety instrumented function (SIF). In such architectures, the signal integrity of the 330101-00-19-10-02-05 directly determines the reliability of the entire protective layer.

In high-interference environments — such as those near large variable frequency drives, arc furnaces, or high-current bus bars — additional shielding and grounding discipline is applied. The coaxial cable system of the 3300 XL probe family, combined with a properly grounded junction box or field barrier, ensures that common-mode noise and induced voltages do not corrupt the proximity signal. Complementary components such as Bently Nevada 330105 armored extension cables and 3300 XL proximitor housings are routinely deployed alongside this probe in such demanding installations.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In compressor trains and turbine-driven pumps, the 330101-00-19-10-02-05 monitors shaft radial vibration and axial position in real time. Any deviation beyond API 670 danger setpoints triggers an automatic shutdown before catastrophic bearing failure or seal damage can occur. The probe’s resistance to hydrocarbon vapors and high ambient temperatures makes it the preferred choice for hazardous area installations.

Power Generation: Steam turbines and gas turbines in power plants rely on continuous proximity monitoring to detect rotor instability, oil whirl, and rub events. The 330101-00-19-10-02-05, integrated into a 3500 Series protection rack, provides the millisecond-level response time required to protect multi-hundred-megawatt generating assets from vibration-induced damage.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in environments with extreme dust, moisture, and mechanical shock. The ruggedized probe body and IP67-rated tip of the 330101-00-19-10-02-05 maintain measurement accuracy even when exposed to abrasive slurry splash and high-amplitude structural vibration from adjacent crushing equipment.

Water & Wastewater Treatment: Large centrifugal pumps and blowers in water treatment facilities require continuous uptime. Proximity probes installed on these machines provide early warning of bearing wear and rotor imbalance, enabling condition-based maintenance scheduling that avoids unplanned outages and costly emergency repairs.

Metallurgy & Steel Mills: Rolling mill drives, continuous casters, and induction furnace motors generate intense electromagnetic fields. The shielded coaxial design of the 3300 XL probe system maintains signal fidelity in these environments, ensuring that vibration alarms are triggered by actual mechanical events — not electrical noise artifacts.

Safety and Quality FAQ

Q1: What warranty does the 330101-00-19-10-02-05 carry?
All units supplied by SMARTNEXMSK carry a 12-month functional warranty from the date of shipment. If the unit fails to perform to Bently Nevada factory specifications within this period under normal operating conditions, we will replace or refund at no additional cost.

Q2: How is each unit tested before shipment?
Every 330101-00-19-10-02-05 proximity probe undergoes pre-shipment functional verification, including output voltage linearity check, cable continuity and insulation resistance test, and physical inspection of the probe tip, connector, and cable jacket. Units that do not meet specification are quarantined and not shipped.

Q3: Is this probe compatible with existing 3300 XL and 3500 Series systems?
Yes. The 330101-00-19-10-02-05 is a direct factory-specification replacement for all 3300 XL 8mm probe positions. It is fully compatible with Bently Nevada 330130 and 330105 extension cables, 330180 proximitor sensors, and all 3300 and 3500 Series monitor modules without requiring recalibration of the monitoring system.

Q4: Can long-term supply be guaranteed for critical spare parts programs?
SMARTNEXMSK maintains dedicated inventory of the 330101-00-19-10-02-05 and related 3300 XL Series components to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. We work with plant reliability engineers and procurement teams to ensure supply continuity for critical rotating machinery protection systems.
