Bently Nevada 330101-00-24-10-12-CN Spare 3300 XL

Bently Nevada 330101-00-24-10-12-CN Maintenance-Ready Spare 3300 XL NSv

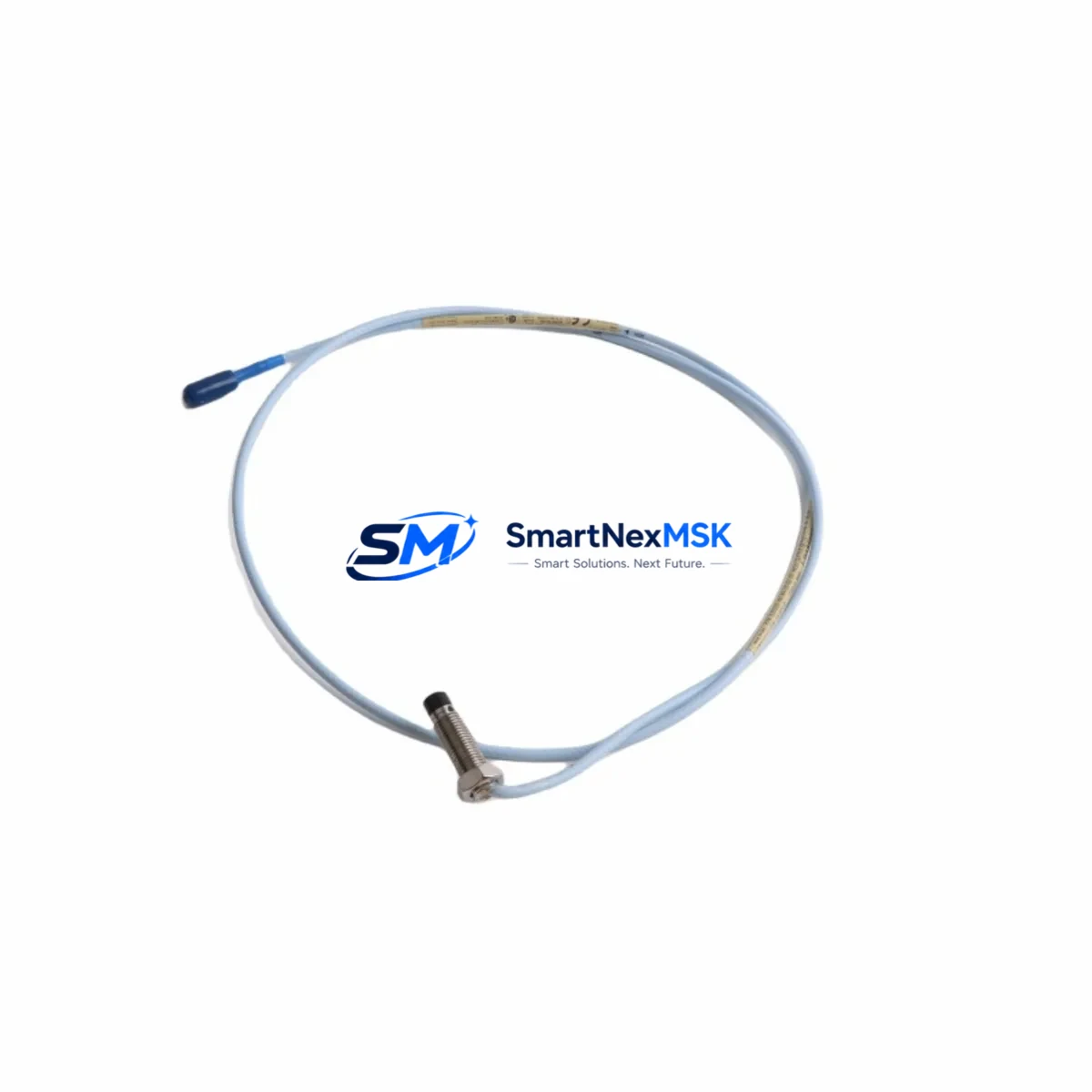

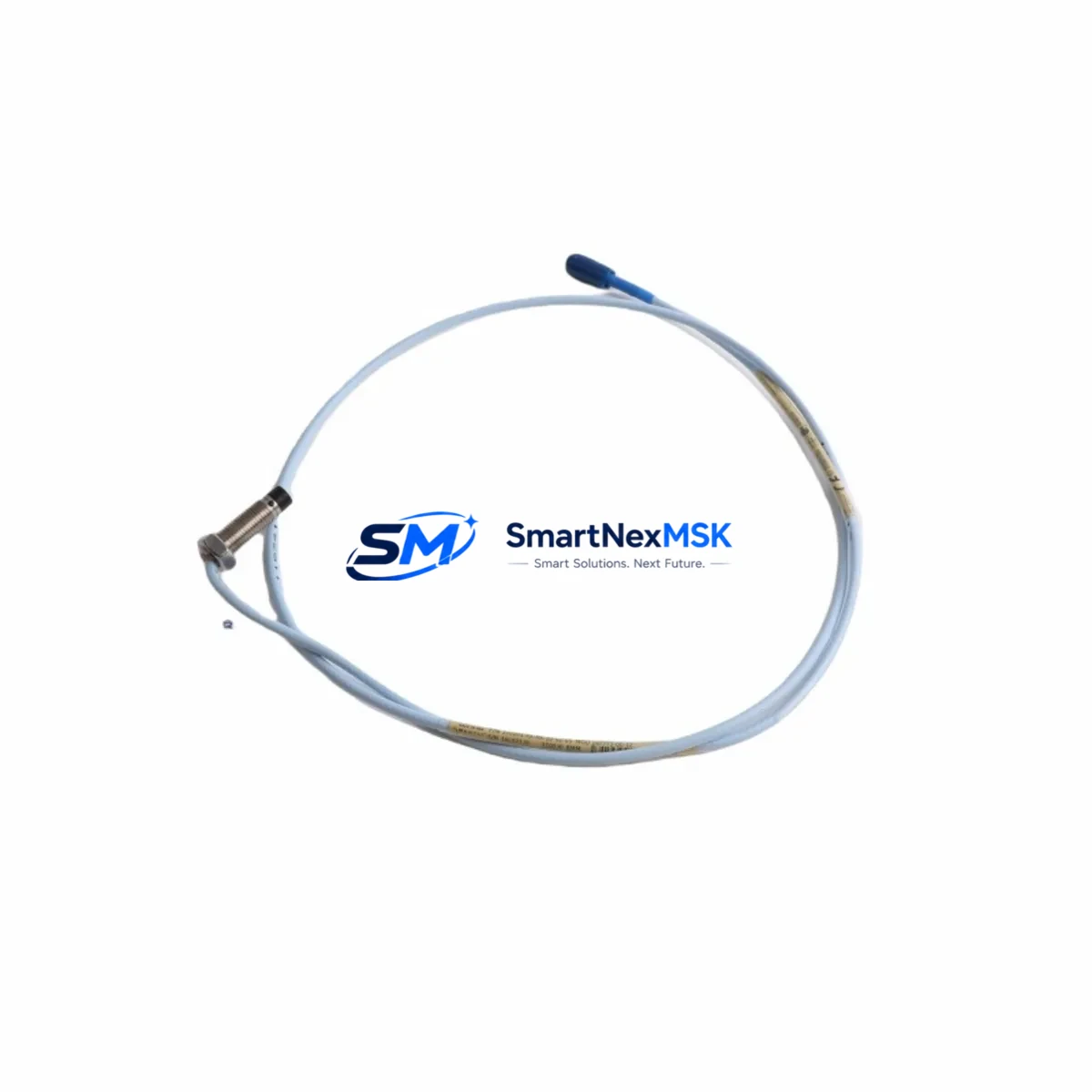

The Bently Nevada 330101-00-24-10-12-CN is an original proximity transducer engineered for the 3300 XL NSv continuous vibration monitoring system. Designed for radial shaft vibration and axial position measurement on rotating machinery, this transducer is a critical spare for maintenance engineers managing turbines, compressors, pumps, and motors in continuous-process industrial environments. Unplanned downtime caused by a failed proximity transducer can cascade into full-train shutdowns — having a verified, tested replacement on the shelf is the single most effective risk mitigation strategy available to any maintenance team.

This unit ships as an original Bently Nevada component, fully tested prior to dispatch, with a 12-month warranty covering manufacturing defects and functional performance. Each unit is inspected for cable integrity, connector condition, and output linearity before packaging. Long-term supply continuity is maintained through established sourcing channels, making this an ideal candidate for both emergency replacement and planned spare-parts inventory programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-24-10-12-CN transducer in the field, a disciplined maintenance engineer will not stop at the transducer alone. The 3300 XL NSv measurement chain is a system — and a fault in any adjacent component can produce the same symptom as a failed transducer, leading to misdiagnosis and repeat downtime.

Begin by inspecting the 330130-00-24-10-12-CN extension cable that connects the transducer to the proximitor. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation breakdown, particularly in high-vibration or high-temperature zones. A damaged cable will produce erratic gap voltage readings even with a new transducer installed. Next, verify the 330180-91-00 proximitor/driver output voltage and confirm it falls within the –18 VDC ±0.5 VDC specification. A drifting proximitor is a common root cause of false vibration alarms and should be bench-tested or swapped during any transducer replacement event.

At the rack level, inspect the 3300/16 monitor module or the relevant 3500/42M proximitor I/O module for alarm setpoint integrity and channel configuration. Confirm that the OK relay output is functioning and that the channel has not been inadvertently bypassed. If the system is integrated with a 3500 series rack, check the 3500/20 rack interface module for communication health and verify that the 3500/92 communication gateway is correctly forwarding data to the DCS or historian.

For installations where the transducer feeds into a safety instrumented system, cross-reference the output with the Bently Nevada 3500/33 16-channel relay module to confirm that trip setpoints have not shifted. In older installations, the 7200 series proximitor may still be in service alongside 3300 XL hardware — verify cross-compatibility before substituting components. Additionally, inspect terminal blocks, shielded signal cables, and any signal isolators or barriers in the measurement loop, as ground loops and shield discontinuities are a frequent source of noise that mimics transducer failure.

Finally, document the as-found gap voltage, the as-left gap voltage after installation, and the physical gap measurement in millimeters. This data supports future trend analysis and provides a baseline for the next planned inspection interval.

Site Replacement Workflow

Step 1 — Verify compatibility: Confirm that the replacement 330101-00-24-10-12-CN matches the installed transducer’s thread size (10-32 UNF), tip diameter (12 mm), cable length (24 in), and connector type (CN). Cross-reference the system documentation or the existing proximitor label to confirm the 3300 XL NSv driver is in use.

Step 2 — Isolate and de-energize: Place the affected channel in bypass mode at the monitor rack before disconnecting the transducer. This prevents spurious trip signals during the swap. Record the pre-removal gap voltage from the monitor display or DCS historian.

Step 3 — Remove and inspect: Unthread the transducer from the bracket. Inspect the mounting bracket, lock nut, and target surface for wear, corrosion, or mechanical damage. A damaged target surface will compromise measurement accuracy regardless of transducer condition.

Step 4 — Install and set gap: Thread the new 330101-00-24-10-12-CN into the bracket and set the air gap to the system-specified value (typically 50 mil / 1.27 mm for standard steel targets). Verify the output voltage at the proximitor test point. Adjust gap until the DC output is within the linear range specified in the 3300 XL NSv system manual.

Step 5 — Restore and verify: Remove the channel bypass, confirm OK status at the monitor, and verify that vibration readings are stable and within expected baseline values. Log the replacement in the maintenance management system with part number, serial number, installation date, and as-left gap voltage.

This workflow minimizes exposure time and ensures the replacement is fully validated before the machine is returned to service — reducing the risk of a repeat event during the next operating cycle.

Spare Parts Support FAQ

Q: Is the 330101-00-24-10-12-CN compatible with both 3300 XL and 3500 series racks?
A: Yes. The 330101-00-24-10-12-CN transducer is compatible with the 3300 XL NSv proximitor driver and is also used in 3500 series installations where the 3500/42M I/O module is configured for 3300 XL transducer inputs. Always verify the proximitor driver part number before installation to confirm the correct sensitivity (200 mV/mil) is expected.

Q: What is included in the 12-month warranty?
A: The 12-month warranty covers manufacturing defects and functional performance failure under normal operating conditions. Each unit is tested for output linearity, connector integrity, and cable continuity before shipment. Warranty claims are supported with replacement or refund, subject to inspection of the returned unit.

Q: How should I manage spare inventory for proximity transducers in a multi-train facility?
A: Industry best practice recommends holding a minimum of one transducer per monitored measurement point as a critical spare, with additional buffer stock for high-criticality machines such as main steam turbines or process compressors. Transducers should be stored in original packaging in a dry, temperature-controlled environment and rotated on a first-in, first-out basis. Shelf life is not a limiting factor for eddy-current transducers, but periodic inspection of connector condition is recommended for units stored longer than 24 months.

Q: Can I substitute a different cable-length variant if the 24-inch version is unavailable?
A: Cable length in the 3300 XL NSv system is a system parameter — the total cable length (transducer integral cable + extension cable) must match the proximitor driver’s calibrated range. Substituting a different integral cable length requires a corresponding change in the extension cable to maintain the correct total length. Consult the 3300 XL NSv system manual or contact our technical team before substituting cable-length variants.
