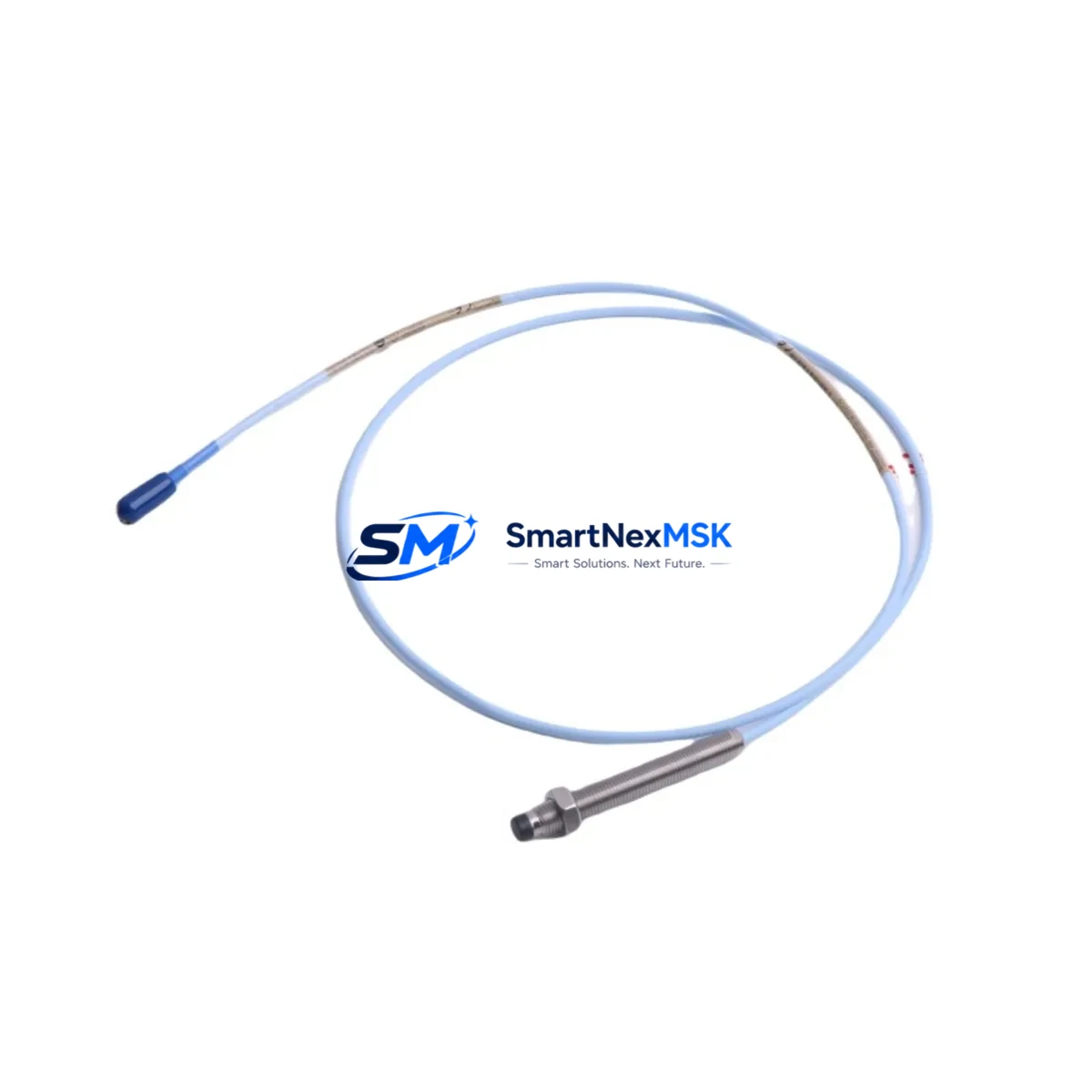

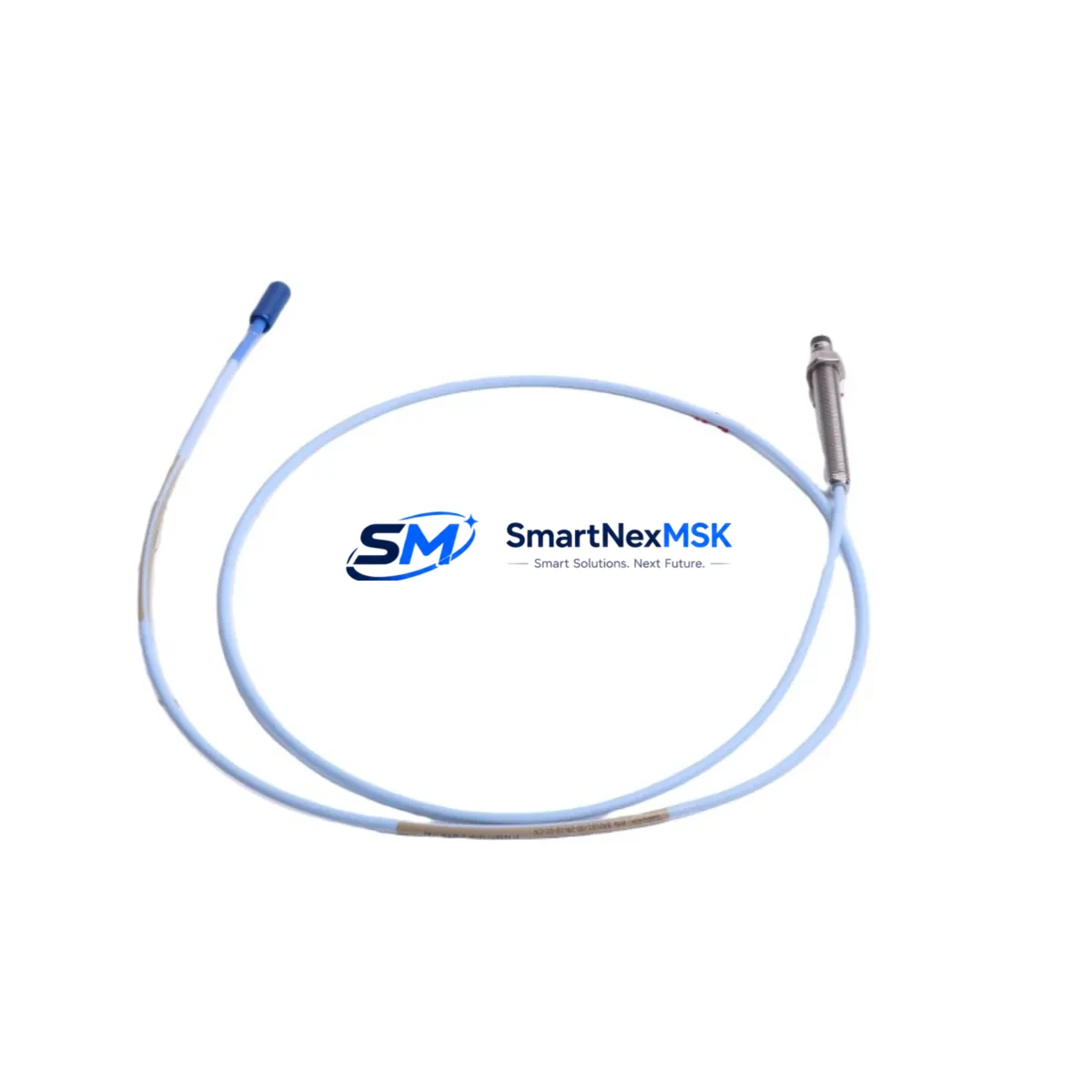

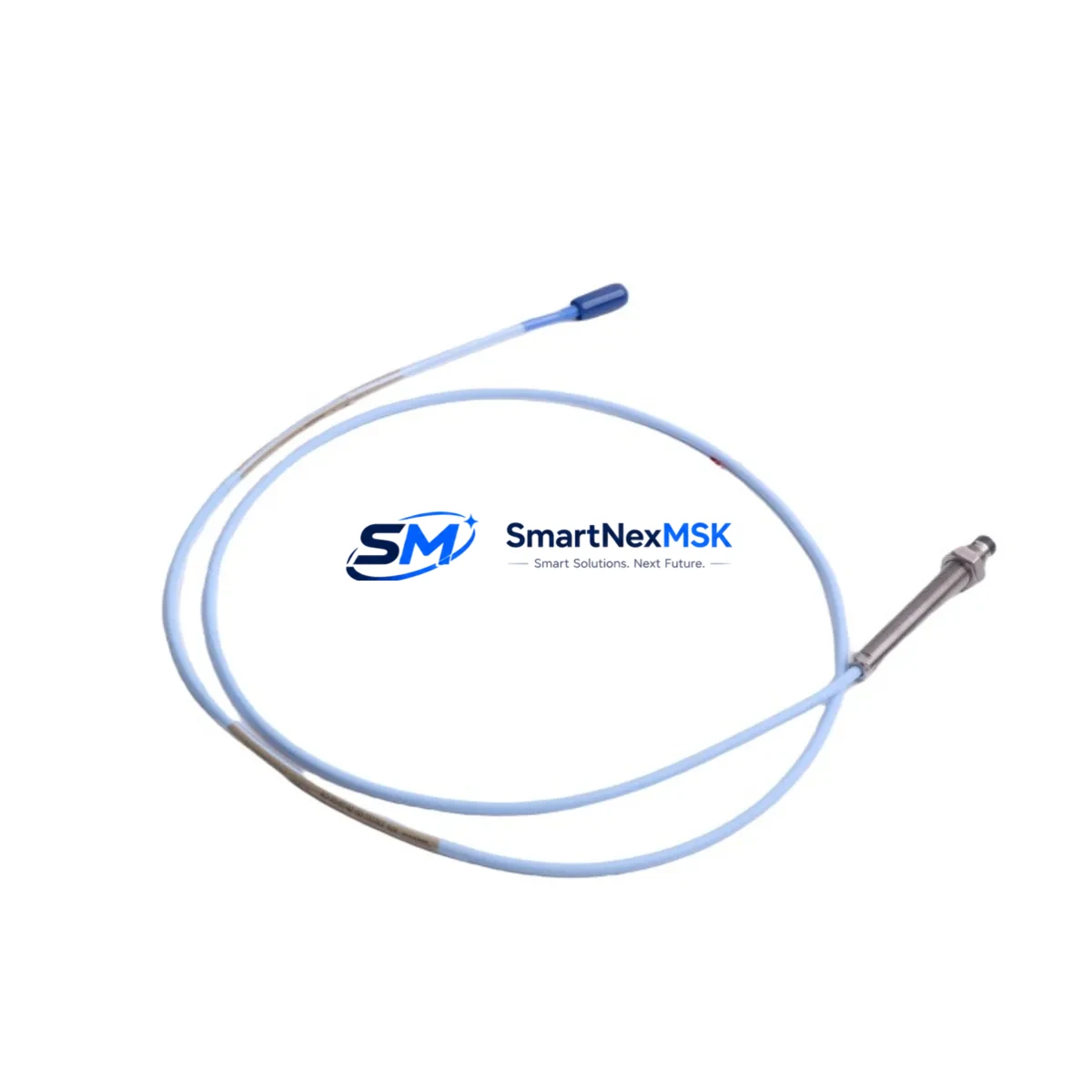

The Bently Nevada 330101-00-25-10-01-05 is an original 8mm eddy current proximity probe engineered for the 3300 XL Series continuous machinery monitoring system. Designed for radial shaft vibration measurement on rotating equipment — including turbines, compressors, pumps, and motors — this probe is a critical spare component in any industrial maintenance program. Whether you are executing a planned shutdown, responding to a vibration alarm, or building a strategic spare parts inventory, the 330101-00-25-10-01-05 delivers the dimensional accuracy, signal linearity, and environmental robustness required for uninterrupted plant operation.

Sourced from verified supply channels, each unit is inspected and tested prior to shipment. A 12-month warranty is included, covering manufacturing defects and functional performance. Fast dispatch and reliable international logistics ensure your maintenance team receives the part when it is needed most — not weeks later.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a proximity probe such as the 330101-00-25-10-01-05 is flagged for replacement during a routine vibration survey or control cabinet inspection, experienced maintenance engineers know that the probe itself is rarely the only component requiring attention. A comprehensive replacement workflow should include inspection of the entire signal chain and associated hardware.

Begin with the 3300 XL Proximitor Sensor (typically the 330180-X1-05 or 330180-51-05 series), which conditions the probe signal and converts gap distance to a DC voltage output. A degraded Proximitor can produce erratic readings even with a new probe installed. Verify the Proximitor’s output voltage at the nominal gap and confirm it falls within the calibrated linear range.

Next, inspect the 3300 XL extension cable (such as the 330130-045-00-00 or equivalent length variant). Extension cables are subject to mechanical fatigue, connector corrosion, and insulation breakdown — particularly in high-vibration or high-temperature environments. A damaged extension cable will introduce signal noise that mimics a failing probe.

The 3300 XL I/O module and associated terminal board within the monitoring rack should also be checked. Loose terminal connections, oxidized contacts, or a faulty I/O module can cause false alarms or masked faults. While the cabinet is open, inspect the 3300 XL power supply module for output voltage stability — an unstable supply rail directly affects Proximitor performance and measurement accuracy.

For plants running integrated protection systems, verify the 3500 Series rack interface if the 3300 XL feeds into a 3500/40M or 3500/42M monitor card. Confirm that the channel configuration, gap voltage setpoints, and alarm thresholds are correctly programmed in the System 1 Evolution or legacy System 1 software. A probe replacement is an ideal opportunity to audit these parameters and update them if the machine’s operating profile has changed.

Procurement engineers building a strategic spare parts kit for rotating equipment should also consider stocking the 330101-00-25-10-01-CN (metric cable variant), 330104-00-25-10-01-05 (14mm probe for larger shaft diameters), and the 330130 series extension cables in multiple lengths. Maintaining at least one spare Proximitor sensor per critical machine train significantly reduces mean time to repair (MTTR) during unplanned outages.

Finally, for control cabinets housing both vibration monitoring and process control equipment, inspect nearby signal isolators and surge protection modules on the probe signal lines. Ground loops and transient voltage spikes are common root causes of premature probe and Proximitor failure in industrial environments.

Site Replacement Workflow

Step 1 — Isolation and Lockout/Tagout: Follow your site LOTO procedure. Confirm the machine is at rest and the monitoring channel is bypassed or inhibited in the protection system to prevent spurious trips during replacement.

Step 2 — Gap Measurement and Documentation: Before removing the old probe, record the existing gap voltage from the Proximitor output. This provides a baseline for the new installation and confirms whether the previous probe had drifted out of calibration.

Step 3 — Probe Removal: Unthread the 330101-00-25-10-01-05 from its mounting bracket. Inspect the mounting threads and bracket for wear or corrosion. Clean the target area on the shaft and verify there are no surface defects that could affect the new probe’s linear range.

Step 4 — New Probe Installation: Install the replacement 330101-00-25-10-01-05 and set the gap to the manufacturer’s recommended nominal value (typically 50 mil / 1.27 mm for 8mm probes). Use a calibrated gap-setting tool or feeler gauge. Torque the locknut to specification.

Step 5 — Signal Verification: Reconnect the extension cable and Proximitor. Power up the channel and verify the output voltage corresponds to the set gap. Confirm the reading in the monitoring system matches the expected value. Remove the bypass/inhibit and restore normal protection status.

Step 6 — Documentation and Spare Replenishment: Log the replacement in your CMMS (Computerized Maintenance Management System) with the new probe’s serial number, installation date, and gap setting. Immediately initiate a purchase order to replenish the consumed spare, maintaining your minimum stock level.

Spare Parts Support FAQ

Q1: Is the 330101-00-25-10-01-05 a direct drop-in replacement for older 3300 series probes?
The 330101-00-25-10-01-05 is designed for the 3300 XL 8mm system and is compatible with 3300 XL Proximitor Sensors. It is not directly interchangeable with the earlier 3300 (non-XL) series without verifying Proximitor compatibility. Always confirm the Proximitor model before installation. If your system uses a legacy 3300 Proximitor, consult the Bently Nevada compatibility matrix or contact our technical team.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-00-25-10-01-05 unit undergoes output signal verification, coil continuity testing, and connector integrity inspection before dispatch. Units that do not meet specification are quarantined and not shipped. A test report is available upon request for critical applications.

Q3: How should this probe be stored as a long-term spare?
Store in the original packaging or an ESD-safe, moisture-controlled environment at temperatures between 0°C and 60°C. Avoid exposure to strong magnetic fields or mechanical shock. Inspect the connector and cable jacket annually. Properly stored, the probe maintains its calibration characteristics for extended periods without degradation.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, coil failure, connector faults, and functional non-conformance to published specifications under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or use outside the rated environmental limits. Warranty claims are processed with return merchandise authorization (RMA) and include replacement or full refund at our discretion.
