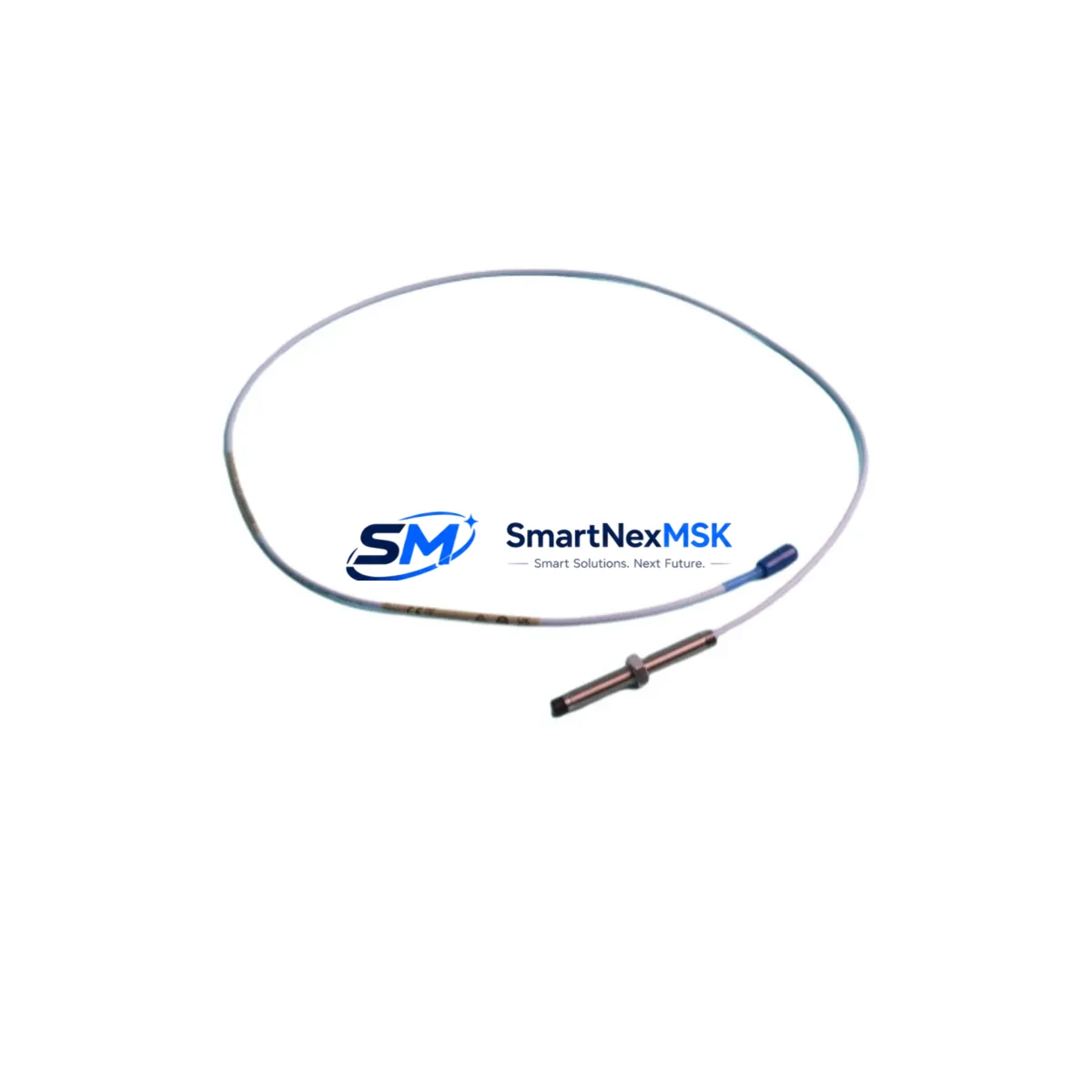

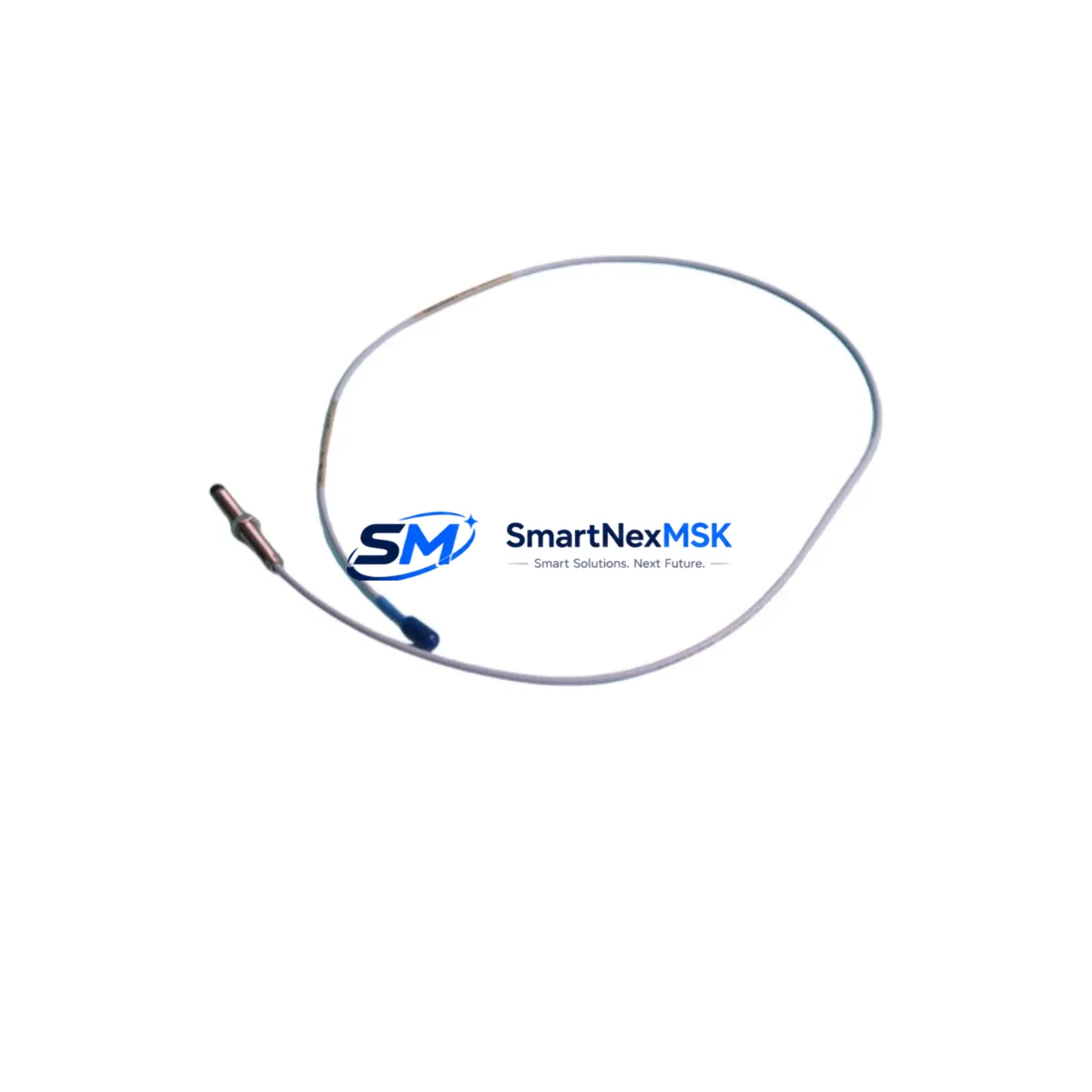

Bently Nevada 330101-00-25-10-02-00 Safety Proximity Transducer

Bently Nevada 330101-00-25-10-02-00 Safety-Enhanced Proximity Transducer for Harsh Industrial Sites

The Bently Nevada 330101-00-25-10-02-00 is a ruggedized 8mm eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high-temperature, high-vibration, and electromagnetically noisy plant conditions, this transducer is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgy, water treatment, and heavy manufacturing facilities worldwide.

In safety-critical control architectures, signal integrity is non-negotiable. The 330101-00-25-10-02-00 delivers a stable, low-noise analog output that feeds directly into machinery protection systems such as the Bently Nevada 3500 Series Rack, enabling real-time shaft displacement monitoring and early fault detection. Its ruggedized construction resists signal drift caused by thermal cycling, mechanical shock, and electromagnetic interference — common failure modes in continuous-process plants where unplanned downtime carries severe safety and financial consequences.

When integrated into a complete vibration monitoring loop, this transducer works in concert with the Bently Nevada 330130-040-00-00 Extension Cable and the 330180-X1-05 Proximitor Sensor to form a calibrated, three-component measurement chain. The Proximitor converts the transducer’s raw eddy-current signal into a conditioned DC voltage proportional to gap distance, ensuring accurate shaft position data reaches the monitoring rack without degradation. Proper cable routing and shielding — using the matched extension cable — is essential to prevent ground loops and capacitive noise pickup in high-voltage switchgear rooms and motor control centers.

In control cabinet protection strategies, the 330101-00-25-10-02-00 is typically installed alongside Bently Nevada 3500/42M Proximitor I/O Modules and 3500/22M Transient Data Interface cards, which provide the signal conditioning, alarm setpoint management, and relay output functions required for automatic machine trip on high vibration. Surge protection at the cabinet entry point — using dedicated transient voltage suppression (TVS) modules compatible with the 3300 XL signal range — safeguards both the transducer and the monitoring rack from lightning-induced surges and switching transients on long field cable runs.

For installations in hazardous classified areas (Zone 1/Zone 2 or Division 1/Division 2), the transducer’s electrical parameters are compatible with Zener barrier or galvanic isolator assemblies that limit energy in the field circuit to intrinsically safe levels. This makes the 330101-00-25-10-02-00 suitable for use in explosive atmospheres found in upstream oil and gas, chemical processing, and offshore platform applications, provided the complete installation complies with applicable IEC 60079 or NEC 505 requirements.

Power supply stability is equally critical to transducer performance. The 3300 XL system requires a clean, regulated −24 VDC supply; fluctuations beyond ±1 V can introduce measurement offset errors. Pairing the monitoring system with a dedicated redundant DC UPS module or an isolated DC-DC converter ensures the Proximitor and transducer chain remains energized and accurate during grid disturbances, generator switchovers, or capacitor bank switching events common in heavy industrial substations.

Communication of vibration data to the plant DCS or safety instrumented system (SIS) is handled via the 3500 System Communication Gateway, which supports Modbus RTU, Modbus TCP, and OPC-DA/UA protocols. This allows the 330101-00-25-10-02-00 measurement chain to feed real-time shaft vibration values into Emerson DeltaV, Honeywell Experion, or ABB System 800xA platforms for integrated process safety and condition monitoring. Alarm rationalization and SIL-rated interlock logic can then act on transducer data to initiate controlled shutdowns before catastrophic bearing or seal failures occur.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet design for rotating machinery protection centers on the complete signal chain integrity from field sensor to monitoring rack. The 330101-00-25-10-02-00 transducer anchors this chain at the field end. Inside the marshalling cabinet, each transducer channel is terminated through a dedicated Bently Nevada 3500/20 Power Supply Module that provides the regulated −24 VDC required by the Proximitor sensor. Redundant power supply configurations — using two 3500/20 modules in a hot-standby arrangement — eliminate the power supply as a single point of failure in safety-critical machinery protection loops.

Signal wiring from the transducer runs through armored, twisted-pair, shielded cable (typically Belden 9182 or equivalent) to minimize capacitive coupling and ground noise. At the cabinet entry, Phoenix Contact TRABTECH surge protection modules rated for the −24 VDC signal range clamp transient overvoltages before they can damage the Proximitor or I/O cards. Within the rack, the 3500/42M Proximitor I/O Module digitizes the analog gap voltage and applies configurable alert and danger setpoints, feeding relay outputs to the machine’s emergency shutdown (ESD) system.

For plants running Emerson Ovation DCS or Rockwell Automation ControlLogix PAC platforms, the 3500 rack’s communication gateway bridges vibration data into the plant-wide historian and safety logic solver. Complementary components such as the Bently Nevada 3500/15 TDI Module capture transient waveform data during startup and coast-down, enabling engineers to trend bearing wear and detect developing faults weeks before they escalate to unplanned shutdowns. The complete ecosystem — transducer, extension cable, Proximitor, I/O module, power supply, and communication gateway — is designed as an integrated safety architecture, not a collection of isolated components.

Critical Industrial Safety Applications

Petrochemical & Refinery: Compressor trains, centrifugal pumps, and steam turbine-driven blowers in continuous-process units require 24/7 shaft vibration monitoring. The 330101-00-25-10-02-00 is installed on journal bearing housings to detect rotor imbalance, misalignment, and oil whirl before they cause seal failures or catastrophic rotor contact. In SIL 2-rated compressor protection loops, the transducer’s signal feeds the SIS logic solver to initiate automatic machine trip within milliseconds of exceeding danger setpoints.

Power Generation: Gas turbines, steam turbines, and large generator sets in utility and cogeneration plants rely on proximity transducers for both radial and axial position monitoring. The 3300 XL transducer’s wide frequency response (DC to 10 kHz) captures both slow thermal expansion and high-frequency blade-pass vibration events, providing operators with a complete picture of rotor dynamics across all operating speeds.

Mining & Minerals Processing: Ball mills, SAG mills, and large slurry pumps operate in environments with extreme dust, moisture, and mechanical shock. The PEEK tip material and IP67-rated connector of the 330101-00-25-10-02-00 resist chemical attack from process fluids and maintain calibration stability despite continuous vibration from adjacent crushing and grinding equipment.

Metallurgy & Steel: Rolling mill drives, continuous casters, and induction furnace cooling pumps demand transducers that maintain accuracy in the presence of strong magnetic fields from high-current bus bars and induction heating systems. The 3300 XL’s ruggedized EMI shielding ensures signal integrity in these high-interference environments.

Water & Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in municipal water treatment plants benefit from continuous vibration monitoring to extend bearing life and schedule predictive maintenance during planned outages, avoiding costly emergency repairs and service interruptions to critical public infrastructure.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330101-00-25-10-02-00?
The 12-month warranty covers all manufacturing defects, functional failures, and calibration deviations from the Bently Nevada 3300 XL specification. If the transducer fails to meet its published scale factor, linearity, or frequency response specifications within the warranty period under normal operating conditions, we will provide a replacement unit or full refund. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-00-25-10-02-00 unit undergoes functional verification prior to shipment, including output voltage linearity check across the full gap range, scale factor confirmation at 200 mV/mil, insulation resistance test on the integral cable, and visual inspection of the PEEK tip and connector for mechanical damage. A test report is available upon request for units destined for SIL-rated or safety-critical applications.

Q3: Is the 330101-00-25-10-02-00 compatible with existing 3300 XL Proximitor sensors and extension cables?
Yes. The 330101-00-25-10-02-00 is fully compatible with all standard 3300 XL Proximitor sensors (330180 series) and 330130 series extension cables. The three-component system — transducer, extension cable, and Proximitor — must be used as a matched set calibrated to the same target material for accurate measurements. Mixing components from different calibration sets will introduce scale factor errors and is not recommended for safety-critical applications.

Q4: Can you guarantee long-term supply and replacement support for this part?
Yes. We maintain dedicated stock of the 330101-00-25-10-02-00 and related 3300 XL series components to support ongoing spare parts programs and emergency replacement needs. For customers with large installed bases, we offer reserved inventory agreements to ensure availability during planned turnarounds and unplanned outages. Our global logistics network supports expedited shipping to major industrial regions within 24–72 hours of order confirmation.
