Bently Nevada 330101-00-25-20-12-00 Spare for 3300 XL

Bently Nevada 330101-00-25-20-12-00 Maintenance-Ready Spare for 3300 XL Automation

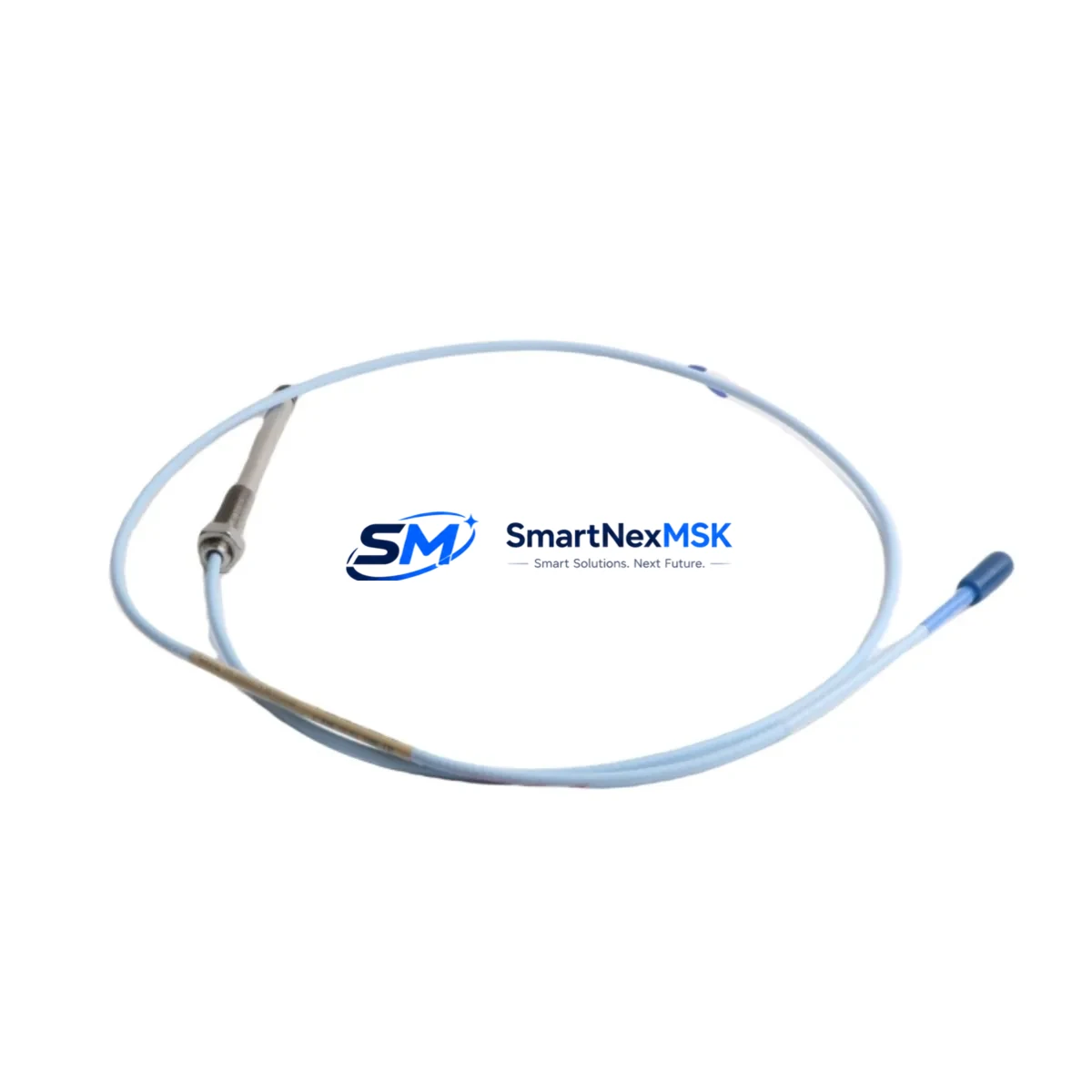

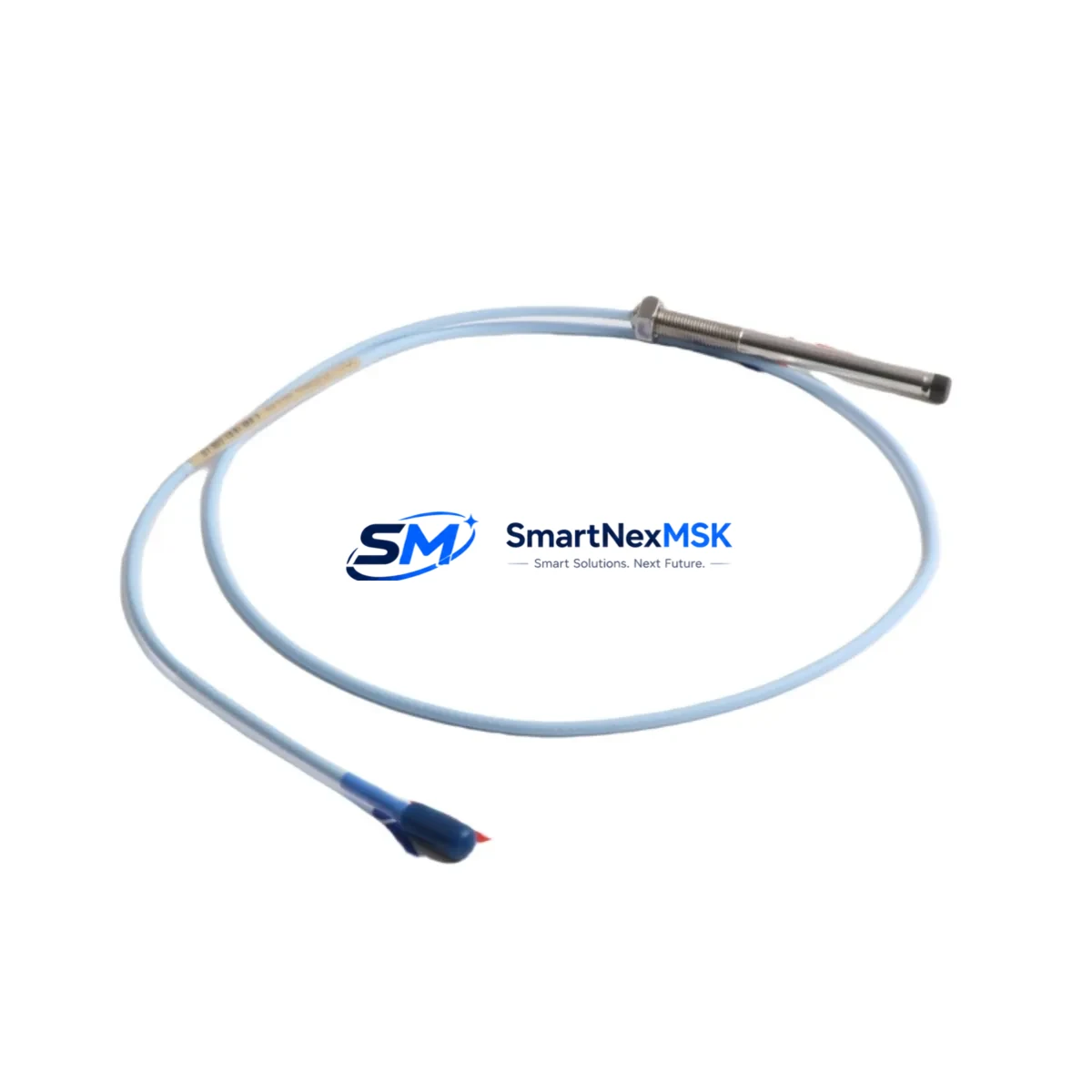

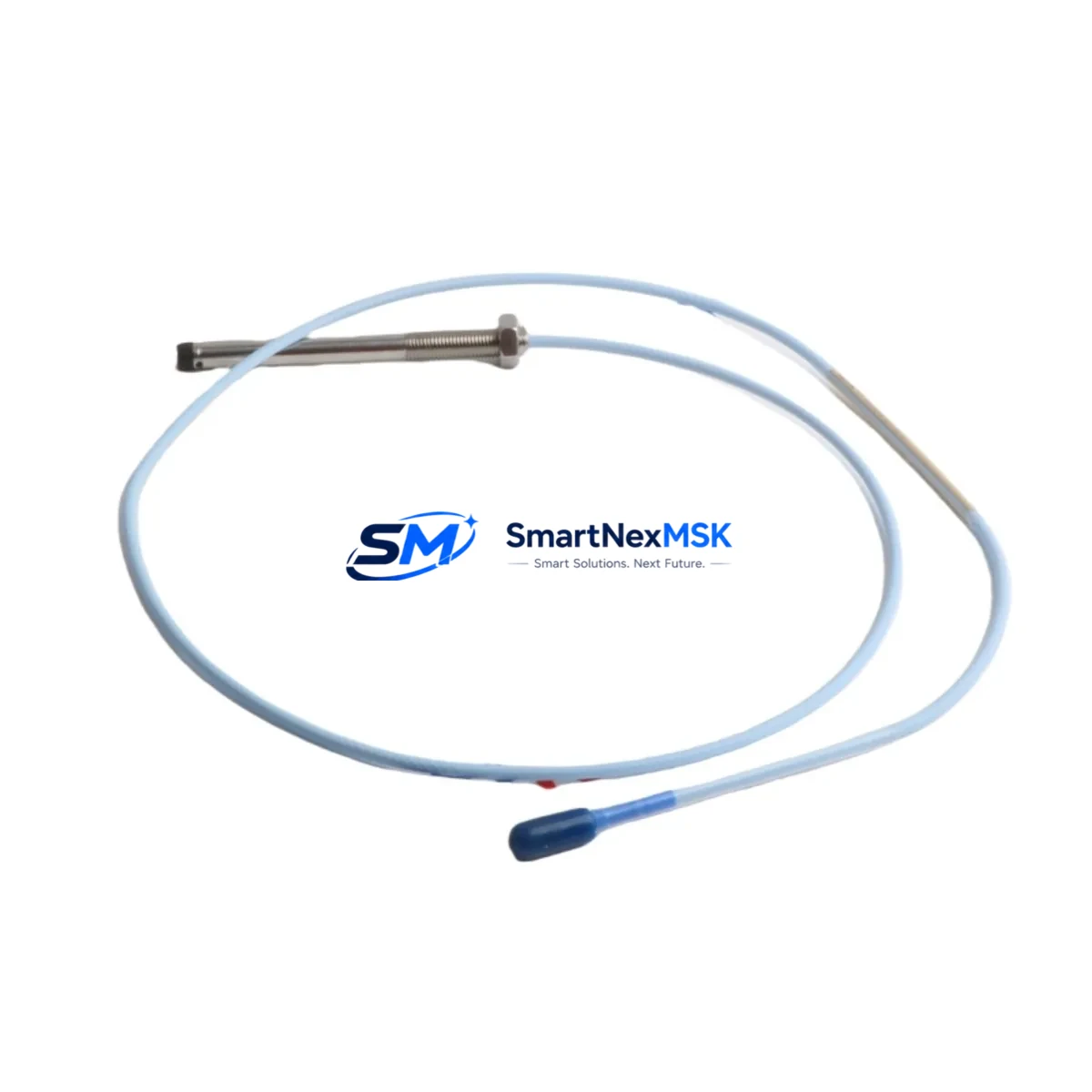

The Bently Nevada 330101-00-25-20-12-00 is an 8mm eddy current proximity probe engineered for the 3300 XL Series continuous machinery monitoring system. As a maintenance-ready original spare, this probe delivers the measurement accuracy and signal stability required for vibration, position, and speed monitoring on rotating machinery in power generation, oil & gas, petrochemical, and heavy industrial environments.

For maintenance engineers managing turbine trains, compressor strings, or pump sets, unplanned downtime caused by a failed proximity probe can cascade into hours of lost production. Stocking the 330101-00-25-20-12-00 as a certified spare ensures that when a probe fails during a routine inspection or an emergency shutdown event, replacement can be completed within a single maintenance window — restoring full condition monitoring coverage without waiting on lead times.

This probe is designed for direct drop-in replacement within the 3300 XL monitoring architecture. It is compatible with the 3300 XL proximitor/seismic transducer (330180 series) and integrates seamlessly with the 3500 Series rack-based monitoring system when used in legacy hybrid configurations. Procurement engineers sourcing spares for long-term service agreements or OEM-equivalent replacement programs will find this unit fully interchangeable with the original factory specification.

Each unit is tested prior to shipment to verify output linearity, gap voltage response, and cable integrity. A 12-month warranty is included, covering manufacturing defects and performance deviations from published specifications. Global logistics support is available for urgent site requirements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-25-20-12-00 in the field, a thorough inspection of the surrounding monitoring loop is essential to prevent repeat failures and ensure measurement integrity. Maintenance engineers should begin by verifying the condition of the 330130 series extension cable, as cable jacket degradation or connector corrosion is a common root cause of erratic gap voltage readings that are often misattributed to probe failure.

The 330180 series proximitor should be inspected for supply voltage stability — a drifting −24 VDC rail from the power supply module can cause false alarm trips even after a probe replacement. If the control cabinet houses a 3500/15 power supply module or equivalent, verify output ripple and regulation before returning the loop to service.

For systems integrated into a 3500 Series rack, confirm that the 3500/42M or 3500/40M monitor module is correctly configured for the 8mm probe scale factor. Incorrect scale factor settings will produce calibration offsets that invalidate vibration trend data. While in the cabinet, inspect the 3500/20 rack interface module and any 3500/92 communication gateway for firmware currency and connector seating.

In installations where the proximity probe feeds a vibration signal into a DCS or safety instrumented system via a signal isolator or signal conditioner, verify that the isolator output range (typically 4–20 mA or 0–10 V) remains within calibrated limits after probe replacement. Signal isolators from the TURCK IM or Phoenix Contact MCR series are commonly used in these configurations and should be included in the inspection checklist.

Terminal blocks and field wiring terminations within the junction box should be checked for torque and oxidation, particularly in high-humidity or offshore environments. Fuse holders protecting the proximitor supply circuit should be verified for continuity. If the installation includes a Bently Nevada 3300/55 or 3300/65 I/O module for integration with a DCS historian, confirm that the analog output signal is tracking correctly after the probe swap.

For facilities running planned turnaround maintenance, the 330101-00-25-20-12-00 should be included in the standard spare parts kit alongside the 330130 extension cable, 330180 proximitor, and relevant monitor channel cards. This approach minimizes diagnostic time during outage windows and supports a complete loop replacement strategy when probe and cable age exceeds the recommended service interval.

Site Replacement Workflow

Step 1 — Isolate and de-energize: Remove power from the proximitor supply circuit at the 3500/15 power supply module or local isolator. Confirm zero voltage at the proximitor terminals before disconnecting the probe.

Step 2 — Remove the failed probe: Loosen the locknut and unthread the 330101-00-25-20-12-00 from the mounting bracket. Note the installed gap measurement (typically recorded in the maintenance log) for reference during reinstallation.

Step 3 — Inspect the mounting boss: Check the target area on the shaft for surface damage, scoring, or contamination. Clean with isopropyl alcohol if required. Verify that the target material is compatible with eddy current sensing (non-magnetic, conductive metal).

Step 4 — Install the replacement probe: Thread the new 330101-00-25-20-12-00 into the mounting bracket and set the gap to the specified value (typically 1.0–1.5 mm for most 3300 XL applications). Torque the locknut to specification and reconnect the extension cable to the proximitor.

Step 5 — Restore power and verify output: Re-energize the proximitor supply and measure the DC gap voltage at the proximitor output terminals. Confirm the reading falls within the linear range (typically −10 to −18 VDC for a correctly gapped 8mm probe). Compare against the pre-failure baseline in the condition monitoring historian.

Step 6 — Return to service: Clear any latched alarms in the 3500 Series monitor, confirm that vibration trend data is logging correctly, and update the maintenance record with the replacement date, gap setting, and gap voltage reading.

This workflow supports a target replacement time of under two hours for a trained maintenance technician, minimizing the impact on production schedules and supporting rapid return to full condition monitoring coverage.

Spare Parts Support FAQ

Q: Is the 330101-00-25-20-12-00 a direct replacement for older 3300 series probes?
A: The 330101-00-25-20-12-00 is designed for the 3300 XL system and is mechanically and electrically compatible with standard 3300 XL proximitor and monitor configurations. For installations using earlier 3300 (non-XL) hardware, verify the proximitor model and scale factor settings before installation. In most cases, the probe is interchangeable, but monitor channel configuration may require adjustment.

Q: What is included in the 12-month warranty?
A: The warranty covers manufacturing defects, output linearity deviations, and cable integrity failures under normal operating conditions. Each unit is tested for gap voltage response and signal output before shipment. Warranty claims are supported with replacement or repair at no additional cost within the coverage period.

Q: How should this probe be stored as a long-term spare?
A: Store in the original packaging in a dry, temperature-controlled environment (0°C to 40°C) away from strong magnetic fields and mechanical shock. Inspect the connector and cable jacket annually. For critical machinery applications, a recommended spare holding of one probe and one extension cable per monitored shaft is standard practice.

Q: Can you verify compatibility with my specific system configuration before shipment?
A: Yes. Provide your proximitor model number, monitor rack type, and target material specification, and our technical team will confirm compatibility before the order is processed. This service is available at no additional charge and is recommended for first-time replacements or non-standard installations.
