Bently Nevada 330101-00-27-10-02-00 Safety-Enhanced Proximity Probe

Bently Nevada 330101-00-27-10-02-00 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

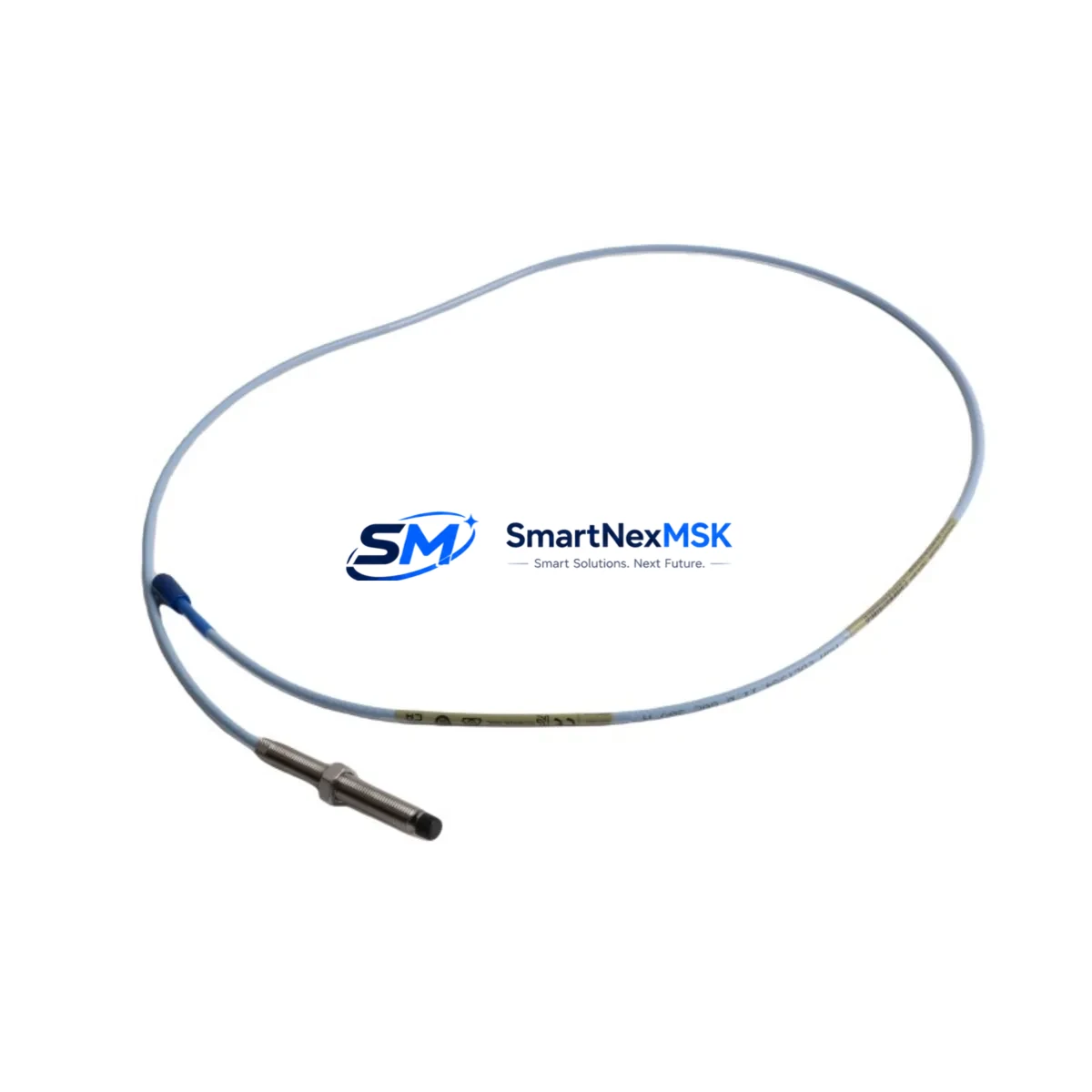

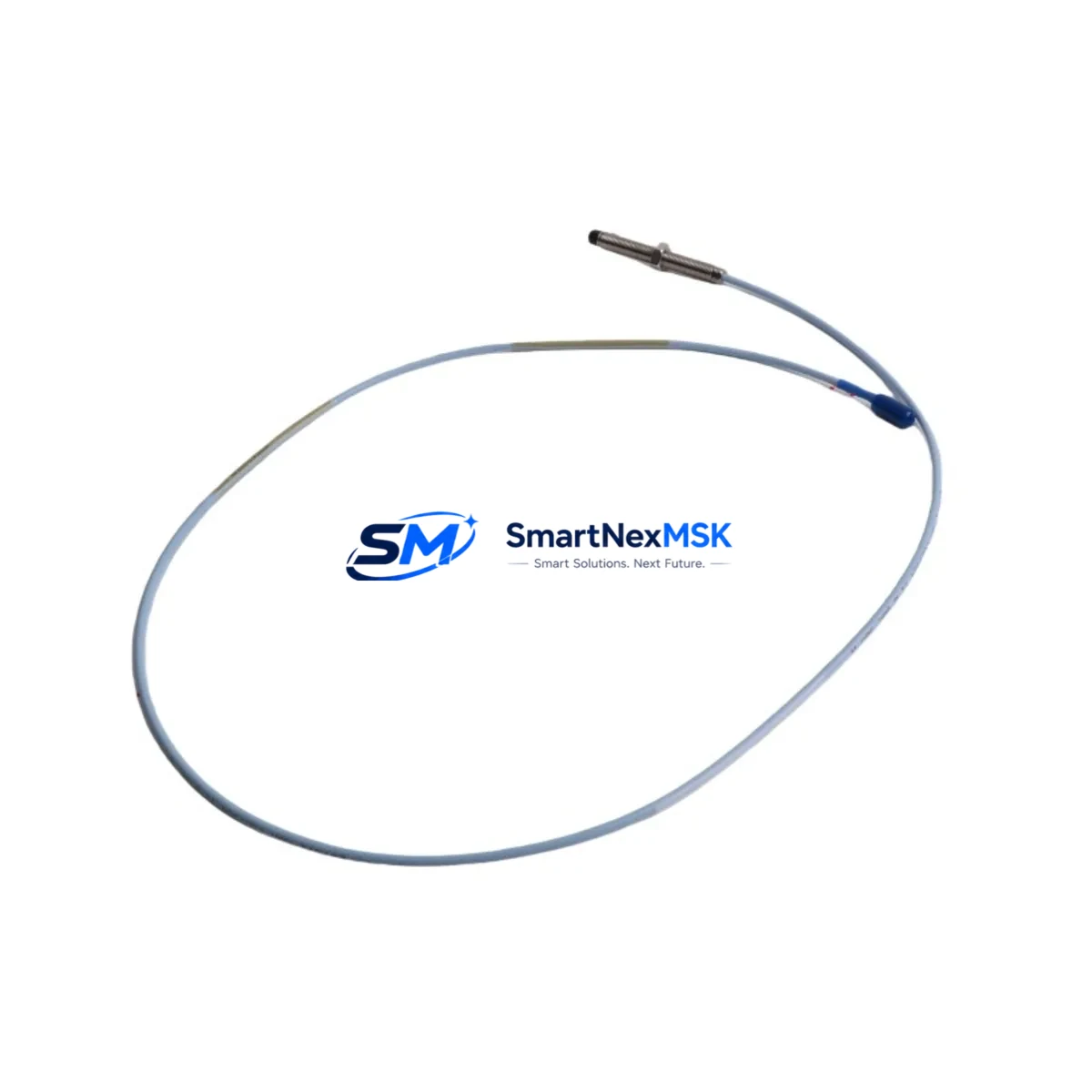

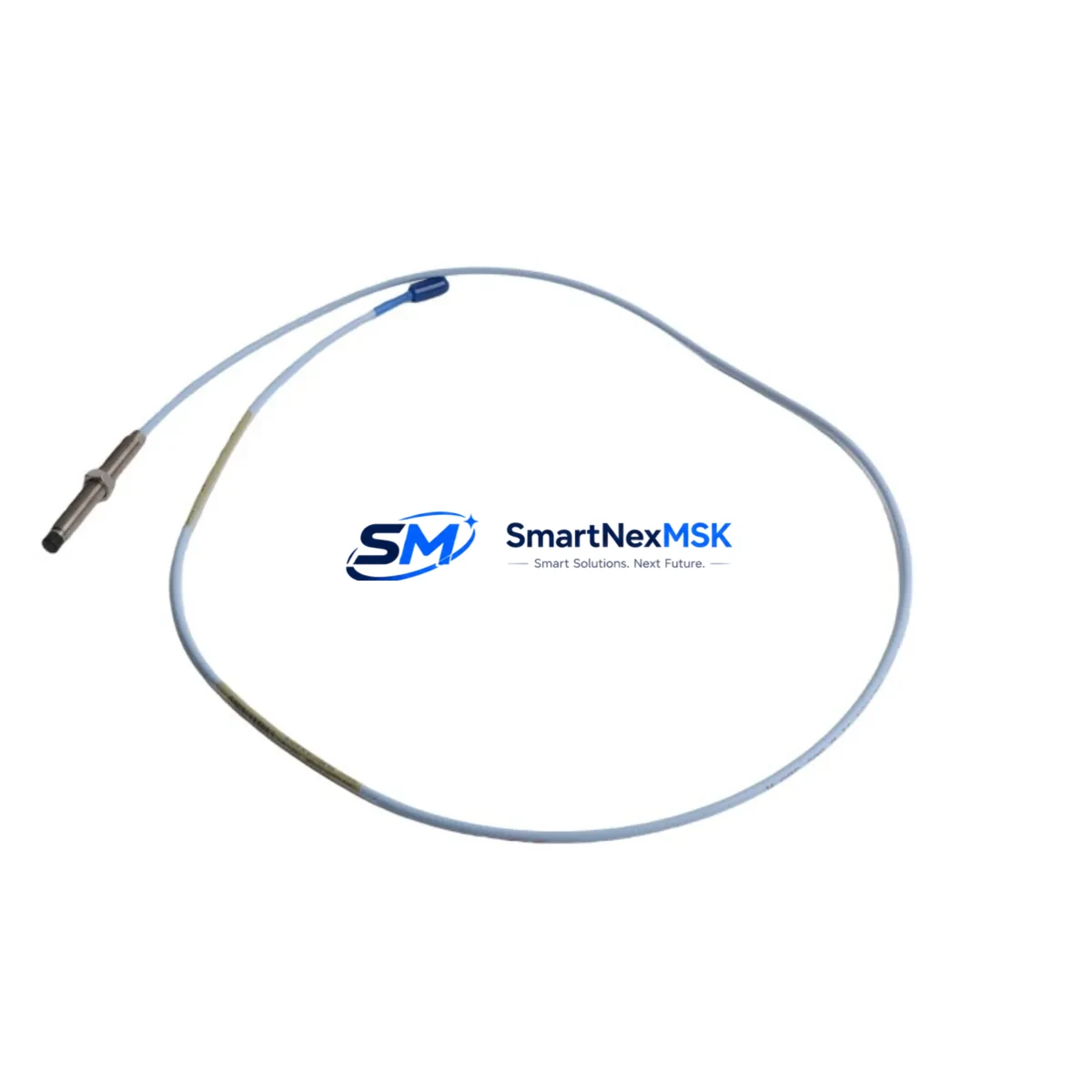

The Bently Nevada 330101-00-27-10-02-00 is an 8mm eddy current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably under high electromagnetic interference, mechanical shock, thermal cycling, and chemical exposure, this probe is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgy, water treatment, and heavy manufacturing facilities.

In high-stakes control architectures where a single sensor failure can trigger unplanned shutdowns, cascade trips, or catastrophic equipment damage, the 330101-00-27-10-02-00 delivers the signal integrity and mechanical robustness that safety engineers and reliability teams depend on. Its non-contact eddy current measurement principle eliminates mechanical wear, ensuring consistent output over extended service intervals without drift or degradation — a critical advantage in continuous production environments where maintenance windows are rare.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330101-00-27-10-02-00 probe operates as the primary sensing element within a complete Bently Nevada 3300 XL monitoring chain. It is paired with the Bently Nevada 330130 extension cable to bridge the distance between the probe tip and the signal conditioning driver, maintaining signal fidelity across long cable runs in electrically noisy environments. The Bently Nevada 330180 proximitor / oscillator-demodulator converts the raw eddy current signal into a calibrated DC voltage output, which feeds directly into the Bently Nevada 3300/16 dual-channel monitor for real-time vibration and position alarming.

To protect the entire monitoring loop from power-line transients and surge events — common in heavy industrial switchgear rooms — the system is typically powered through a Bently Nevada 3500/15 power supply module or equivalent isolated 24 VDC rail with surge suppression. In facilities running parallel DCS or safety instrumented systems, the probe output is often routed through a Pepperl+Fuchs or MTL signal isolator / barrier to maintain galvanic separation between the field loop and the control room, preventing ground loops that can cause signal drift and false trips.

For critical turbine or compressor trains where API 670 compliance is mandatory, the 330101-00-27-10-02-00 is deployed in redundant pairs — one radial X-axis and one radial Y-axis — alongside a Bently Nevada 330500 thrust position probe to provide complete shaft dynamic monitoring. The entire probe array interfaces with the Bently Nevada 3500 rack system, which provides voted trip logic, Modbus/TCP or PROFIBUS communication to the plant DCS, and hardwired relay outputs to the emergency shutdown (ESD) panel. In installations where the control cabinet also houses a Siemens S7-300 or Allen-Bradley ControlLogix PLC, the monitor rack’s analog outputs are wired to dedicated AI modules, enabling the PLC to log vibration trends and trigger pre-alarm sequences before the hardware trip threshold is reached.

Surge protection at the cabinet entry point — using devices such as a Phoenix Contact TRABTECH surge arrester — further shields the sensitive probe circuitry from lightning-induced transients on long field cable runs, a critical consideration in outdoor compressor stations and open-air substations.

Critical Industrial Safety Applications

Petrochemical & Refinery: In catalytic cracking units, ethylene compressors, and boiler feed pump trains, the 330101-00-27-10-02-00 provides continuous shaft orbit and radial vibration data to the plant’s safety instrumented system (SIS). Any exceedance of the API 670 danger setpoint triggers an automatic ESD sequence, preventing bearing failure and potential hydrocarbon release in classified hazardous areas.

Power Generation: Steam turbine and gas turbine installations rely on this probe for real-time rotor eccentricity and differential expansion monitoring. In combined-cycle plants, where turbine trips carry significant revenue impact, the probe’s stable, drift-free output ensures that protection trips are genuine — not caused by sensor noise or signal degradation — reducing nuisance shutdowns while maintaining true safety margins.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pump drives operate under extreme vibration and dust loading. The IP67-rated probe body and high-shock-resistance specification make the 330101-00-27-10-02-00 suitable for direct installation on mill pinion bearings and gearbox output shafts, where early detection of imbalance or misalignment prevents catastrophic drivetrain failures in remote, difficult-to-access locations.

Water & Wastewater Treatment: High-speed centrifugal pumps and blower trains in water treatment plants benefit from continuous vibration monitoring to detect cavitation, impeller wear, and bearing degradation before they escalate to pump failure and service interruption. The probe’s compatibility with the 3300 XL driver system allows seamless integration into existing SCADA architectures via the monitor’s 4–20 mA analog output.

Metallurgy & Steel: Rolling mill main drives, continuous caster pinch rolls, and converter vessel tilting drives operate in environments with intense electromagnetic interference from large variable-frequency drives and arc furnaces. The shielded coaxial cable and high EMI immunity of the 330101-00-27-10-02-00 ensure clean signal transmission even in these electrically hostile conditions, supporting reliable interlock and protection logic in the mill’s main PLC and DCS.

Port & Heavy Lifting: Crane hoist motors, gantry drive gearboxes, and ship-loader conveyor drives are subject to cyclic loading and outdoor environmental exposure. Proximity probe-based monitoring on these assets enables condition-based maintenance scheduling, reducing unplanned downtime in port operations where equipment availability directly impacts cargo throughput.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330101-00-27-10-02-00?
All units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. This covers manufacturing defects, calibration failures, and premature component failure under normal operating conditions. Warranty claims are processed with priority turnaround to minimize your site downtime.

Q2: How is each probe tested before shipment?
Every 330101-00-27-10-02-00 unit undergoes a full pre-shipment functional verification, including output linearity check, sensitivity calibration against a reference target, cable continuity and insulation resistance test, and connector integrity inspection. A test report is available upon request for quality-critical installations.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL drivers and monitors?
Yes. The 330101-00-27-10-02-00 is a factory-standard 3300 XL Series component and is fully compatible with all Bently Nevada 330180 proximitor drivers, 3300/16 monitors, and 3500 rack-based monitoring systems. It is a direct replacement for worn or failed probes in existing installations without requiring recalibration of the driver or monitor.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
SMARTNEXMSK maintains dedicated stock of the 330101-00-27-10-02-00 and related 3300 XL Series components to support planned maintenance shutdowns, emergency replacements, and multi-site spare parts programs. We provide lead-time commitments and can arrange consignment or blanket order arrangements for high-volume customers requiring supply security.
