Bently Nevada 330101-00-28-10-02-CN Safety Proximity Probe

Bently Nevada 330101-00-28-10-02-CN Safety Proximity Probe: Precision Vibration Control for Harsh Industrial Sites

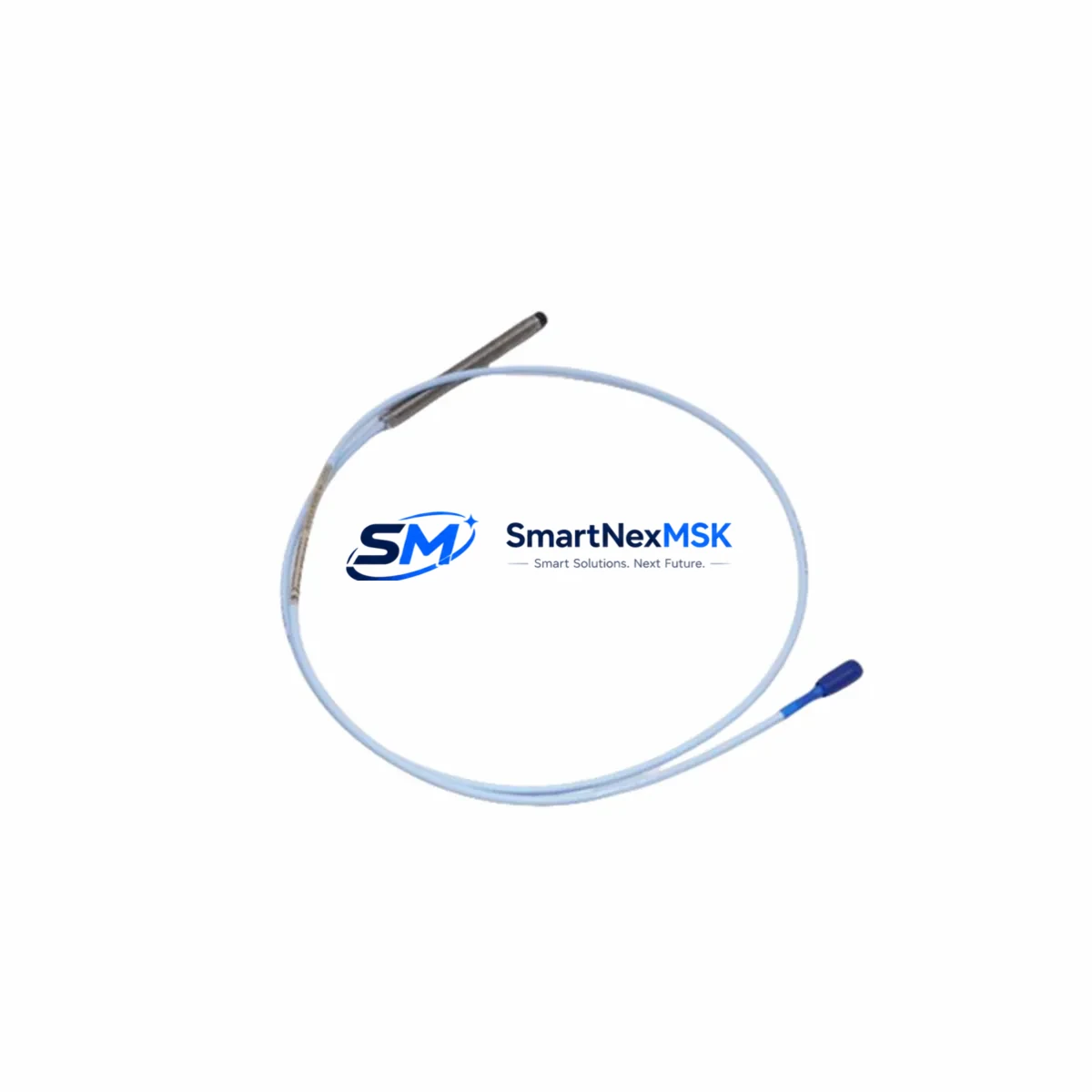

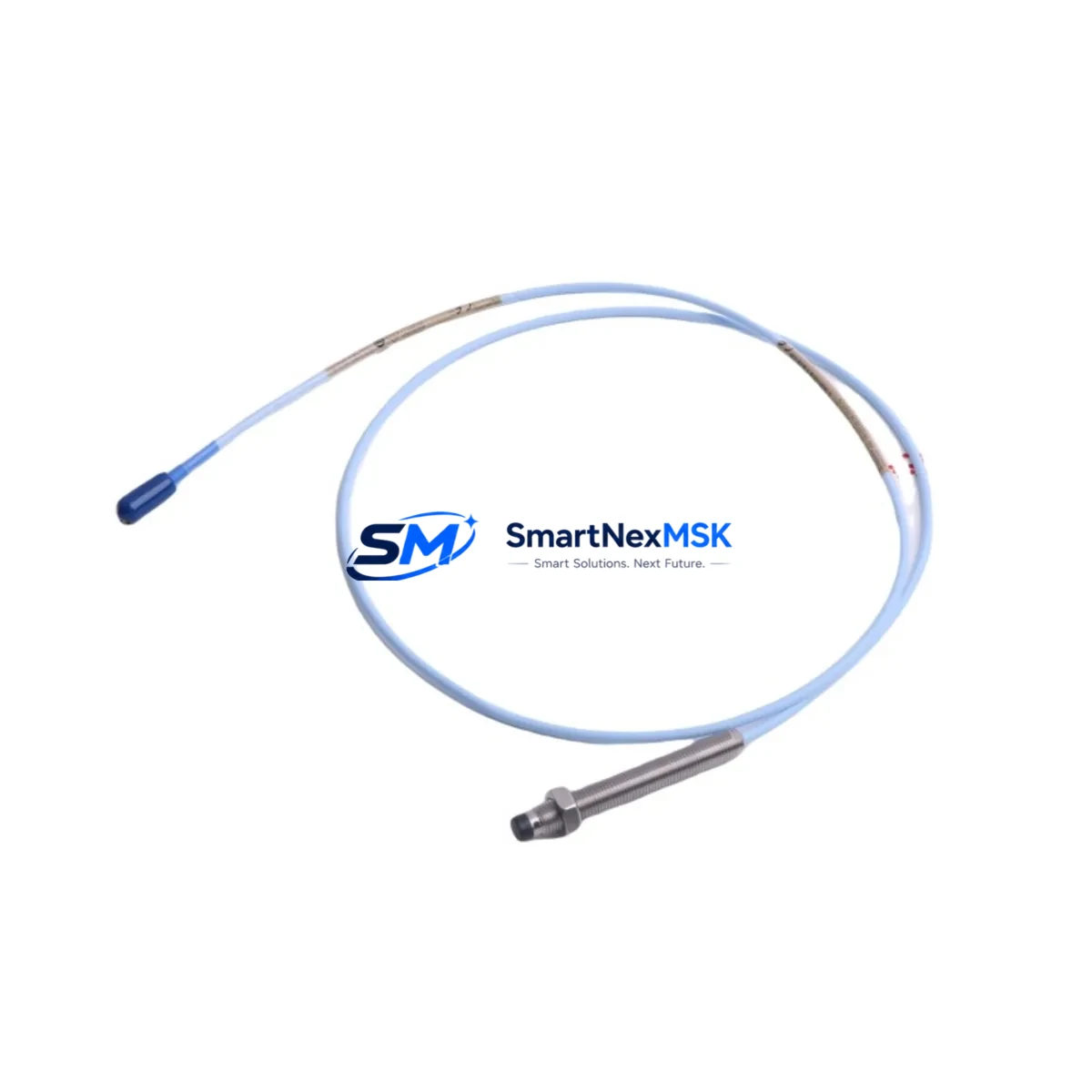

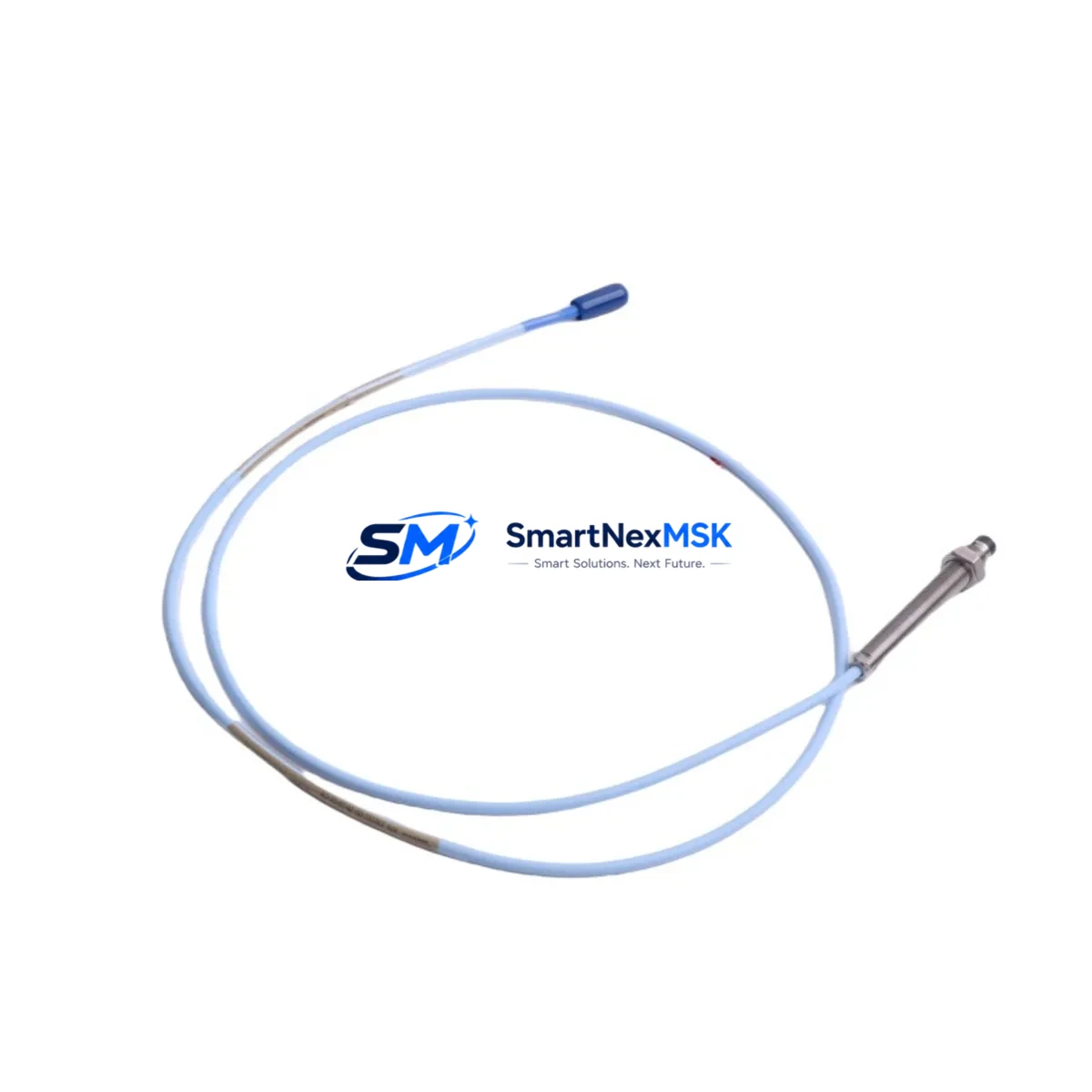

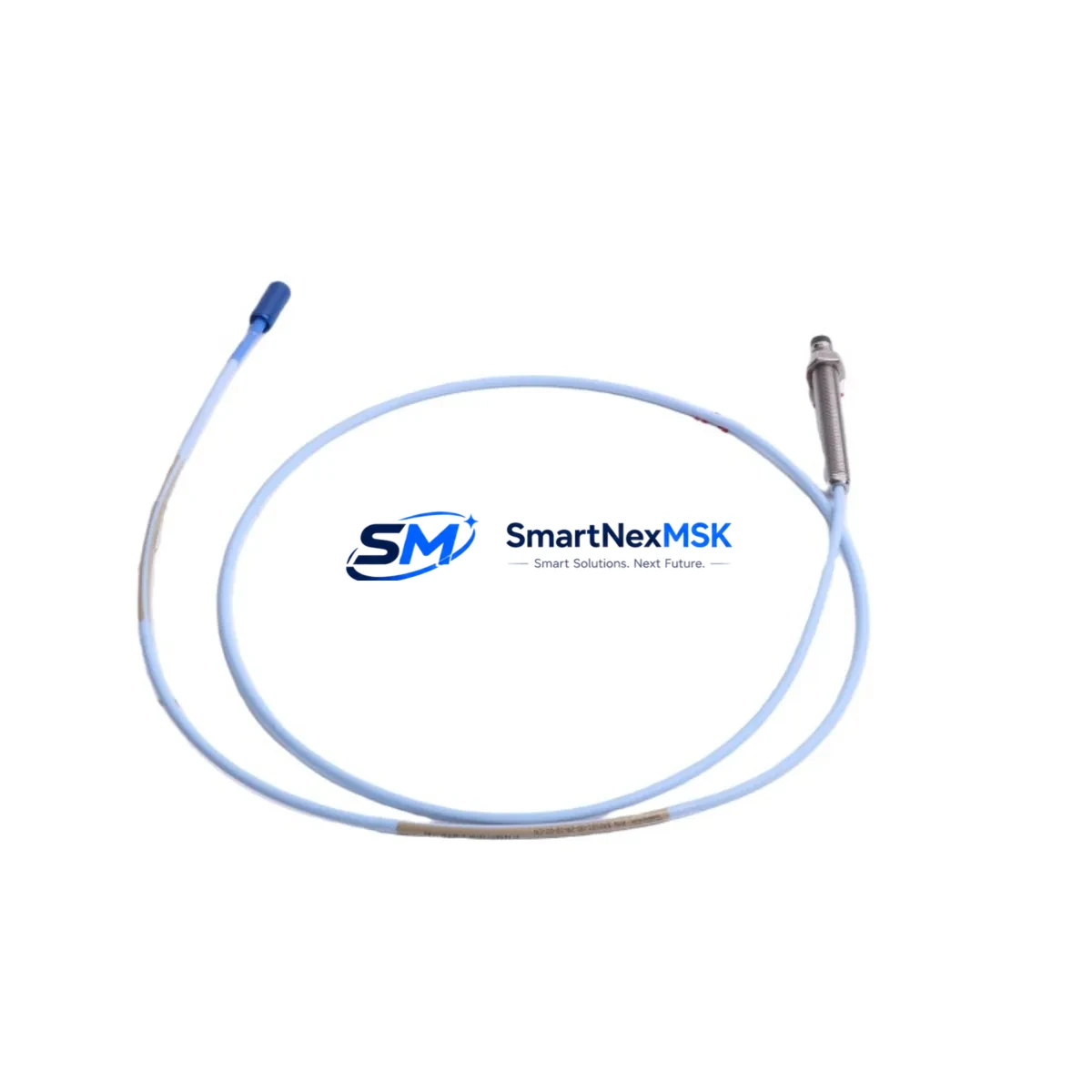

The Bently Nevada 330101-00-28-10-02-CN is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. With a 1.0-metre armoured cable and CN-type connector, this probe delivers stable, low-noise output across rotating machinery, turbine shafts, compressor trains, and critical drive systems where control interruption is not an option.

Designed to operate reliably in high-EMI zones, chemically aggressive atmospheres, and extreme temperature ranges, the 330101-00-28-10-02-CN integrates seamlessly into Bently Nevada’s 3300 XL monitoring architecture — including the 3300/16 proximitor sensor and 3300/55 dual-channel monitor — providing a complete, validated signal chain from probe tip to control room. Every unit shipped by SMARTNEXMSK is individually tested and backed by a 12-month warranty.

Safety Reliability Table

Control Cabinet Protection Strategy

In high-stakes control architectures — such as turbine protection panels, compressor safety shutdown systems, and rotating machinery interlocks — the 330101-00-28-10-02-CN serves as the primary sensing element in a layered protection strategy. Its low-impedance coaxial signal path minimises susceptibility to ground loops and common-mode noise that frequently cause false trips or missed alarms in dense control cabinets.

When paired with the Bently Nevada 3300/16 Proximitor Sensor, the probe’s raw eddy-current signal is conditioned into a clean DC voltage proportional to gap distance, eliminating the need for additional signal conditioning modules in the cabinet. For dual-redundant shaft monitoring, the 3300/55 Dual-Channel Vibration Monitor accepts two probe inputs simultaneously, enabling 1oo2 or 2oo2 voting logic in safety instrumented systems (SIS) without additional relay modules.

Power supply stability is equally critical. Installations using the Bently Nevada 3300/20 Power Supply or equivalent DIN-rail 24 VDC regulated supplies ensure that voltage fluctuations — common in heavy-load industrial environments — do not translate into output drift at the proximitor. Where surge events are a concern, inline Phoenix Contact TRABTECH surge protection devices on the signal and power lines provide an additional layer of transient defence, protecting both the probe and the downstream 3500/22M Transient Data Interface from impulse damage.

For facilities running Bently Nevada’s System 1 Condition Monitoring Software, the 330101-00-28-10-02-CN integrates directly into the data acquisition chain, feeding real-time gap, 1X, and 2X vibration vectors to the historian without protocol conversion. Communication integrity between field devices and the DCS — whether via Modbus RTU, FOUNDATION Fieldbus, or Ethernet/IP — is maintained through proper cable segregation and the use of shielded twisted-pair trunks for all digital segments adjacent to the probe wiring tray.

In critical interlock loops, the probe’s output is typically wired through a Bently Nevada 3500/40M Proximitor/Seismic Monitor before reaching the safety PLC input card. This arrangement ensures that any probe failure — open circuit, short, or out-of-range gap — is detected as a fault state rather than a healthy signal, satisfying the fail-safe requirements of IEC 61511 SIL-rated loops.

Critical Industrial Safety Applications

Petrochemical & Refinery: Continuous shaft radial vibration monitoring on centrifugal pumps, compressors, and steam turbines in API 670-compliant machinery protection systems. The 330101-00-28-10-02-CN’s high-temperature rating supports installation in hot-section bearing housings where ambient temperatures routinely exceed 120 °C.

Power Generation: Gas turbine and steam turbine shaft eccentricity and differential expansion measurement. In combined-cycle plants, the probe feeds real-time data to the turbine control system, enabling automatic load shedding before vibration levels reach trip thresholds — preventing catastrophic blade or bearing failure.

Mining & Mineral Processing: Monitoring of large ball mill trunnion bearings, SAG mill pinion shafts, and crusher drive trains operating under continuous high-load cycles. The probe’s IP67 rating and armoured cable withstand the dust, moisture, and mechanical vibration inherent to mineral processing environments.

Water & Wastewater Treatment: Shaft position monitoring on large vertical turbine pumps and blower trains in municipal water infrastructure, where unplanned downtime carries regulatory and public safety consequences. The probe’s long-term stability eliminates the calibration drift that can cause nuisance trips in 24/7 continuous-duty installations.

Metallurgy & Steel: Rolling mill drive shaft monitoring and converter vessel positioning in steelmaking facilities. The probe’s resistance to electromagnetic interference from large motor drives and induction furnaces ensures signal integrity in one of the most electrically hostile industrial environments.

Port & Heavy Logistics: Crane hoist motor shaft monitoring and conveyor drive alignment verification, where unexpected mechanical failure creates both safety hazards and significant operational disruption to logistics chains.

Safety and Quality FAQ

Q1: What warranty does the 330101-00-28-10-02-CN carry?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with priority turnaround to minimise plant downtime.

Q2: How is each unit tested before shipment?
Every 330101-00-28-10-02-CN undergoes individual functional verification — including output linearity check, cable continuity, connector integrity, and insulation resistance test — before packaging. A test record is available upon request for quality-critical installations.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL systems?
Yes. The 330101-00-28-10-02-CN is a direct, pin-compatible replacement for all standard 3300 XL 8mm probe assemblies using CN connectors. It is compatible with the 3300/16 Proximitor Sensor, 3500/40M monitor, and all System 1 data acquisition configurations without recalibration of the proximitor.

Q4: Can long-term supply be guaranteed for maintenance and spare-parts programmes?
SMARTNEXMSK maintains standing inventory of the 330101-00-28-10-02-CN and related 3300 XL series components to support planned maintenance schedules, emergency replacements, and multi-unit capital spares programmes. Bulk pricing and reserved-stock agreements are available for facilities with ongoing requirements.
