Bently Nevada 330101-00-28-20-02-CN Spare 3300 XL: Precision Spare Parts Replacement for Industrial Vibration Monitoring Systems

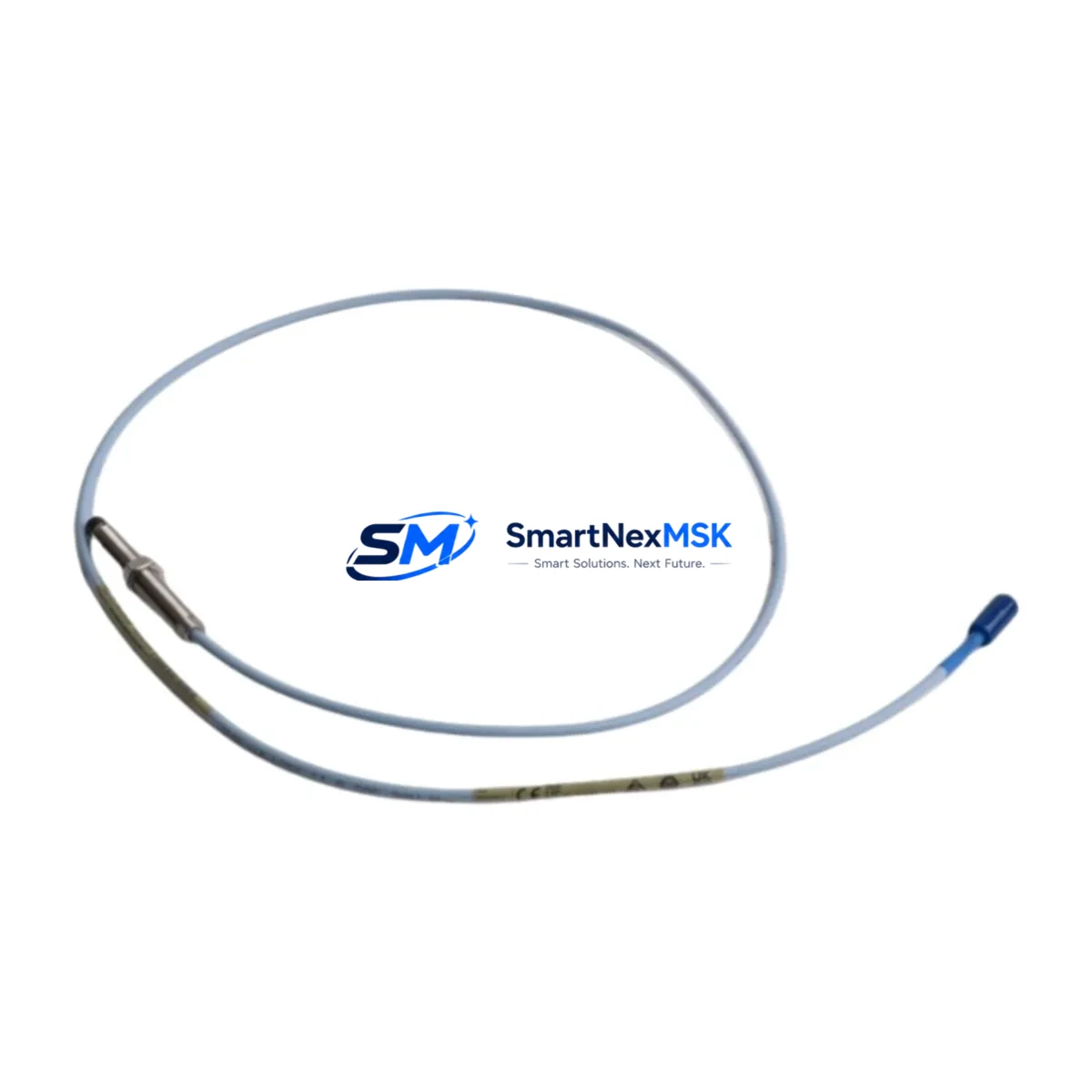

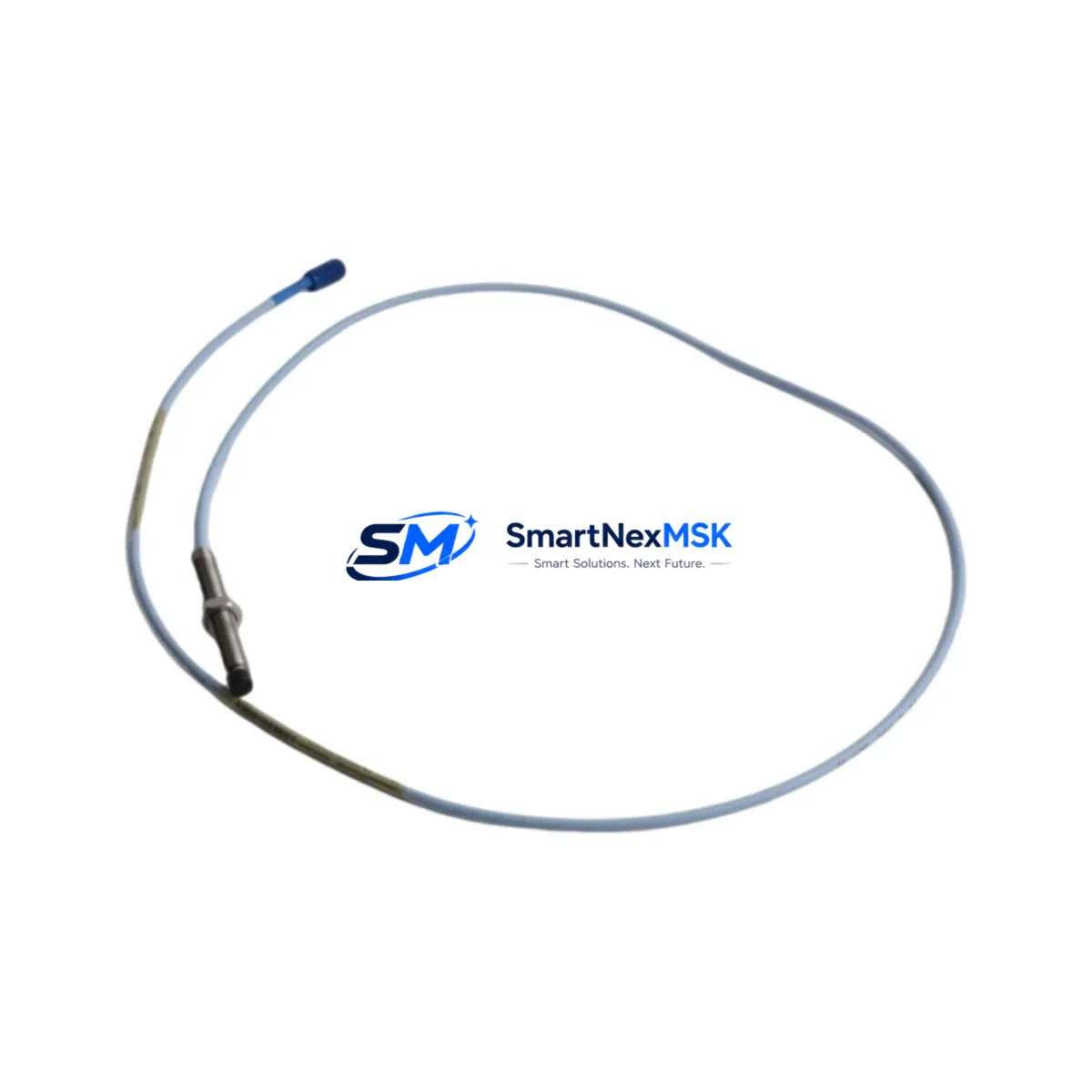

The Bently Nevada 330101-00-28-20-02-CN is an original 8mm proximity transducer engineered for the 3300 XL Series continuous vibration monitoring system. Designed for critical rotating machinery — including turbines, compressors, pumps, and motors — this transducer delivers reliable non-contact displacement measurement essential for predictive maintenance and unplanned downtime prevention. Sourced directly from verified supply channels, each unit undergoes pre-shipment functional testing and ships with a 12-month warranty, ensuring your maintenance team can restore system integrity with confidence.

For maintenance engineers managing aging DCS or machinery protection systems, the 330101-00-28-20-02-CN represents a direct, drop-in replacement for worn or failed proximity transducers without requiring reconfiguration of the 3300 XL monitor rack. Its 28-inch (711mm) armored extension cable and standard 20-foot (6.1m) interconnect cable make it immediately deployable in most existing conduit and junction box layouts. Procurement engineers can stock this SKU as a critical spare with confidence in long-term availability and cross-compatibility across the 3300 XL platform.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-28-20-02-CN in the field, a thorough inspection of the surrounding measurement chain is essential to prevent repeat failures and ensure accurate vibration data after restoration. Begin by verifying the condition of the 3300 XL Proximitor Sensor (driver/oscillator) — a degraded driver will produce erratic gap voltage even with a new transducer installed. Check the 3300 XL monitor module itself for alarm setpoint integrity and channel configuration, particularly if the unit has been in service for more than five years.

Inspect the interconnect cable along its full run for abrasion, pinching, or moisture ingress at conduit entry points — this is a common failure mode in high-vibration environments. At the junction box, examine terminal blocks and cable glands for corrosion or loose terminations that could introduce signal noise. If the system uses a Bently Nevada 3500 Series rack or a hybrid monitoring architecture, confirm that the transducer’s output range is compatible with the input card specifications before energizing.

For plants running extended maintenance intervals, consider stocking the matched 3300 XL 8mm Proximitor Sensor alongside this transducer as a paired spare — replacing both simultaneously eliminates the diagnostic ambiguity of a mismatched system. Additionally, review the status of nearby power supply modules feeding the monitor rack; a sagging -24 VDC rail will cause false proximity readings and may mask the true source of a vibration alarm. Where the control cabinet also houses 4–20 mA signal isolators or Zener barriers for hazardous-area installations, inspect these for drift or thermal damage during the same maintenance window.

For older machinery protection systems approaching end-of-life, this transducer is also compatible with legacy Bently Nevada 3300 Series (non-XL) installations when used with the appropriate Proximitor driver, making it a versatile addition to a multi-generation spare parts inventory. Procurement teams should also evaluate stocking 3300 XL monitor I/O modules and rack power supplies to support a complete cabinet-level restoration capability without waiting on lead times.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. De-energize the monitor channel before disconnecting the transducer. Note the existing gap voltage reading (typically -10 VDC ±1 VDC for a properly gapped 8mm probe) as a baseline reference for the replacement.

Step 2 — Physical Removal: Unscrew the transducer from the mounting bracket. Inspect the probe tip for impact damage or contamination. Clean the target area on the shaft and verify there is no runout or surface damage that could affect the new transducer’s reading.

Step 3 — Installation: Thread the 330101-00-28-20-02-CN into the bracket. Set the gap to the manufacturer-specified distance (typically 1.0 mm / 40 mil for the linear midpoint). Secure the locknut and route the extension cable to avoid contact with hot surfaces or moving parts.

Step 4 — Connection and Verification: Connect the CN coaxial connector to the Proximitor driver. Re-energize the channel and measure the output voltage at the monitor terminal. Confirm the gap voltage falls within the linear range (-10 VDC ±1 VDC). Check for alarm inhibit status and restore normal monitoring mode.

Step 5 — Documentation: Record the replacement date, gap voltage, and cable routing in the equipment maintenance log. Update the spare parts inventory to trigger reorder of a replacement unit, maintaining minimum stock levels for critical rotating machinery.

This workflow supports a target restoration time of under two hours for a single-channel replacement, minimizing production impact and ensuring the machinery protection system returns to full operational status without requiring specialist recalibration services on-site.

Spare Parts Support FAQ

Q1: Is the 330101-00-28-20-02-CN compatible with both 3300 XL and legacy 3300 Series monitors?
The 330101-00-28-20-02-CN is designed and rated for the 3300 XL Series. It can function with legacy 3300 Series Proximitor drivers in many installations, but compatibility should be verified against the specific driver model and system configuration before deployment. Contact our technical team with your existing driver part number for confirmation.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-00-28-20-02-CN is functionally tested prior to shipment. Output voltage linearity and connector integrity are verified. Units are packaged in anti-static, moisture-resistant packaging to preserve condition during transit. A test report is available upon request for quality-critical applications.

Q3: How should this transducer be stored as a long-term spare?
Store in a dry, temperature-controlled environment (0°C to 40°C) away from strong magnetic fields and mechanical vibration. Keep in original packaging until installation. Inspect the coaxial connector and probe tip annually if stored for more than 12 months. Shelf life under proper storage conditions exceeds five years.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects, output signal failure under normal operating conditions, and connector integrity. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or use outside the specified operating temperature range. Warranty claims are processed with return shipment support and priority replacement dispatch.
