Bently Nevada 330101-00-28-20-12-05 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330101-00-28-20-12-05 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

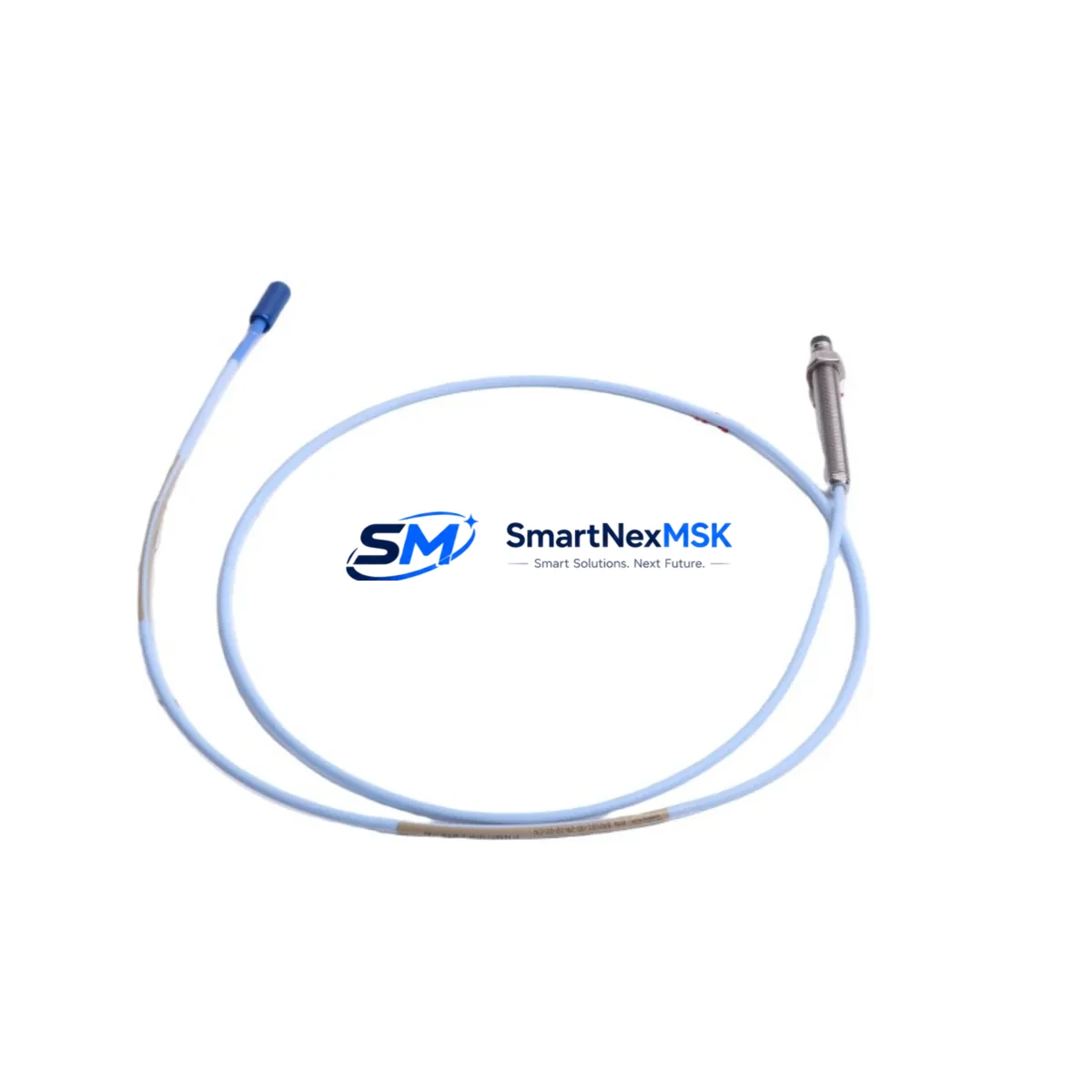

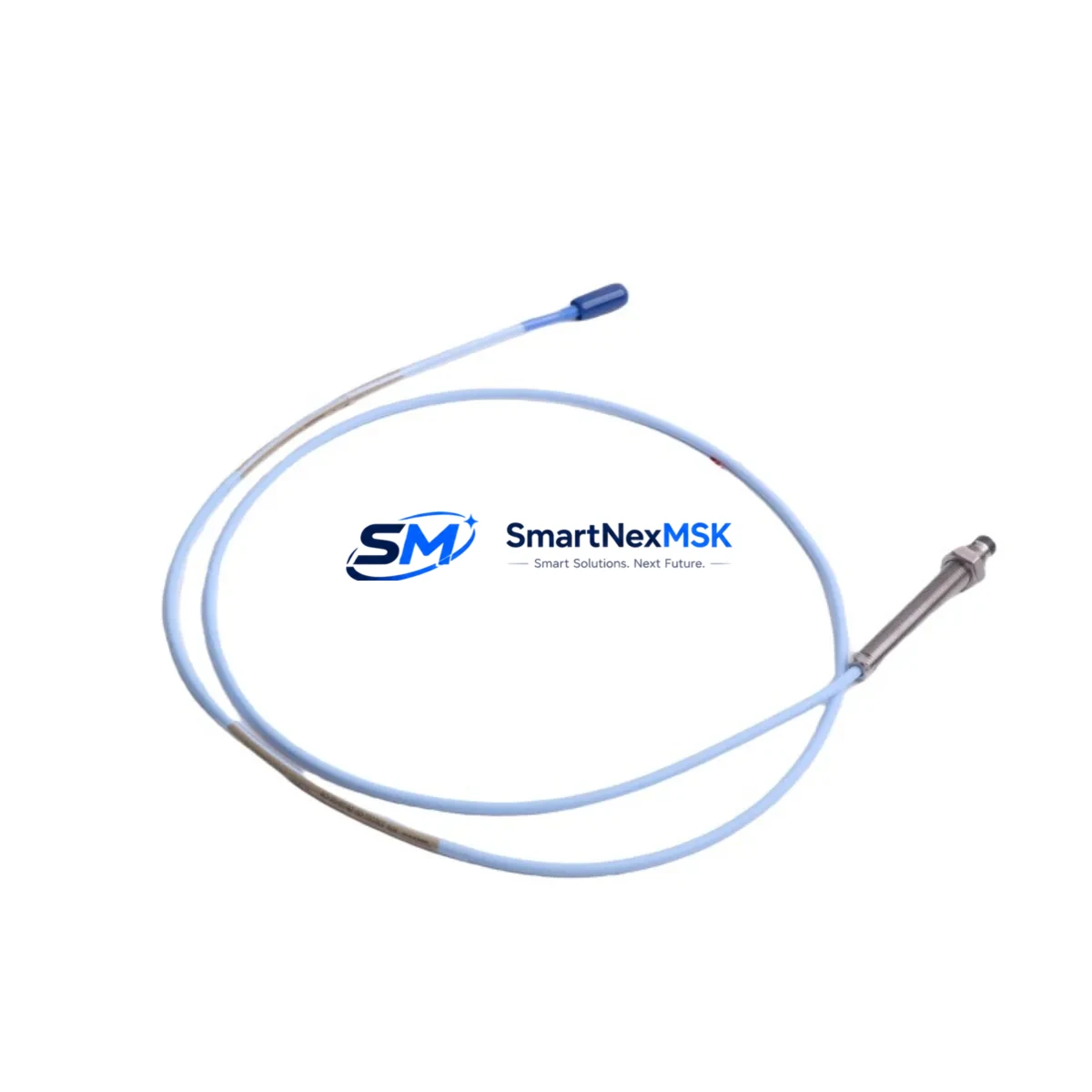

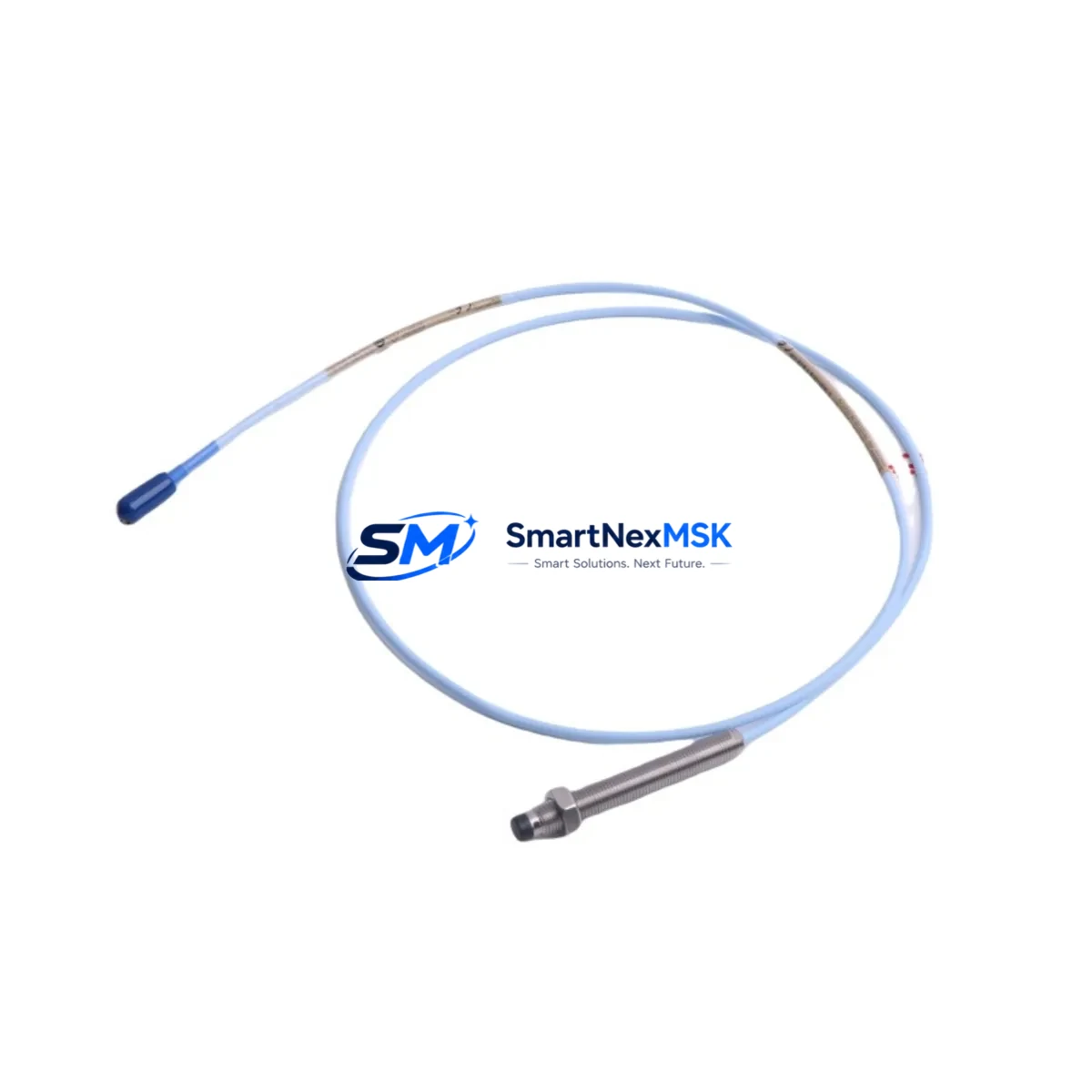

The Bently Nevada 330101-00-28-20-12-05 is an 8mm eddy current proximity probe engineered for seamless integration into existing 3300 XL Series vibration monitoring systems. Whether you are replacing a failed sensor on a critical rotating machine, upgrading an aging condition monitoring loop, or migrating from a discontinued probe assembly, this unit delivers the dimensional accuracy, signal linearity, and environmental resilience required for continuous industrial operation. With a 12-month warranty and verified pre-shipment testing, it is a trusted choice for maintenance engineers managing legacy turbomachinery, compressor trains, and pump monitoring panels.

Procurement teams and reliability engineers frequently source the 330101-00-28-20-12-05 as a direct drop-in replacement for worn or obsolete probes in 3300 XL monitor racks. The probe is fully compatible with the Bently Nevada 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor, which together form the complete transducer system. When replacing the probe, engineers must verify that the existing extension cable length matches the original system calibration — typically 5 m or 9 m — since the Proximitor output voltage range is calibrated to the combined probe-cable assembly. Substituting a mismatched cable without recalibration will introduce measurement offset and may trigger false alarm conditions in the 3500 Series monitoring rack or the 3300 XL monitor module.

During retrofit planning, it is equally important to confirm the gap voltage setting at the Proximitor output. The standard operating gap for the 330101-00-28-20-12-05 is approximately −10 VDC at a 1.0 mm air gap, consistent with the 3300 XL system calibration curve. Field technicians should use a calibrated gap tool and a digital voltmeter to set the probe tip-to-shaft gap before tightening the locknut. Any deviation beyond ±0.05 mm from the target gap will affect the scale factor and must be corrected before the monitor is returned to service.

For control cabinet upgrades involving the replacement of multiple transducer channels, the 330101-00-28-20-12-05 is commonly installed alongside the Bently Nevada 3300 XL 8mm Proximitor Sensor (330180-91-00), the 3300 XL Dual Vibration Monitor, and the 3500/42M Proximitor Seismic Monitor module. In larger modernization projects, the probe may be integrated with a 3500 Series rack that includes the 3500/20 Rack Interface Module and the 3500/92 Communication Gateway Module, enabling Modbus or Ethernet/IP data transfer to a DCS or SCADA platform. Ensuring that the communication gateway firmware is compatible with the new transducer channel configuration is a critical pre-commissioning step.

When the retrofit scope extends to the control system level, engineers often replace the legacy Keyphasor module with the 3500/25 Enhanced Keyphasor Module to support phase-referenced vibration analysis on the upgraded monitoring loop. The 330101-00-28-20-12-05 probe is fully compatible with Keyphasor-referenced measurements when installed per the OEM wiring diagram. Terminal block assignments, shield grounding, and cable routing must follow the 3300 XL installation manual to prevent common-mode noise from corrupting the vibration signal.

Downtime during probe replacement is typically limited to the time required to de-energize the monitor channel, remove the locknut and probe body, install the replacement unit, set the gap, and restore the channel to service. On accessible bearing housings, this process can be completed in under 30 minutes by an experienced technician. For installations where the probe is mounted in a confined space or requires removal of adjacent instrumentation, a pre-staged replacement kit — including the 330101-00-28-20-12-05 probe, the appropriate extension cable, and a calibration worksheet — reduces unplanned downtime significantly.

All units supplied by SMARTNEXMSK are tested for continuity, insulation resistance, and output linearity prior to shipment. Each probe is packaged with a test report and ships with a 12-month warranty covering manufacturing defects and signal performance. Global logistics support is available for urgent replacement orders.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins with a complete bill-of-materials audit of the existing transducer loop. For a standard 3300 XL channel, this includes the probe body (330101-00-28-20-12-05), the extension cable, the Proximitor sensor (330180-91-00), and the monitor module. In multi-channel cabinets, the 3500/20 Rack Interface Module and the 3500/25 Enhanced Keyphasor Module must also be verified for firmware compatibility before the new probe is commissioned. Where the existing wiring harness uses older terminal block styles, replacement with DIN-rail-mounted terminal blocks rated for the signal voltage range is recommended to ensure long-term connection integrity.

For plants migrating from older 3300 Series monitors to the 3500 Series platform, the 330101-00-28-20-12-05 probe is forward-compatible, provided the Proximitor sensor and extension cable are also updated to 3300 XL specification. The 3500/42M Proximitor Seismic Monitor accepts the same transducer input and supports the same gap voltage calibration curve, simplifying the migration path. Engineers should also verify that the HMI faceplate tag assignments and alarm setpoints are updated in the operator workstation to reflect the new channel configuration.

Downtime Control During System Migration

Minimizing production impact during a probe replacement requires careful pre-staging and a clear isolation procedure. Before breaking the transducer loop, the monitor channel should be placed in bypass mode to prevent spurious shutdown signals from reaching the turbine control system or the safety instrumented system. The original program logic in the DCS or PLC — including the vibration high-high trip setpoint and the OK relay status — must be documented before any wiring is disturbed. After the 330101-00-28-20-12-05 is installed and the gap is set, the channel should be restored from bypass incrementally, with the vibration reading verified against a reference measurement before the bypass is fully removed. This approach preserves control continuity and allows the technician to confirm signal integrity without exposing the machine to an unprotected operating condition.

Retrofit Support FAQ

Q: Is the 330101-00-28-20-12-05 a direct replacement for the original probe in my 3300 XL system?
A: Yes. The 330101-00-28-20-12-05 is dimensionally and electrically identical to the original 3300 XL 8mm probe. No modification to the Proximitor sensor or extension cable is required, provided the existing cable length matches the original system calibration.

Q: What gap voltage should I set after installing the replacement probe?
A: The standard gap voltage is −10 VDC at a 1.0 mm air gap, consistent with the 3300 XL calibration curve. Always verify with a calibrated gap tool and a digital voltmeter before returning the channel to service.

Q: Does the probe ship with a test report and warranty documentation?
A: Yes. Every unit is tested for continuity, insulation resistance, and output linearity before shipment. A test report is included in the package, and the probe carries a 12-month warranty covering manufacturing defects and signal performance.

Q: Can this probe be used with the 3500 Series monitoring platform?
A: Yes. The 330101-00-28-20-12-05 is compatible with the 3500/42M Proximitor Seismic Monitor when used with the appropriate 3300 XL Proximitor sensor and extension cable. Verify firmware compatibility of the 3500/20 Rack Interface Module before commissioning.
