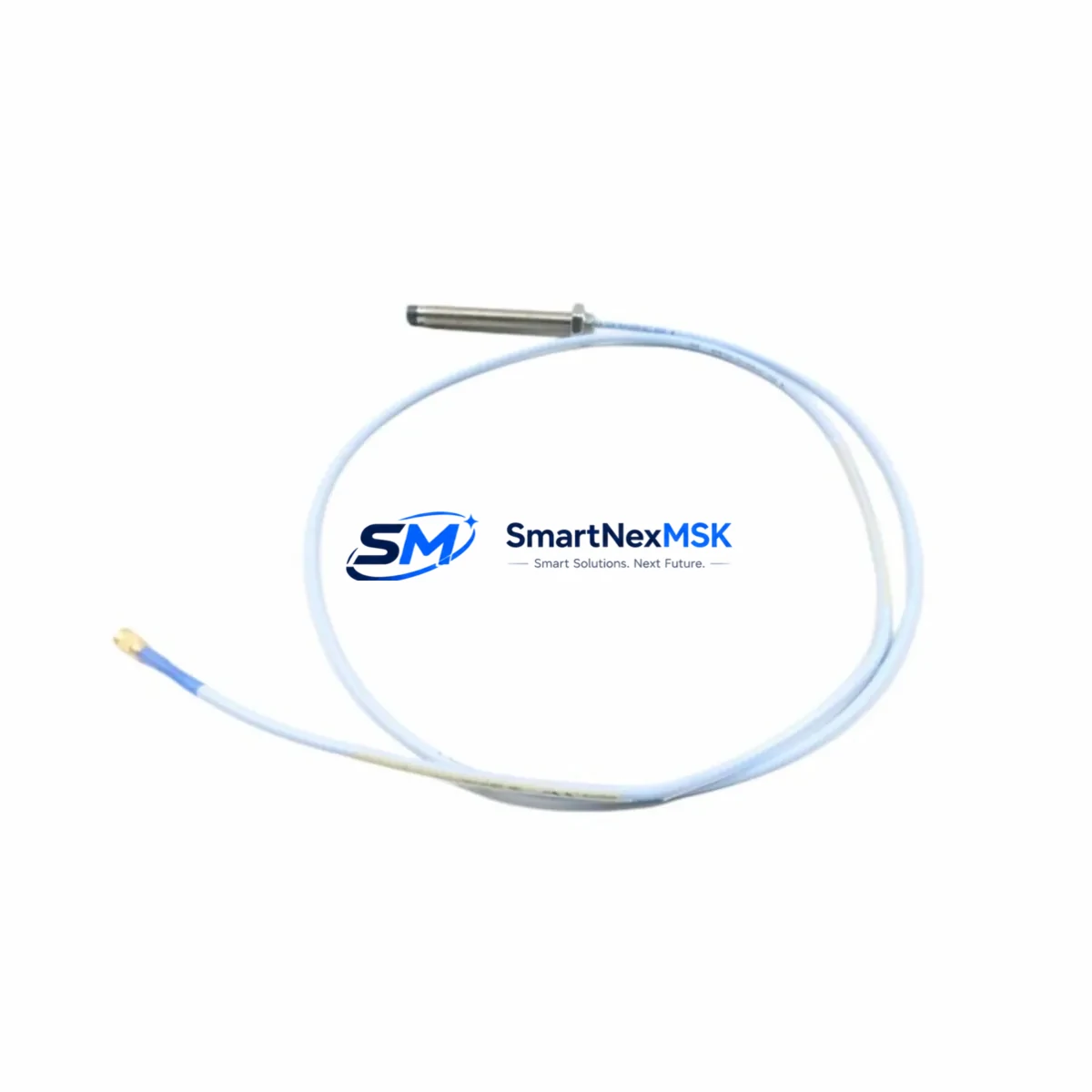

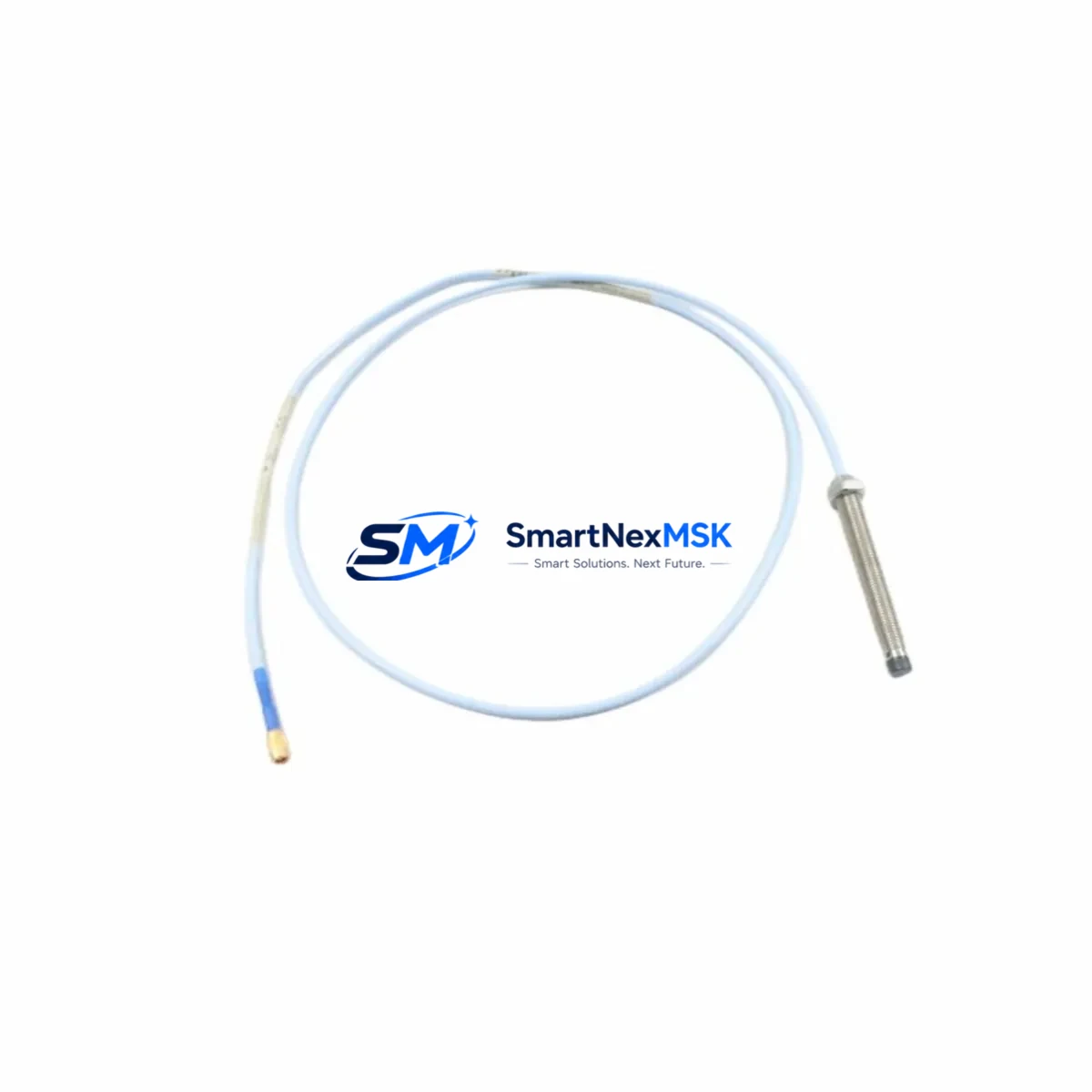

Bently Nevada 330101-00-30-10-02-05 Retrofit-Ready Proximity Probe for 3300 XL Control Systems
The Bently Nevada 330101-00-30-10-02-05 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy rotating machinery protection systems age and OEM support for older probe assemblies is phased out, this unit serves as a verified retrofit solution for facilities operating turbines, compressors, pumps, and gearboxes under continuous vibration surveillance. Whether you are replacing a failed probe in an emergency shutdown scenario or executing a planned upgrade of your entire proximity system, the 330101-00-30-10-02-05 delivers dimensional and electrical compatibility with existing 3300 XL monitor racks without requiring re-engineering of the measurement chain.
This probe is designed to work within the complete Bently Nevada 3300 XL measurement chain, which typically includes the 330130 extension cable, the 330180 proximitor sensor (signal conditioner), and the 3300/16 or 3300/20 monitor cards installed in a standard 19-inch rack enclosure. When retrofitting, engineers must confirm that the existing extension cable length matches the probe’s calibrated gap range — typically 0.25 mm to 2.54 mm for 8mm probes — and that the proximitor output voltage range aligns with the monitor card’s input specification. Mismatched cable lengths between the probe body and the proximitor will shift the calibration curve and introduce measurement error, which is a common oversight during rapid replacement operations.
Upgrade Compatibility Table
| Parameter | 330101-00-30-10-02-05 Specification | Retrofit Notes |
|---|---|---|
| Probe Diameter | 8 mm | Confirm target shaft material is steel or iron alloy; non-ferrous targets require recalibration |
| Cable Length (Probe Body) | 5 m (standard) | Must match paired 330130 extension cable to maintain system calibration |
| Proximitor Compatibility | 330180 Proximitor Sensor | Verify supply voltage: –24 VDC nominal; check existing wiring before swap |
| Monitor Card Interface | 3300/16, 3300/20 Monitor Cards | No firmware change required; confirm channel address DIP switch settings |
| Connector Type | Standard BNC / MIL-spec coaxial | Inspect connector seating and O-ring condition on existing junction boxes |
| Installation Thread | M10 × 1.0 mm | Verify bracket thread condition; re-tap if corrosion is present |
| Communication Protocol | Analog (–24 VDC / voltage output) | No protocol migration required for 3300 XL rack; compatible with TDI Modbus gateway if used |
| Replacement Scope | Direct drop-in for 330101 series probes | Covers 330101-00-30-10-02-05 and functionally equivalent variants in the 330101 family |
| Commissioning Requirement | Gap voltage verification at installation | Target gap: 1.0–1.5 mm; verify –10 VDC ±0.5 VDC at nominal gap |
| Warranty | 12-Month Warranty | Covers manufacturing defects; includes pre-shipment functional test report |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the 330101-00-30-10-02-05 begins well before the probe reaches the machine. Start by auditing the existing measurement loop: document the installed proximitor model (typically the 330180), the extension cable part number and length (330130 series), and the monitor card slot assignment within the 3300 XL rack. If the plant uses a 3500 Series rack alongside legacy 3300 XL hardware, note that the two platforms use different monitor card architectures and the probe-to-proximitor pairing must remain within the same platform family.
Power supply integrity is a critical pre-check. The 3300 XL system draws –24 VDC from a dedicated power supply module within the rack. Before installing the replacement probe, measure the supply rail voltage at the proximitor terminal block. A rail that has drifted outside –22 VDC to –26 VDC will affect the output linearity of the new probe and may trigger false alarms on the 3300/16 or 3300/20 monitor card. If the power supply module is aging, consider replacing it concurrently — the 3300/05 power supply module is the standard unit for this rack family.
Terminal wiring at the junction box and the proximitor must be inspected for corrosion, especially in outdoor or high-humidity installations. The coaxial cable shield continuity between the probe, the 330130 extension cable, and the proximitor housing is essential for noise rejection. Any break in shield continuity will introduce electrical interference that mimics shaft vibration, leading to nuisance trips. During the retrofit, replace any damaged coaxial connectors and apply appropriate cable gland sealing to maintain IP67 integrity at the junction box.
For plants that have integrated the 3300 XL rack into a DCS or SCADA environment via a TDI Modbus gateway or a 3300/93 communication module, verify that the channel tag assignments in the gateway configuration match the physical slot address of the replaced probe channel. A mismatch will cause the DCS historian to log data under the wrong tag, corrupting trend records without triggering any alarm. This is particularly important in facilities where the HMI faceplate displays real-time gap voltage and vibration amplitude for operator reference.
If the plant also operates Keyphasor modules — such as the 3300 XL Keyphasor module used for phase reference in rotor dynamics analysis — confirm that the Keyphasor signal is still valid after the probe swap. A new probe installed at a slightly different angular position relative to the shaft notch can shift the phase reference, affecting 1X and 2X vector readings displayed on the vibration analysis workstation. Document the as-found and as-left gap voltages and phase angles in the maintenance record before closing out the work order.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage preparation protocol. Before the machine is taken offline, gather the replacement 330101-00-30-10-02-05 probe, the calibration tool (a non-ferrous gap-setting fixture or a calibrated depth micrometer), the proximitor output test cable, and a portable millivoltmeter or the plant’s standard loop calibrator. Having these items staged at the work site eliminates the most common source of extended outage: waiting for tools or parts after the machine is already shut down.
During the outage window, follow a parallel-path approach: while one technician removes the failed probe and inspects the mounting bracket, a second technician verifies the replacement probe’s output at the bench using a steel target plate and a bench-top –24 VDC supply. This bench verification confirms that the replacement unit is functional before it is installed, eliminating the risk of discovering a second defective unit after the machine is already reassembled. The bench test should confirm a linear output from approximately –2 VDC at minimum gap to –18 VDC at maximum gap, consistent with the 3300 XL system’s calibration curve for 8mm probes.
After installation, perform the in-situ gap voltage check with the shaft stationary. Record the gap voltage and compare it against the original commissioning record. If the original record is unavailable, target –10 VDC ±0.5 VDC as the nominal gap voltage for a 1.0–1.5 mm air gap. Once the gap is set, restore power to the 3300 XL rack and verify that the monitor card displays a valid vibration reading with no latched alarms. Confirm that the DCS or SCADA system is receiving the channel data correctly before releasing the machine for restart. The entire replacement sequence, when properly prepared, can be completed within a two-hour maintenance window for a single probe channel.
Retrofit Support FAQ
Q1: Is the 330101-00-30-10-02-05 a direct replacement for other probes in the 330101 family?
Yes. The 330101-00-30-10-02-05 is dimensionally and electrically compatible with other variants in the 330101 series that share the same 8mm probe diameter and 5-meter cable length. However, always verify the extension cable length and proximitor model before installation, as mismatched cable lengths will shift the calibration curve of the measurement chain.
Q2: Does this probe require any firmware or configuration changes to the 3300 XL monitor card?
No firmware changes are required. The 330101-00-30-10-02-05 is a passive analog sensor; all signal conditioning is performed by the 330180 proximitor. The only configuration step required is verifying the channel address DIP switch settings on the 3300/16 or 3300/20 monitor card to ensure the channel is correctly mapped in the rack.
Q3: What pre-shipment testing is performed on this unit?
Each 330101-00-30-10-02-05 unit undergoes a functional output linearity test against a steel target plate prior to shipment. The test verifies the probe’s voltage-versus-gap curve across the full measurement range. A test report is available upon request and is included with orders requiring documented quality evidence for regulated industries.
Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects in materials and workmanship under normal operating conditions. It does not cover damage resulting from incorrect installation, mismatched cable pairing, supply voltage outside the specified range, or physical damage during handling. Warranty claims are supported by the pre-shipment test report, which establishes the baseline condition of the unit at the time of dispatch.
