Bently Nevada 330101-00-31-15-02-05 Safety Proximity Probe

Bently Nevada 330101-00-31-15-02-05 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

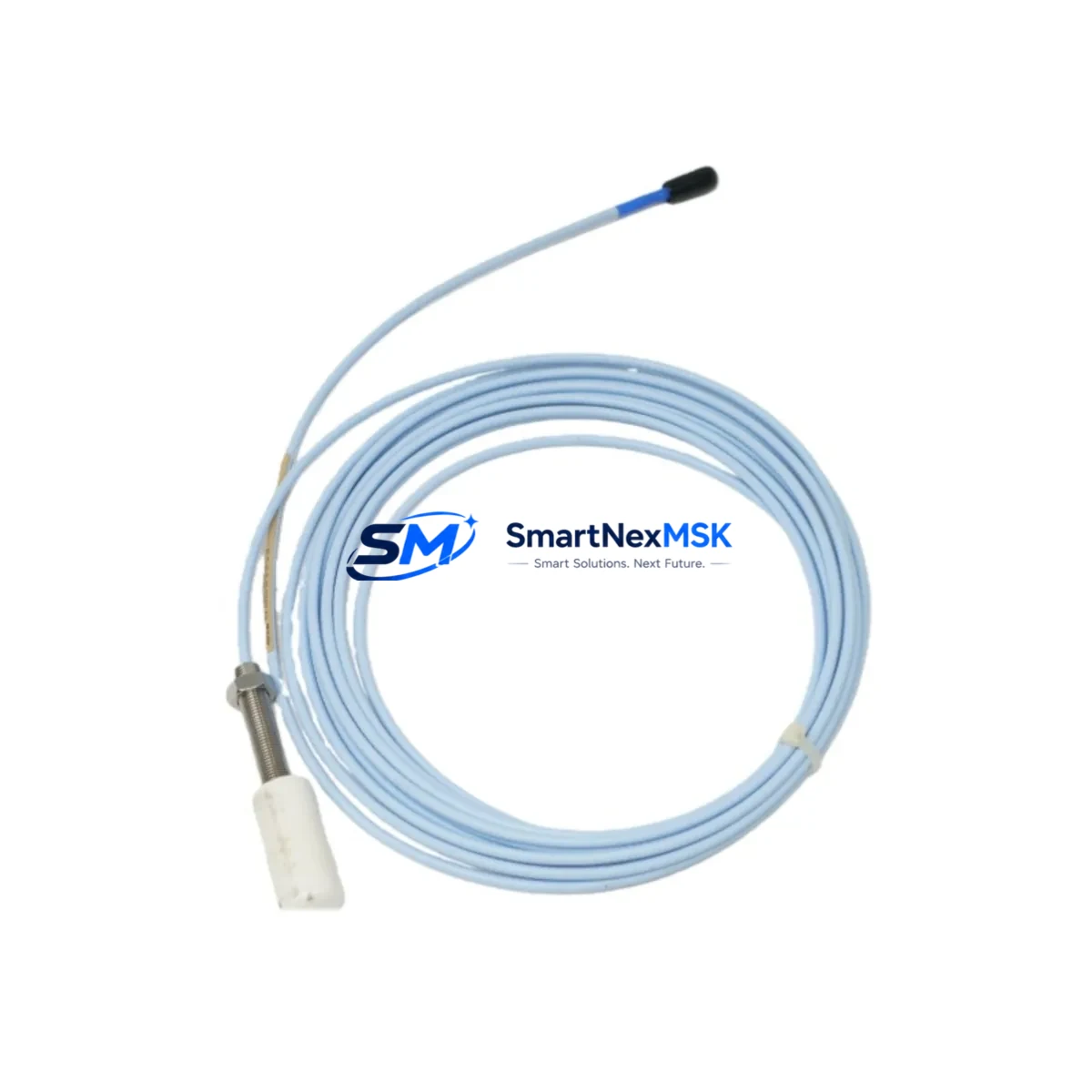

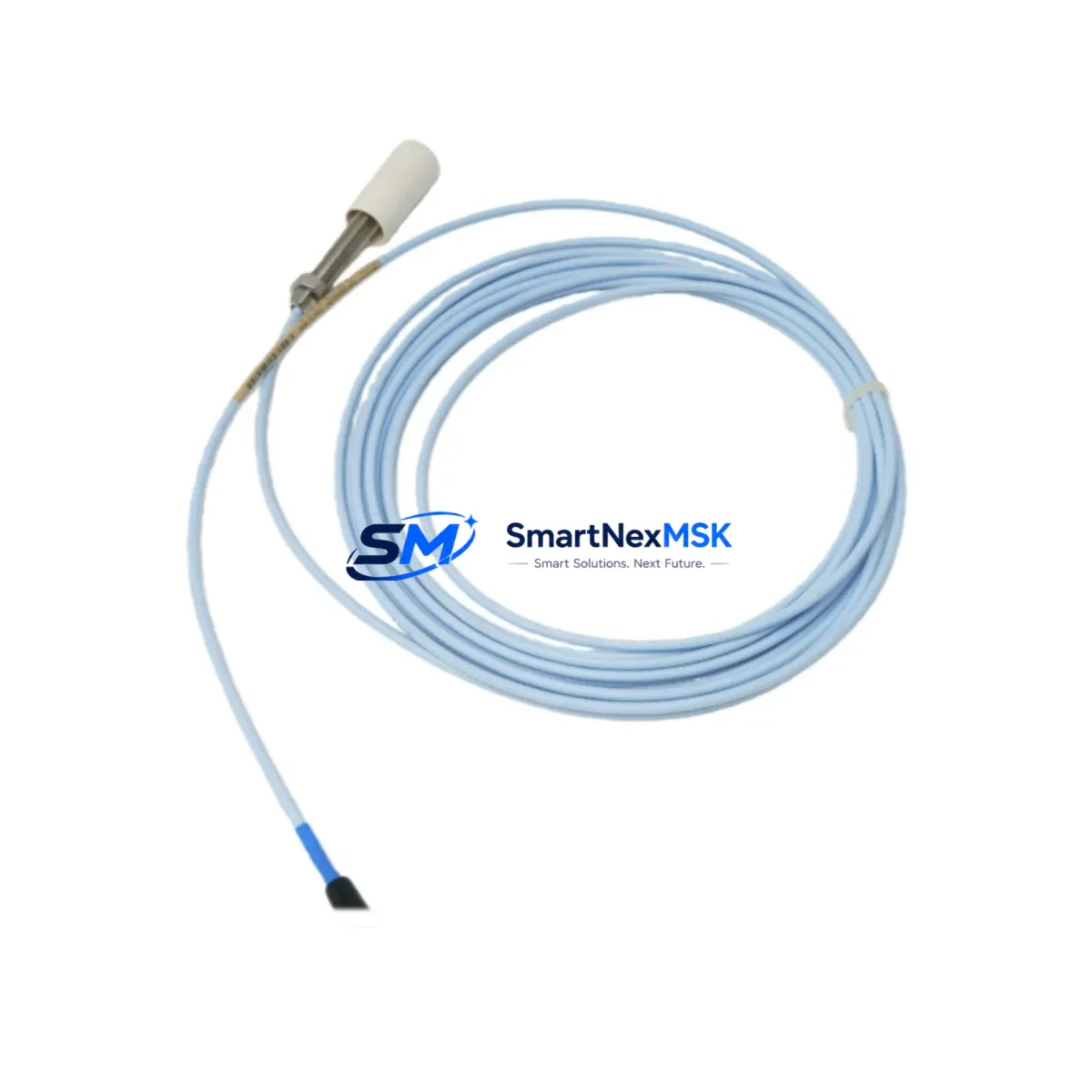

The Bently Nevada 330101-00-31-15-02-05 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed to operate reliably in the most demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, and heavy metallurgical processes — this probe delivers precise, non-contact shaft displacement and vibration measurements that are critical to machinery protection and process safety. With its ruggedized construction, superior EMI rejection, and proven compatibility with the Bently Nevada 3300 XL signal conditioning architecture, the 330101-00-31-15-02-05 is a cornerstone component in any safety-critical rotating machinery monitoring loop.

In high-load, continuous-production environments where unplanned downtime carries severe operational and safety consequences, the integrity of every sensor in the vibration monitoring chain is non-negotiable. The 330101-00-31-15-02-05 probe is built to maintain measurement accuracy under conditions of strong electromagnetic interference, mechanical vibration, thermal cycling, and exposure to industrial fluids and contaminants. Its stainless steel housing and precision-wound sensing coil resist signal drift even when installed in close proximity to high-current motor drives, variable frequency drives (VFDs), and high-voltage switchgear — all common sources of interference in modern industrial control cabinets.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered machinery protection cabinet, the 330101-00-31-15-02-05 proximity probe does not operate in isolation. It forms the front-end sensing element of a complete vibration monitoring chain that depends on the coordinated performance of multiple components. The probe connects via a matched Bently Nevada 330130 extension cable to a Bently Nevada 330180 Proximitor Sensor, which conditions the raw eddy-current signal into a calibrated DC voltage output. This signal is then fed into a Bently Nevada 3500/40M Proximitor Monitor or a 3500/42M Proximitor/Seismic Monitor housed in the 3500 Series rack, where alarm and danger setpoints are enforced in real time.

To protect the integrity of the monitoring loop against power supply disturbances — a leading cause of false trips and missed alarms in heavy industrial sites — the 3500 rack is typically powered through a Bently Nevada 3500/15 Power Supply Module with redundant input capability. In installations where the control cabinet is located near high-power switching equipment, additional surge protection devices and EMI filters are installed upstream of the power supply to prevent transient voltages from corrupting sensor readings or triggering nuisance shutdowns.

For facilities operating under API 670 machinery protection standards, the proximity probe system is often integrated with a Bently Nevada 3500/22M Transient Data Interface to capture high-resolution waveform data during startup, shutdown, and upset events. This data is transmitted to a System 1 Condition Monitoring Software platform via the Bently Nevada 3500/92 Communication Gateway Module, enabling plant engineers to trend shaft centerline position, detect early-stage bearing wear, and make informed maintenance decisions before a failure occurs. In safety instrumented systems (SIS), the vibration signal may also be routed to a Triconex or Rockwell GuardLogix Safety PLC as part of a high-integrity interlock loop, where a confirmed high-vibration condition triggers an automatic machine trip to prevent catastrophic mechanical failure.

Critical Industrial Safety Applications

The Bently Nevada 330101-00-31-15-02-05 proximity probe is deployed across a wide range of critical industrial applications where rotating machinery reliability directly impacts process safety and production continuity.

Petrochemical and Refining: In compressor trains, reactor feed pumps, and turbine-driven blowers, continuous shaft vibration monitoring is mandated by API 670 and process safety management (PSM) regulations. The 330101-00-31-15-02-05 provides the real-time displacement data required to detect rotor instability, oil whirl, and bearing degradation before they escalate into seal failures or uncontrolled releases of hazardous materials.

Power Generation: Steam turbines, gas turbines, and large synchronous generators in power plants operate at high speeds under sustained mechanical stress. The probe’s wide operating temperature range and resistance to steam and oil contamination make it well-suited for turbine bearing pedestals and generator end-shield installations, where early detection of shaft eccentricity can prevent forced outages and grid instability.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to extreme vibration, dust ingress, and corrosive process fluids. The IP67-rated stainless steel housing of the 330101-00-31-15-02-05 withstands these conditions while maintaining measurement accuracy, enabling predictive maintenance programs that reduce unplanned downtime in continuous ore processing circuits.

Water and Wastewater Treatment: High-capacity centrifugal pumps and blowers in water treatment facilities require reliable vibration monitoring to ensure uninterrupted service. The probe’s non-contact sensing principle eliminates mechanical wear and ensures long-term measurement stability in wet, humid environments.

Metallurgy and Steel Production: Rolling mill drives, continuous casters, and large induction furnace cooling pumps operate in environments with intense electromagnetic fields and thermal gradients. The shielded coaxial cable construction of the 330101-00-31-15-02-05 provides robust EMI rejection, ensuring that vibration alarms are triggered by actual mechanical events rather than electrical noise.

Safety and Quality FAQ

Q1: What warranty does the 330101-00-31-15-02-05 carry?
All Bently Nevada 330101-00-31-15-02-05 proximity probes supplied by SMARTNEXMSK are covered by a 12-month full replacement warranty from the date of shipment. If the unit fails under normal operating conditions within the warranty period, we will replace it at no charge. Our warranty covers manufacturing defects, calibration drift beyond specification, and premature cable or connector failure.

Q2: How is each unit tested before shipment?
Every 330101-00-31-15-02-05 probe undergoes a 100% functional outgoing inspection prior to dispatch. Testing includes gap voltage linearity verification across the full measurement range, scale factor confirmation at 7.87 V/mm, insulation resistance check on the coaxial cable, and connector integrity verification. A test report is available upon request for quality-critical installations.

Q3: Is this probe compatible with both the 3300 XL and 3500 Series systems?
Yes. The 330101-00-31-15-02-05 is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor and is also interoperable with the 3500 Series monitoring platform when used with the appropriate Proximitor module. It follows the standard Bently Nevada probe-extension-Proximitor system architecture, ensuring plug-and-play replacement in existing installations without recalibration of the monitor.

Q4: Can SMARTNEXMSK guarantee long-term supply for maintenance and spare parts programs?
Yes. SMARTNEXMSK maintains dedicated stock of the 330101-00-31-15-02-05 and related 3300 XL series components to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. We serve industrial facilities globally and can fulfill urgent orders with expedited shipping. For volume procurement or long-term supply contracts, contact our technical sales team directly.
