Bently Nevada 330101-00-31-20-02-00 Safety Proximity Probe

Bently Nevada 330101-00-31-20-02-00 Safety Proximity Probe: Reliable Vibration Control for Harsh Industrial Sites

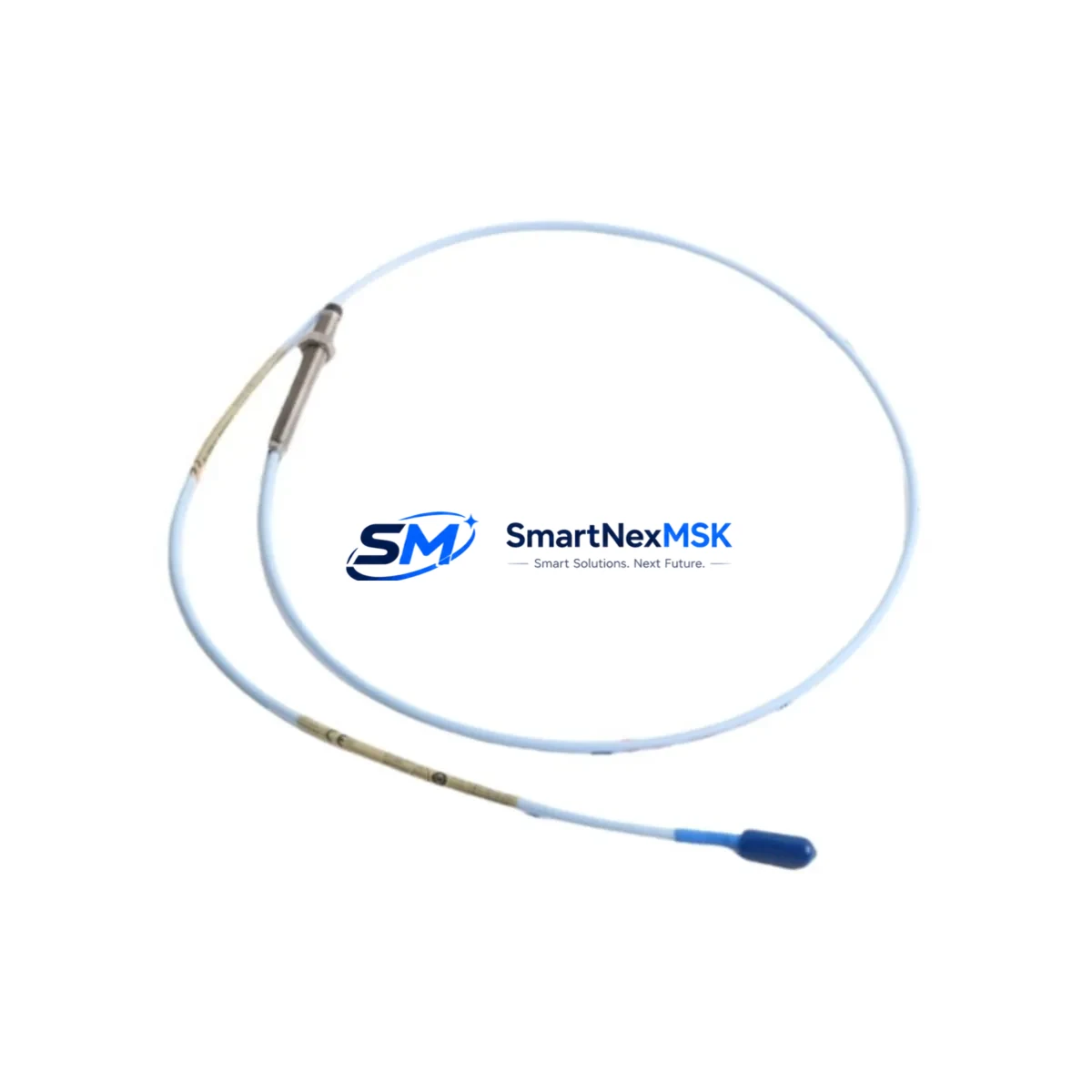

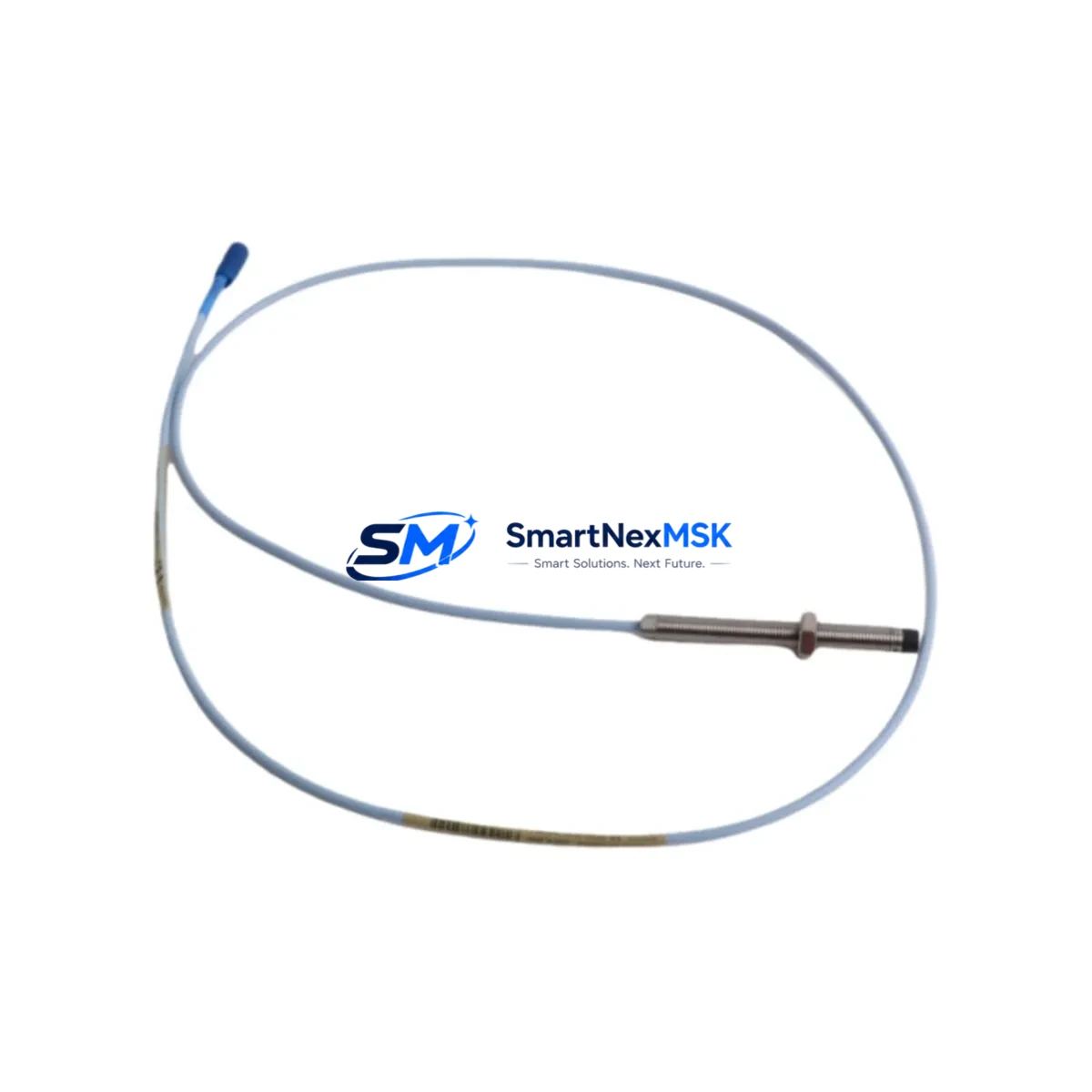

The Bently Nevada 330101-00-31-20-02-00 is a high-performance eddy-current proximity probe from the industry-renowned 3300 XL Series, engineered to deliver continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Whether deployed in rotating machinery protection systems, critical interlock loops, or high-interference control cabinets, this probe is built to maintain signal integrity and operational reliability where failure is not an option.

Designed for permanent installation on turbines, compressors, pumps, motors, and gearboxes, the 330101-00-31-20-02-00 provides precise non-contact measurement of shaft radial vibration, axial position, and differential expansion. Its ruggedized construction resists electromagnetic interference, mechanical shock, and the thermal cycling common in petrochemical plants, power generation facilities, metallurgical operations, and continuous process manufacturing sites. Every unit shipped by SMARTNEXMSK undergoes pre-delivery functional testing to verify signal linearity, gap sensitivity, and output stability before reaching your facility.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection architecture, the 330101-00-31-20-02-00 proximity probe does not operate in isolation — it is the front-line sensing element in a layered safety and control strategy. The probe connects directly to the Bently Nevada 3300 XL Proximitor® Sensor (such as the 330180-X1-05), which conditions the raw eddy-current signal into a calibrated voltage output readable by the protection system rack.

Within the control cabinet, the Proximitor output feeds into a Bently Nevada 3500 Series Machinery Protection System — for example, the 3500/42M Proximitor/Seismic Monitor module — where vibration thresholds are configured for alert and danger trip levels. This rack-based system communicates over Modbus RTU or Ethernet/IP to the plant DCS or safety PLC, ensuring that any abnormal vibration event triggers a controlled shutdown before mechanical damage escalates.

To protect the signal path from electrical noise and ground loops — common in heavy motor drive environments — the installation should include proper coaxial cable grounding practices and, where necessary, signal isolators compatible with the 3300 XL output range (typically -18 VDC to 0 VDC). In high-voltage switchgear rooms or variable frequency drive (VFD) enclosures, additional EMI shielding conduit and ferrite chokes on signal cables are recommended to prevent signal drift and false trips.

Power supply stability is equally critical. The Proximitor sensor requires a regulated -24 VDC instrument power supply; pairing it with a dedicated redundant DC power module — such as those from the Phoenix Contact QUINT or Siemens SITOP series — eliminates the risk of supply voltage fluctuation causing measurement offset or module dropout. For installations in classified hazardous areas (Zone 1 or Zone 2), Zener barriers or galvanic isolators (e.g., MTL or P+F series) must be inserted between the probe and the Proximitor to maintain intrinsic safety compliance.

In critical interlock and emergency shutdown (ESD) loops, the vibration trip signal from the 3500 rack is often hardwired to a safety relay module or fed into a Safety Instrumented System (SIS) controller — such as the Triconex Tricon or Hima HIMatrix — ensuring that the machinery protection function remains independent of the basic process control system and meets IEC 61511 SIL requirements. Complementary sensors such as the Bently Nevada 330500 Series velocity transducers or accelerometers may be installed in parallel to provide redundant vibration measurement paths for high-integrity protection loops.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In crude distillation units, catalytic crackers, and compressor trains, continuous shaft monitoring with the 330101-00-31-20-02-00 prevents catastrophic bearing failures that could trigger fires, toxic releases, or unplanned shutdowns. The probe’s resistance to hydrocarbon vapors and high ambient temperatures makes it a standard choice for API 670-compliant machinery protection systems.

Power Generation: Steam turbines and gas turbines in thermal and combined-cycle power plants rely on eddy-current proximity probes for shaft eccentricity monitoring during startup and continuous radial vibration surveillance at full load. The 3300 XL probe’s fast dynamic response ensures that rotor instability events — such as oil whirl or rub — are detected within milliseconds, enabling protective trips before rotor damage occurs.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations subject proximity probes to extreme dust loading, vibration, and temperature swings. The ruggedized construction of the 330101-00-31-20-02-00 maintains measurement accuracy in these conditions, supporting predictive maintenance programs that reduce unplanned downtime in continuous ore processing circuits.

Water & Wastewater Treatment: High-capacity centrifugal pumps and blowers in municipal water treatment facilities benefit from non-contact vibration monitoring to detect impeller imbalance, cavitation, and bearing wear before they cause service interruptions. The probe’s corrosion-resistant materials are compatible with the humid, chemically active atmospheres found in these facilities.

Metallurgy & Steel Production: Rolling mills, continuous casters, and large induction furnace drives operate under severe electromagnetic interference from high-current bus bars and arc furnaces. The shielded coaxial design of the 3300 XL probe series provides the EMI immunity necessary to maintain reliable vibration signals in these electrically noisy environments, supporting both condition monitoring and safety interlock functions.

Port & Heavy Logistics Equipment: Ship-to-shore cranes, bulk material handling conveyors, and large hoist drives increasingly incorporate machinery protection systems to reduce maintenance costs and improve operational availability. Proximity probes on gearbox output shafts and motor drive ends provide early warning of mechanical degradation, enabling planned maintenance during scheduled downtime windows.

Safety and Quality FAQ

Q1: What warranty coverage does SMARTNEXMSK provide for the 330101-00-31-20-02-00?
All units are covered by a 12-month warranty from the date of shipment. If the product exhibits any defect in materials or workmanship under normal operating conditions within this period, SMARTNEXMSK will arrange replacement or repair at no additional cost. Warranty claims are processed promptly to minimize your site downtime.

Q2: How is each unit tested before shipment?
Every 330101-00-31-20-02-00 proximity probe undergoes a pre-shipment functional inspection that verifies coaxial cable continuity, connector integrity, and probe tip condition. Units showing any sign of physical damage, corrosion, or out-of-specification resistance are quarantined and not dispatched. This process ensures that what arrives at your facility is ready for immediate installation and commissioning.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL and 3500 Series systems?
Yes. The 330101-00-31-20-02-00 is a standard 3300 XL Series probe and is fully compatible with all Bently Nevada 3300 XL Proximitor® Sensors and 3500 Series Machinery Protection System racks. It is a direct drop-in replacement for worn or failed probes in existing installations, requiring no recalibration of the Proximitor or protection system when the gap is set correctly per the original commissioning documentation.

Q4: Can SMARTNEXMSK support long-term and emergency spare parts supply?
Yes. SMARTNEXMSK maintains dedicated inventory of the 330101-00-31-20-02-00 and related 3300 XL Series components to support both planned spare parts programs and emergency breakdown situations. We offer expedited shipping for critical plant outages and can provide documentation packages — including test records and certificates of conformance — to support your maintenance management system requirements.
