Bently Nevada 330101-00-33-05-02-00 Spare 3300 XL

Bently Nevada 330101-00-33-05-02-00 Spare 3300 XL: Precision Spare Parts for Industrial Downtime Control

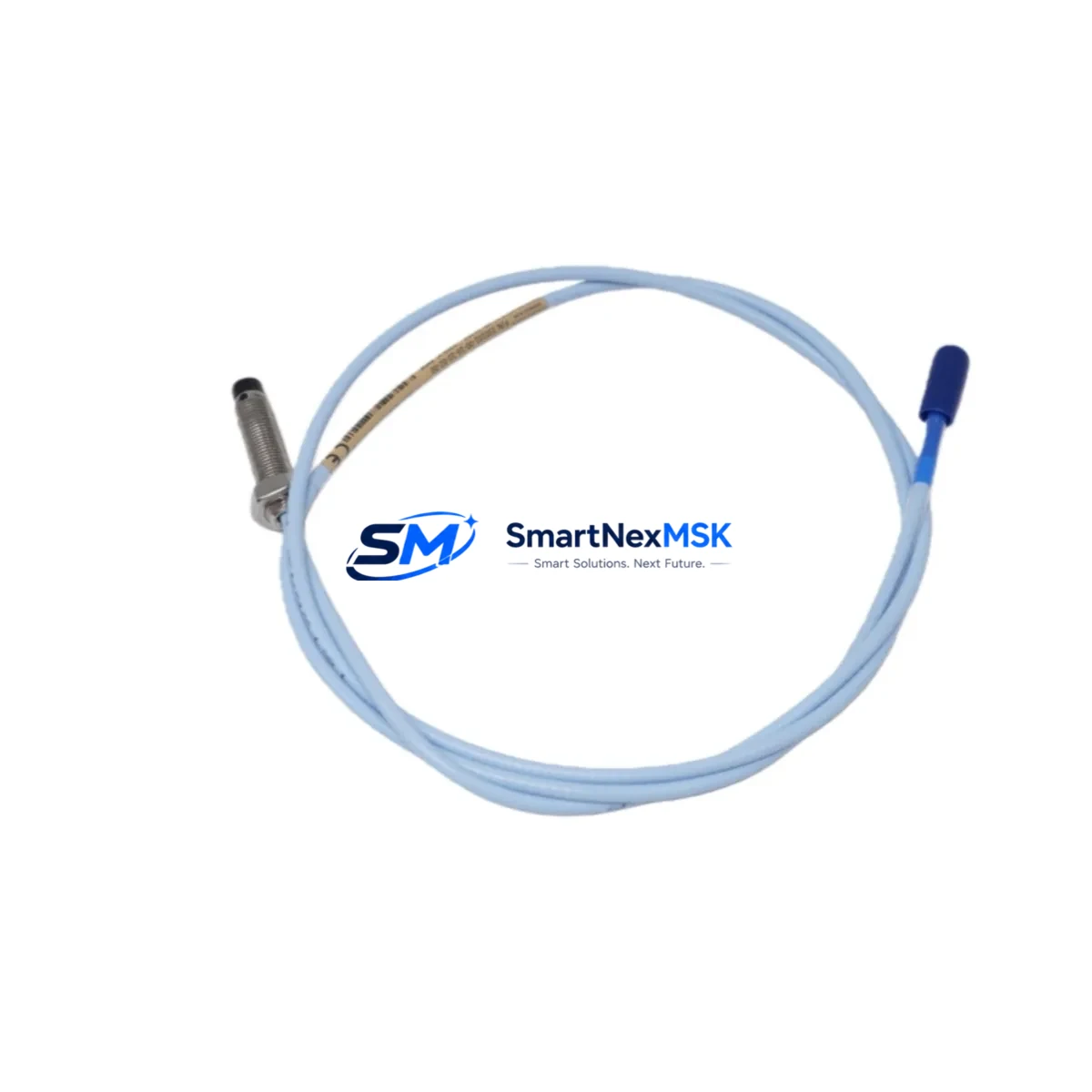

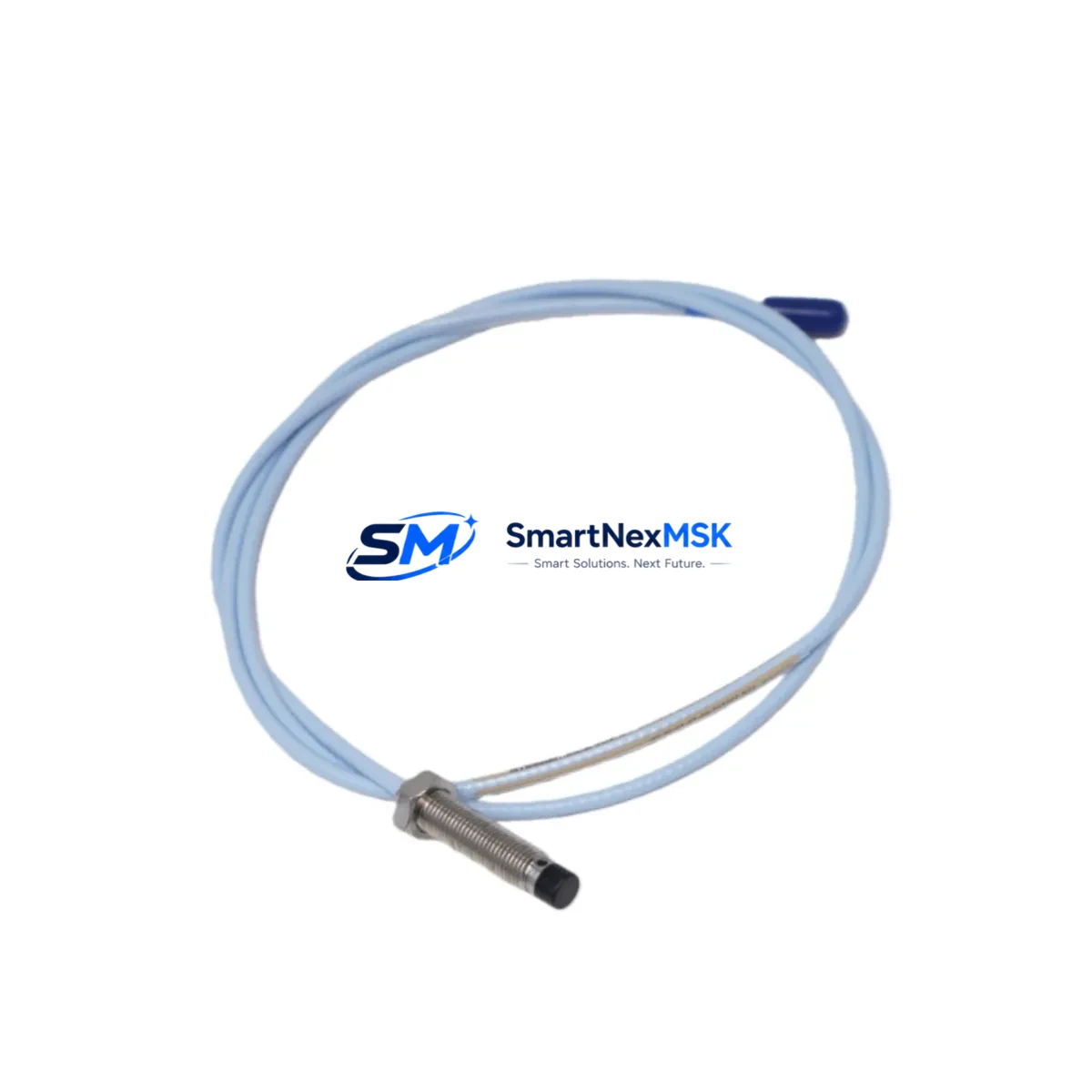

The Bently Nevada 330101-00-33-05-02-00 is an original 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Widely deployed in rotating machinery protection across turbines, compressors, pumps, and generators, this probe is a critical field-replaceable unit in any predictive maintenance or emergency spare parts program. When a proximity probe fails or drifts out of calibration, the entire vibration channel goes offline — triggering machine trips, false alarms, or undetected shaft displacement. Stocking a verified replacement of the 330101-00-33-05-02-00 is the single most effective way to restore monitoring continuity and minimize unplanned downtime.

Each unit supplied by SMARTNEXMSK is sourced from authorized channels, individually inspected, and tested for output linearity, gap voltage response, and cable integrity before dispatch. Our 12-month warranty covers manufacturing defects and ensures you receive a probe that performs to Bently Nevada factory specifications from day one.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules replacement of the 330101-00-33-05-02-00 proximity probe, the scope of inspection should extend beyond the probe itself. The 3300 XL vibration monitoring channel is a system — and each component in the signal chain must be verified to ensure the restored channel delivers accurate, trustworthy data.

Begin with the 330130 Series extension cable: check for jacket abrasion, connector corrosion, and continuity. A degraded extension cable is the most common cause of intermittent gap voltage errors and is frequently overlooked during probe-only replacements. Next, inspect the 330180 Series 3300 XL 8mm Proximitor module seated in the monitor rack — verify the bias voltage output (typically −10.5 VDC at nominal gap) and confirm the OK relay is energized. If the Proximitor shows signs of moisture ingress or connector oxidation, replace it concurrently to avoid a repeat callout.

At the rack level, confirm that the 3300 XL Monitor module (such as the 3300/16 or 3300/20 dual-channel vibration monitor) is receiving clean power from the 3300/05 Power Supply. A sagging or noisy DC rail will introduce baseline noise into the vibration signal and can cause nuisance trips even after a successful probe swap. While the cabinet is open, inspect the terminal blocks and field wiring for loose terminations — vibration environments are notorious for backing out screw terminals over time.

For plants running integrated machinery protection, also verify the 3500/22 Transient Data Interface or 3500/42 Proximitor/Seismic Monitor if the 3300 XL feeds into a 3500 Series rack via a gateway. Communication integrity between the monitoring rack and the DCS or PLC I/O module (4–20 mA or relay output) should be confirmed with a loop calibrator before returning the machine to service. If the plant uses a Bently Nevada System 1 software platform, re-zero the gap channel and verify the trend data baseline after installation.

Finally, update the spare parts register to reflect the consumed probe and trigger a replenishment order. Best practice for critical rotating equipment is to maintain a minimum of two probes per monitored shaft position — one installed, one on the shelf. Pairing the 330101-00-33-05-02-00 with a stocked 330130 extension cable and a spare 330180 Proximitor creates a complete channel spare kit that enables full restoration in under 30 minutes.

Site Replacement Workflow

Step 1 — Isolate and document: Before removing the probe, record the current gap voltage (typically displayed on the 3300 XL front panel or System 1 software). This baseline confirms the probe is the fault source and provides a reference for post-installation verification.

Step 2 — De-energize and disconnect: Remove the extension cable connector from the Proximitor input. Do not pull by the cable — grip the connector body. Tag and lock out the monitor channel per site LOTO procedures.

Step 3 — Remove the old probe: Unthread the probe from the bracket using the correct spanner. Note the number of turns to the original gap setting. Inspect the probe tip for impact damage or target surface contamination.

Step 4 — Install the 330101-00-33-05-02-00: Thread the new probe to the same depth, then fine-adjust to achieve the nominal 1.27 mm (50 mil) gap. Use a non-ferrous feeler gauge or the Proximitor bias voltage reading to confirm gap accuracy. Secure the locknut.

Step 5 — Reconnect and verify: Reconnect the extension cable. Restore power to the Proximitor and confirm the OK relay energizes. Read the gap voltage — it should fall within the linear range (approximately −10 to −11 VDC for a 1.27 mm gap on a steel target). Check the vibration reading at rest; it should be near zero with no alarm condition.

Step 6 — Return to service and document: Clear any latched alarms in the monitor or DCS. Log the replacement in the CMMS with the new probe serial number, installation date, and gap voltage. Schedule the next inspection interval per the OEM maintenance guide.

This workflow is compatible with both direct 3300 XL installations and hybrid configurations where the probe feeds a 3500 Series rack via a signal conditioner. The 330101-00-33-05-02-00 is a drop-in replacement for earlier 330101 variants — no reconfiguration of the monitor card is required in most installations.

Spare Parts Support FAQ

Q1: Is the 330101-00-33-05-02-00 compatible with both the 3300 XL and 3500 Series monitoring systems?
The 330101-00-33-05-02-00 is natively designed for the 3300 XL 8mm monitoring system. It can interface with 3500 Series racks when used with the appropriate 3500/42 or 3500/46 monitor module and a compatible Proximitor. Confirm the monitor card’s input configuration before installation in a 3500 rack.

Q2: What does the 12-month warranty cover, and how is it validated?
Every 330101-00-33-05-02-00 unit shipped by SMARTNEXMSK carries a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Each probe is bench-tested for gap voltage linearity and cable continuity prior to dispatch. A test report is available upon request. Warranty claims are processed via our sales team at sales@smartnexmsk.com.

Q3: How should I store spare proximity probes to maintain their service life?
Store the 330101-00-33-05-02-00 in its original packaging in a dry, temperature-controlled environment (0°C to 40°C). Avoid coiling the cable tighter than a 50mm radius. Keep the probe tip protected with the supplied cap to prevent tip damage and contamination. Inspect stored units annually for connector oxidation and cable jacket integrity.

Q4: Can I use a 330101-00-33-05-02-00 to replace an older 330101 probe without reconfiguring the monitor?
In the vast majority of 3300 XL installations, the 330101-00-33-05-02-00 is a direct drop-in replacement for earlier 330101 part number variants. The scale factor (7.87 V/mm) and connector interface are unchanged. However, always verify the Proximitor model and monitor card configuration match the 8mm probe specification before installation, particularly in legacy systems that may have been configured for a different probe diameter.
