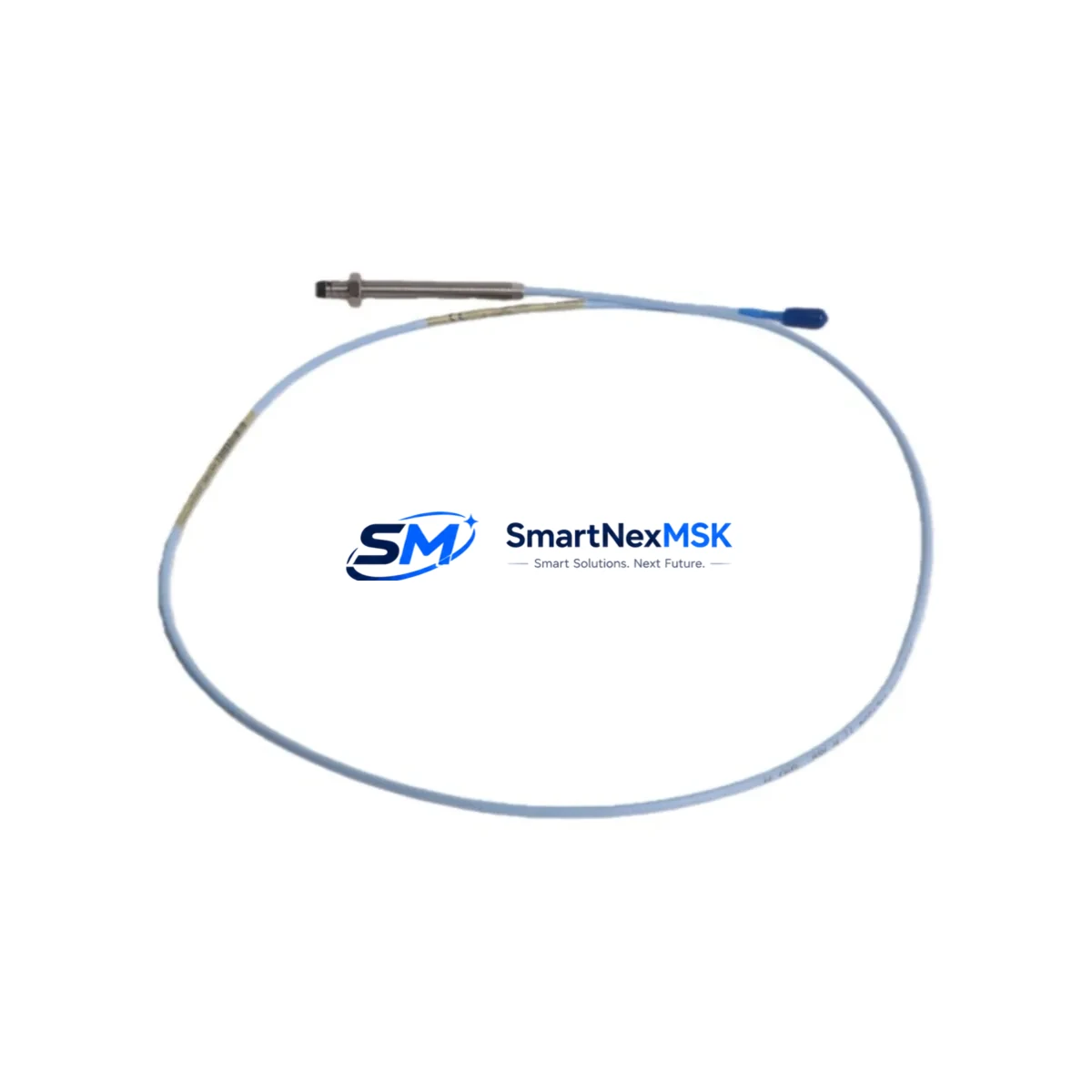

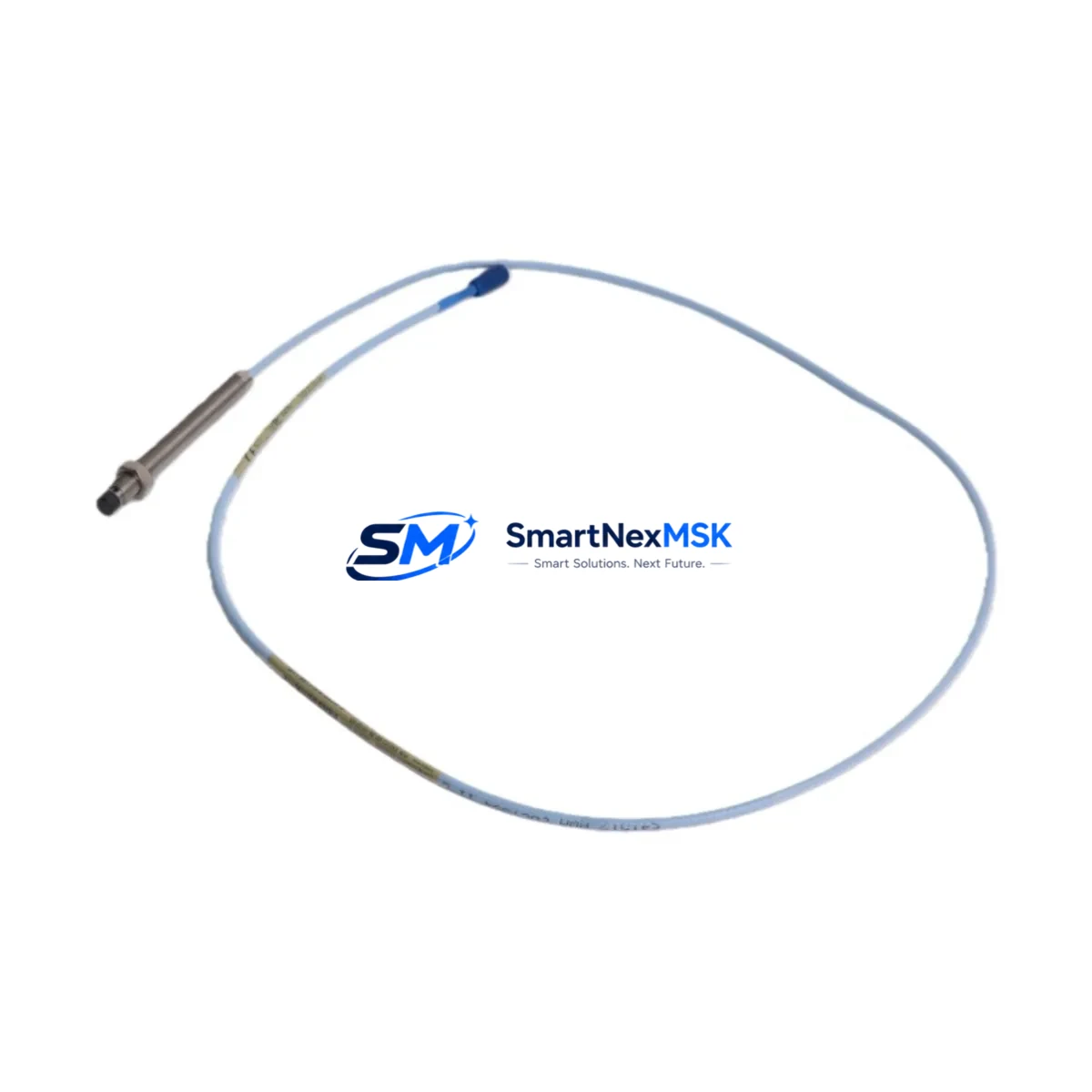

The Bently Nevada 330101-00-36-10-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous machinery monitoring system. As legacy 3300 XL installations approach end-of-support cycles and OEM spare parts become increasingly scarce, this probe serves as a verified drop-in replacement for facilities undertaking rotor dynamics monitoring upgrades, vibration measurement system overhauls, and predictive maintenance infrastructure modernization. Whether you are replacing a failed sensor on a critical compressor train, retrofitting an aging turbine monitoring cabinet, or migrating from an obsolete 3300 Series platform to the 3300 XL architecture, this probe delivers the dimensional accuracy, gap voltage linearity, and signal conditioning compatibility required for seamless integration without reprogramming the host monitor.

The 330101-00-36-10-02-00 features a 36-inch (approximately 914 mm) armored extension cable, a standard 5-meter driver cable interface, and is calibrated for use with the 3300 XL 8mm Proximitor Sensor (typically the 330180 series driver). The probe tip diameter, thread specification, and sensitivity factor (200 mV/mil, 7.87 V/mm) are fully consistent with the original factory specification, ensuring that existing Keyphasor reference marks, radial vibration channels, and axial position channels require no recalibration after substitution. This is particularly critical in installations where the 3500/42M Proximitor Monitor or the 3500/40M Proximitor Monitor is used as the signal processing backend, as any deviation in probe sensitivity would trigger false alarms or mask genuine machinery faults.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330101-00-36-10-02-00 into an existing machinery protection system begins with a thorough pre-installation audit. Engineers should document the current gap voltage reading at the Proximitor driver output — typically measured at the BNC connector on the 330180 Proximitor Sensor — and compare it against the nominal –10.0 VDC ± 0.5 VDC specification. If the existing driver is a legacy 330100 Series unit rather than the 330180, a driver swap must be planned concurrently, as the 3300 XL probe is optimized for the 330180 driver’s internal oscillator frequency and cannot guarantee linearity when paired with older driver electronics.

Terminal wiring at the 3500 rack I/O module should be verified against the original loop drawing. The probe cable shield must be grounded at one end only — typically at the Proximitor driver chassis — to prevent ground loop interference that can manifest as elevated noise floors on the 3500/42M Proximitor Monitor’s vibration channel. Where the existing installation uses a 3500/20 Rack Interface Module for Modbus RTU or FOUNDATION Fieldbus communication to the plant DCS, no changes to the communication module configuration are required, as the probe substitution is transparent to the digital communication layer.

For facilities running a 3500/15 Power Supply Module in the monitor rack, verify that the total current draw of the replacement probe and driver combination does not exceed the power supply’s rated output. In multi-channel racks where several 3500/42M modules share a single 3500/15, adding a replacement probe channel during a partial retrofit may push the rack close to its power budget. In such cases, a 3500/15E Enhanced Power Supply may be required before the retrofit can proceed safely.

Keyphasor signal integrity is another critical checkpoint. If the machine train uses a 3500/25 Keyphasor Module to provide the once-per-revolution reference signal for phase and speed measurements, the replacement probe installation must not disturb the Keyphasor probe gap or its dedicated 330180 driver. Any accidental movement of the Keyphasor probe during adjacent radial probe replacement will invalidate all phase-referenced vibration data until the Keyphasor gap is re-established and the system is re-verified under running conditions.

Where the plant HMI is configured with vibration trend displays tied to specific channel tag names in the 3500 rack, the replacement probe installation requires no HMI screen modifications, provided the channel address and tag assignment in the rack configuration software (System 1 or Rack Configuration Software) remain unchanged. However, if the retrofit is part of a broader migration from the legacy 3300 Monitor Rack to a new 3500 Series rack, HMI engineers should plan for tag remapping and alarm setpoint re-entry in the SCADA or DCS historian.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement on a critical rotating machine requires a structured hot-swap protocol. Where process conditions permit a brief controlled shutdown, the preferred approach is to de-energize the affected Proximitor driver channel at the 3500 rack terminal block, remove the failed probe, install the 330101-00-36-10-02-00, and re-establish the gap voltage before re-energizing the channel. The entire mechanical swap can typically be completed in under 30 minutes on accessible probe locations, keeping the machine offline for the minimum time necessary.

For machines that cannot be taken offline, a bypass jumper can be installed at the 3500/42M monitor input to hold the last valid vibration reading while the probe is swapped, provided the plant safety system permits this temporary bypass and the bypass duration is logged in the maintenance management system. Once the new probe is installed and the gap voltage is confirmed within specification, the bypass is removed and the monitor resumes live measurement. This approach preserves the original program logic in the 3500 rack, avoids any changes to the DCS control narrative, and maintains field control continuity throughout the replacement.

All replacement probes supplied by SMARTNEXMSK undergo pre-shipment functional testing, including gap voltage linearity verification across the full measurement range, cable continuity and insulation resistance checks, and connector integrity inspection. Test records are available upon request and accompany each shipment to support site acceptance testing and maintenance documentation requirements.

Retrofit Support FAQ

Q1: Is the 330101-00-36-10-02-00 a direct drop-in replacement for the original Bently Nevada part?
Yes. The probe is dimensionally and electrically equivalent to the original factory specification. It uses the same M10 × 1 thread, 8mm tip diameter, 200 mV/mil sensitivity, and 36-inch extension cable length. No modifications to the probe holder, terminal wiring, or monitor configuration are required for a like-for-like replacement in an existing 3300 XL installation.

Q2: What commissioning steps are required after installation?
After mechanical installation, measure the gap voltage at the 330180 Proximitor driver output with the machine stationary. Adjust the probe gap until the output reads –10.0 VDC ± 0.5 VDC. Confirm the reading is stable and within the linear range of the driver. Re-enable the monitor channel and verify that the 3500/42M displays a valid vibration reading with no alert or danger alarms in the quiescent state. Document the as-found and as-left gap voltage readings in the maintenance record.

Q3: Can this probe be used with a legacy 330100 Series driver instead of the 330180?
The 330101-00-36-10-02-00 is designed and calibrated for use with the 330180 Series Proximitor Sensor. While physical connection to a 330100 Series driver is possible, signal linearity and sensitivity accuracy cannot be guaranteed outside the 330180 driver’s oscillator specification. For installations still using 330100 Series drivers, we recommend upgrading to the 330180 driver concurrently with the probe replacement to ensure full 3300 XL system compliance.

Q4: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers manufacturing defects, out-of-specification gap voltage sensitivity, cable insulation failure, and connector integrity issues under normal operating conditions. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, installation date, and a description of the observed fault. Replacement units are dispatched within 3 business days of claim approval, and failed units are returned for root cause analysis upon request.
