Bently Nevada 330101-00-37-05-02-00 Safety-Enhanced Proximity Probe

Bently Nevada 330101-00-37-05-02-00 Safety-Enhanced Proximity Probe: Reliable Control in Harsh Industrial Sites

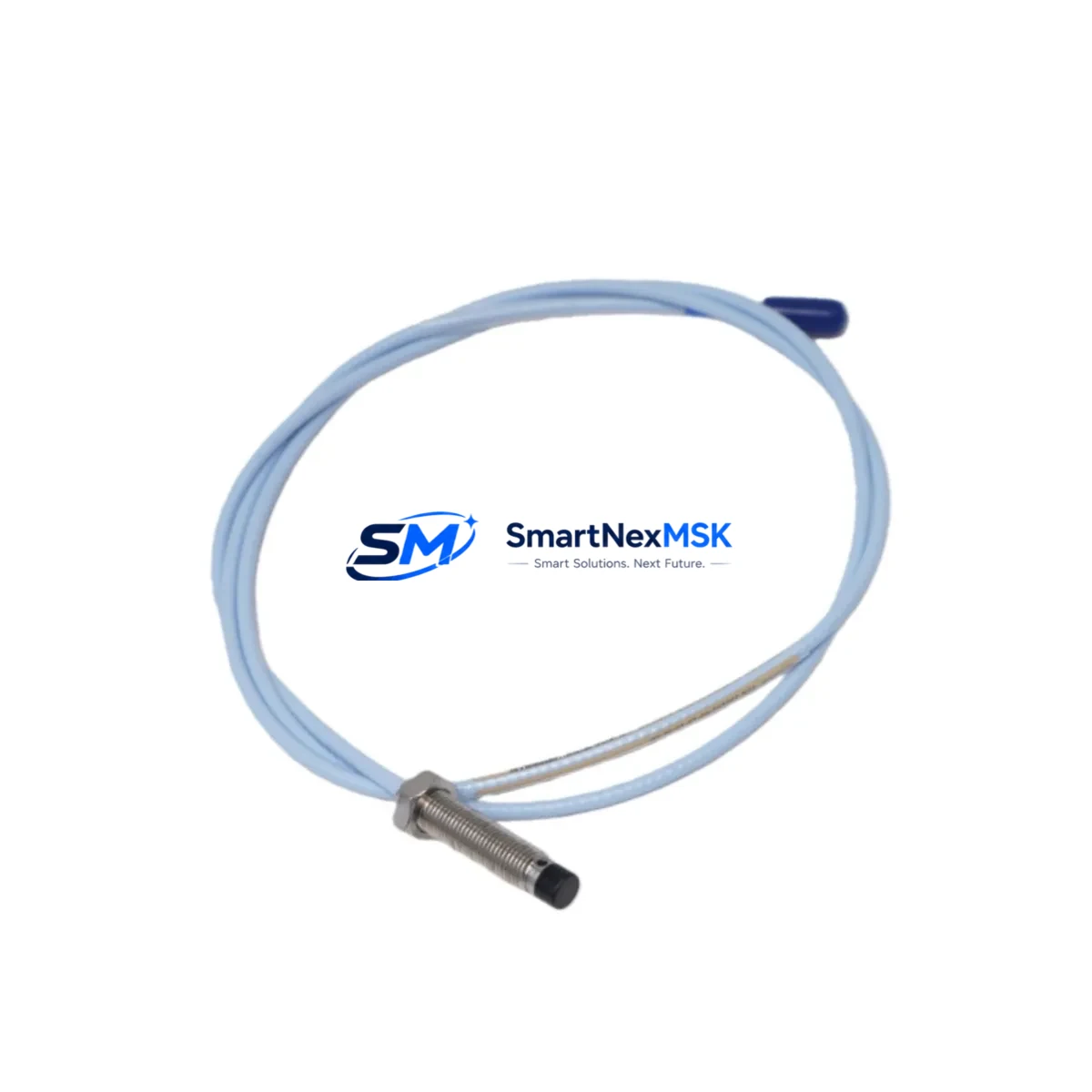

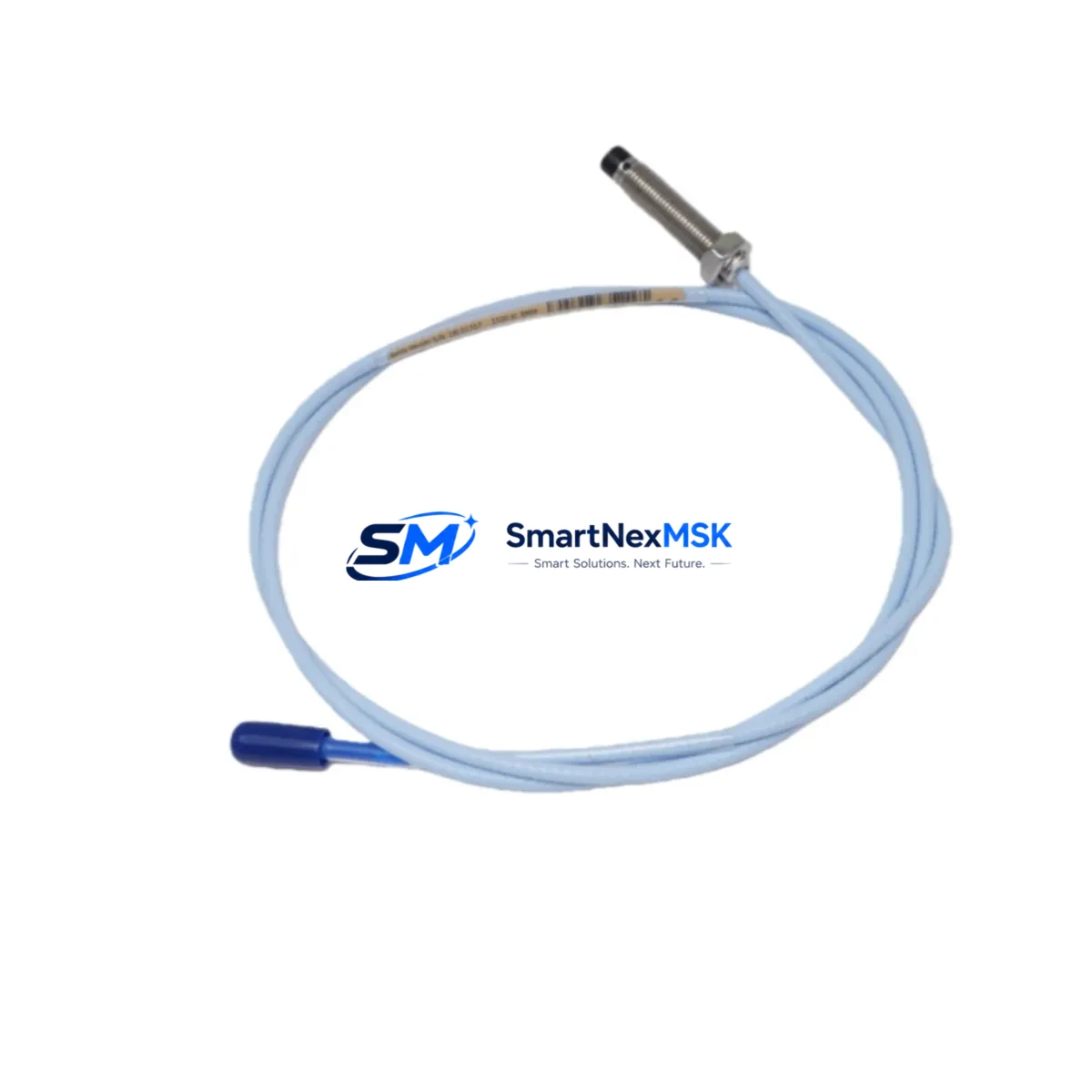

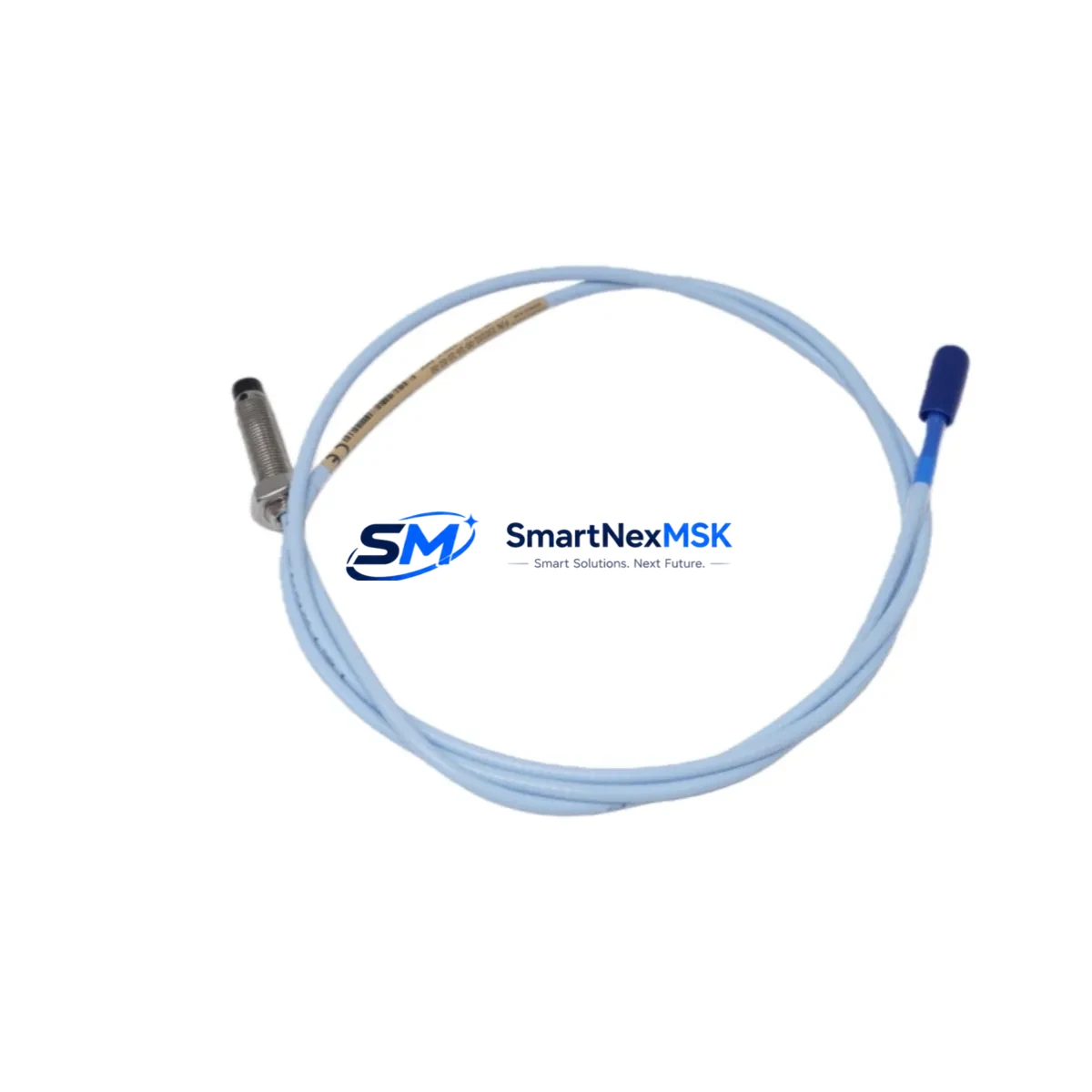

The Bently Nevada 330101-00-37-05-02-00 is an 8mm ruggedized proximity probe engineered for the Bently Nevada 3300 XL Proximity Transducer System — one of the most widely deployed vibration and position monitoring platforms in continuous heavy industry. Designed to operate reliably in high-temperature, high-vibration, chemically aggressive, and electromagnetically noisy environments, this probe is a critical front-line sensor in machinery protection and safety interlock circuits across petrochemical, power generation, mining, metallurgical, and water treatment facilities worldwide.

In safety-critical rotating machinery applications — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — the integrity of shaft vibration and axial position signals is non-negotiable. A degraded or failed proximity probe can trigger false shutdowns, mask genuine fault conditions, or — most dangerously — allow a machine to continue operating beyond safe vibration thresholds. The 330101-00-37-05-02-00 addresses these risks through its ruggedized construction, stable eddy-current sensing technology, and tight factory calibration to the 3300 XL signal conditioning chain.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the Bently Nevada 330101-00-37-05-02-00 probe does not operate in isolation. Its signal integrity depends on the complete transducer chain and the quality of the surrounding protection architecture. The probe connects via a matched 3300 XL Extension Cable (e.g., 330130-045-00-00) to a 3300 XL Proximitor Sensor — such as the 3300/16-05-01-01-00-00-00 or 3300/20-11-01-01-00-00-00 — which conditions the raw eddy-current signal into a calibrated DC voltage proportional to gap distance.

This conditioned signal feeds directly into a Bently Nevada 3500 Series Rack — for example, the 3500/42M Proximitor/Seismic Monitor module — where it is processed against user-defined alert and danger setpoints. In high-availability installations, redundant probe pairs are used on each measurement plane, with the rack configured for voted-logic trip to prevent spurious shutdowns. The 3500/20 Power Supply module provides stable, isolated DC power to the entire rack, protecting the signal chain from upstream power quality events including voltage sags, transients, and harmonic distortion common in heavy industrial switchgear environments.

For installations where the control cabinet is located remotely from the machine train — a common arrangement in hazardous area (Zone 1 / Zone 2) petrochemical plants — the signal path may pass through Bently Nevada Zener Barrier or galvanic isolator assemblies to maintain intrinsic safety compliance. In these architectures, the probe’s shielded coaxial cable and the extension cable’s low-capacitance construction are essential to preserving signal fidelity over long cable runs. Surge protection devices installed at the cabinet entry point further guard against lightning-induced transients and ground potential differences between the machine skid and the control room.

Complementary components in the same protection loop often include Bently Nevada 330500 Series Velocity Transducers for casing vibration measurement, 330400 Series Thrust Position Probes for axial displacement monitoring, and 3300 XL 8mm Proximity Probes in alternative configurations (such as the 330101-00-37-10-02-00 with extended cable) for differential expansion and eccentricity channels. Together, these sensors form a comprehensive, API 670-compliant machinery protection system capable of detecting shaft instability, rub events, oil whirl, and bearing failures before they escalate to catastrophic mechanical damage.

Critical Industrial Safety Applications

Petrochemical & Refinery: In fluid catalytic cracking (FCC) units, hydrocracker compressor trains, and ethylene plant turbines, continuous shaft vibration monitoring is mandated by process safety management (PSM) regulations. The 330101-00-37-05-02-00 provides the real-time radial vibration data that feeds emergency shutdown (ESD) systems, enabling automatic trip before bearing failure or seal damage can release hazardous hydrocarbons.

Power Generation: Steam turbine-generator sets in coal, gas, and nuclear power plants rely on proximity probe arrays to monitor shaft centerline position, oil film thickness, and rotor dynamic behavior across all load conditions. A single failed or drifting probe in this environment can mask a developing instability, delaying protective action and risking catastrophic rotor failure. The ruggedized construction and stable scale factor of the 330101-00-37-05-02-00 make it a preferred replacement part for planned outage maintenance and emergency spare inventory.

Mining & Minerals Processing: Large SAG mill drives, gyratory crusher pinion shafts, and slurry pump motors in open-pit and underground mining operations are subject to extreme shock loading, dust ingress, and wide ambient temperature swings. The probe’s armored cable and chemically resistant housing maintain measurement integrity in these demanding conditions, supporting predictive maintenance programs that reduce unplanned downtime in continuous ore processing circuits.

Water & Wastewater Treatment: High-speed centrifugal blowers and vertical turbine pumps in municipal water treatment plants require reliable vibration monitoring to protect against cavitation damage and bearing wear. The non-contact eddy-current sensing principle eliminates mechanical wear on the sensor itself, ensuring long service life in wet, corrosive environments where contact-type sensors would degrade rapidly.

Metallurgy & Steel: Rolling mill main drives, continuous caster pinch rolls, and blast furnace blower trains operate in environments with intense electromagnetic interference from large variable-frequency drives and DC motor controllers. The shielded coaxial construction of the 330101-00-37-05-02-00 and its matched Proximitor sensor provide effective rejection of common-mode EMI, maintaining clean vibration signals even in the most electrically noisy mill environments.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330101-00-37-05-02-00?
All units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by our technical team with replacement or repair at no additional cost.

Q2: What pre-shipment testing and inspection is performed?
Every Bently Nevada 330101-00-37-05-02-00 unit undergoes functional verification prior to dispatch, including continuity testing, insulation resistance check, and where applicable, scale factor verification against a reference Proximitor sensor. Units are shipped with appropriate anti-static and mechanical protection packaging to prevent transit damage.

Q3: Is this probe compatible with existing 3300 XL and 3500 Series installations?
Yes. The 330101-00-37-05-02-00 is a direct form-fit-function replacement for all standard 8mm 3300 XL proximity probe positions. It is fully compatible with 3300 XL Proximitor Sensors, 3500 Series monitor racks, and all standard 3300 XL extension cables. No recalibration of the monitor rack is required when replacing a like-for-like probe in the same gap range.

Q4: Can long-term supply and emergency spare support be arranged?
SMARTNEXMSK maintains stock of the 330101-00-37-05-02-00 and related 3300 XL series components to support both planned maintenance schedules and emergency breakdown requirements. We offer expedited shipping for critical plant situations and can discuss consignment or blanket order arrangements for customers with ongoing spare parts programs. Contact our team to discuss your site’s specific inventory and supply continuity needs.
