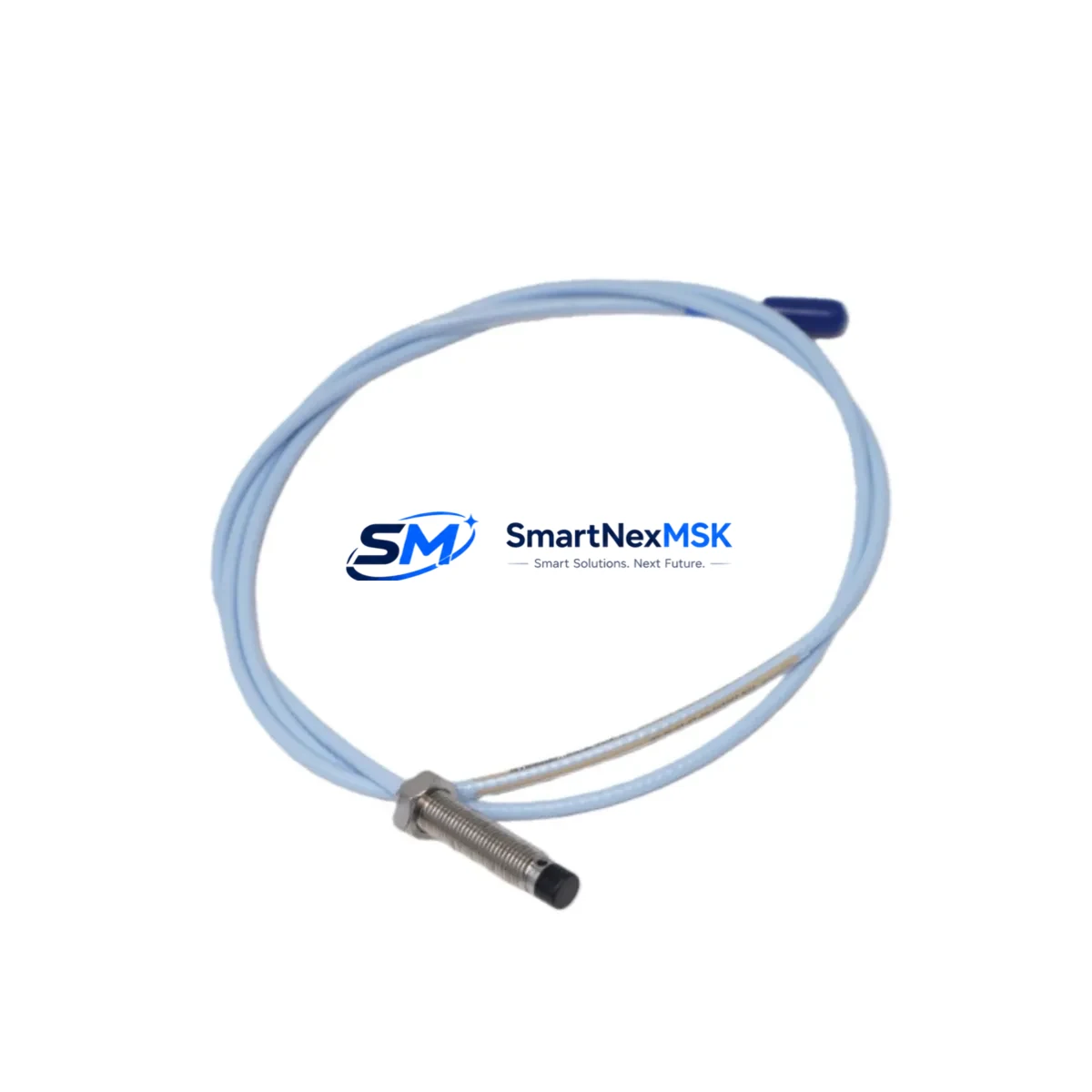

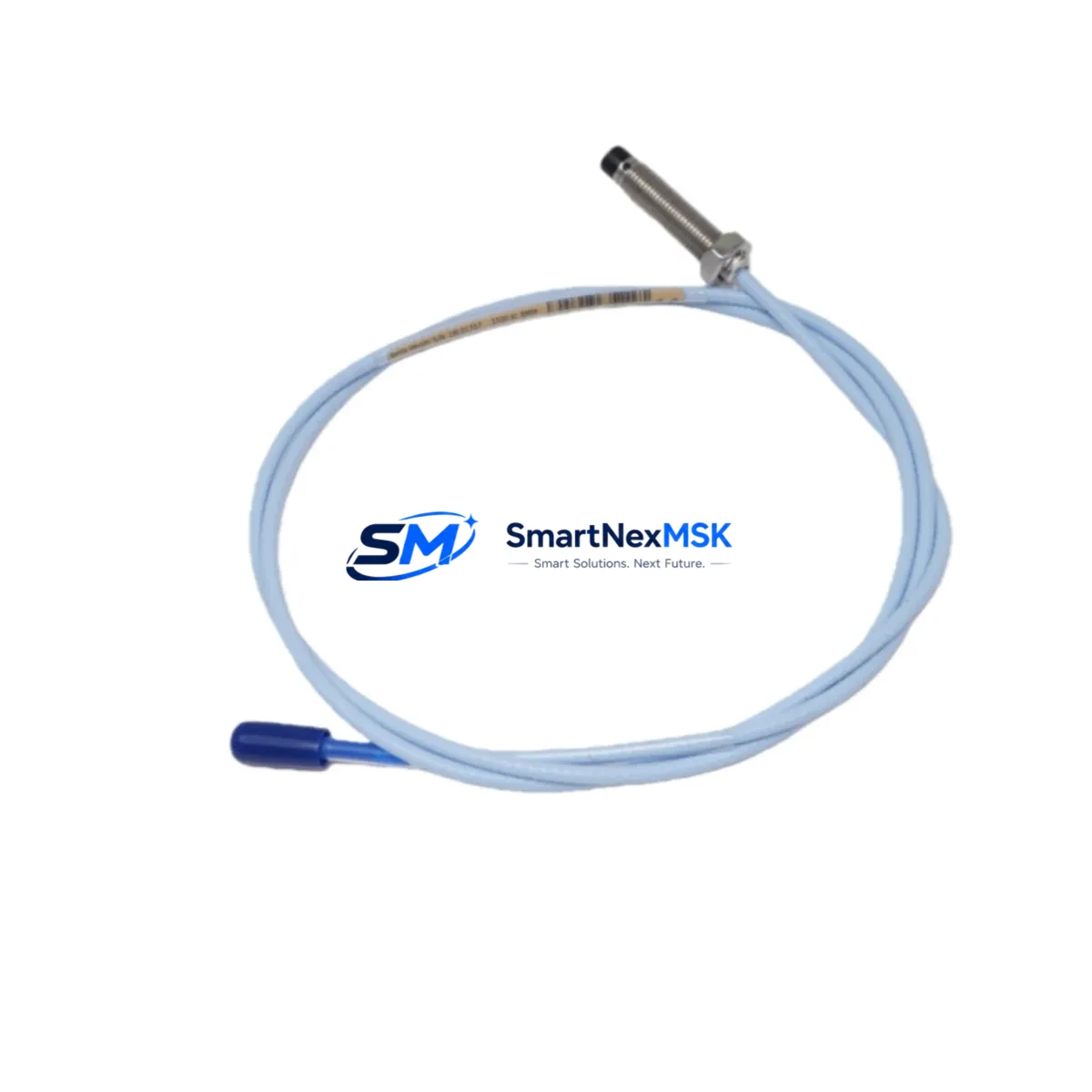

The Bently Nevada 330101-00-40-10-11-05 is an original eddy-current proximity probe engineered for the 3300 XL Series continuous machinery monitoring system. Designed for radial vibration, axial position, and differential expansion measurement on rotating equipment, this probe is a critical spare for turbines, compressors, pumps, and gearboxes operating in continuous industrial processes. Unplanned downtime caused by a failed proximity probe can cascade into hours of lost production; maintaining a verified, tested spare on the shelf is the single most effective strategy for rapid restoration of monitoring integrity.

For maintenance engineers managing aging 3300 XL installations, the 330101-00-40-10-11-05 offers a direct, drop-in replacement path. The probe ships pre-tested against Bently Nevada factory specifications, with full dimensional and electrical verification completed before dispatch. Each unit is covered by a 12-month warranty and is traceable to its original manufacturing batch, giving procurement teams the documentation required for regulated plant environments.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330101-00-40-10-11-05 proximity probe is flagged during a routine control cabinet inspection or a vibration alarm event, experienced maintenance engineers know that the probe itself is rarely the only component requiring attention. A complete corrective maintenance cycle for a 3300 XL monitoring loop should include inspection of the matched 330130-080-00-00 extension cable — probe and cable must be calibrated as a pair, and substituting an unmatched cable will shift the system’s linear range and introduce measurement error.

The 3300 XL Proximitor® Sensor (typically the 330180 or 330181 series) should be bench-tested for output voltage and gap voltage linearity whenever the probe is replaced. If the Proximitor shows drift or output clipping, it should be replaced concurrently rather than deferred. Downstream, the 3500/42M or 3500/40M Proximitor I/O module in the 3500 rack should be verified for channel health, alert/danger setpoint integrity, and OK relay status.

For plants running older 3300 Series (non-XL) installations, the 330100 series probes and their associated 330105 Proximitor sensors may be approaching end-of-support. Stocking a cross-compatible 3300 XL probe alongside legacy spares is a recognized life-extension strategy that reduces the risk of a single-point-of-failure during an unplanned outage.

During a planned shutdown, the inspection scope for the monitoring loop should extend to the 3500 rack power supply module (3500/15 or 3500/05), terminal strip wiring integrity, and shield grounding continuity at the junction box. Loose or corroded shield terminations are a leading cause of elevated noise floors that can mask early-warning vibration signatures. If the plant uses a 3500/22M transient data interface or a System 1 condition monitoring platform, verify that the channel configuration matches the replacement probe’s sensitivity constant (7.87 V/mm) to prevent false alarms after restart.

For facilities managing multiple rotating assets, a recommended minimum spare holding is one probe per monitored shaft position, plus one Proximitor sensor per rack card slot. Procurement engineers should also consider stocking 330130 series extension cables in the most common lengths used on site, as cable damage from vibration fatigue or mechanical contact is statistically more frequent than probe tip failure in well-maintained installations.

Site Replacement Workflow

Step 1 — Isolation and documentation: Before removing the failed probe, record the current gap voltage (typically −10 to −18 VDC for a healthy gap) and note the physical gap dimension from the last calibration record. This baseline is essential for post-installation verification.

Step 2 — Probe removal: De-energize the Proximitor driver circuit at the 3500 rack I/O module. Disconnect the extension cable at the junction box, not at the probe body, to avoid stressing the integral cable. Remove the probe from the housing using the correct spanner to avoid thread damage on the M11 x 1.0 boss.

Step 3 — Replacement installation: Install the 330101-00-40-10-11-05 replacement probe to the same physical gap as the previous calibration record (typically 1.0–1.5 mm for most shaft diameters). Reconnect the extension cable — if the cable is being replaced simultaneously, use a new matched 330130 series cable of identical length. Torque the locknut to the housing specification.

Step 4 — Calibration verification: Re-energize the Proximitor and measure gap voltage at the Proximitor output terminals. Confirm the output falls within the linear range for the set gap. If the plant uses a portable calibrator, perform a full gap sweep to verify sensitivity matches 7.87 V/mm ± 5%.

Step 5 — System restoration: Clear any latched alerts at the 3500 rack operator display or System 1 interface. Confirm OK relay status is healthy before returning the machine to service. Log the replacement in the CMMS with the new probe serial number and calibration data.

This workflow minimizes restart risk and ensures the monitoring system is fully functional before the machine is brought back online, directly reducing mean time to recovery (MTTR) for vibration monitoring failures.

Spare Parts Support FAQ

Q1: Is the 330101-00-40-10-11-05 a direct replacement for older 330100 series probes?
The 330101-00-40-10-11-05 is a 3300 XL series probe and is not directly interchangeable with the original 330100 series without verifying Proximitor compatibility. The 3300 XL system uses a different Proximitor sensor (330180/330181) compared to the legacy 3300 system. If your installation uses a legacy Proximitor, consult the Bently Nevada compatibility matrix or contact our technical team before ordering.

Q2: How is each unit tested before shipment?
Every 330101-00-40-10-11-05 unit undergoes electrical continuity verification, gap voltage output testing at nominal −24 VDC supply, and dimensional inspection of the probe tip and thread. A test report is available upon request. Units that do not meet factory specification thresholds are not dispatched.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, electrical failure under normal operating conditions, and dimensional non-conformance. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the specified temperature and voltage range. Warranty claims are processed with return of the defective unit and provision of installation records.

Q4: Can you supply matched probe and extension cable sets for a complete loop replacement?
Yes. We can supply the 330101-00-40-10-11-05 probe together with a matched 330130 series extension cable in the required length. Ordering as a matched set ensures calibration compatibility and simplifies the site replacement workflow. Contact our sales team with your required cable length and connector configuration.
