Bently Nevada 330101-00-43-15-02-CN Spare for 3300 XL

Bently Nevada 330101-00-43-15-02-CN Maintenance-Ready Spare for 3300 XL Automation

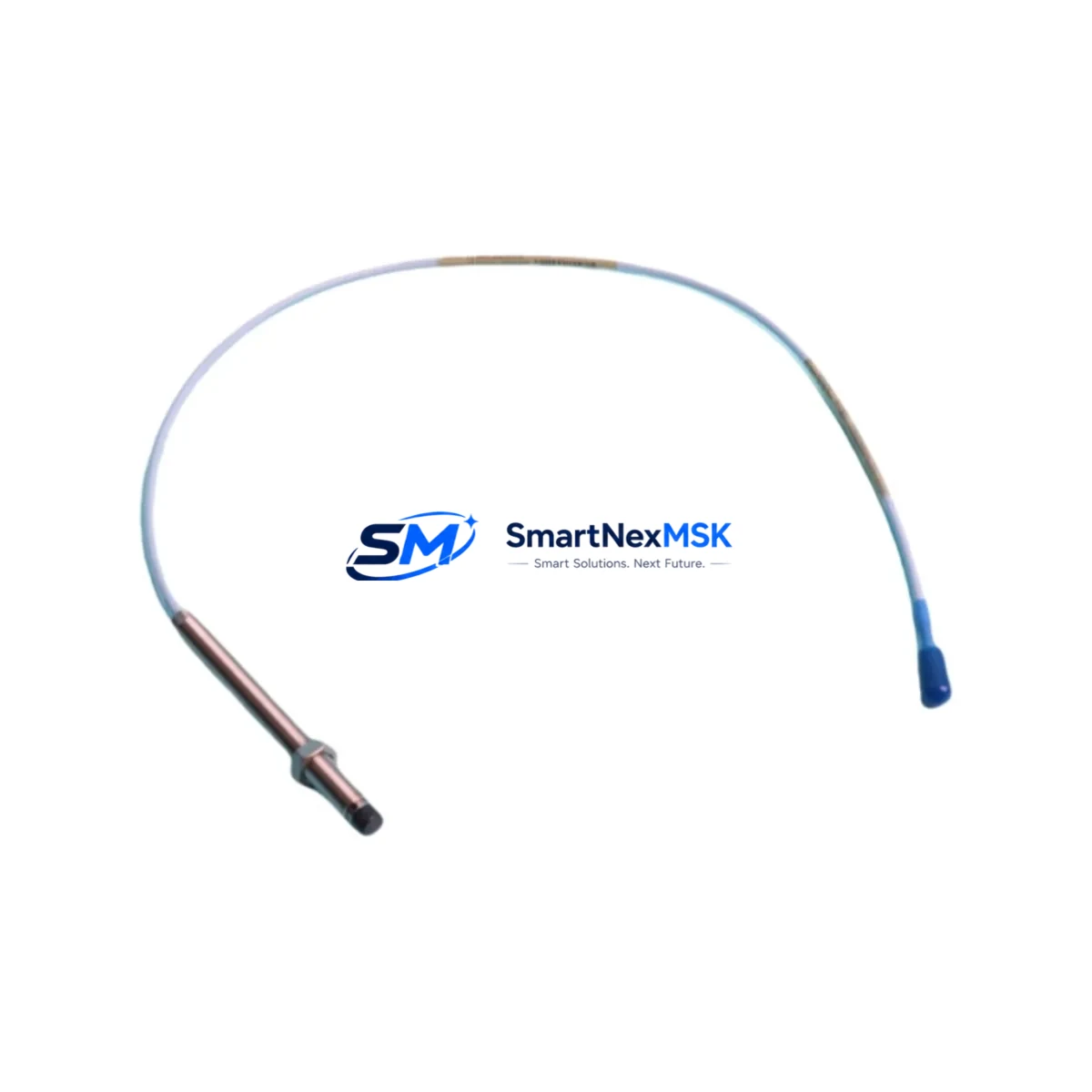

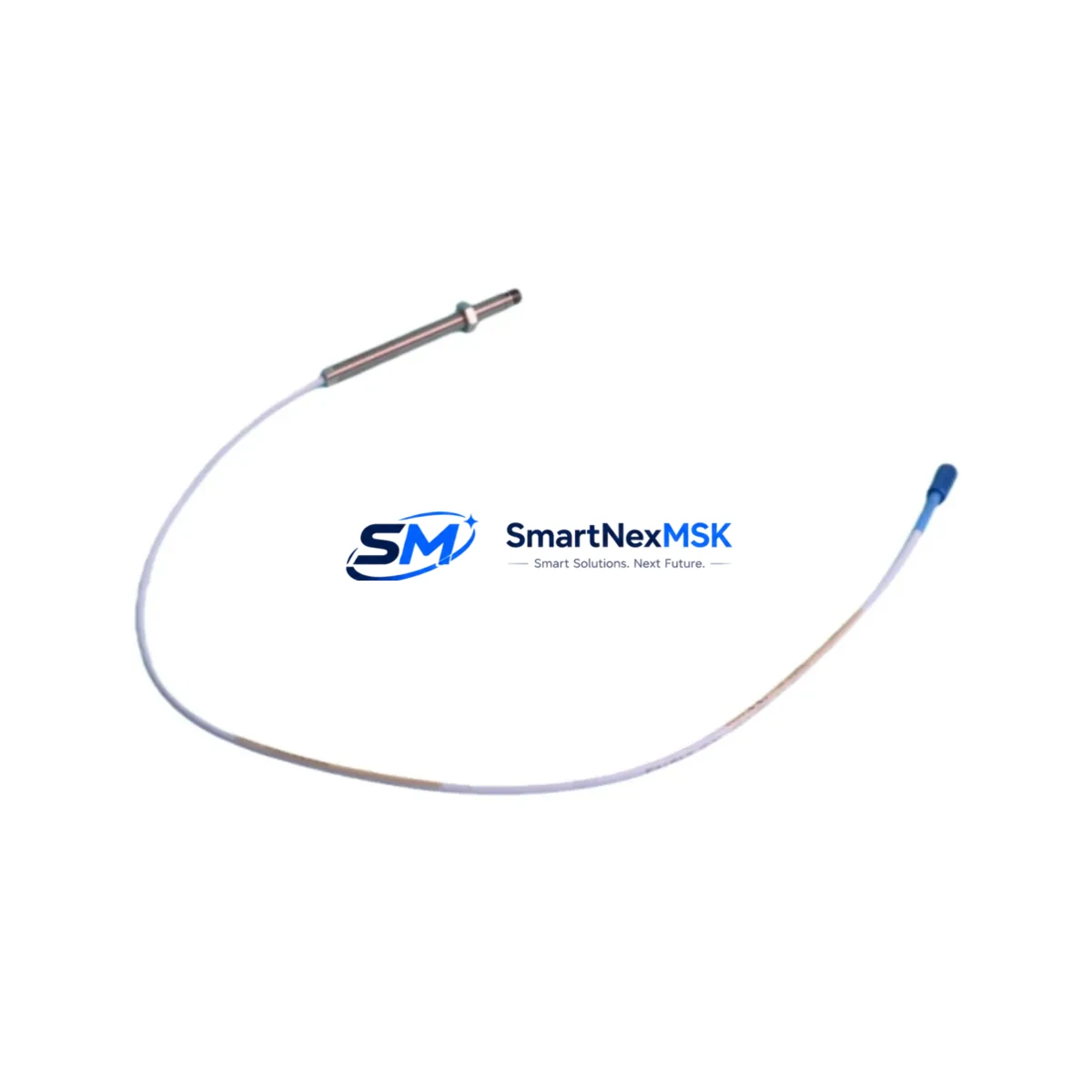

The Bently Nevada 330101-00-43-15-02-CN is an original 8mm eddy-current proximity probe designed for the 3300 XL Proximity Transducer System — one of the most widely deployed vibration and position monitoring platforms in rotating machinery and industrial automation environments. Holding a verified spare of this probe in your maintenance inventory is a direct investment in uptime: when a probe fails during operation, the window between fault detection and full shutdown can be measured in minutes, not hours. This listing provides a genuine, tested replacement unit with a 12-month warranty, ready for immediate dispatch.

Maintenance engineers working on turbines, compressors, pumps, and gearboxes equipped with Bently Nevada 3300 XL monitoring systems will recognize the 330101-00-43-15-02-CN as a standard radial vibration or axial position probe. Its 8mm tip diameter, -CN cable designation (integral cable, no extension), and 15mm range make it a direct fit for most OEM-specified probe mounting brackets without mechanical modification. Before replacing this probe on-site, a thorough inspection of the associated signal chain is strongly recommended to prevent repeat failures and ensure measurement accuracy is restored to specification.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330101-00-43-15-02-CN probe is flagged for replacement — whether through a scheduled calibration cycle, a drift alarm on the 3300 XL monitor, or a physical inspection revealing cable damage or tip contamination — the replacement event is the ideal moment to audit the entire measurement loop. Maintenance engineers should begin at the 330180-series Proximitor Sensor (the signal conditioner mounted in the field junction box), verifying that the gap voltage at the driver output reads within the -10 to -18 VDC window specified for the 8mm probe system. A Proximitor that is borderline out of specification will cause the new probe to read inaccurately from day one.

Next, inspect the field wiring and terminal blocks between the Proximitor and the 3300 XL rack. Corroded or loose terminals on the barrier strip are a common source of intermittent vibration signals that are frequently misdiagnosed as probe failures. If the installation uses Bently Nevada 3300 XL I/O modules — such as the 3300/16 or 3300/20 series cards — confirm that the channel input impedance and scaling factors are still correctly configured in the monitor, as these settings are probe-type specific.

For installations where the probe cable runs through conduit near high-voltage power cables or variable-frequency drives, consider adding or inspecting existing signal isolation barriers (e.g., galvanic isolators rated for -24 VDC proximity probe loops) to prevent ground loops from corrupting the vibration waveform. In older control cabinets, the 24 VDC power supply feeding the Proximitor should also be load-tested: a sagging supply rail will shift the probe’s static gap voltage and trigger nuisance alarms even with a brand-new probe installed.

If the machine is part of a broader condition monitoring network, verify that the 3300 XL rack communication module (such as the 3500/92 or a Modbus/TCP gateway card) is correctly forwarding the channel data to the DCS or historian after the probe swap. A channel that was previously in bypass or inhibit mode during the fault may need to be re-enabled in the monitor configuration. Finally, for sites running Bently Nevada System 1 software, update the probe calibration record and reset the baseline waveform capture to reflect the new probe’s installed gap.

Procurement engineers building a spare parts kit around the 3300 XL system should consider stocking the 330101-00-43-15-02-CN alongside the matching 330130-series extension cables (if longer cable runs are required on other machines in the same facility), a spare 330180 Proximitor Sensor, and at minimum one spare 3300 XL monitor card for the most critical machine trains. This three-component kit covers the majority of field-replaceable failures in the 3300 XL signal chain without requiring specialized repair facilities.

Site Replacement Workflow

Step 1 — Inhibit the channel. Before removing the probe, inhibit the affected channel in the 3300 XL monitor to prevent spurious trip signals during the swap. Document the current gap voltage and vibration baseline from the monitor display or System 1 historian.

Step 2 — De-energize and disconnect. Remove power from the Proximitor sensor at the field junction box. Disconnect the probe cable from the Proximitor input terminals, noting the terminal labeling for correct reconnection.

Step 3 — Remove the old probe. Unscrew the probe from its mounting bracket. Inspect the bracket threads and the target surface (shaft or thrust collar) for wear, scoring, or contamination. Clean the target area before installing the replacement.

Step 4 — Install the 330101-00-43-15-02-CN. Thread the new probe into the bracket and set the gap to the manufacturer-specified distance (typically 1.0–1.5mm for the 8mm probe, yielding approximately -10 to -12 VDC gap voltage). Use a non-conductive gap-setting tool and verify with a calibrated DC voltmeter at the Proximitor output.

Step 5 — Reconnect and verify. Reconnect the cable to the Proximitor, restore power, and confirm the gap voltage is within specification. Check the vibration reading against the machine’s known baseline. If the reading is within ±5% of the pre-fault baseline, the installation is confirmed good.

Step 6 — Re-enable the channel. Remove the inhibit in the 3300 XL monitor, confirm the channel is active and alarming correctly, and update the maintenance log with the probe serial number, installation date, and gap voltage recorded.

This workflow minimizes total downtime to under 30 minutes for a trained technician on an accessible machine, and eliminates the most common post-replacement issues: incorrect gap setting and reversed cable polarity.

Spare Parts Support FAQ

Q1: Is the 330101-00-43-15-02-CN a direct replacement for older 330101 series probes without the -CN suffix?
The -CN suffix designates an integral cable configuration (no separate extension cable). If your existing installation uses a probe with an extension cable (e.g., 330130-series), the -CN variant is a direct electrical replacement only if the combined probe-plus-extension cable length matches the -CN integral cable length. Verify total cable length against the Proximitor’s calibration range before installing.

Q2: How should this probe be stored as a long-term spare?
Store in the original packaging or an anti-static bag in a dry environment between 0°C and 50°C, away from strong magnetic fields. Inspect the probe tip and cable connector annually for corrosion. Probes stored correctly retain full specification for 5+ years. Each unit shipped from our stock is tested before dispatch regardless of storage duration.

Q3: What pre-shipment testing is performed on this unit?
Every 330101-00-43-15-02-CN unit is electrically tested for coil impedance, insulation resistance, and cable continuity before shipment. A test report is available on request. The 12-month warranty covers electrical failure under normal operating conditions from the date of shipment.

Q4: Can this probe be used in a non-Bently Nevada monitoring system?
The 330101-00-43-15-02-CN outputs a standard eddy-current proximity signal (-24 VDC bias, linear voltage output) compatible with any monitor or data acquisition system designed for 8mm Bently Nevada-standard probes. Confirm your monitor’s input impedance and scaling factors match the 3300 XL probe specification before installation in a third-party system.
