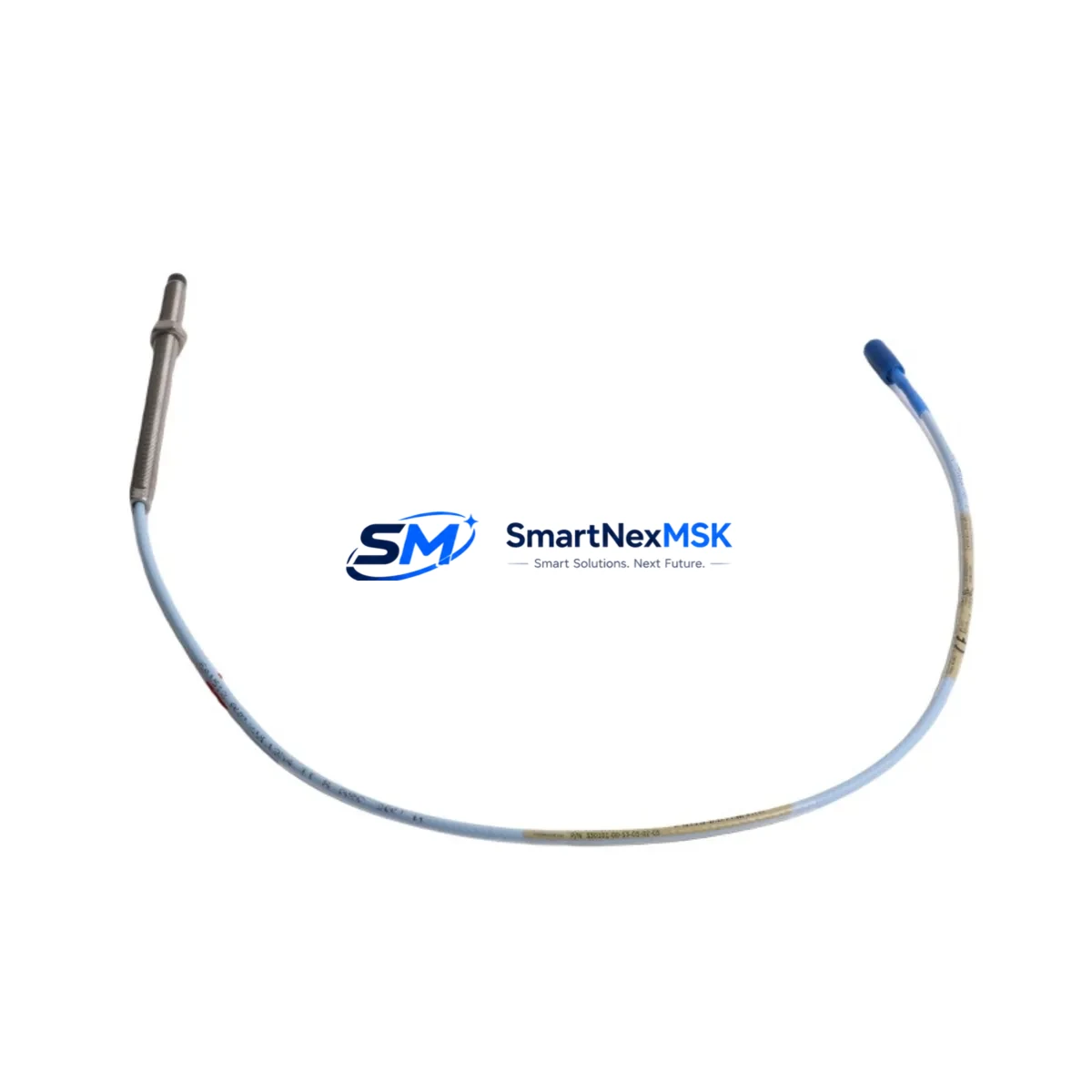

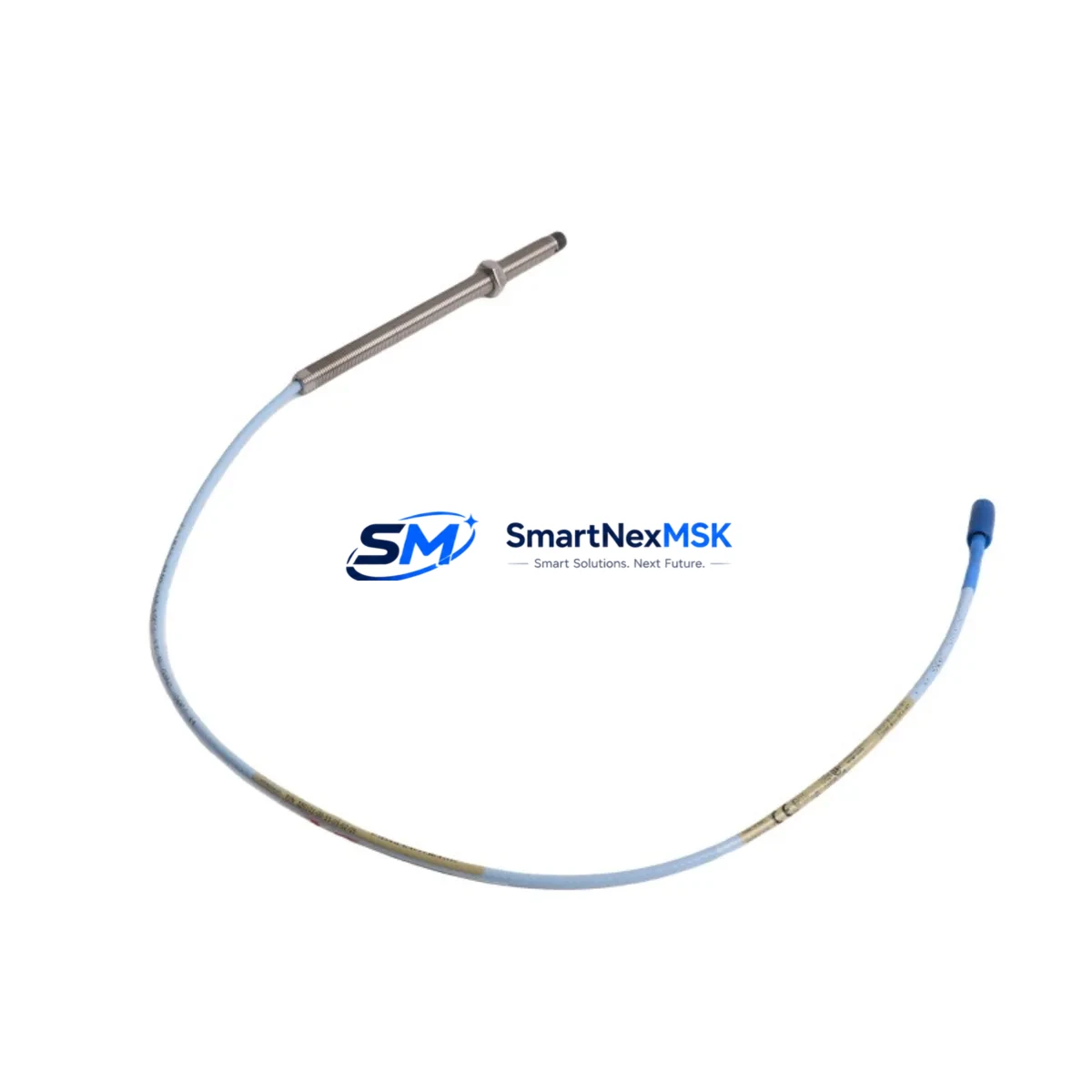

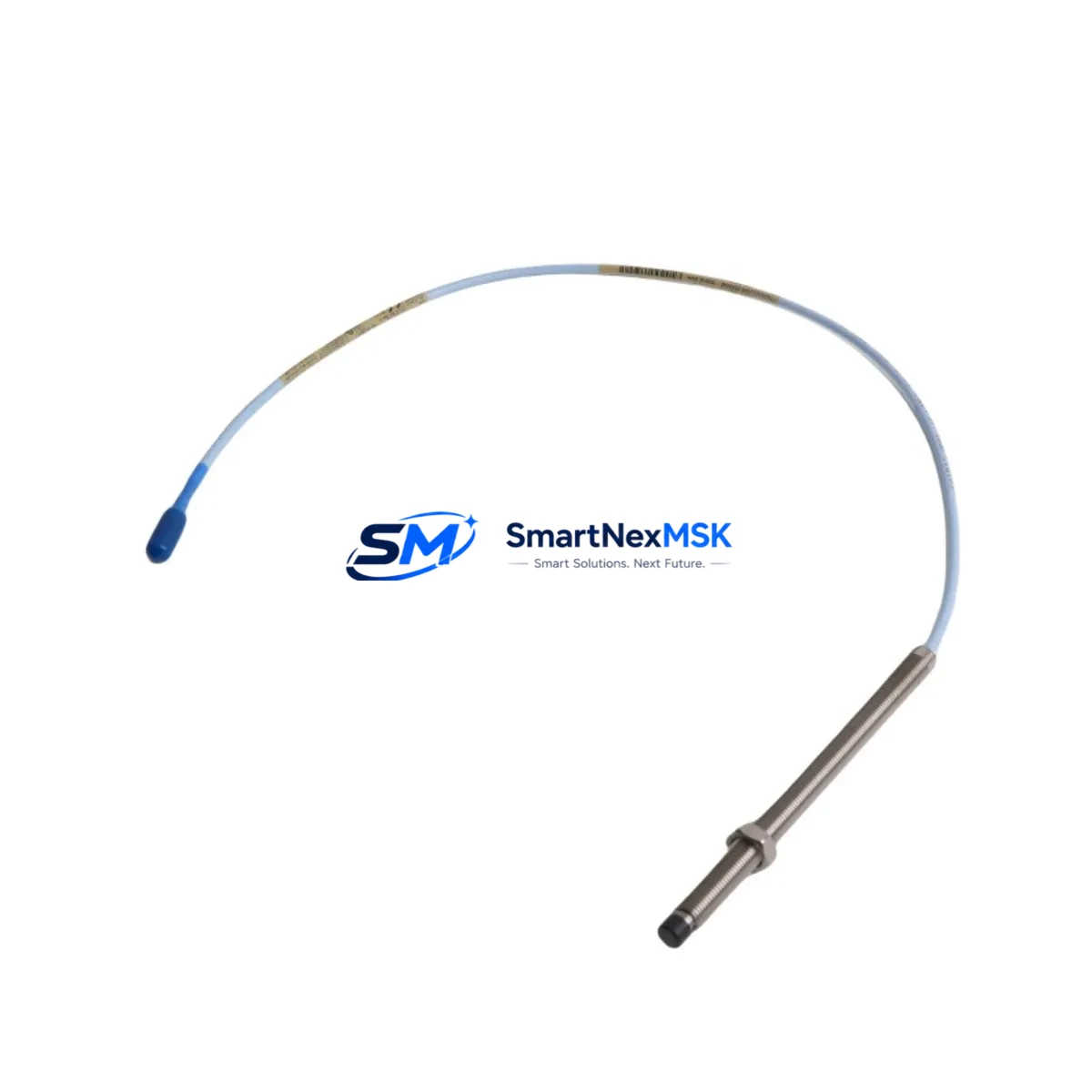

The Bently Nevada 330101-00-44-05-02-05 is an 8mm eddy current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, safety-critical shaft monitoring in the most demanding industrial environments. Designed to operate reliably under high electromagnetic interference, mechanical vibration, extreme temperatures, and corrosive atmospheres, this probe is a cornerstone component in turbomachinery protection systems, rotating equipment health monitoring, and critical interlock circuits across petrochemical, power generation, mining, metallurgical, and continuous manufacturing facilities.

Where control interruption is not an option — in compressor trains, steam turbines, centrifugal pumps, and large induction motors — the 330101-00-44-05-02-05 delivers consistent, drift-free displacement and vibration signals to the Bently Nevada 3300 XL Monitor and associated relay output modules. Its non-contact sensing principle eliminates mechanical wear, ensuring long-term signal integrity without scheduled replacement cycles. The probe’s ruggedized stainless steel housing and hermetically sealed tip resist oil mist, process gases, and high-pressure washdown, making it suitable for Zone 1 and Zone 2 hazardous area installations when paired with appropriate barriers.

In high-load, high-interference control cabinets, signal quality is paramount. The 330101-00-44-05-02-05 is factory-calibrated to work in conjunction with the Bently Nevada 330130 Extension Cable and the 3300 XL 8mm Driver (190501-01-L), forming a complete proximity transducer system with a defined sensitivity of 7.87 V/mm (200 mV/mil). This calibrated chain ensures that the Bently Nevada 3300/16-24-01-01-00-00 Monitor receives accurate, repeatable data for alarm and trip decisions — directly reducing the risk of spurious trips or missed fault detection in critical rotating machinery.

Power supply stability is equally critical in safety-loop design. The probe system draws from a regulated –24 VDC supply, and when integrated with a Bently Nevada 3300/05 Power Supply or equivalent redundant DC rail, voltage fluctuation and surge events are effectively isolated from the measurement chain. This architecture protects against the signal drift and module mis-operation that can occur during grid disturbances or load-switching events in heavy industrial facilities.

For communication integrity, the 330101-00-44-05-02-05 feeds into monitoring architectures that support Modbus RTU and 4–20 mA analog output interfaces, enabling seamless integration with DCS platforms such as Emerson DeltaV, Honeywell Experion, and ABB 800xA. In facilities where the Bently Nevada System 1 Software is deployed for predictive maintenance, the probe’s output is a primary data source for trend analysis, alarm rationalization, and SIL-rated shutdown logic. Alongside Bently Nevada 330180 Velomitor sensors and 3300 XL Thrust Position Monitors, it forms a comprehensive machinery protection layer that addresses both radial vibration and axial displacement — two of the most common precursors to catastrophic rotating equipment failure.

In safety instrumented systems (SIS), the 330101-00-44-05-02-05 is frequently specified as the sensing element in high-integrity protection loops. When combined with a Bently Nevada 3500/42M Proximitor I/O Module and a voted 2oo3 logic solver, it contributes to SIL 2-capable shutdown architectures for compressors and turbines in refineries and LNG terminals. Its proven field reliability reduces the probability of dangerous failure on demand (PFDavg), supporting compliance with IEC 61511 and IEC 61508 functional safety standards.

Every unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification, including tip gap sensitivity check, cable continuity test, and output linearity confirmation across the full measurement range. Units are shipped with full traceability documentation and are backed by a 12-month warranty covering manufacturing defects and performance deviations. Inventory is maintained in-stock for immediate dispatch, supporting urgent MRO requirements and unplanned outage scenarios where lead time is critical.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection cabinet built around the 330101-00-44-05-02-05 integrates multiple layers of hardware to ensure uninterrupted control and safe shutdown capability. The probe connects via the Bently Nevada 330130-045-00-00 Extension Cable to the 3300 XL 8mm Proximitor Driver, which conditions the raw eddy current signal before it reaches the Bently Nevada 3300/16 Dual-Channel Monitor. Within the same rack, Bently Nevada 3300/05 Power Supply modules provide regulated –24 VDC with redundant feed capability, protecting the entire measurement chain from upstream power disturbances.

For facilities running parallel protection on critical assets, the Bently Nevada 3500/42M Proximitor I/O Module within a 3500 Series rack offers voted-logic capability, enabling 2oo3 or 2oo4 configurations that eliminate single-point-of-failure risk in the sensing layer. Thrust position monitoring is handled by the Bently Nevada 330750 Thrust Position Probe, which operates on the same eddy current principle and shares the same driver and monitor infrastructure — simplifying spare parts management and technician training.

Velocity-based vibration data is complemented by Bently Nevada 330180 Velomitor XA sensors mounted on bearing housings, providing seismic vibration coverage where proximity probes cannot be installed. Temperature monitoring within the same cabinet is typically handled by Bently Nevada 3300/46 Temperature Monitor modules, which integrate thermocouple or RTD inputs into the same alarm and trip matrix. For facilities with Modbus or FOUNDATION Fieldbus communication requirements, the Bently Nevada 3500/92 Communication Gateway bridges the protection system to the plant DCS, ensuring that all vibration, position, and temperature data is available for operator display and historian archiving without compromising the independence of the safety shutdown path.

Surge protection at the cabinet entry point — using DIN-rail mounted transient voltage suppressors rated for the –24 VDC signal circuit — further reduces the risk of surge-induced damage to the probe driver and monitor cards during lightning events or large motor starts on shared bus segments.

Critical Industrial Safety Applications

The 330101-00-44-05-02-05 is specified and deployed across a wide range of heavy industrial sectors where rotating equipment reliability is directly linked to process safety and production continuity.

In petrochemical and refinery facilities, it monitors radial shaft vibration on centrifugal compressors, charge pumps, and reactor agitators — providing the early warning data needed to prevent seal failures, bearing collapses, and unplanned process shutdowns. In power generation plants, it is installed on steam turbine journal bearings and generator shaft extensions, feeding vibration data to the turbine protection system for automatic trip on high-vibration events.

In mining and mineral processing operations, where equipment operates under extreme dust loading, high ambient temperatures, and continuous duty cycles, the probe’s IP67-rated housing and wide temperature range ensure reliable operation without frequent recalibration. Water treatment and desalination facilities use it on high-speed pump trains and blower shafts, where vibration excursions can indicate impeller imbalance or cavitation — conditions that, if undetected, lead to rapid mechanical degradation.

In metallurgical and steel mill environments, the probe monitors rolling mill drive shafts and continuous caster pinch roll drives, where electromagnetic interference from large variable-frequency drives and arc furnaces demands a sensor with proven EMI immunity. Port and bulk material handling facilities rely on it for conveyor drive gearbox monitoring and ship unloader slew bearing surveillance. Across all these applications, the 330101-00-44-05-02-05 contributes directly to reducing mean time between failures (MTBF), extending planned maintenance intervals, and supporting the transition from reactive to predictive maintenance strategies.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330101-00-44-05-02-05?
The 12-month warranty covers manufacturing defects, material failures, and performance deviations from the published Bently Nevada 3300 XL specification. If the probe fails to meet its calibrated sensitivity of 7.87 V/mm or exhibits signal instability under normal operating conditions within the warranty period, SMARTNEXMSK will provide a replacement unit at no charge. Warranty claims are processed with full traceability documentation.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-00-44-05-02-05 unit undergoes a three-point pre-shipment inspection: (1) tip gap sensitivity verification against the 200 mV/mil standard, (2) output linearity check across the full 0.25–2.54 mm measurement range, and (3) cable and connector continuity test. Units that do not pass all three checks are quarantined and not dispatched. Test records are available upon request for quality-critical procurement processes.

Q3: Is this probe compatible with existing Bently Nevada 3300 and 3500 Series infrastructure?
Yes. The 330101-00-44-05-02-05 is fully compatible with the Bently Nevada 3300 XL 8mm driver system and integrates directly with 3300 Series monitors and 3500 Series I/O modules. It uses the standard –24 VDC supply and produces a DC voltage output consistent with all 3300 XL proximity transducer system specifications. No firmware changes or recalibration of the monitor are required when replacing a like-for-like unit.

Q4: Can long-term supply and replacement support be guaranteed for critical plant spares programs?
SMARTNEXMSK maintains standing inventory of the 330101-00-44-05-02-05 and related 3300 XL Series components to support both planned spares programs and emergency MRO requirements. For facilities managing critical spare parts lists (CSL) or insurance spares, we offer volume reservation arrangements and priority dispatch for unplanned outage scenarios. Our supply chain covers both new and fully tested surplus units, ensuring availability even for legacy installations where OEM lead times are extended.
