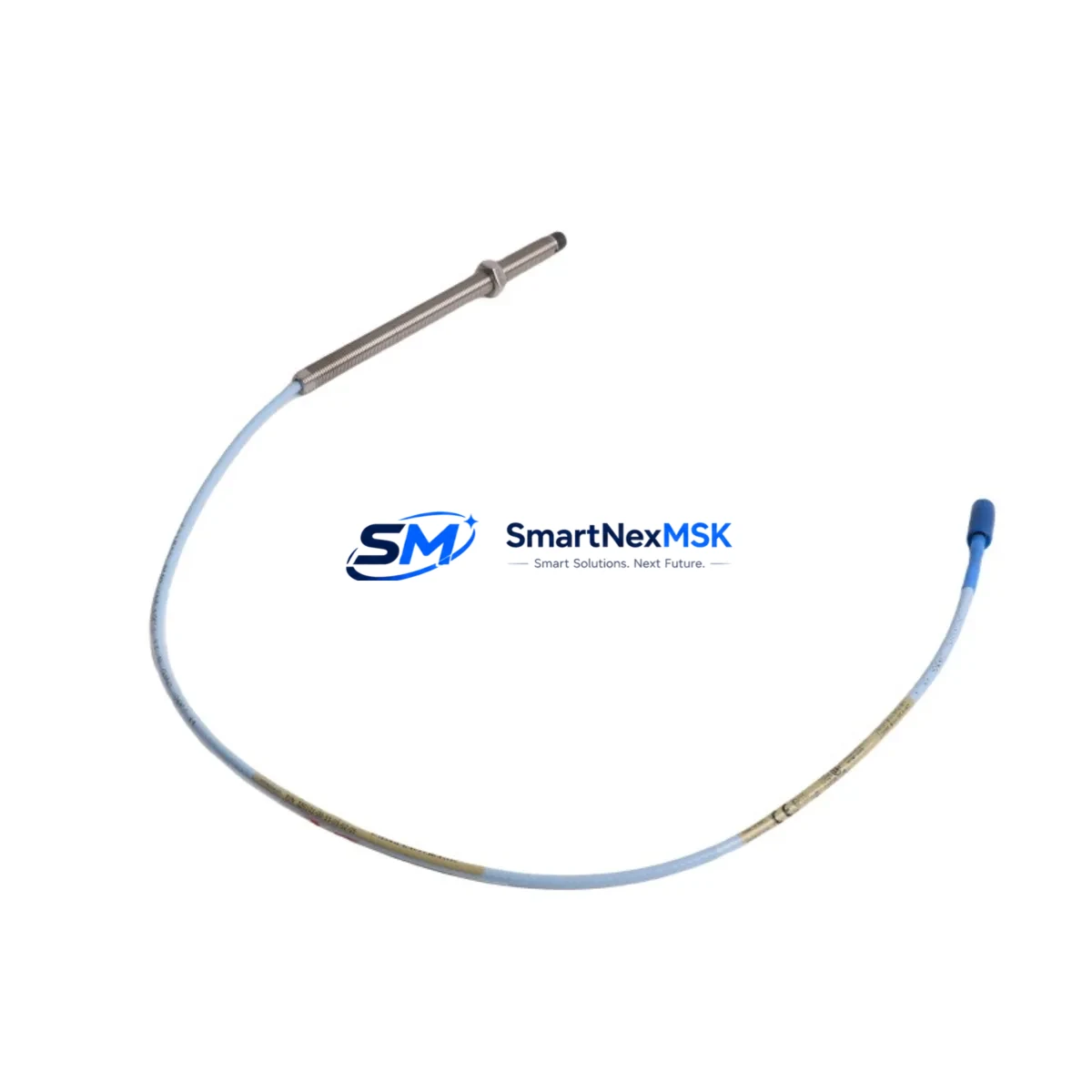

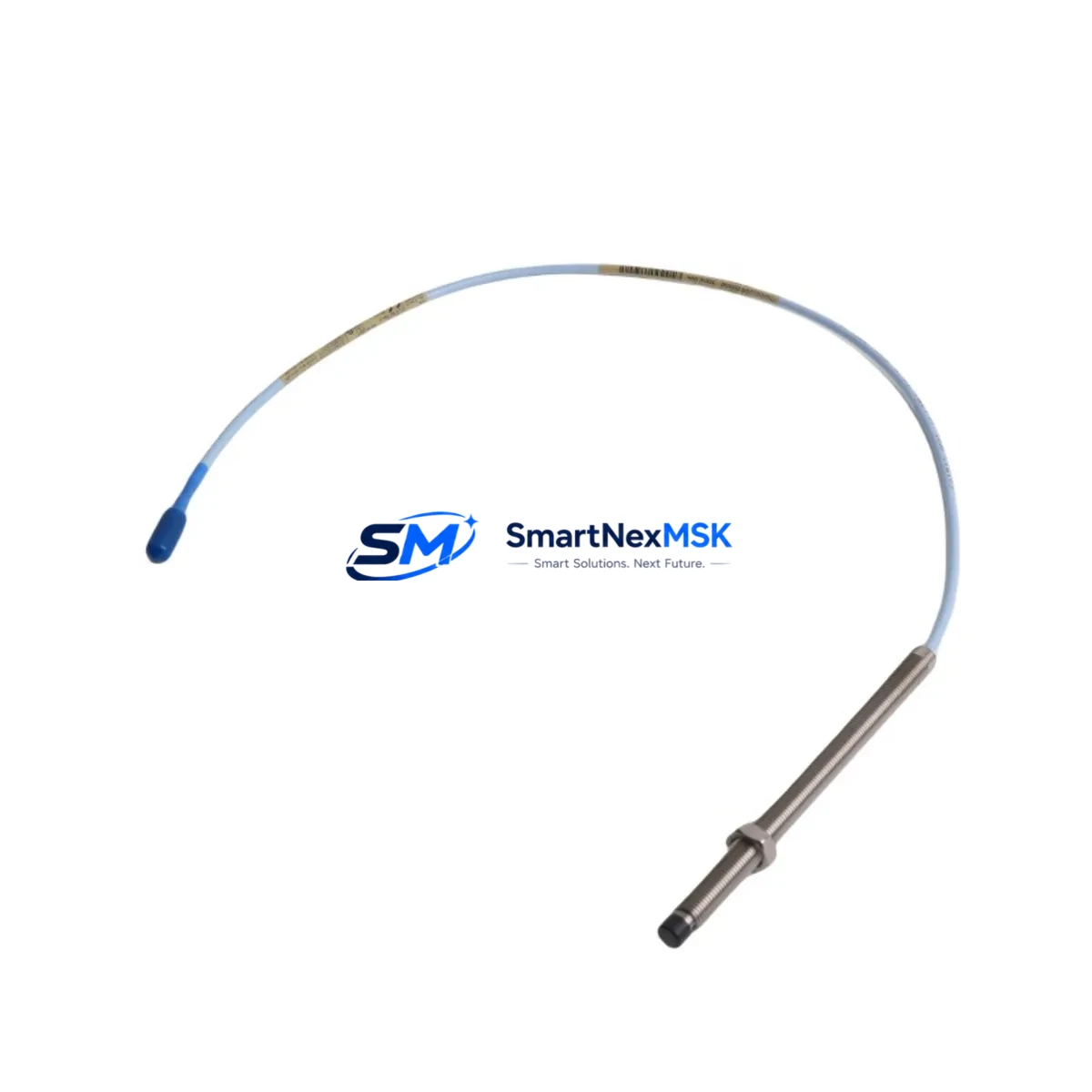

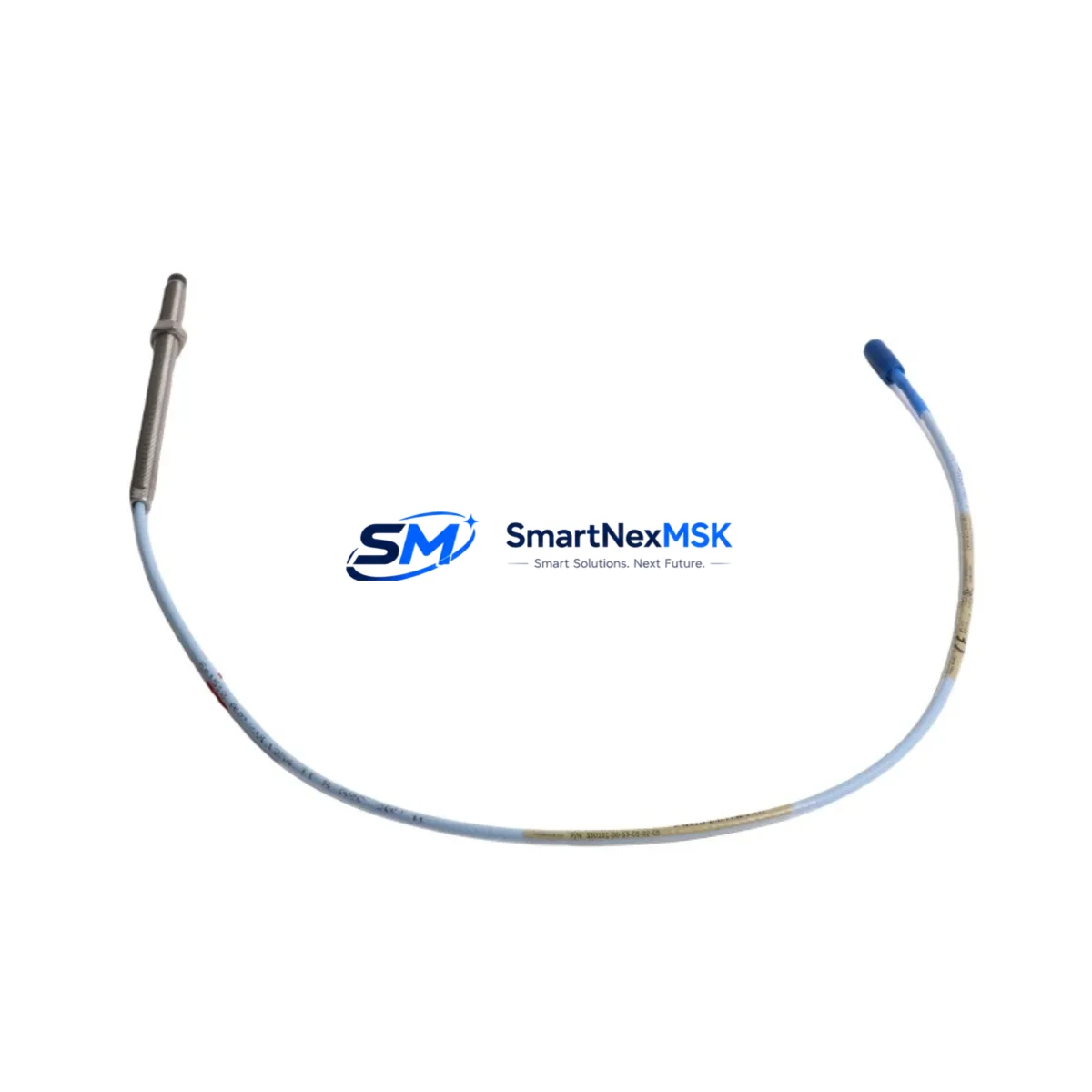

Bently Nevada 330101-00-44-05-02-CN: Retrofit-Ready 3300 XL Proximity Probe for Legacy Vibration Monitoring Systems
The Bently Nevada 330101-00-44-05-02-CN is an 8mm eddy-current proximity probe engineered for the 3300 XL series vibration monitoring platform. Designed as a direct retrofit replacement for discontinued and end-of-life probes in the 3300 XL system family, this unit delivers full signal compatibility with existing Bently Nevada 3300 XL proximitor/seismic monitors, enabling plant engineers to restore continuous machinery protection without modifying field wiring, conduit routing, or DCS tag assignments. With a 12-month warranty and pre-shipment functional testing, the 330101-00-44-05-02-CN is a proven choice for turbine, compressor, pump, and gearbox monitoring upgrades across petrochemical, power generation, and heavy industrial facilities.
Upgrade Compatibility Table
| Parameter | 330101-00-44-05-02-CN | Notes / Retrofit Guidance |
|---|---|---|
| Probe Type | 8mm Eddy-Current Proximity Probe | Direct replacement for standard 3300 XL 8mm probe positions |
| Cable Length | 5m (extension cable required for longer runs) | Pair with Bently Nevada 330130 series extension cable; verify total system length ≤ 9m |
| Connector Type | Standard BNC / coaxial | Compatible with existing 3300 XL proximitor input connectors; no adapter required |
| Target Gap Range | 0.25 mm – 2.54 mm (linear range) | Re-verify gap setting during commissioning; document as-found and as-left values |
| Supply Voltage | −24 VDC (via proximitor) | Confirm proximitor output voltage before installation; no separate power wiring needed |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) | Matches 3300 XL system scale factor; no recalibration of monitor required |
| Proximitor Compatibility | 3300 XL 8mm Proximitor (e.g., 3300/16, 3300/20) | Verify proximitor model; incompatible with 5mm or 14mm probe systems |
| Communication / Signal | Analog voltage output (−24V loop) | No protocol migration required; integrates directly with existing 4–20 mA or voltage-input DCS cards |
| Installation Standard | API 670 compliant | Suitable for machinery protection on critical rotating equipment |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment functional test certificate |
Retrofit Planning for Existing Automation Systems
Replacing a proximity probe in an operating plant requires careful coordination across mechanical, electrical, and control disciplines. Before removing the legacy probe, engineers should document the existing gap voltage reading from the 3300 XL proximitor monitor — typically a Bently Nevada 3300/16 dual-channel or 3300/20 monitor card — and record the OK relay status and alarm setpoints stored in the monitor configuration. This baseline ensures that the replacement 330101-00-44-05-02-CN can be commissioned to the same functional state without triggering spurious trips or bypassing active protection logic.
On the mechanical side, confirm that the probe mounting boss thread (M10 × 1.0) is clean and undamaged. The probe tip-to-target gap should be set to the midpoint of the linear range — approximately 1.27 mm (50 mil) — using a calibrated gap tool and verified against the proximitor output voltage before the system is returned to service. If the existing extension cable (such as a Bently Nevada 330130-045-00-00 or equivalent 330130 series cable) shows signs of insulation degradation or connector corrosion, replace it simultaneously to avoid intermittent signal faults that can be difficult to diagnose under load.
For control cabinet work, verify that the Bently Nevada 3500/42M or 3300 XL rack backplane slot assigned to this probe channel is correctly addressed in the machinery protection system. If the plant is running a Bently Nevada 3500 series rack alongside legacy 3300 XL monitors, confirm that the I/O module addressing and channel mapping in the System 1 condition monitoring software reflect the correct probe position. Any changes to channel assignments must be mirrored in the DCS — whether a Honeywell Experion, Emerson DeltaV, or ABB 800xA system — to maintain alarm annunciation continuity.
Where the retrofit is part of a broader control system upgrade, engineers often replace the 3300 XL proximitor with a Bently Nevada 3500/25 enhanced keyphasor module or upgrade the full rack to a 3500 series chassis. In these cases, the 330101-00-44-05-02-CN probe remains fully compatible, as the 3500 series proximitor accepts the same 8mm probe and extension cable combination. Simultaneously, I/O terminal blocks, power supply modules (such as the Bently Nevada 3500/15 power supply), and communication gateway cards connecting to the plant historian or SCADA system should be inspected and replaced if they are approaching end-of-life. Proactive replacement of these ancillary components during a planned outage significantly reduces the risk of unplanned downtime caused by aging infrastructure.
All replacement units are functionally tested prior to shipment. Stock is maintained for immediate dispatch, supporting both planned turnaround schedules and emergency breakdown scenarios. A 12-month warranty covers all units against manufacturing defects from the date of shipment.
Downtime Control During System Migration
Minimizing production downtime during a proximity probe replacement requires a structured pre-outage preparation process. Before the maintenance window opens, the replacement 330101-00-44-05-02-CN should be bench-tested against a known-good proximitor to confirm output voltage linearity across the full gap range. This eliminates the risk of discovering a faulty replacement unit after the machine has already been taken offline.
During the outage, the original program logic in the machinery protection system — including vibration alarm thresholds, danger setpoints, and OK relay configurations stored in the Bently Nevada 3300 XL or 3500 series monitor — must not be altered unless a deliberate setpoint review is part of the scope. Preserving the existing logic ensures that the machine can be returned to service under the same protection parameters that were previously validated and approved by the reliability engineering team.
For facilities where continuous monitoring is required, a temporary bypass of the affected channel — using the monitor’s front-panel bypass switch or a software bypass in System 1 — allows the machine to remain in a controlled state while the probe is being replaced. The bypass must be formally authorized, logged, and time-limited in accordance with the plant’s management of change (MOC) procedure. Once the new probe is installed and the gap voltage is confirmed within specification, the bypass is removed and the channel is returned to active protection status before the machine is restarted.
Post-installation, a full functional check — including simulation of a high-vibration condition to verify alarm and danger relay operation — should be completed and documented before the maintenance record is closed. This commissioning record, combined with the pre-shipment test certificate supplied with the 330101-00-44-05-02-CN, provides a complete audit trail for regulatory compliance and insurance purposes.
Retrofit Support FAQ
Q1: Is the 330101-00-44-05-02-CN a direct drop-in replacement for the original Bently Nevada 330101 series probe?
Yes. The 330101-00-44-05-02-CN is dimensionally and electrically compatible with the original 330101 series 8mm proximity probes used in 3300 XL systems. No modifications to the probe mounting, extension cable, or proximitor wiring are required for a standard replacement. Verify the cable length suffix matches your existing installation before ordering.
Q2: What commissioning steps are required after installation?
After mechanical installation, set the probe-to-target gap to approximately 1.27 mm and confirm the proximitor output voltage reads within the specified linear range (typically −10 VDC ± 0.5 VDC at the nominal gap). Check the OK relay status on the 3300 XL monitor, verify that no alarms are active, and document the as-left gap voltage in the maintenance record. No software reconfiguration is required if the channel assignment and setpoints are unchanged.
Q3: Can this probe be used with a Bently Nevada 3500 series rack as part of a system upgrade?
Yes. The 330101-00-44-05-02-CN is compatible with the 3500 series proximitor modules that accept 8mm probes, including the 3500/25 and standard 3500 series I/O modules. When migrating from a 3300 XL rack to a 3500 series chassis, retain the existing probe and extension cable if they are in good condition, and focus the upgrade effort on the monitor rack, power supply, and communication interface cards.
Q4: What does the 12-month warranty cover, and is a test certificate included?
The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Each unit is functionally tested prior to dispatch, and a test certificate confirming output linearity and OK relay operation is included with the shipment. Warranty claims are processed through our sales team; contact sales@smartnexmsk.com with the order number and a description of the fault.
