Bently Nevada 330101-00-45-15-02-00 3300 XL Spare: Precision Spare Parts Replacement for Vibration Monitoring Systems

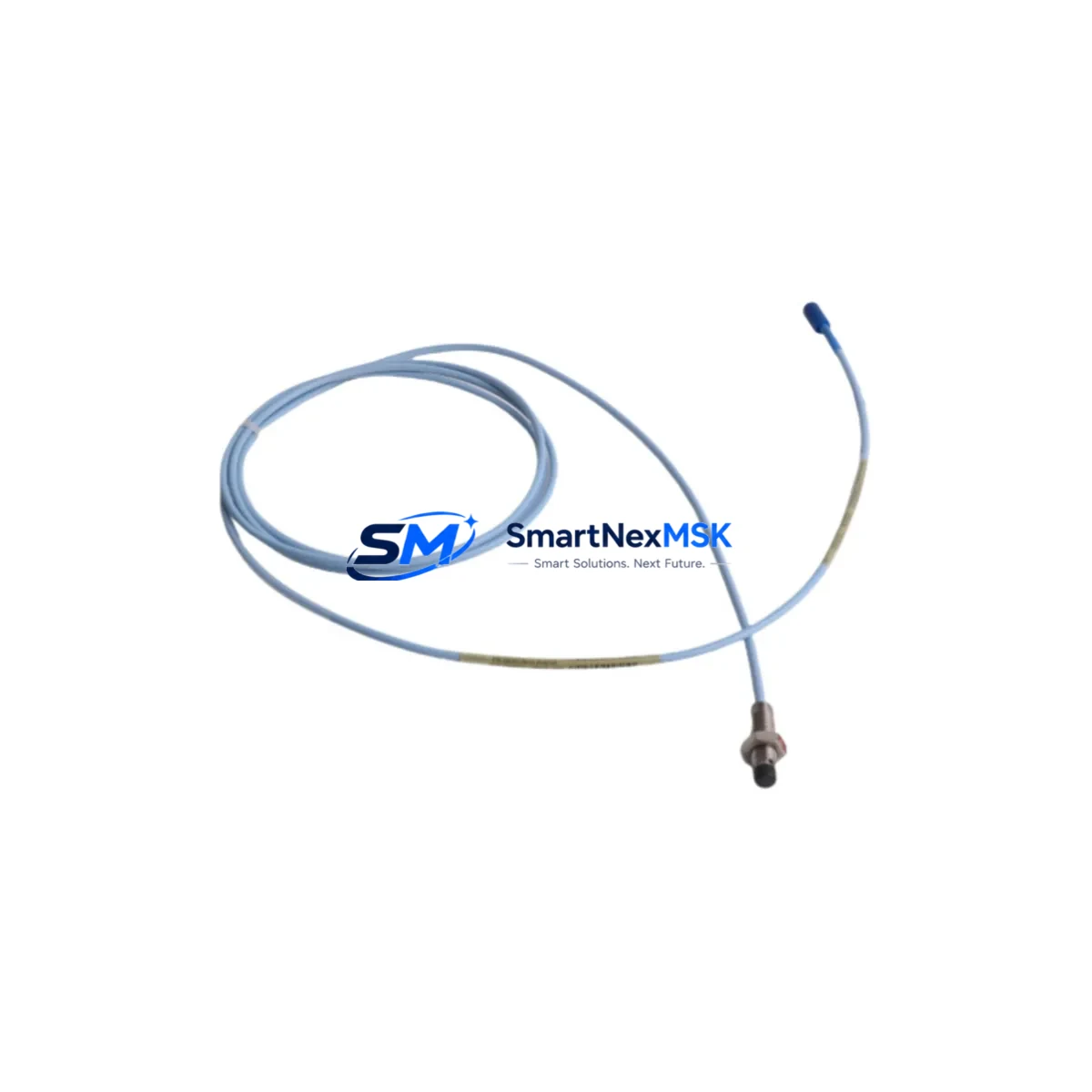

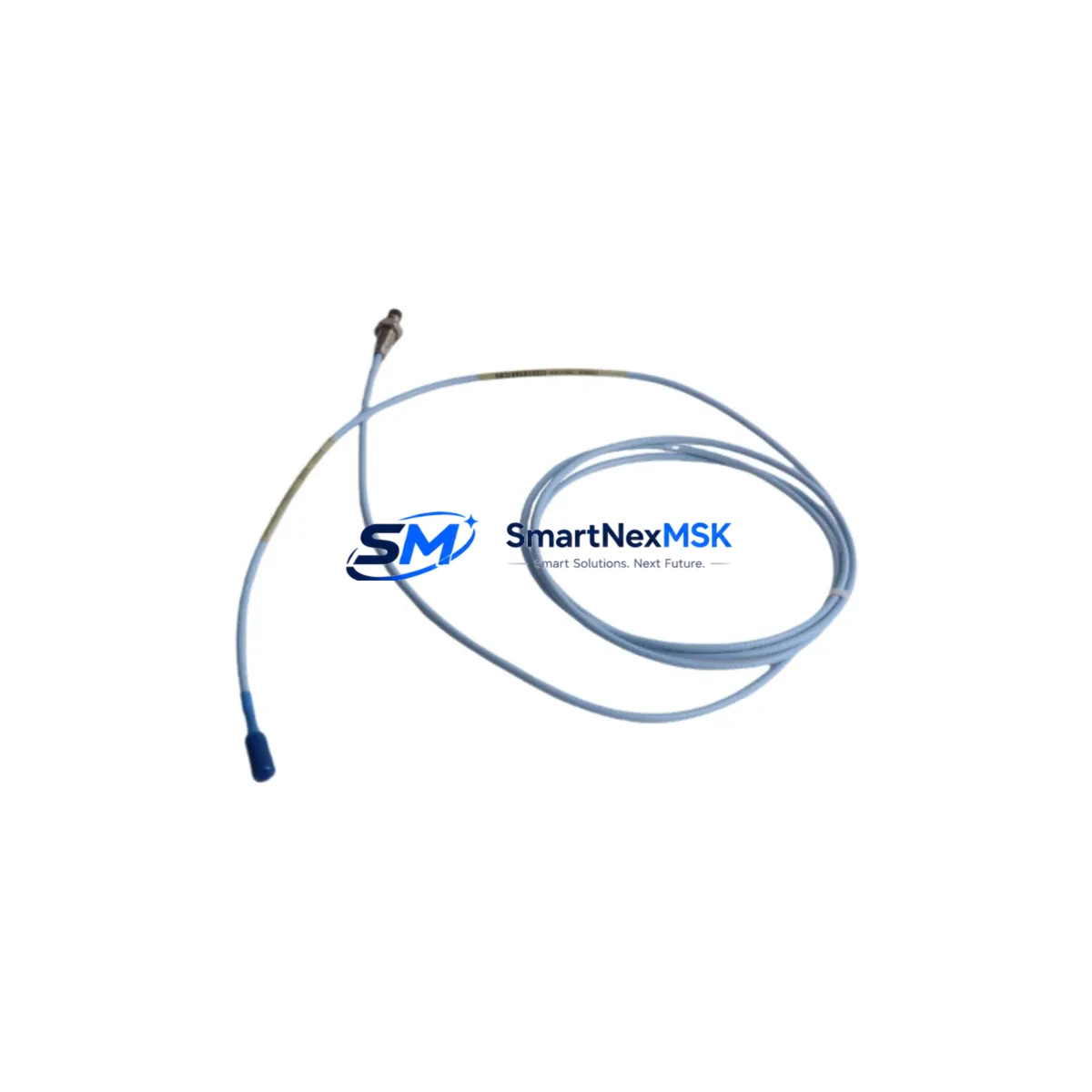

The Bently Nevada 330101-00-45-15-02-00 is an original eddy current proximity probe engineered for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. When this probe fails or degrades, the consequences extend far beyond a single sensor: the entire vibration channel goes blind, leaving turbines, compressors, pumps, and motors running without critical shaft displacement data. Sourcing a verified, tested replacement quickly is not optional — it is a core element of any serious maintenance strategy.

This spare is stocked, tested, and ready to ship. Each unit undergoes pre-shipment electrical verification to confirm gap voltage output, sensitivity linearity, and cable integrity before leaving our facility. A 12-month warranty covers all units against manufacturing defects and performance deviation from factory specification.

For maintenance engineers managing rotating machinery protection systems, the 330101-00-45-15-02-00 is a direct replacement for worn, damaged, or end-of-life probes in 3300 XL proximity systems. For procurement engineers, this listing represents a reliable, long-term supply source with documented compatibility and traceable quality assurance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330101-00-45-15-02-00 probe is rarely an isolated task. In a properly maintained 3300 XL proximity channel, the probe works in a calibrated system with the 330130 Extension Cable and the 330180 Proximitor Sensor. When a probe is replaced, maintenance engineers should inspect the extension cable for jacket cracking, connector corrosion, and impedance continuity — a degraded cable will cause the new probe to read incorrectly even if the probe itself is perfect.

The 3300/16 or 3300/20 Monitor receiving the signal should be checked for alarm setpoint integrity and channel calibration after any probe swap. If the system has been running with a degraded probe for an extended period, the monitor’s OK relay output and alarm relay contacts should be tested to confirm they respond correctly to the restored signal.

In control cabinets housing 3300 XL systems, it is good practice to simultaneously inspect the 3300 XL Power Supply module for output voltage stability, as power fluctuations are a common secondary cause of proximity channel faults. Terminal blocks and field wiring connections at the I/O junction box should be re-torqued and inspected for oxidation, particularly in high-humidity or high-vibration environments.

For facilities running parallel redundant protection channels, the 3500 Series Bently Nevada monitors may be present alongside 3300 XL hardware. Spare probe inventories should account for both series if mixed systems are deployed. Additionally, if the machinery is equipped with keyphasor probes (such as the 330980 series), these should be inspected during the same maintenance window — keyphasor signal quality directly affects phase-referenced vibration analysis.

Where the 3300 XL system interfaces with a DCS or safety PLC via 4–20 mA or relay outputs, the signal isolators and barriers in that loop should be verified for correct scaling after probe replacement. A miscalibrated isolator can mask a real vibration event or generate nuisance trips. Finally, any HMI trend displays showing shaft displacement should be reviewed post-replacement to confirm the new probe’s baseline gap voltage is within the system’s configured OK range before returning the machine to service.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. De-energize the 3300 XL monitor channel associated with the probe being replaced. Confirm the machine is at rest or that the replacement is being performed under a planned outage window.

Step 2 — Probe Removal: Disconnect the probe from the extension cable at the field junction. Note the installed gap distance (typically 1.0–1.5 mm for steel targets) using a feeler gauge or the existing gap voltage reading recorded before shutdown. Remove the probe from the mounting bracket, taking care not to damage the probe tip or the target surface.

Step 3 — New Probe Installation: Install the 330101-00-45-15-02-00 replacement probe into the mounting bracket. Set the gap to the previously recorded distance or per the OEM specification for the specific machine. Reconnect to the extension cable, ensuring the coaxial connector is fully seated and the locking collar is secure.

Step 4 — System Verification: Re-energize the monitor channel. Confirm the OK LED is illuminated on the 3300 XL monitor. Record the gap voltage output and compare against the system’s baseline. Adjust gap if necessary to bring the output within the OK band (typically −10 VDC ± 0.5 V for standard steel targets).

Step 5 — Functional Test and Return to Service: Verify alarm and danger setpoints are active. Confirm the DCS or safety system is receiving a valid signal. Document the replacement in the maintenance management system (CMMS) with the new probe serial number, gap setting, and gap voltage. Return the machine to service.

This workflow minimizes downtime and ensures the replacement probe is performing correctly before the machine is loaded. For legacy systems where the original 330101-00-45-15-02-00 has been in service for more than five years, consider stocking a second unit as an on-site cold spare to eliminate lead time risk on the next replacement cycle.

Spare Parts Support FAQ

Q1: Is the 330101-00-45-15-02-00 a direct drop-in replacement for the original Bently Nevada probe?
Yes. This unit matches the original OEM part number and is compatible with all 3300 XL Series monitors, drivers, and extension cables. No reconfiguration of the monitor is required provided the gap is set correctly during installation.

Q2: What does the 12-month warranty cover?
The warranty covers manufacturing defects, performance deviation from published sensitivity and linearity specifications, and cable or connector failures under normal operating conditions. It does not cover physical damage from improper installation, chemical exposure beyond rated limits, or target surface contact. Warranty claims are processed with return shipping support and replacement or refund at our discretion.

Q3: How do you verify compatibility before shipment?
Each unit is tested for gap voltage output at a standard 1.0 mm gap on a steel target, sensitivity linearity across the measurement range, and cable continuity from probe tip to connector. Test records are available upon request for quality-critical applications.

Q4: Can you support long-term or blanket purchase orders for this part?
Yes. We support scheduled delivery agreements, blanket POs, and consignment stocking arrangements for maintenance teams managing multiple machines or sites. Contact our sales team to discuss volume pricing, lead time guarantees, and documentation packages including material certifications and test reports.
