Bently Nevada 330101-00-47-10-02-00 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330101-00-47-10-02-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

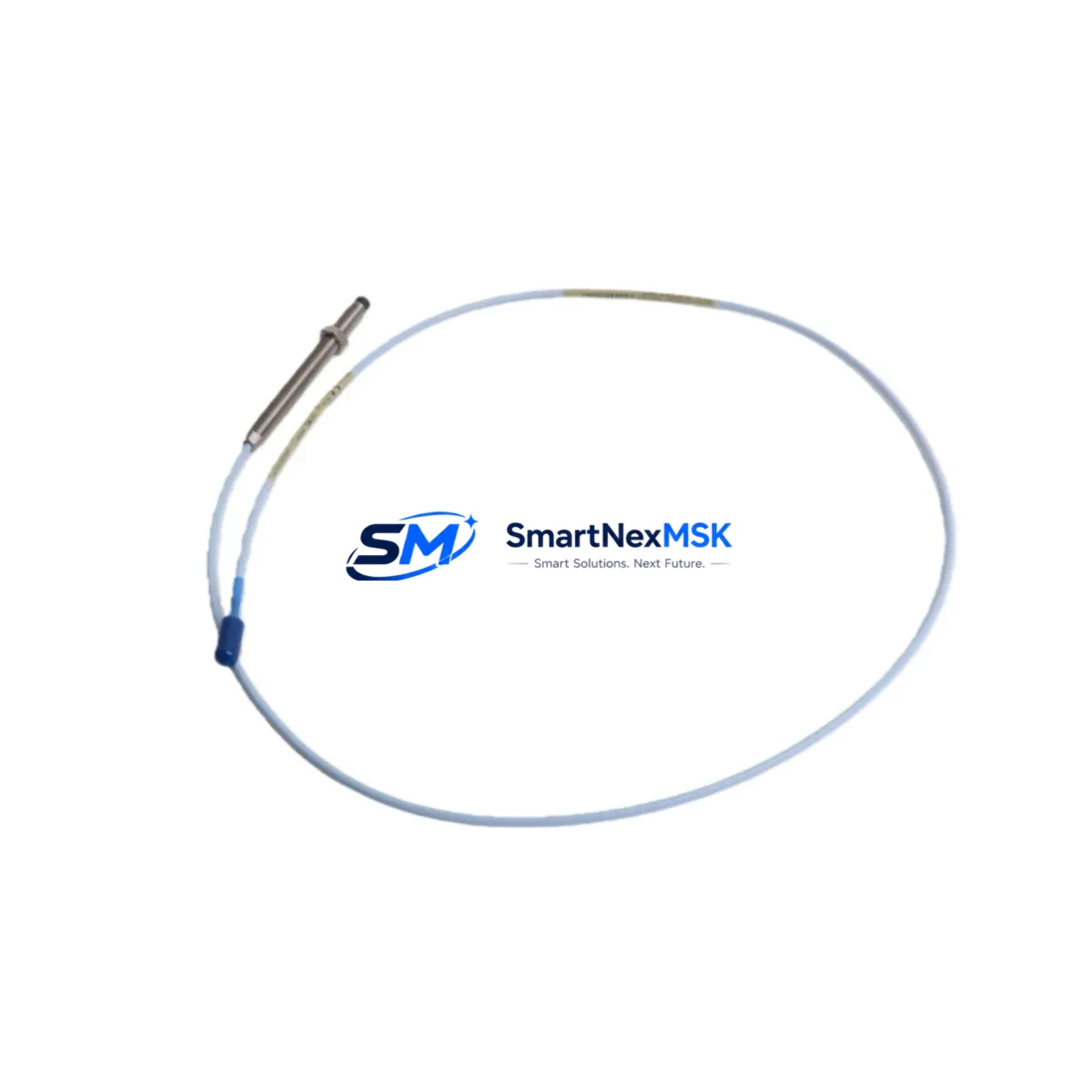

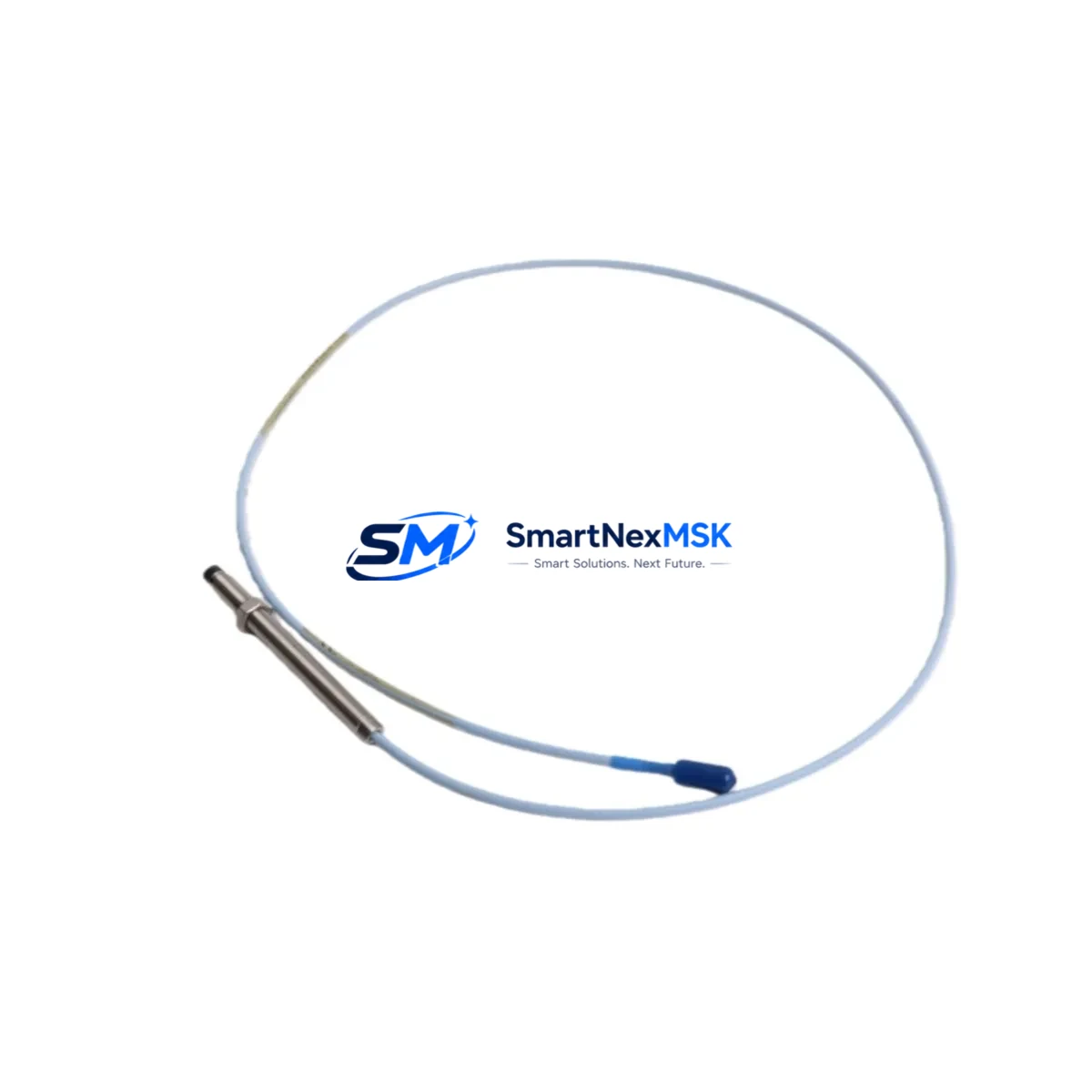

The Bently Nevada 330101-00-47-10-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy rotating machinery protection systems reach end-of-service life, this probe serves as a direct, retrofit-ready replacement for aging or discontinued 3300 Series sensors — enabling plant engineers to restore full vibration monitoring capability without redesigning the measurement chain or replacing the entire monitoring rack.

This probe is designed for radial shaft vibration, axial position, and differential expansion measurements on turbines, compressors, pumps, and motors. Its 47-inch (approximately 1.2 m) integral cable length and standard 3300 XL connector interface allow direct substitution into existing conduit runs and junction boxes, minimizing field modification time and reducing the risk of wiring errors during changeover.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the 330101-00-47-10-02-00 into an existing 3300 XL monitoring rack, the retrofit scope typically extends beyond the probe itself. Engineers should audit the full measurement chain: the 330180 Proximitor Sensor mounted in the field junction box, the interconnecting extension cable (such as the 330130-045-00-00 or equivalent), and the monitor card seated in the 3500/42M or 3500/40M rack slot. If the existing rack is a legacy 3300/20 frame, confirm that the backplane I/O mapping and channel addressing remain consistent with the replacement probe’s output scaling.

Power supply integrity is a critical pre-check. The Proximitor requires a stable –24 VDC supply; verify that the 3500 rack power module — typically a 3500/15 Power Supply — delivers within specification under full channel load. A degraded power module is a common root cause of false OK relay trips after probe replacement and should be tested before the new probe is commissioned.

Terminal wiring at the field junction box should be inspected for corrosion, especially on installations exceeding ten years. The probe’s coaxial shield continuity must be confirmed end-to-end from the probe tip to the Proximitor input terminal. Any shield discontinuity will introduce noise into the vibration signal and may cause the 3500 monitor to report erroneous high-vibration alarms.

For plants migrating from a standalone 3300 Series rack to an integrated 3500 Series platform, the 330101-00-47-10-02-00 probe is fully compatible with the newer architecture. The 3500/42M four-channel monitor accepts the same Proximitor output signal, and existing HMI trend displays configured in System 1 Evolution or GE Bently Nevada System 1 software can retain their historical baselines after the channel is re-zeroed at the new gap voltage. No PLC program changes are required if the 4–20 mA analog output to the DCS or safety PLC remains within the original scaling range.

I/O expansion during the retrofit window is an opportunity to add redundant measurement points. A second 330101-00-47-10-02-00 probe installed at 90° to the primary provides XY vibration orbit data, enabling more precise shaft centerline analysis. This requires an additional 330180 Proximitor and an open channel on the 3500/42M monitor card, or the addition of a second monitor card in the rack.

All replacement probes are shipped with a factory test certificate. Prior to installation, bench-verify the probe’s static gap voltage using a calibrated –24 VDC bench supply and a target material matching the shaft alloy (typically 4140 steel or 17-4 PH stainless). Document the as-found and as-left gap voltages in the plant maintenance management system before returning the machine to service.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage preparation protocol. Before the machine is taken offline, download and archive the current vibration trend data and alarm setpoints from the 3500 rack using the System 1 configuration export function. This preserves the baseline against which post-replacement readings will be compared and protects the original alarm logic from accidental overwrite during recommissioning.

Prepare a pre-cut replacement cable assembly and a pre-gapped probe holder to reduce time-on-tools during the outage window. With the 330101-00-47-10-02-00’s integral cable design, the field connection is made at the Proximitor input terminal rather than at an intermediate junction — eliminating one potential failure point and reducing the number of connections that must be torqued and verified.

After installation, perform a static gap check before energizing the machine. Confirm the OK relay closes and the monitor channel transitions from NOT OK to OK status on the 3500 rack front panel. Verify that the DCS or safety PLC receives the expected analog signal and that no spurious alarms are generated. Only after all channel checks pass should the machine be returned to the start sequence. This structured approach typically limits probe replacement outage contribution to under two hours for a single measurement point.

Retrofit Support FAQ

Q: Is the 330101-00-47-10-02-00 a direct replacement for the older 330101-00-47-10-00-00?
A: Yes. The -02-00 suffix designates the connector style update introduced in the 3300 XL revision. The probe body, cable length, sensitivity, and Proximitor pairing are identical. No mechanical or electrical modification is required for substitution.

Q: What commissioning steps are required after installation?
A: Set the probe gap to achieve –10 VDC ±0.5 VDC at the Proximitor output with the shaft stationary at the nominal center position. Confirm the OK relay status, reset the vibration trend baseline in System 1, and verify alarm setpoints against the original configuration export before returning the machine to service.

Q: Can this probe be used with a 3500 Series rack without a 3300 XL Proximitor?
A: Yes, provided the 330180 Proximitor Sensor is used as the signal conditioning element. The 3500 rack accepts the Proximitor’s conditioned output directly. Do not connect the raw probe coaxial output to a 3500 monitor input without a Proximitor in the signal chain.

Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects in the probe body, integral cable, and connector under normal operating conditions. Each unit is tested prior to shipment. Warranty claims are processed with return of the defective unit; replacement units are dispatched from stock within 3 business days of claim approval.
