Bently Nevada 330101-00-48-10-02-00 3300 XL Retrofit Probe

Bently Nevada 330101-00-48-10-02-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

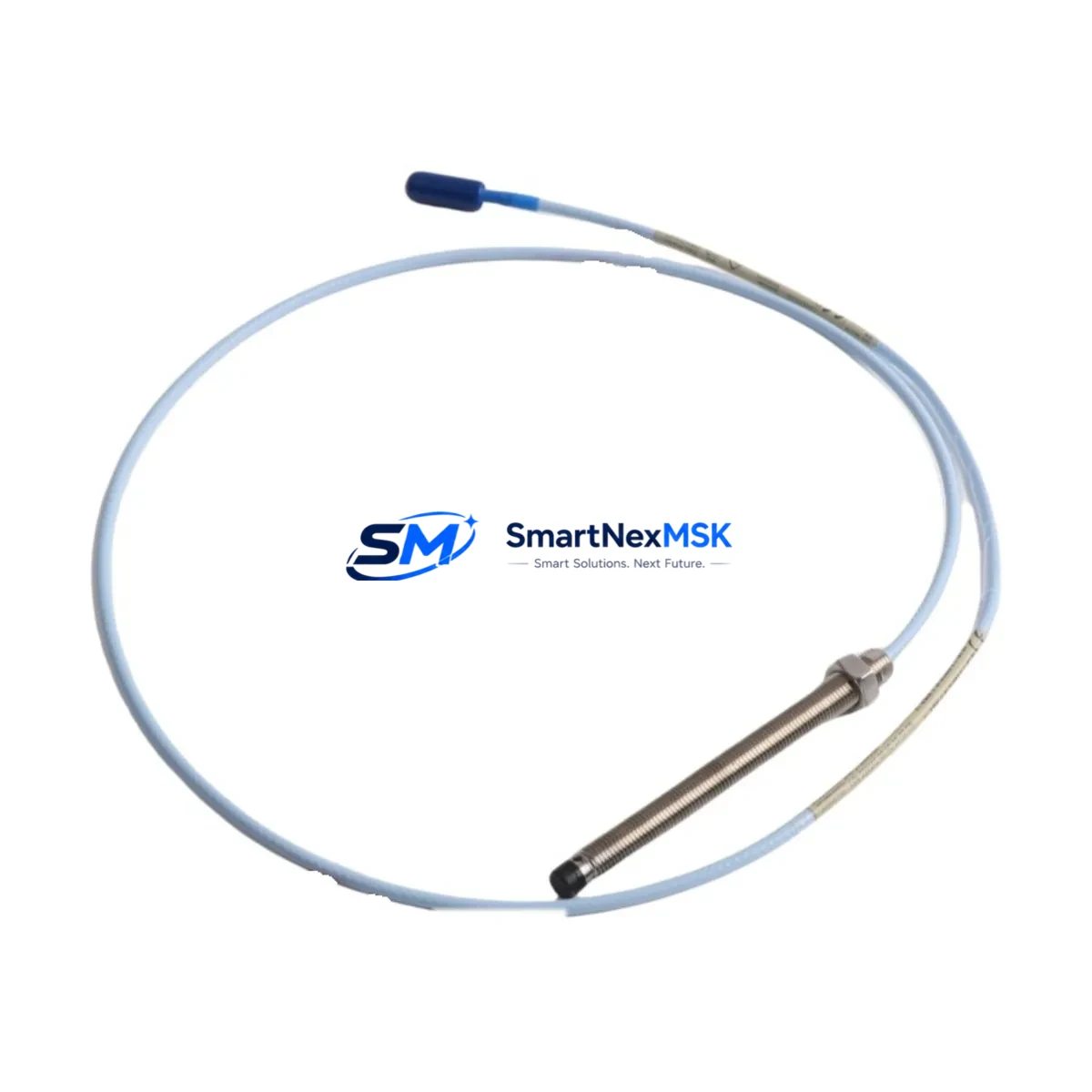

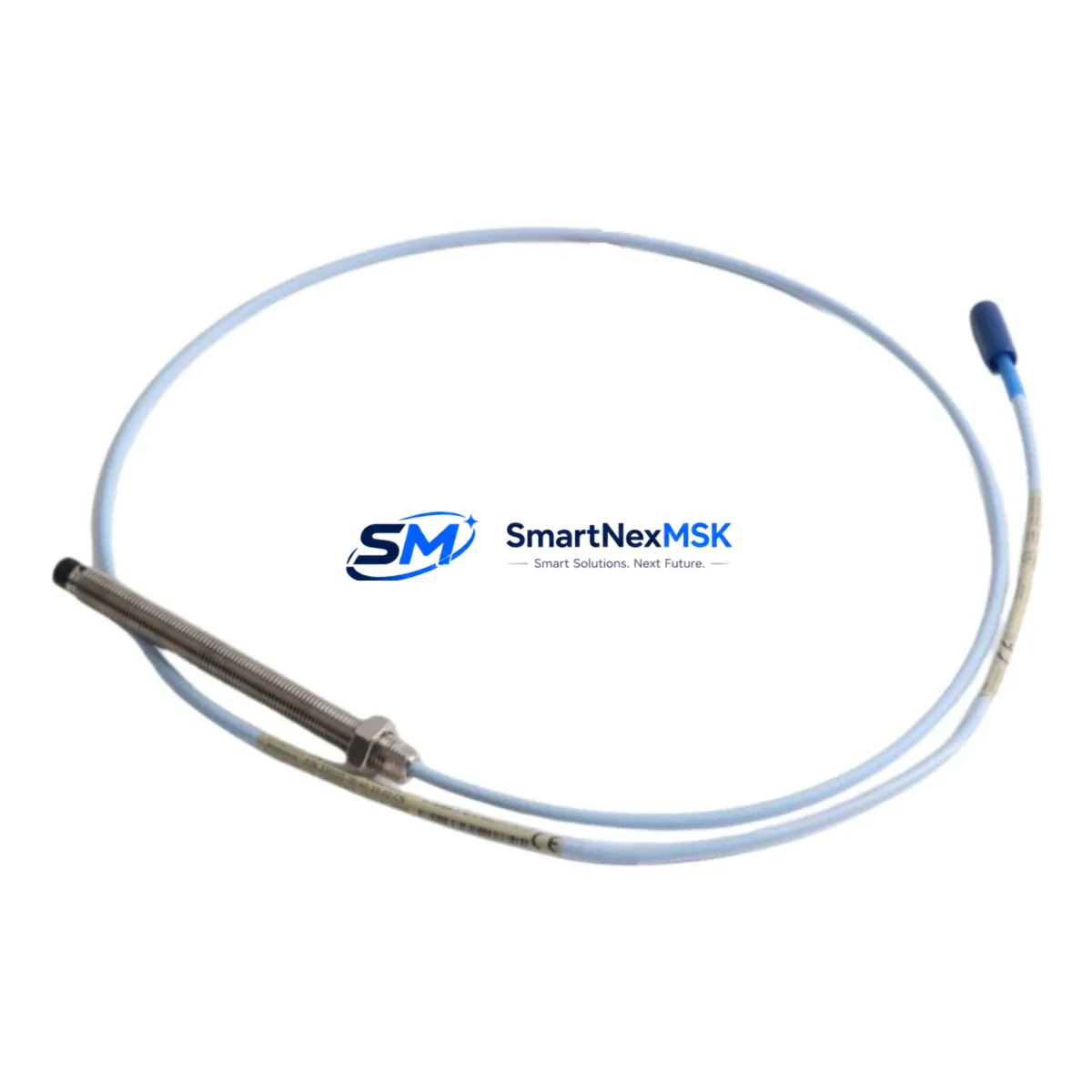

The Bently Nevada 330101-00-48-10-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy machinery protection systems age and OEM support for older 3300 Series hardware is phased out, this probe serves as a direct retrofit solution — enabling facilities to maintain continuous vibration monitoring without replacing the entire monitoring rack or reconfiguring existing field wiring. Whether you are upgrading from the earlier Bently Nevada 3300/5 or 3300/16 monitor cards, or migrating from a third-party proximity system, the 330101-00-48-10-02-00 is designed to integrate with minimal downtime and no signal chain recalibration in most standard installations.

This probe is compatible with the 3300 XL 8mm Proximitor® Sensor (typically the 330180 series) and is intended for use with standard -24 VDC bias voltage systems. The 5-metre integral cable version (suffix -48) provides sufficient reach for most turbine bearing pedestals, compressor housings, and pump seal areas without requiring extension cables. The standard connector termination (suffix -02-00) mates directly with existing Bently Nevada field junction boxes and terminal strips, preserving original wiring layouts and reducing re-termination labour during planned outages.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330101-00-48-10-02-00 into an existing machinery protection system requires a structured pre-installation review. Begin by auditing the current monitor rack configuration. In a typical 3300 XL installation, the rack will house a combination of monitor cards — such as the 3300/20 Radial Vibration Monitor or the 3300/46 Thrust Position Monitor — alongside the 330180 Proximitor Sensor mounted in the field. Confirm that the Proximitor sensor in your installation is the 8mm variant, as the 5mm Proximitor (330175 series) uses a different sensitivity curve and is not interchangeable with this probe without recalibration.

Before removing the existing probe, document the current gap voltage reading at the Proximitor output. A healthy 8mm probe in a standard installation will read approximately -10 VDC at the nominal air gap (typically 1.0–1.5 mm for most shaft diameters). Record this value as your baseline for post-installation verification. If the existing probe has drifted significantly from this range, inspect the probe holder and shaft surface for contamination, corrosion, or mechanical damage before installing the replacement unit.

Terminal wiring should be verified against the original loop drawing. The 330101-00-48-10-02-00 uses a three-conductor cable: the centre conductor carries the oscillator signal, the shield provides the return path, and the outer jacket provides mechanical protection. At the junction box, confirm that the shield termination matches the existing grounding scheme — improper shield grounding is a common source of noise after probe replacement. If the installation uses a 3300 XL power supply module (such as the 330152-00-05-00), verify that the supply voltage is within specification before energising the new probe.

For facilities migrating from older Bently Nevada 7200 Series or 3300/5 monitor hardware to the 3300 XL platform, additional steps are required. The 7200 Series used a different Proximitor sensitivity (100 mV/mil vs. 200 mV/mil for 3300 XL), so monitor card input scaling must be updated in the System 1 configuration software or the rack-mounted DIP switch settings, depending on the monitor card generation. The 3300 XL rack backplane and I/O module assignments should also be reviewed if the migration involves adding new monitor channels — the 3300 XL supports up to 16 channels per rack using standard I/O modules, and channel address conflicts can cause false alarms during commissioning if not resolved in advance.

HMI screens connected to the machinery protection system via Modbus RTU or OPC-DA should be reviewed for tag mapping. If the 3300 XL communicates with a DCS or SCADA system — for example, a Honeywell Experion or Emerson DeltaV platform — confirm that the vibration channel tags are correctly mapped after any rack reconfiguration. A mismatch between the physical channel address and the HMI tag database is a frequent cause of spurious alarms during the first hours of post-retrofit operation.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity probe replacement requires preparation before the maintenance window begins. The 330101-00-48-10-02-00 is supplied with a pre-shipment functional test certificate, confirming that the probe, cable, and connector have been verified against Bently Nevada performance specifications prior to dispatch. This eliminates the risk of receiving a defective unit and discovering the fault only after the machine is taken offline.

Where plant procedures permit, the replacement can be performed during a scheduled slow-roll or coast-down event, allowing the probe gap to be set and verified while the shaft is rotating at low speed. This approach confirms that the probe output tracks shaft position correctly before the machine returns to full operating speed. If the installation requires the machine to be fully de-energised, prepare a pre-written commissioning checklist covering gap voltage verification, cable continuity, shield resistance, Proximitor output voltage, and monitor card alarm setpoint confirmation. Having this checklist ready before the outage begins typically reduces probe replacement time to under 30 minutes for a single channel.

To protect existing program logic and control continuity, avoid making changes to the 3300 XL monitor card configuration during the probe replacement unless the card settings are known to be incorrect. If the monitor card is connected to a safety instrumented system (SIS) or emergency shutdown (ESD) circuit, coordinate with the safety team to place the relevant trip channel in bypass mode before disconnecting the probe, and confirm that the bypass is removed and the channel is verified healthy before returning the machine to service. Maintaining a written bypass log is essential for compliance with IEC 61511 and ISA-84 requirements in safety-critical applications.

Retrofit Support FAQ

Q1: Is the 330101-00-48-10-02-00 a direct replacement for the original Bently Nevada OEM probe?
Yes. This unit is manufactured to the same dimensional and electrical specifications as the original 330101-00-48-10-02-00 and is a drop-in replacement for worn, damaged, or end-of-life OEM probes. No modification to the probe holder, Proximitor, or monitor card is required in a standard 3300 XL installation.

Q2: What pre-shipment testing is performed on each unit?
Each probe undergoes functional verification including cable continuity, connector integrity, and output sensitivity confirmation before dispatch. A test certificate is included with each shipment. Units are packaged to prevent mechanical damage during transit.

Q3: Can this probe be used with legacy 3300/5 or 3300/16 monitor cards?
In most cases, yes — provided the Proximitor sensor is the 3300 XL 8mm variant (330180 series). If the existing installation uses an older Proximitor with a different sensitivity curve, recalibration of the monitor card input scaling will be required. Contact our technical team with your existing Proximitor model number for confirmation before ordering.

Q4: What warranty and after-sales support is provided?
All units carry a 12-month warranty covering manufacturing defects from the date of shipment. Warranty claims are processed with priority turnaround. Our technical team is available to support installation, commissioning, and compatibility queries via email or phone throughout the warranty period.
