Bently Nevada 330101-00-48-10-02-05 Safety-Enhanced Proximity Probe

Bently Nevada 330101-00-48-10-02-05 Safety-Enhanced Proximity Probe: Reliable Control in Harsh Industrial Sites

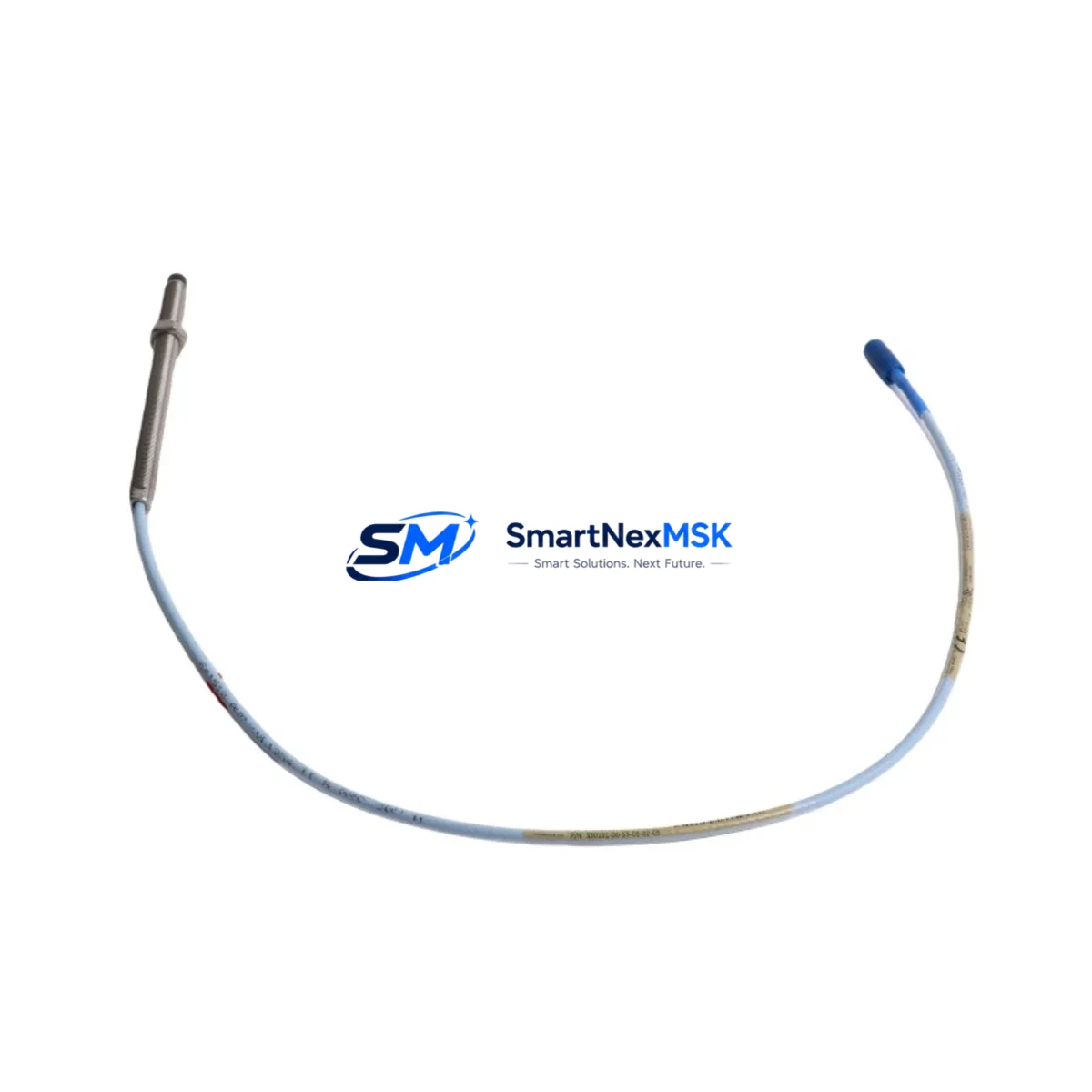

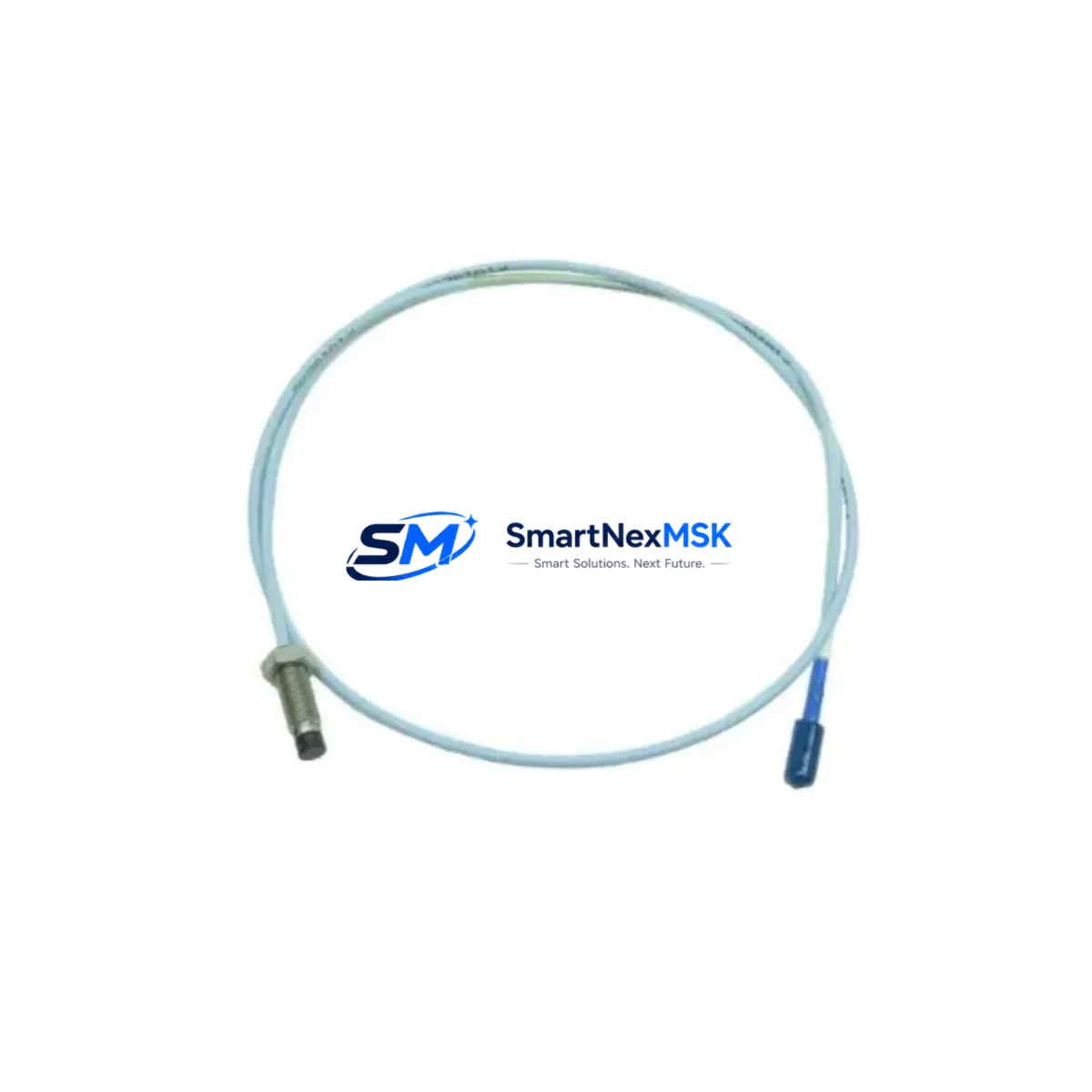

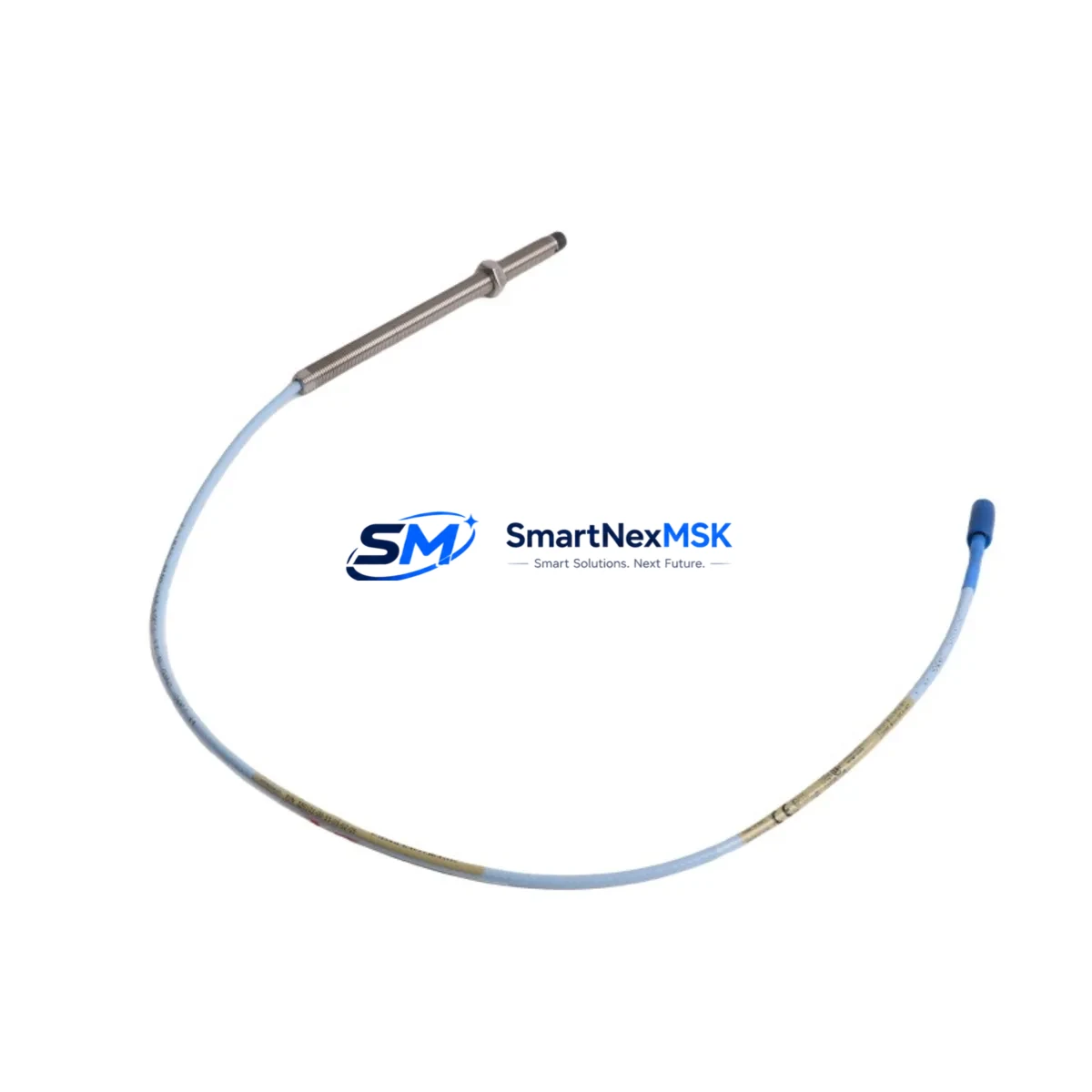

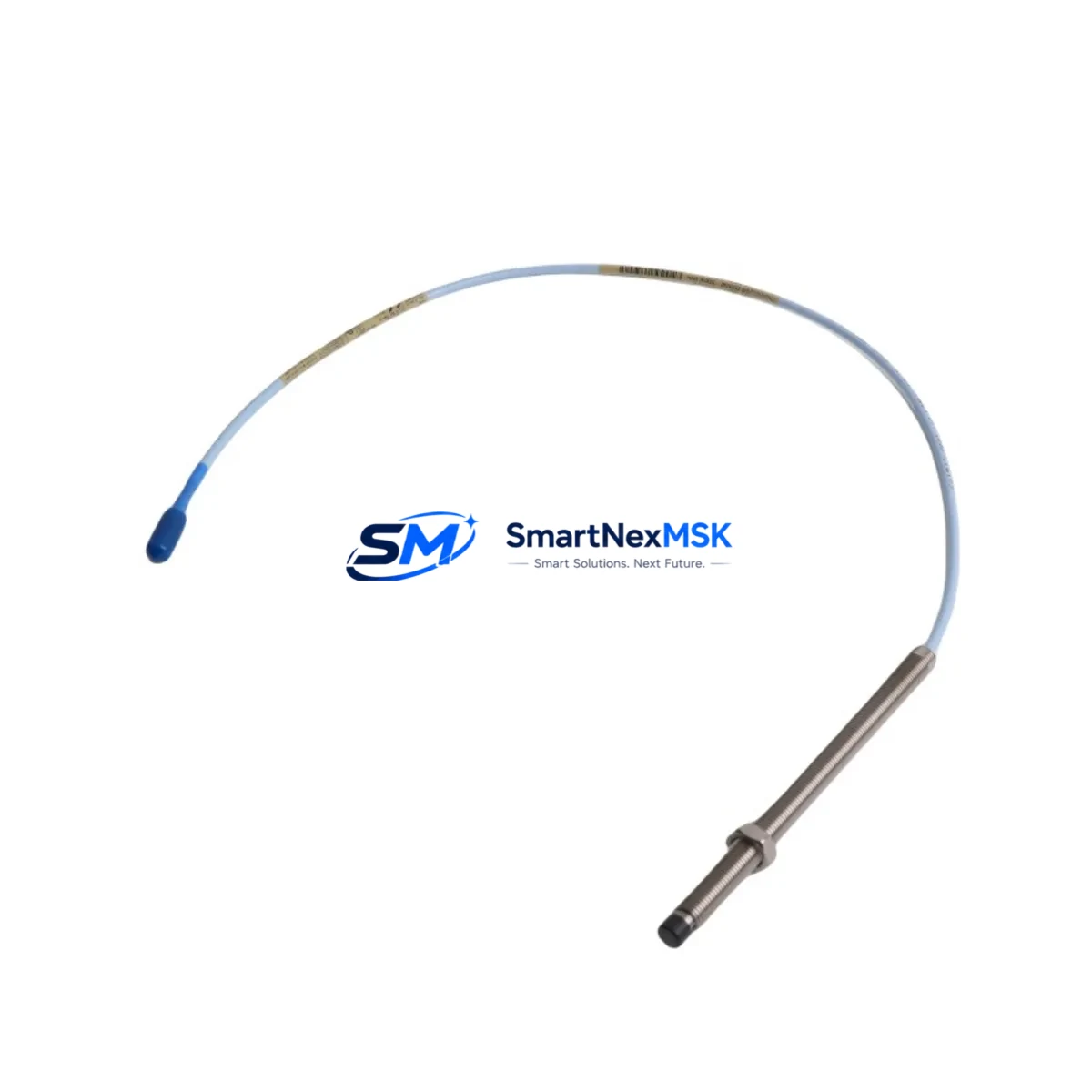

The Bently Nevada 330101-00-48-10-02-05 is an 8mm eddy-current proximity probe engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. As a core component of the Bently Nevada 3300 XL Series, this probe delivers exceptional signal stability, EMI immunity, and mechanical durability — making it the preferred choice for rotating machinery protection in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, port terminals, and continuous manufacturing lines.

In high-load, high-interference production environments, control interruptions caused by sensor drift or probe failure can trigger cascading shutdowns, equipment damage, and serious safety incidents. The 330101-00-48-10-02-05 is specifically designed to eliminate these risks by maintaining precise, drift-free output across wide temperature ranges, high-vibration mechanical structures, and electrically noisy control cabinets. Its ruggedized stainless-steel housing and armored cable construction resist mechanical shock, chemical exposure, and moisture ingress — ensuring uninterrupted signal integrity even in Zone 1 and Zone 2 hazardous area classifications.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered rotating machinery protection system, the Bently Nevada 330101-00-48-10-02-05 proximity probe operates as the primary sensing element within a complete vibration monitoring chain. It is typically paired with the Bently Nevada 3300 XL 8mm Extension Cable (330130-045-00-00) to bridge the distance between the probe tip and the signal conditioner, maintaining low-loss signal transmission across long cable runs in large turbine halls or compressor buildings.

The probe feeds into the Bently Nevada 3300 XL Proximitor Sensor (330180-X1-05), which conditions the raw eddy-current signal into a clean DC voltage output suitable for the plant’s vibration monitoring system. In critical turbine protection loops, this signal is then processed by the Bently Nevada 3500/42M Proximitor / Seismic Monitor — a rack-mounted module that provides real-time alarm and trip outputs to the plant’s safety instrumented system (SIS) or distributed control system (DCS).

To protect the entire monitoring chain from power surges and transient voltage spikes — common in heavy industrial environments with large motor starts, arc flash events, or lightning exposure — the control cabinet should incorporate Phoenix Contact TRABTECH surge protection devices on both the power supply rails and signal lines. Stable, clean 24VDC power to the Proximitor is typically supplied by a Siemens SITOP PSU100S 24V/5A power supply or equivalent redundant power module, ensuring the monitoring system remains operational even during grid disturbances.

For facilities running Bently Nevada 3500 Series rack systems, the 3500/15 Power Supply Module provides internal rack power with built-in redundancy, while the 3500/22M Transient Data Interface captures high-resolution waveform data for post-event analysis and predictive maintenance. In safety-critical interlock loops — such as turbine overspeed protection or compressor surge control — the probe’s output is cross-validated against a Bently Nevada 3500/53 Overspeed Detection Module, ensuring that no single-point sensor failure can cause an undetected unsafe condition.

Communication between the 3500 rack and the plant DCS or SCADA system is handled via Modbus TCP or PROFIBUS DP interface modules, enabling real-time vibration data integration into the plant-wide control architecture without signal degradation or latency issues.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The 330101-00-48-10-02-05 is widely deployed on centrifugal compressors, process pumps, and steam turbines in refinery environments where continuous operation is mandatory and unplanned shutdowns carry significant safety and financial consequences. Its ATEX-compatible construction allows installation in classified hazardous areas where flammable gases or vapors may be present.

Power Generation: In coal-fired, gas turbine, and hydroelectric power stations, this probe monitors shaft radial vibration and axial position on main turbine-generator sets. Accurate, real-time displacement data enables operators to detect rotor imbalance, bearing wear, and misalignment before they escalate into catastrophic failures, protecting both personnel and capital equipment.

Mining & Mineral Processing: High-vibration, dust-laden environments in mining operations demand sensors with superior mechanical robustness. The stainless-steel housing and IP67 rating of the 330101-00-48-10-02-05 make it suitable for ball mills, SAG mills, crusher drives, and conveyor head pulleys where conventional sensors fail prematurely.

Water & Wastewater Treatment: Large-scale pumping stations and blower systems in municipal water treatment facilities rely on continuous vibration monitoring to prevent bearing failures that could interrupt water supply. The probe’s long-term stability and low maintenance requirements make it ideal for unmanned or remotely monitored installations.

Metallurgy & Steel Production: Rolling mills, continuous casting machines, and blast furnace blowers operate under extreme thermal and mechanical stress. The 330101-00-48-10-02-05’s wide operating temperature range and EMI immunity ensure reliable performance in the electromagnetically hostile environment of electric arc furnaces and induction heating systems.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects, signal performance deviations, and hardware failures under normal operating conditions. If the probe fails to meet its specified sensitivity or linearity within the warranty period, we provide free replacement or full refund. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-00-48-10-02-05 unit undergoes a full functional test prior to dispatch, including sensitivity verification at 200 mV/mil, linearity check across the full 10–90 mil range, cable continuity and insulation resistance testing, and visual inspection of the housing, tip, and connector. A test report is available upon request.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL and 3500 Series systems?
Yes. The 330101-00-48-10-02-05 is a direct OEM-equivalent replacement for all Bently Nevada 3300 XL 8mm probe systems. It is fully compatible with 3300 XL Proximitor Sensors, 3500 Series rack monitors, and all standard Bently Nevada extension cables. No recalibration of the monitoring system is required when replacing a like-for-like probe.

Q4: Can long-term supply be guaranteed for critical plant spares programs?
Yes. We maintain dedicated safety stock of the 330101-00-48-10-02-05 to support planned maintenance shutdowns, emergency replacements, and annual spares procurement programs. Blanket purchase orders and scheduled delivery agreements are available for facilities requiring guaranteed supply continuity. Contact our technical sales team to discuss your plant’s specific spare parts strategy.
