Bently Nevada 330101-00-49-10-12-05 Safety Proximity Probe

Bently Nevada 330101-00-49-10-12-05 Safety Proximity Probe: Reliable Control in Harsh Industrial Environments

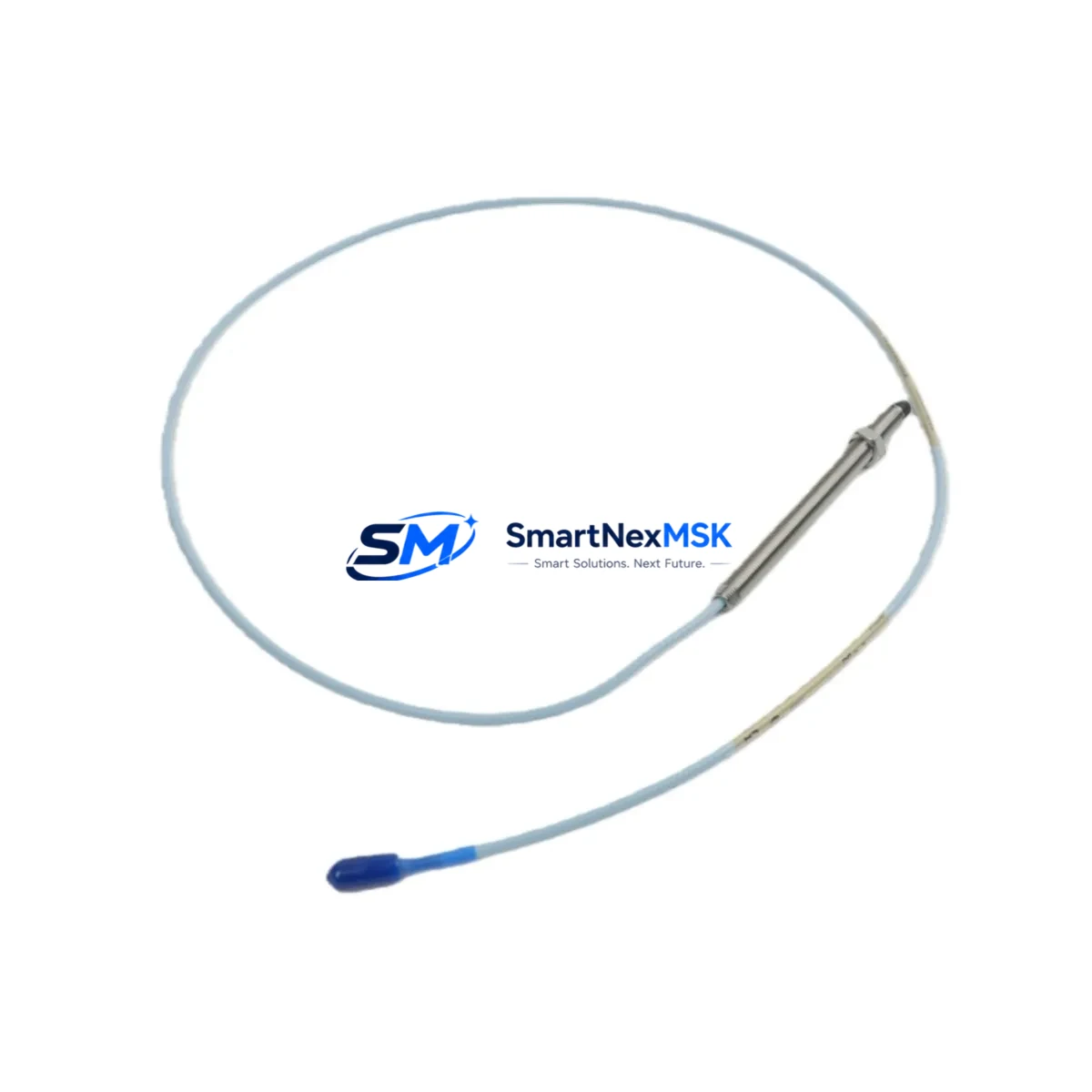

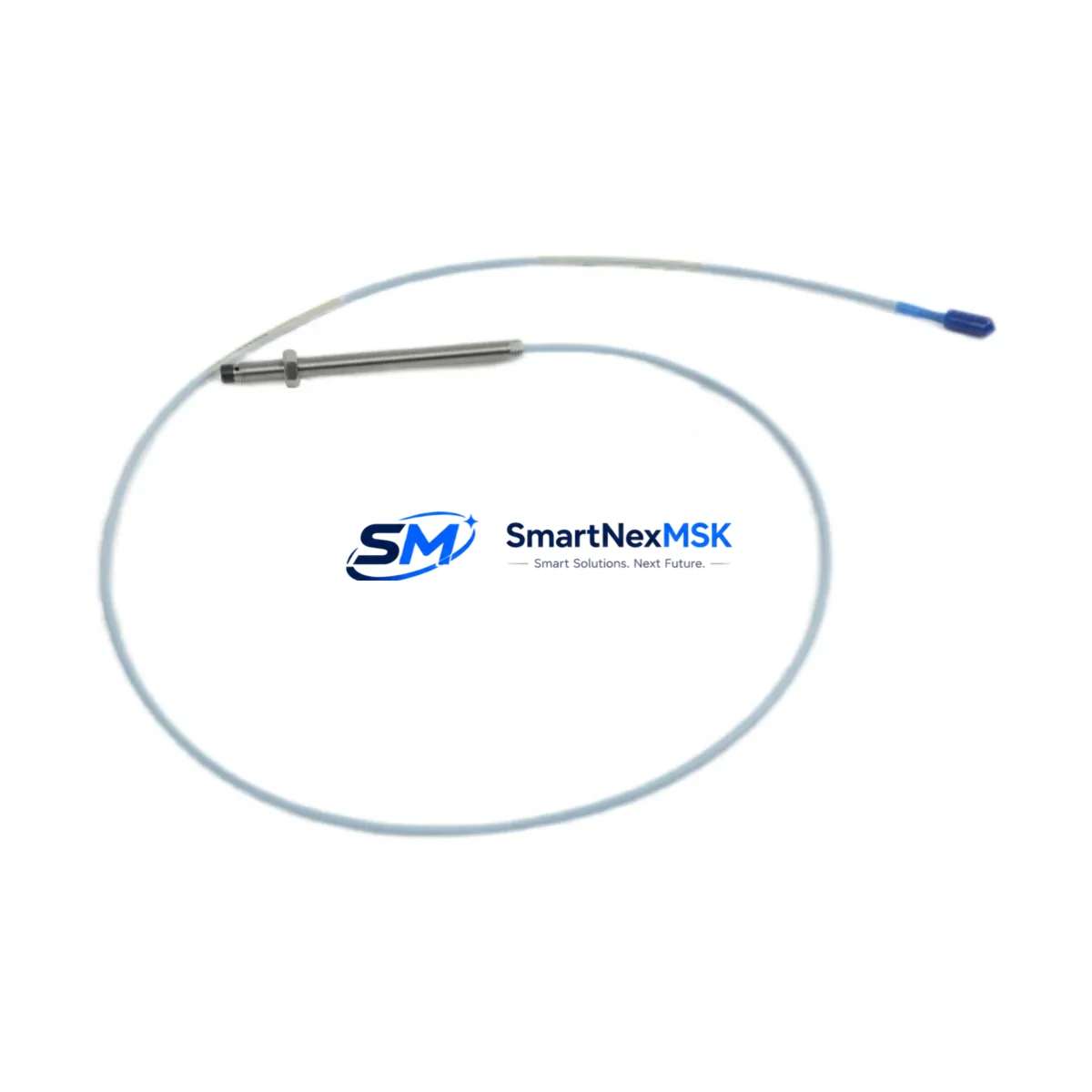

The Bently Nevada 330101-00-49-10-12-05 is a high-performance eddy-current proximity probe from the industry-renowned 3300 XL Series, engineered specifically for continuous, safety-critical machinery monitoring in the most demanding industrial environments. Designed to deliver precise, non-contact shaft displacement and vibration measurements, this probe is a cornerstone component in rotating machinery protection systems across petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and continuous manufacturing lines.

In high-stakes industrial control cabinets and critical interlock loops, signal integrity is non-negotiable. The 330101-00-49-10-12-05 features a ruggedized stainless-steel housing with superior EMI/RFI shielding, ensuring stable output even in environments saturated with electromagnetic interference from variable frequency drives, high-voltage switchgear, and heavy motor loads. Its eddy-current sensing technology eliminates mechanical contact, removing wear as a failure mode and dramatically reducing the risk of control interruption caused by sensor degradation over time.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered rotating machinery protection cabinet, the 330101-00-49-10-12-05 proximity probe operates as the primary sensing element within a complete Bently Nevada 3300 XL Proximity Transducer System. It pairs directly with the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-X1-05), which conditions the raw eddy-current signal into a clean, calibrated DC voltage output suitable for the monitoring system’s input cards.

Signal transmission from probe tip to monitor rack relies on the Bently Nevada 3300 XL Extension Cable (e.g., 330130-045-00-00), whose armored, shielded coaxial construction prevents signal drift caused by ground loops, capacitive coupling, or radiated interference from adjacent power cables. In cabinets where multiple measurement channels are active — radial vibration, axial position, and speed — maintaining signal isolation between channels is critical to preventing cross-channel interference that could trigger spurious trips or mask genuine machinery faults.

The monitoring rack itself, typically a Bently Nevada 3500 Series Machinery Protection System (e.g., 3500/42M Proximitor/Seismic Monitor module), processes the probe output and compares it against configured alert and danger setpoints. When the 330101-00-49-10-12-05 delivers a stable, low-noise signal, the monitor can reliably distinguish between normal shaft runout, developing bearing wear, and critical rotor instability — enabling protective relay outputs to trip turbines, compressors, or pumps before catastrophic mechanical failure occurs.

For power supply integrity within the protection cabinet, a dedicated Bently Nevada 3500/15 Power Supply Module ensures that the ±24 VDC rail feeding the Proximitor sensors remains stable under load transients and utility voltage fluctuations. Surge protection devices and EMI filters on the cabinet’s incoming power bus further shield the sensitive measurement circuitry from conducted disturbances originating in the plant’s electrical distribution network.

In safety instrumented systems (SIS) and critical interlock loops, the proximity probe’s output may also feed a Triconex or Rockwell GuardLogix Safety PLC via isolated analog input modules, where the signal is used to enforce SIL-rated protective functions such as high-vibration shutdown or overspeed trip. Proper grounding of the probe’s shield at a single point — typically at the Proximitor housing — is essential to prevent ground-loop-induced noise that could compromise the SIS’s ability to detect genuine fault conditions.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In catalytic cracking units, compressor trains, and centrifugal pump systems, the 330101-00-49-10-12-05 continuously monitors shaft radial vibration and relative displacement. Early detection of bearing degradation, rotor imbalance, or seal wear allows operators to schedule maintenance during planned shutdowns rather than responding to emergency trips — reducing unplanned downtime and the risk of hazardous material releases from mechanical seal failures.

Power Generation: Steam turbines and gas turbines in power plants operate at high speeds under extreme thermal and mechanical stress. The 3300 XL proximity probe provides the real-time shaft position data that turbine protection systems require to enforce eccentricity limits during startup, monitor bearing clearances during steady-state operation, and initiate emergency trips when vibration levels exceed danger thresholds — protecting both the machine and plant personnel.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to severe vibration, dust ingress, and chemical exposure. The ruggedized stainless-steel construction and armored cable of the 330101-00-49-10-12-05 make it well-suited for these harsh conditions, providing reliable shaft monitoring that helps prevent catastrophic bearing failures that could halt production for days or weeks.

Water & Wastewater Treatment: High-capacity centrifugal pumps and blowers in water treatment facilities require continuous vibration monitoring to ensure uninterrupted service. The proximity probe’s non-contact measurement principle eliminates the risk of sensor-induced contamination and provides maintenance teams with early warning of developing mechanical faults before they escalate to pump failures that could disrupt water supply or treatment capacity.

Metallurgy & Steel Production: Rolling mills, continuous casters, and large induction furnace drives operate in environments with intense electromagnetic fields, high temperatures, and heavy mechanical shock. The EMI-resistant design of the 3300 XL probe system ensures that vibration monitoring data remains accurate and actionable even in these electrically hostile environments, supporting both predictive maintenance programs and real-time machinery protection.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330101-00-49-10-12-05?
All units are covered by a 12-month warranty against functional defects under normal operating conditions. If the probe fails to perform to Bently Nevada 3300 XL system specifications within the warranty period, we provide replacement or full refund support. Warranty claims are processed promptly to minimize any impact on your plant’s machinery protection coverage.

Q2: How is each unit tested before shipment?
Every 330101-00-49-10-12-05 unit undergoes a pre-shipment functional verification process, including output sensitivity checks, cable continuity and insulation resistance testing, and visual inspection of the probe tip, housing, and connector. Only units that pass all functional checks are released for shipment, ensuring that what arrives on-site is ready for immediate installation and commissioning.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL systems and 3500 Series monitors?
Yes. The 330101-00-49-10-12-05 is a direct-fit replacement within the Bently Nevada 3300 XL Proximity Transducer System and is fully compatible with 3300 XL Proximitor Sensors and 3500 Series monitor racks. No recalibration of the monitoring system is required when replacing a like-for-like 330101 series probe, provided the extension cable length and target material remain unchanged.

Q4: Can long-term supply be guaranteed for ongoing maintenance and spare parts programs?
We maintain dedicated inventory of the 330101-00-49-10-12-05 and related 3300 XL system components to support customers’ spare parts programs and planned maintenance schedules. For facilities managing large fleets of Bently Nevada-equipped machinery, we can discuss framework supply agreements to ensure consistent availability and priority allocation during periods of high market demand.
