Bently Nevada 330101-00-59-10-01-05 Safety Proximity Transducer

Bently Nevada 330101-00-59-10-01-05 Safety Proximity Transducer: Reliable Vibration Monitoring for Harsh Industrial Control Environments

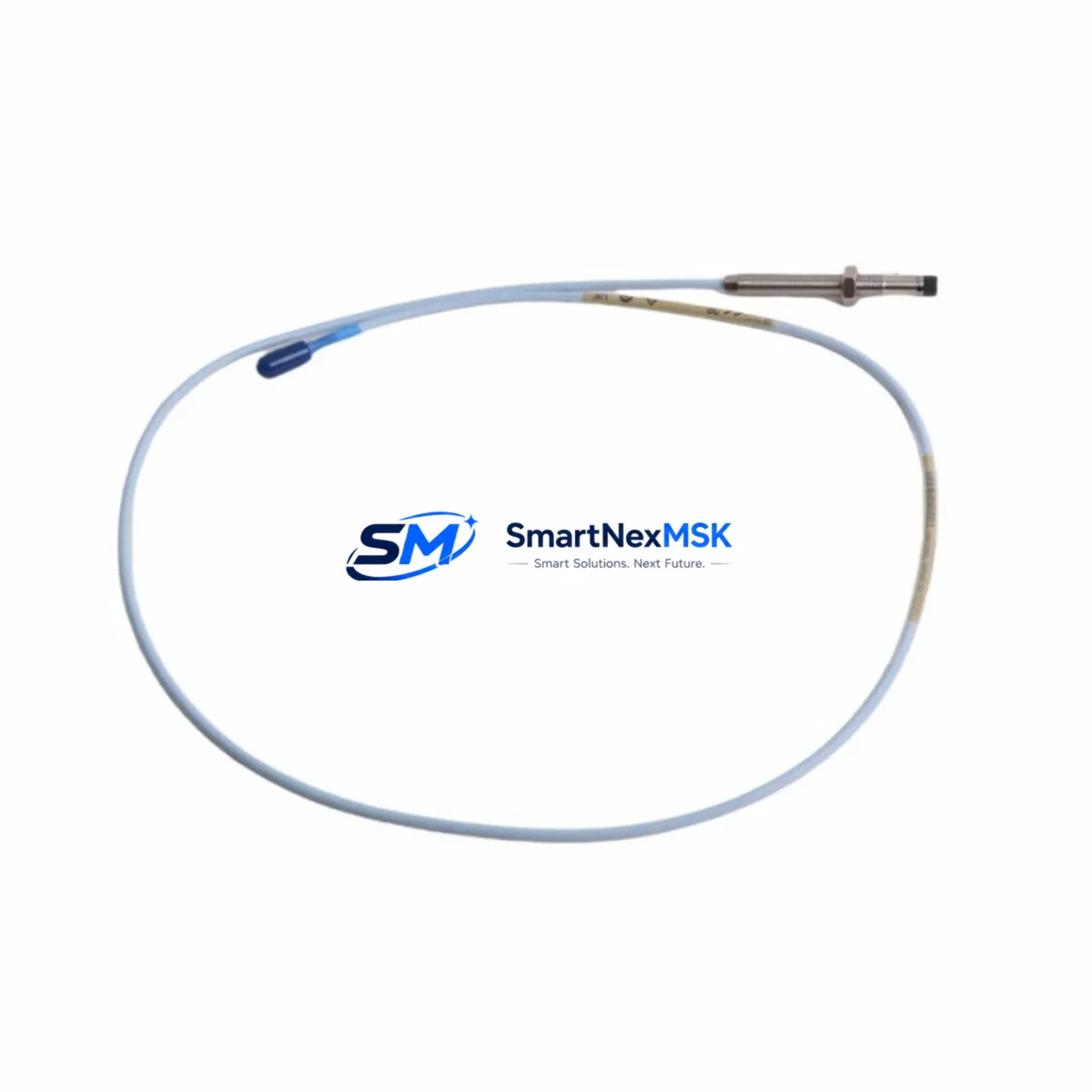

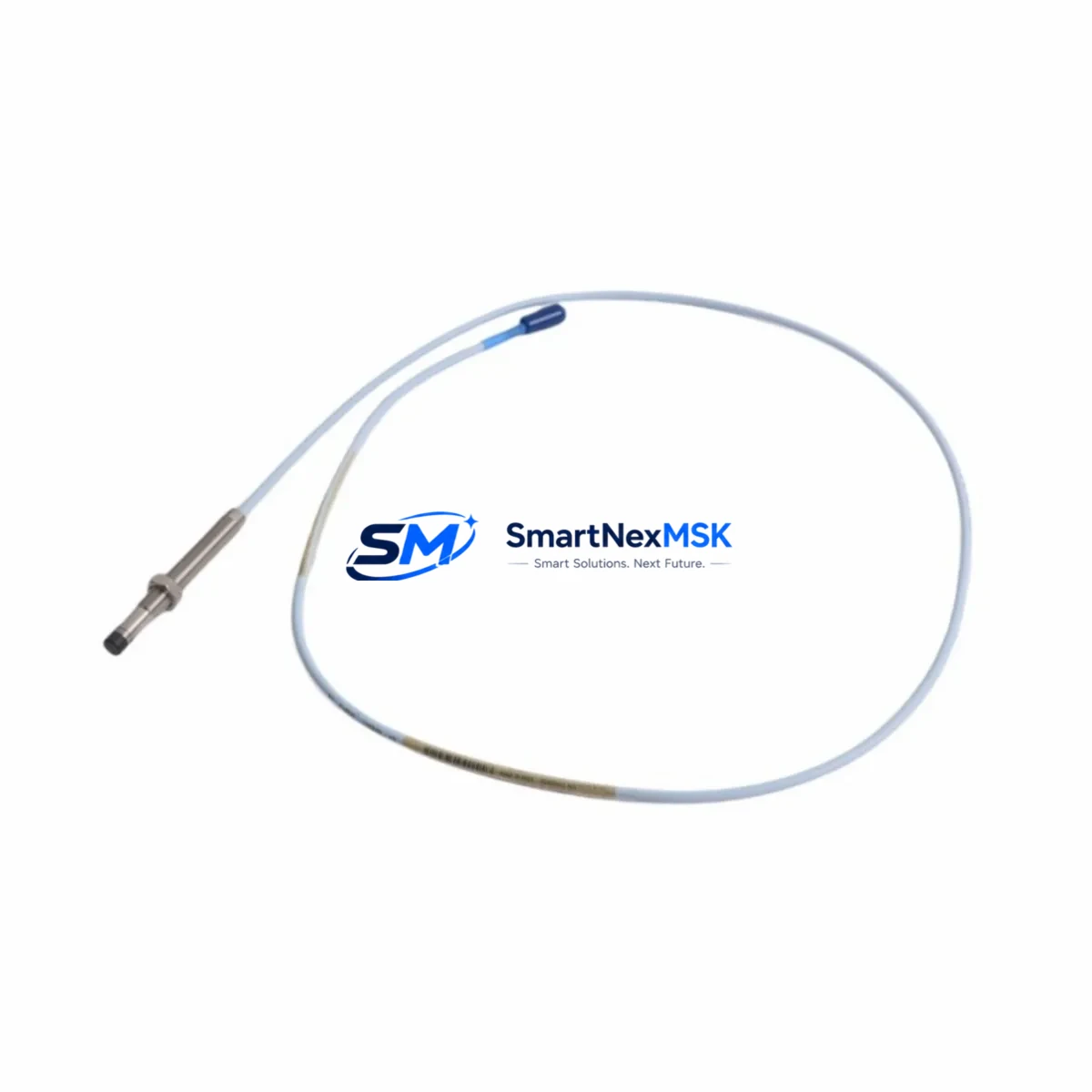

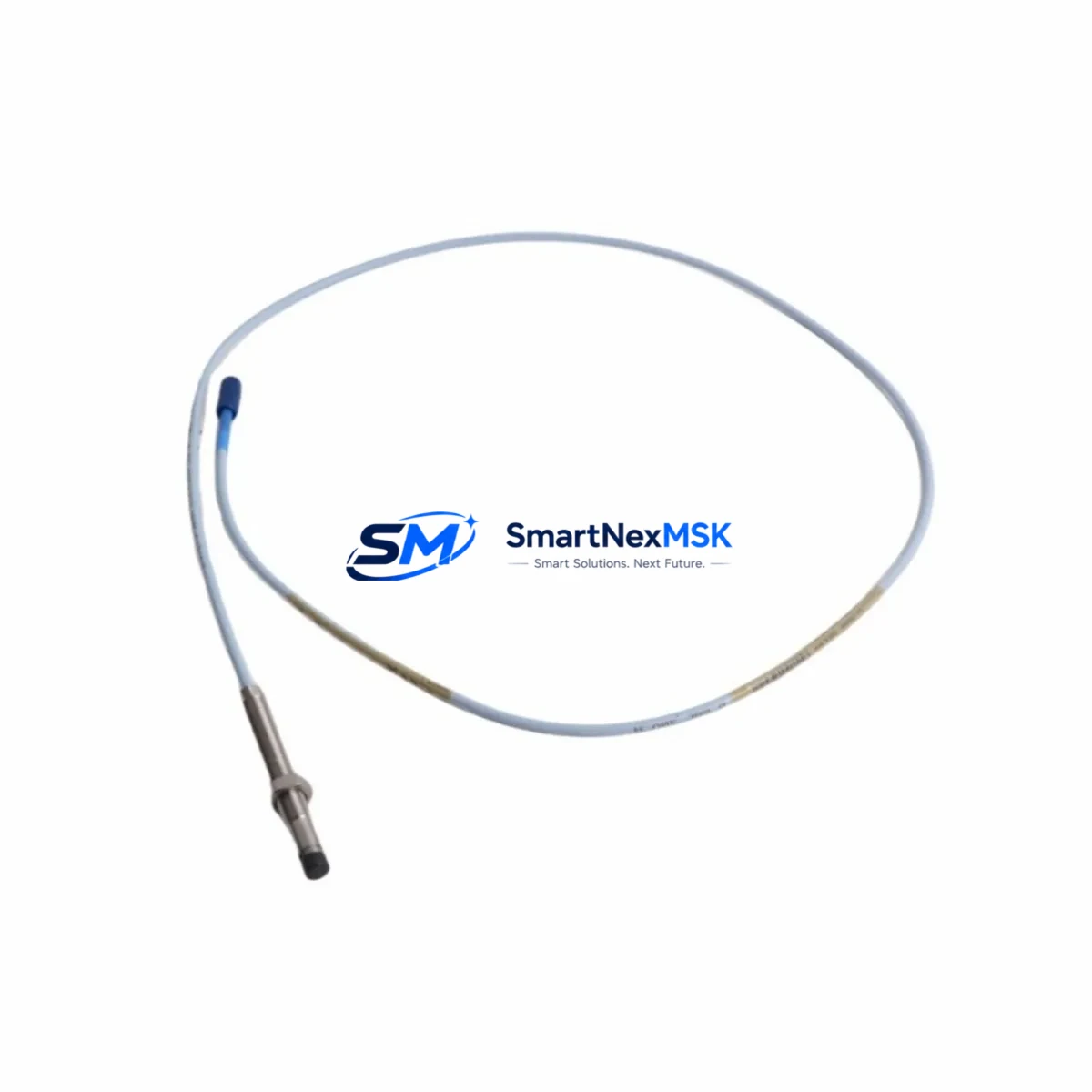

The Bently Nevada 330101-00-59-10-01-05 is an 8mm eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high-load rotating machinery, heavy interference zones, and hazardous area control cabinets, this transducer delivers the signal integrity and mechanical durability that plant engineers and reliability teams depend on to prevent unplanned shutdowns and protect critical assets.

At SMARTNEXMSK, every unit of the 330101-00-59-10-01-05 is sourced from verified supply channels, pre-shipment tested, and backed by a 12-month warranty — giving procurement and maintenance teams the confidence to deploy with minimal risk.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered rotating machinery protection system, the 330101-00-59-10-01-05 proximity probe operates as the front-end sensing element within a complete signal chain that must be carefully matched to ensure measurement accuracy and safety loop integrity. The probe pairs directly with the Bently Nevada 330180-91-00 Proximitor Sensor, which conditions the raw eddy-current signal into a clean DC output suitable for rack-level processing. Signal transmission is handled through Bently Nevada TK3 Series extension cables, which are specifically designed to maintain impedance matching and minimize signal attenuation over long cable runs in electrically noisy environments.

At the monitoring rack level, the conditioned signal feeds into the Bently Nevada 3500/40M Proximitor Monitor or the 3500/42M Proximitor/Seismic Monitor, both of which provide alarm, danger, and relay output functions for integration into plant DCS or safety instrumented systems. To protect the entire measurement chain from power-line transients and surge events — common in heavy industrial switchgear rooms — the installation should include Bently Nevada 3500/15 Power Supply modules with redundant input capability, ensuring that a single power fault does not compromise the vibration monitoring loop.

For installations in classified hazardous areas, the 330101-00-59-10-01-05 is deployed behind Bently Nevada 3300 XL Zener Barriers or galvanic isolators, which limit energy transfer into the hazardous zone and maintain SIL-rated loop integrity. In high-vibration compressor or turbine trains where multiple measurement points are required, this probe is commonly installed alongside Bently Nevada 330130 Series radial vibration probes and 330500 Series thrust position probes, forming a comprehensive shaft monitoring array that covers radial displacement, axial movement, and phase reference — all critical inputs for machinery protection relay logic.

Communication of alarm states to the plant control room is typically achieved through the Bently Nevada 3500/92 Communication Gateway, which supports Modbus, Profibus, and OPC protocols, enabling seamless integration with ABB, Siemens, or Honeywell DCS platforms without signal conversion losses that could mask early fault indicators.

Critical Industrial Safety Applications

The Bently Nevada 330101-00-59-10-01-05 proximity transducer is deployed across the most safety-sensitive rotating machinery applications in global heavy industry:

Petrochemical and Refinery Plants: Installed on centrifugal compressors, boiler feed pumps, and reactor agitators where continuous shaft vibration monitoring is mandated by API 670 machinery protection standards. Any signal interruption or measurement drift in these loops can trigger spurious shutdowns or, worse, allow a developing bearing fault to go undetected — both outcomes with severe safety and production consequences.

Power Generation: Used on steam turbine shaft monitoring systems at thermal and combined-cycle power stations, where the 3300 XL probe’s high-temperature tolerance and EMI resistance ensure reliable operation in the proximity of high-voltage busbars and generator excitation equipment. The probe’s ruggedized cable construction resists the mechanical vibration and thermal cycling inherent in turbine hall environments.

Mining and Mineral Processing: Applied to large ball mill drives, SAG mill pinion bearings, and slurry pump shafts in open-pit and underground mining operations. The IP67-rated probe body withstands dust ingress and water spray, while the eddy-current measurement principle is immune to the contamination and lubricant films that would compromise contact-type sensors.

Water and Wastewater Treatment: Monitors shaft position on large vertical turbine pumps and blower trains at municipal water treatment facilities, where continuous operation is a public safety requirement. The non-contact measurement principle eliminates sensor wear, reducing maintenance intervention frequency in hard-to-access pump sumps.

Metallurgy and Steel Production: Deployed on rolling mill drive shafts, continuous caster pinch rolls, and blast furnace blower trains, where high ambient temperatures, electromagnetic interference from induction furnaces, and mechanical shock loads demand a sensor with proven robustness. The 330101-00-59-10-01-05’s shielded cable and ruggedized tip construction are specifically suited to these conditions.

Port and Marine Terminal Equipment: Used on large crane hoist motors and ship-loader conveyor drive systems, where salt-laden air, humidity, and variable load cycles create challenging conditions for instrumentation. The probe’s corrosion-resistant construction and wide operating temperature range support reliable year-round operation in coastal industrial environments.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330101-00-59-10-01-05?
Every unit shipped by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with priority turnaround to minimize plant downtime, and replacement units are dispatched from in-stock inventory where available.

Q2: What pre-shipment testing is performed on each unit?
All 330101-00-59-10-01-05 probes undergo functional verification prior to dispatch, including output signal linearity checks, cable continuity and insulation resistance testing, and physical inspection of the probe tip, connector, and cable jacket. Test records are available upon request for quality-critical procurement processes.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL and 3500 Series installations?
Yes. The 330101-00-59-10-01-05 is a direct form-fit-function replacement within the Bently Nevada 3300 XL ecosystem. It is fully compatible with 330180 Proximitor Sensors, TK3 extension cables, and 3500 Series rack monitors without requiring recalibration of the monitoring system, provided the gap and sensitivity settings are verified during installation commissioning.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
SMARTNEXMSK maintains dedicated inventory of the 330101-00-59-10-01-05 and related 3300 XL Series components to support planned maintenance schedules, emergency sparing, and capital project procurement. Customers with recurring demand are encouraged to contact our sales team to discuss blanket order arrangements and reserved stock programs that eliminate lead-time risk for critical spare parts.
