Bently Nevada 330101-00-60-10-01-00 Spare for 3300 XL Automation

Bently Nevada 330101-00-60-10-01-00 Spare for 3300 XL Automation: Precision Spare Part for Industrial Downtime Control

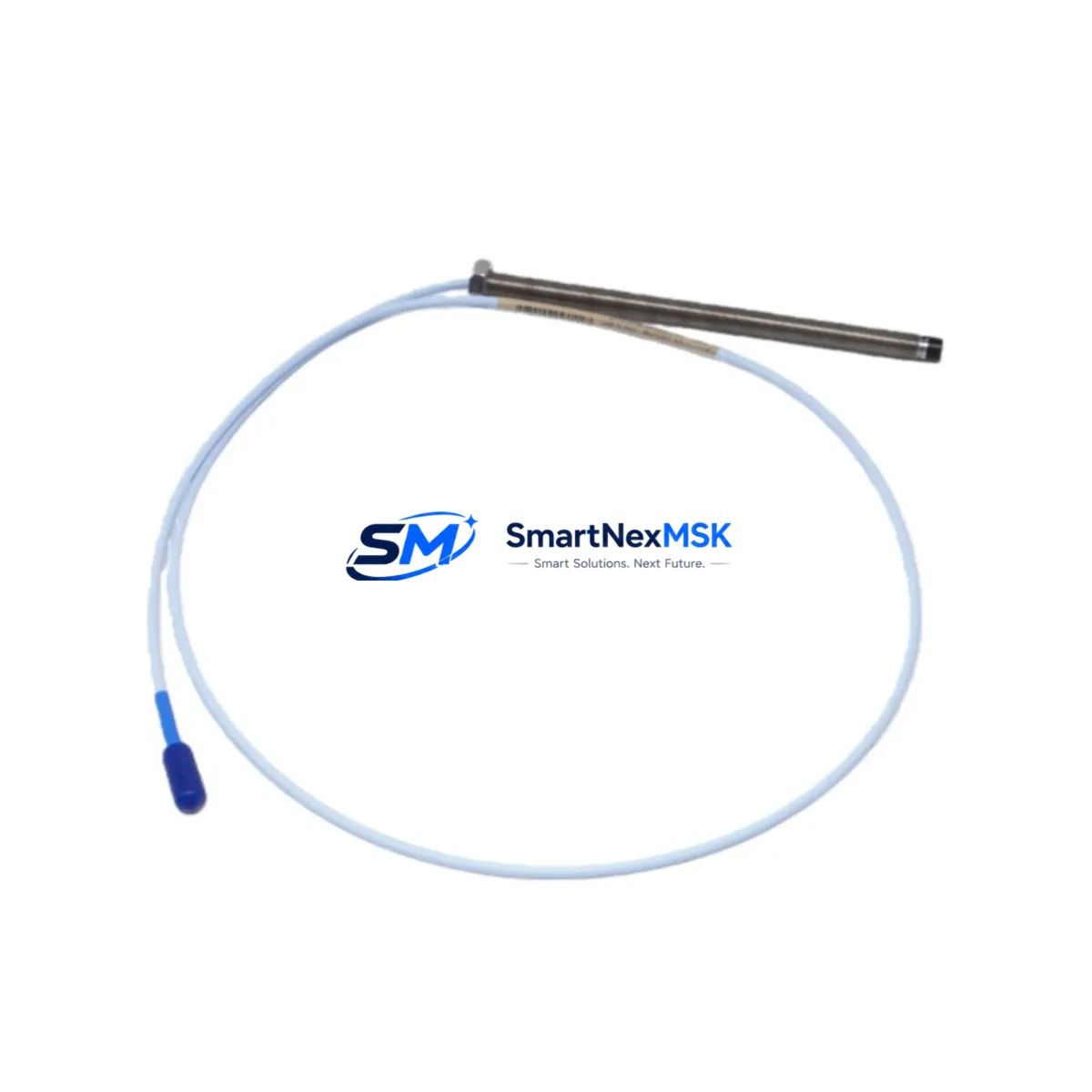

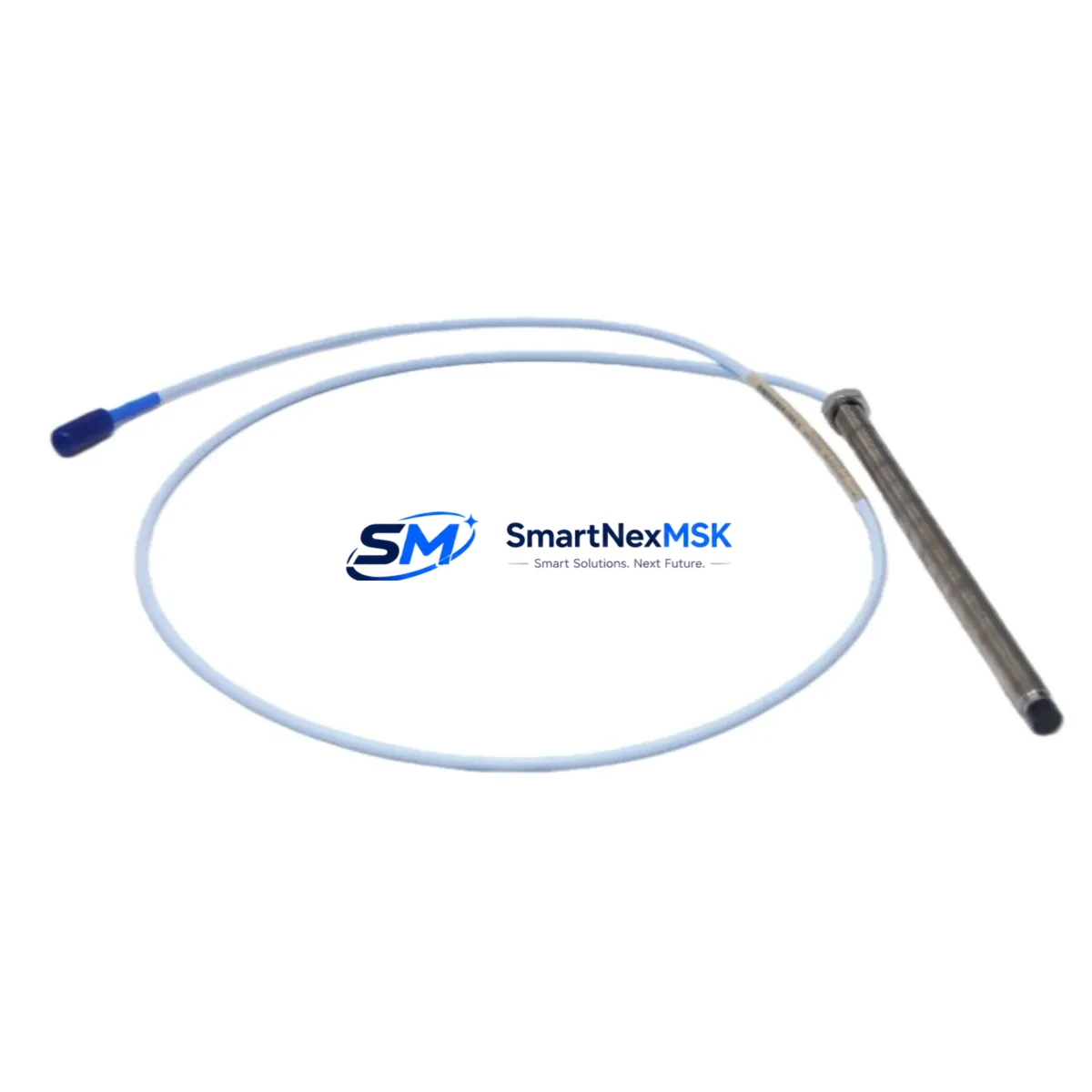

The Bently Nevada 330101-00-60-10-01-00 is an original 8mm eddy current proximity probe engineered for the 3300 XL Series continuous machinery monitoring system. In rotating machinery protection applications — turbines, compressors, pumps, and gearboxes — this probe is a critical field-replaceable unit. When a proximity probe fails or drifts out of calibration, the entire vibration monitoring loop is compromised, creating unplanned downtime risk. Stocking a verified original spare of the 330101-00-60-10-01-00 is a fundamental element of any proactive maintenance strategy for facilities running Bently Nevada 3300 XL systems.

This probe is supplied as an original Bently Nevada component, tested prior to shipment, and backed by a 12-month warranty. It is compatible with the full 3300 XL monitoring architecture and is designed for direct drop-in replacement without system reconfiguration when matched with the correct extension cable and proximitor.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-60-10-01-00 proximity probe in a 3300 XL monitoring loop, maintenance engineers should treat the replacement as a full loop verification event rather than a single-component swap. The eddy current measurement chain consists of three interdependent components: the probe itself, the extension cable (such as the 330130-080-00-00 or 330130-040-00-00 depending on installation distance), and the proximitor module (typically the 330180-X1-05 or 330180-X1-CN for 3300 XL 8mm systems). A degraded extension cable or a proximitor with a drifting power supply will produce erroneous gap voltage readings even after a new probe is installed.

During planned outages, maintenance teams should simultaneously inspect the 3300 XL rack power supply module, which feeds the proximitor with regulated −24 VDC. A marginal power supply can cause intermittent probe signal dropout that is frequently misdiagnosed as a probe failure. The 3300 XL I/O module and its terminal block connections should also be checked for corrosion, loose terminations, and shield continuity — particularly in high-humidity or chemically aggressive environments.

For facilities operating multiple measurement points, the 3300 XL monitor module (such as the 3300/16 or 3300/20 series) should be inspected for alarm setpoint integrity and channel-to-channel isolation. If the system includes a 3500 Series rack in parallel for redundancy, verify that the 3500/42M or 3500/40M proximity monitor channels are also within calibration tolerance. Signal isolators installed between the proximitor output and the DCS analog input card should be tested for offset drift — a common failure mode after several years of continuous service.

For facilities with older 3300 XL installations, it is advisable to maintain a minimum spare inventory that includes at least one 330101-00-60-10-01-00 probe, one matched extension cable, and one proximitor module per critical machine train. This three-component spare set enables a complete loop replacement within a single maintenance window, eliminating the risk of a second unplanned outage caused by a secondary component failure discovered during the initial repair.

Where the 3300 XL system interfaces with a DCS via 4–20 mA or HART signals, the analog input card and associated signal conditioning should be verified after any probe replacement to confirm that the new probe’s gap voltage is correctly scaled at the DCS engineering unit level. Incorrect scaling will cause the DCS historian to log false vibration trends, undermining predictive maintenance analysis.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement probe part number (330101-00-60-10-01-00) matches the installed probe’s label and the system’s calibration record. Verify the target material and gap distance specified in the original commissioning documentation.

Step 2 — Loop isolation: Inhibit the affected channel at the 3300 XL monitor module to prevent spurious alarms or trips during the replacement. Document the current gap voltage and vibration baseline before disconnecting the probe.

Step 3 — Probe removal and inspection: Remove the probe using the correct M10 × 1.0 spanner. Inspect the probe tip for mechanical damage, contamination, or oil ingress. Inspect the integral cable for chafing, kinking, or connector corrosion. If the extension cable shows any sign of damage, replace it simultaneously with the 330130-080-00-00 or equivalent.

Step 4 — Installation and gap setting: Install the new 330101-00-60-10-01-00 probe and set the gap to the system’s specified nominal distance (typically 1.0 mm for standard 3300 XL 8mm systems). Verify gap voltage at the proximitor output using a calibrated voltmeter — target −10 VDC ± 0.5 VDC at nominal gap.

Step 5 — Loop verification and reinstatement: Confirm vibration and position readings at the 3300 XL monitor module and at the DCS. Remove the channel inhibit, restore alarm setpoints, and update the maintenance record with the replacement date, new probe serial number, and measured gap voltage.

This workflow is applicable to both scheduled turnaround replacements and emergency field swaps. The 330101-00-60-10-01-00 is a direct replacement for earlier 330101 series variants, enabling legacy system life extension without rack or cable modifications.

Spare Parts Support FAQ

Q1: Is the 330101-00-60-10-01-00 compatible with both 3300 XL and older 3300 Series monitors?
The 330101-00-60-10-01-00 is designed and calibrated for the 3300 XL 8mm system. It is electrically compatible with earlier 3300 Series proximitors in most installations, but compatibility should be verified against the specific proximitor model and calibration record before installation in a non-XL system. Contact our technical team for confirmation if your installation uses a pre-XL 3300 Series rack.

Q2: What is included in the 12-month warranty and how is it applied?
All 330101-00-60-10-01-00 units supplied by SMARTNEXMSK are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and electrical performance within published specifications. Each unit is tested prior to dispatch. Warranty claims are processed via our sales team at sales@smartnexmsk.com with proof of purchase and a fault description.

Q3: How should the 330101-00-60-10-01-00 be stored as a long-term spare?
Store the probe in its original packaging in a dry, temperature-controlled environment (0°C to 40°C, <85% RH non-condensing). Avoid storing near strong magnetic fields or solvents. The integral cable connector should be capped to prevent contamination. Inspect stored spares annually for connector corrosion and cable jacket integrity. Properly stored units maintain full specification for a minimum of five years.

Q4: Can SMARTNEXMSK supply matched probe, extension cable, and proximitor sets for a complete loop spare?
Yes. We recommend ordering the 330101-00-60-10-01-00 probe together with the appropriate 330130 series extension cable and 330180 series proximitor as a matched loop spare set. This ensures all three components are from the same calibration batch and eliminates compatibility uncertainty during emergency replacements. Contact sales@smartnexmsk.com with your machine train details for a matched set quotation.
