Bently Nevada 330101-00-61-15-02-CN 3300 XL Spare: Precision Vibration Monitoring Replacement

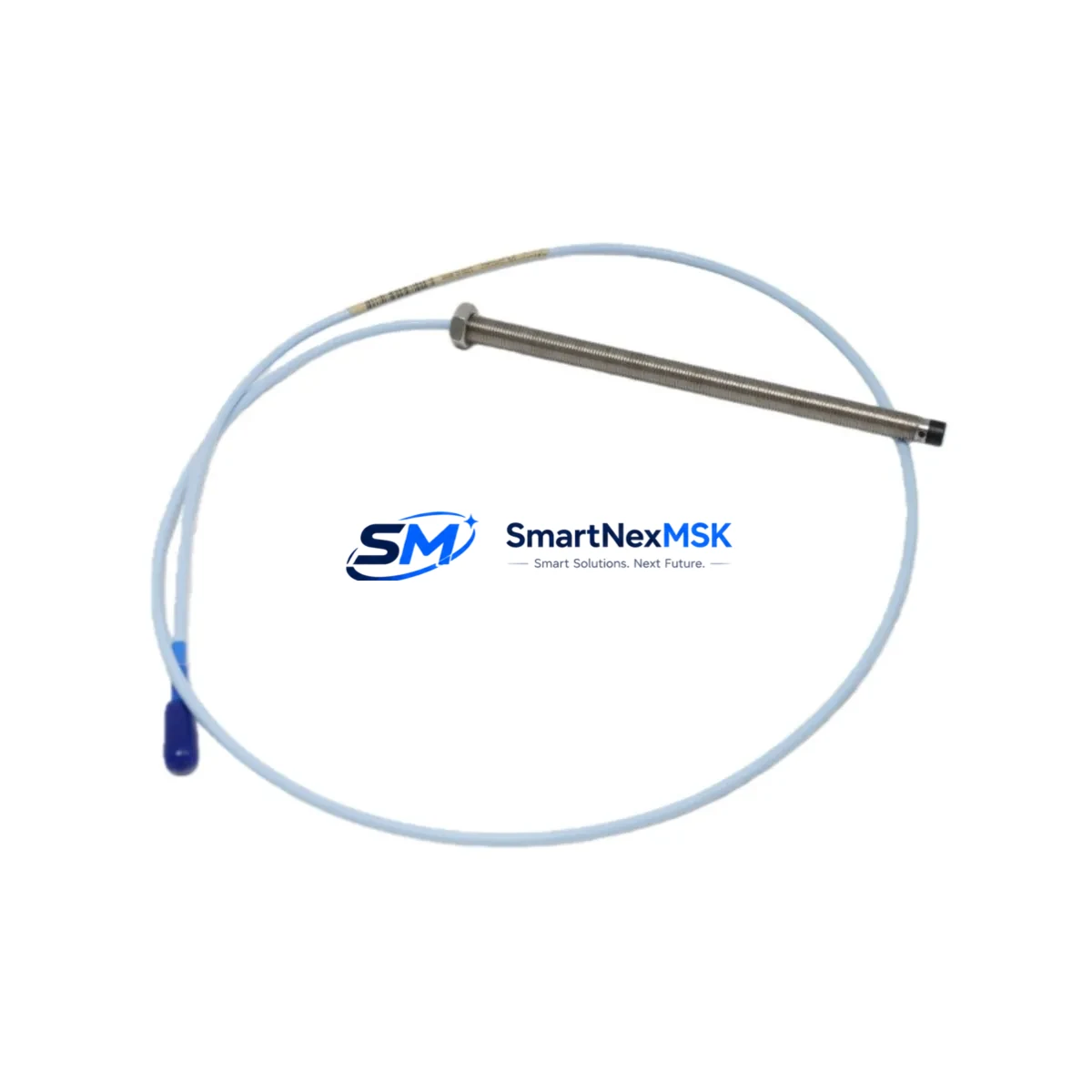

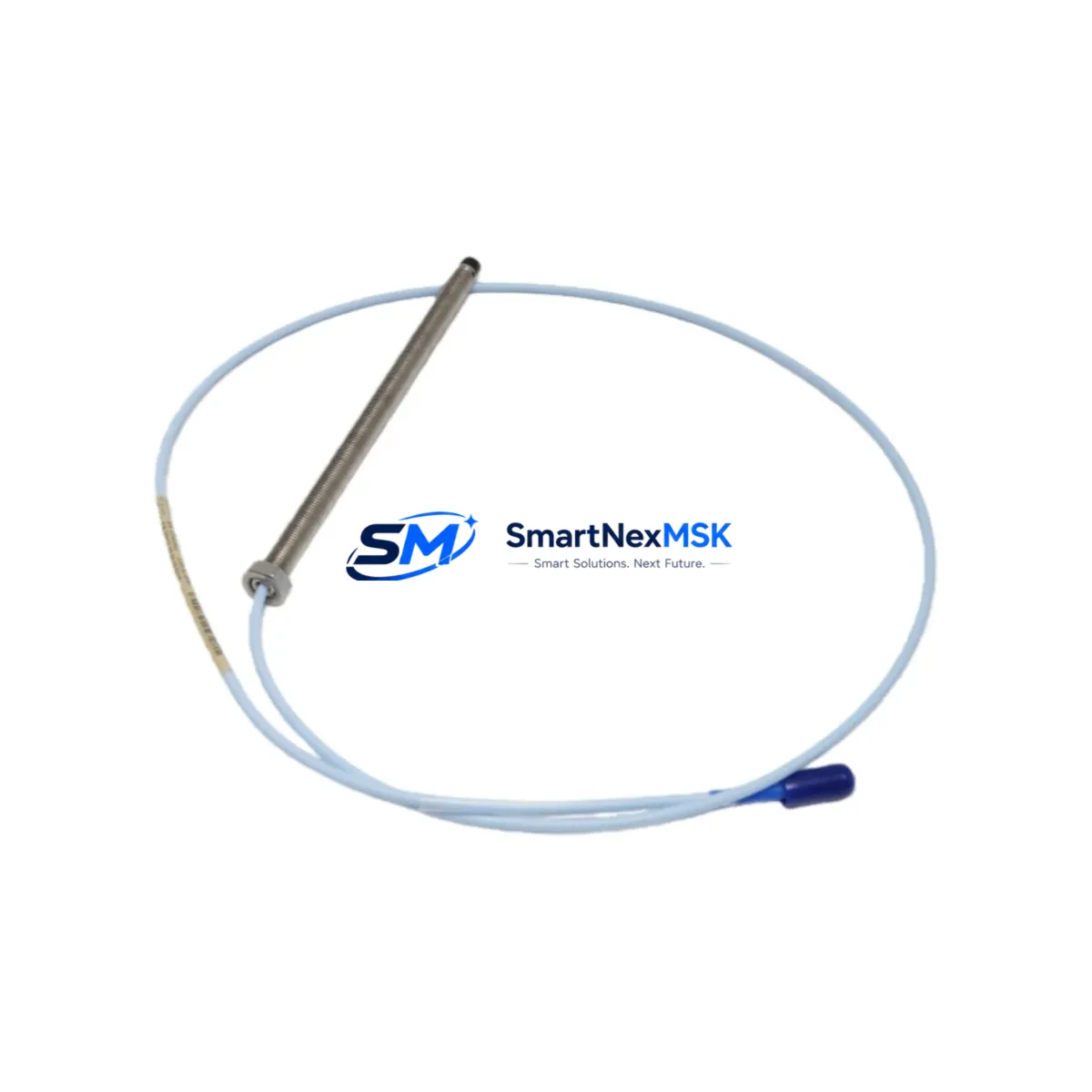

The Bently Nevada 330101-00-61-15-02-CN is an original 8mm Eddy Current Proximity Probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed for rotating machinery protection in turbines, compressors, pumps, and motors, this probe delivers reliable radial shaft vibration and position measurement in demanding industrial environments. Maintaining an in-stock supply of this probe is a critical element of any predictive maintenance program — unplanned vibration monitor failures can trigger emergency shutdowns, cascade into bearing damage, and result in costly unplanned downtime.

SMARTNEXMSK stocks original, tested 330101-00-61-15-02-CN units with full traceability, ready for same-week dispatch. Each unit undergoes pre-shipment functional verification and ships with a 12-month warranty covering manufacturing defects and performance conformance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330101-00-61-15-02-CN probe is flagged for replacement during a scheduled outage or emergency callout, experienced maintenance engineers know that the probe itself is rarely the only component requiring attention. A complete 3300 XL proximity measurement chain consists of the probe, a matched extension cable (such as the 330130-080-00-00 8m extension), and a driver module (such as the 330180-X1-05 or 330180-X1-CN). All three elements must be replaced as a matched set if any one component has been exposed to mechanical damage, moisture ingress, or electrical overstress — mixing unmatched components degrades scale factor accuracy and can trigger nuisance trips.

During the same cabinet inspection, maintenance teams should verify the condition of the 3300/16-02-01-00 I/O module or equivalent rack-mounted signal conditioning card that receives the probe output. Loose terminal connections on the I/O module are a common source of intermittent high-vibration alarms that are misdiagnosed as probe failures. Inspect and re-torque all field wiring terminals to the manufacturer’s specification.

Power supply integrity is equally critical. The 3300/20 Power Supply or equivalent -24 VDC rack supply should be load-tested during any planned outage where proximity probes are being replaced. A supply operating at the low end of its voltage tolerance will shift the probe’s bias voltage output and compress the linear measurement range, leading to false readings before any hard fault is detected.

For machines with both radial and axial monitoring, the replacement of a radial probe is a natural trigger to inspect the paired thrust position probe (typically a 330101 or 330105 series) and its associated 330180 driver. Axial probes on high-thrust compressors and steam turbines are subject to elevated thermal cycling and should be included in the same maintenance window.

Communication and system-level components also warrant attention. If the 3300 XL rack communicates via a 3500/92 Ethernet I/O Module or a 3500/22M Transient Data Interface, verify that firmware is current and that network connectivity to the DCS or historian is stable. A probe replacement that is not followed by a successful system communication check leaves the protection loop in an unverified state.

Finally, review the condition of junction boxes, armored conduit fittings, and probe mounting brackets. Corroded or cracked conduit fittings are a leading cause of moisture ingress that shortens probe service life. Replacing the probe without addressing the root-cause ingress path will result in repeat failures within 12–18 months.

Site Replacement Workflow

Step 1 — Isolation and Bypass: Coordinate with the control room to place the affected channel in bypass mode within the 3300 XL or 3500 rack before disconnecting any field wiring. This prevents a spurious trip during the replacement procedure.

Step 2 — Documentation: Record the existing probe gap voltage (bias voltage) from the monitor display or DCS historian before removal. The target bias for an 8mm probe on AISI 4140 steel at the nominal 1.0 mm gap is approximately -10.4 VDC. This value is your post-installation acceptance criterion.

Step 3 — Matched Set Replacement: Install the new 330101-00-61-15-02-CN probe with its matched extension cable and driver as a complete set. Do not reuse the old extension cable with a new probe — cable aging affects the system’s resonant frequency and scale factor.

Step 4 — Gap Setting: Set the probe tip-to-target gap to the machine manufacturer’s specification (typically 1.0 mm ± 0.05 mm for 8mm probes). Verify the output bias voltage falls within the acceptable window before releasing the bypass.

Step 5 — Functional Verification: Confirm the channel reads correctly in the monitor, DCS, and historian. Check that alarm and trip setpoints are active and that the bypass has been cleared. Document the completed replacement in the CMMS with the new probe serial number and gap voltage.

This workflow minimizes total downtime to under two hours for a single-channel replacement when a pre-tested spare is available on-site — reinforcing the value of maintaining at least one 330101-00-61-15-02-CN unit in the local spare parts inventory.

Spare Parts Support FAQ

Q1: Is the 330101-00-61-15-02-CN compatible with both 3300 XL and 3500 series racks?
The 330101-00-61-15-02-CN probe is designed for the 3300 XL system. Compatibility with 3500 series racks depends on the specific I/O module and driver configuration. The 3500 series typically uses 330101 probes with matched 3500-series drivers. Contact SMARTNEXMSK with your rack model and driver part number for a confirmed compatibility check before ordering.

Q2: How do you verify the probe is genuine and functional before shipment?
Every 330101-00-61-15-02-CN unit stocked by SMARTNEXMSK is sourced from authorized distribution channels and undergoes pre-shipment electrical verification including bias voltage output, insulation resistance, and cable continuity checks. Units that do not meet Bently Nevada’s published specifications are quarantined and not shipped. A test report is available upon request.

Q3: What is the recommended spare parts stocking strategy for this probe?
For critical rotating machinery (turbines, high-speed compressors), industry best practice is to maintain a minimum of two matched probe-cable-driver sets per machine train in the local spare parts store. For non-critical or standby machines, one set per machine type is generally sufficient. SMARTNEXMSK can support blanket order arrangements for customers managing multi-site spare parts programs.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, premature electrical failure under normal operating conditions, and non-conformance to published scale factor and linearity specifications. It does not cover damage resulting from incorrect installation, mechanical impact, chemical exposure beyond the probe’s rated environment, or use outside the specified supply voltage range. Warranty claims are processed with a replacement unit dispatched within 5 business days of fault confirmation.
