Bently Nevada 330101-00-66-20-02-CN Safety Probe

Bently Nevada 330101-00-66-20-02-CN Safety-Enhanced Proximity Probe for Harsh Industrial Sites

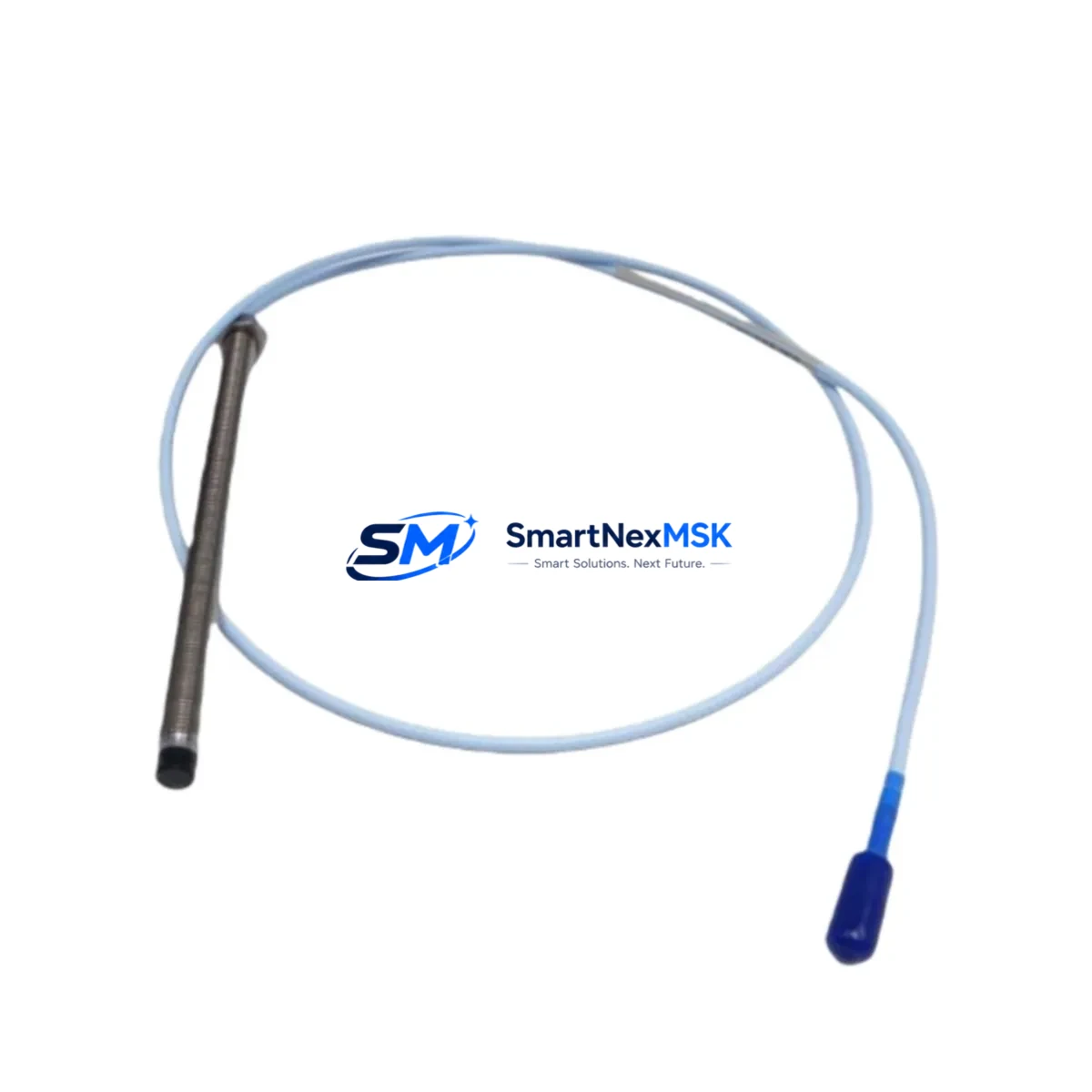

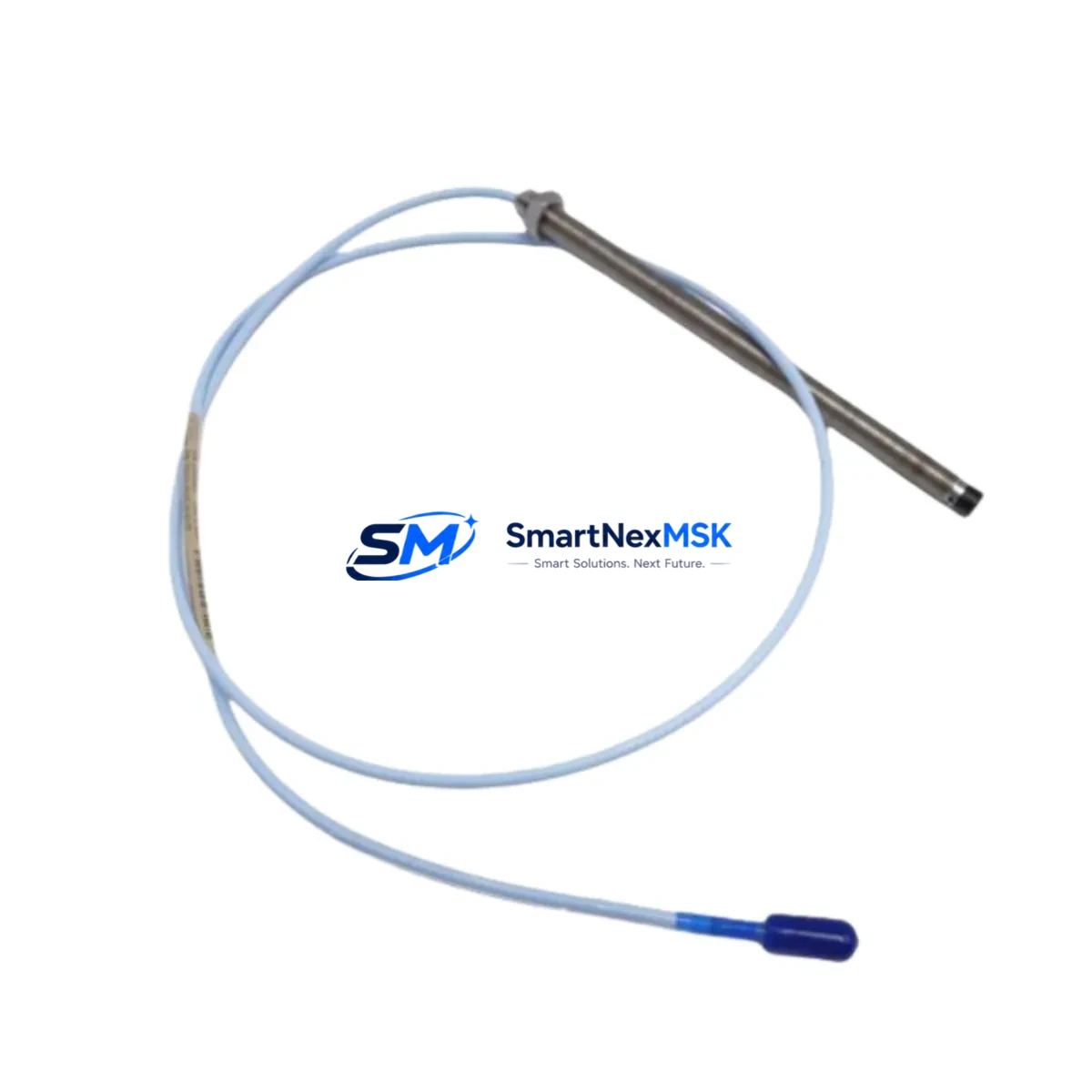

The Bently Nevada 330101-00-66-20-02-CN is a ruggedized eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, safety-critical shaft vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably under high electromagnetic interference, mechanical shock, thermal cycling, and corrosive atmospheres, this probe is a cornerstone component in turbomachinery protection systems, compressor trains, and critical rotating equipment safety loops worldwide.

In high-stakes facilities — petrochemical plants, power generation stations, offshore platforms, and heavy metallurgical operations — control interruption is not an option. The 330101-00-66-20-02-CN delivers consistent, drift-free output signals that feed directly into Bently Nevada 3500 Series Machinery Protection System monitors, enabling real-time trip and alarm decisions that protect both personnel and capital assets. Its ruggedized construction resists signal drift caused by temperature excursions, cable capacitance variation, and ground loop interference — common failure modes in continuous production environments.

Every unit shipped by SMARTNEXMSK undergoes pre-delivery functional testing, including gap voltage verification, sensitivity calibration check, and insulation resistance measurement, ensuring the probe performs to OEM specification from the moment it arrives on site. Backed by a 12-month warranty, this probe supports rapid spare-parts replacement strategies that minimize unplanned downtime in critical asset protection circuits.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered turbomachinery protection cabinet, the 330101-00-66-20-02-CN probe does not operate in isolation — it is the sensing front-end of a layered safety architecture. The probe signal is conditioned by the Bently Nevada 330180-X1-05 Proximitor® sensor driver, which converts the raw impedance change into a calibrated DC voltage output. This conditioned signal is then routed to a Bently Nevada 3500/40M proximitor I/O module or a 3500/42M four-channel vibration monitor, where trip and alarm setpoints are enforced in hardware.

Power integrity is critical in these circuits. The Bently Nevada 3500/15 power supply module provides regulated, redundant -24 VDC to the Proximitor® drivers, eliminating the risk of supply voltage fluctuation causing false trips or missed alarms. In installations where surge protection is required — particularly in outdoor switchgear rooms or cable trays exposed to lightning-induced transients — inline surge suppressors compatible with the 3300 XL signal chain should be installed between the junction box and the monitor rack.

For complete shaft assessment, the 330101-00-66-20-02-CN is typically deployed alongside a Bently Nevada 330103-00-06-10-02-CN keyphasor® probe to provide phase reference data, enabling vector-based vibration analysis and balancing. In axial position monitoring applications, a paired Bently Nevada 330500-02-05 thrust position probe completes the axial and radial protection loop. Communication of trip status and vibration vectors to the plant DCS is handled via the Bently Nevada 3500/92 communication gateway module, supporting Modbus RTU or Ethernet/IP protocols for integration with ABB, Honeywell, or Emerson DeltaV control systems.

For installations requiring intrinsic safety in Zone 1 or Zone 2 hazardous areas, the probe assembly is used in conjunction with certified Zener barriers or galvanic isolators mounted in the safe-area marshalling cabinet, ensuring the entire measurement loop complies with ATEX or IECEx requirements without compromising signal fidelity.

Critical Industrial Safety Applications

Petrochemical & Refinery: In fluid catalytic cracking (FCC) units and centrifugal compressor trains, the 330101-00-66-20-02-CN monitors shaft radial vibration on critical rotating equipment operating at speeds exceeding 10,000 RPM. Continuous, drift-free measurement prevents catastrophic bearing failures that could trigger hydrocarbon releases or unplanned unit shutdowns costing hundreds of thousands of dollars per hour.

Power Generation: Steam turbine and gas turbine generator sets in thermal and combined-cycle power plants rely on API 670-compliant proximity probe systems for overspeed protection and shaft centerline monitoring. The 3300 XL probe’s wide operating temperature range makes it suitable for high-temperature bearing pedestals adjacent to turbine casings.

Mining & Mineral Processing: Large SAG mills, ball mills, and crusher drives in open-pit and underground mining operations subject instrumentation to extreme shock, dust ingress, and vibration. The ruggedized housing and IP67 rating of the 330101-00-66-20-02-CN ensure reliable operation in these environments, supporting predictive maintenance programs that reduce unplanned conveyor and mill stoppages.

Water & Wastewater Treatment: High-capacity centrifugal pumps and blower trains in municipal water treatment facilities require continuous vibration monitoring to detect impeller imbalance, cavitation, and bearing wear before they escalate to pump failure. The probe’s compatibility with the Bently Nevada 3500 system enables integration with SCADA platforms for remote alarm notification.

Metallurgy & Steel Production: Rolling mill drives, continuous casting machines, and large induction furnace cooling pumps operate in environments with intense electromagnetic fields and thermal gradients. The shielded coaxial cable assembly of the 3300 XL probe series provides superior EMI rejection, maintaining signal integrity even when routed alongside high-current power cables in congested cable trays.

Port & Heavy Lifting Equipment: Ship-to-shore cranes and large gantry systems use proximity probes in slewing ring and hoist drum monitoring applications. The 330101-00-66-20-02-CN‘s robust mechanical design withstands the vibration and shock loads inherent in heavy-lift operations, supporting condition-based maintenance programs that extend equipment service intervals.

Safety and Quality FAQ

Q1: What warranty coverage does SMARTNEXMSK provide for the 330101-00-66-20-02-CN?
All units are covered by a 12-month warranty from the date of shipment. If the probe fails to meet OEM performance specifications under normal operating conditions within this period, SMARTNEXMSK will provide a replacement unit or full refund. Warranty claims are processed within 5 business days upon receipt of the returned item.

Q2: What pre-shipment testing is performed on each probe?
Every 330101-00-66-20-02-CN unit undergoes a three-point inspection before dispatch: (1) gap voltage output verification at the nominal 1.27 mm (50 mil) gap, confirming the -12 VDC ±0.5 V output; (2) sensitivity check confirming 7.87 V/mm ±5% linearity across the full measurement range; and (3) insulation resistance measurement on the cable assembly to confirm no moisture ingress or conductor damage. Test records are available upon request.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL and 3500 Series installations?
Yes. The 330101-00-66-20-02-CN is a direct OEM-equivalent replacement for all Bently Nevada 3300 XL 25mm probe installations. It is fully compatible with the 330180 series Proximitor® drivers and all 3500 Series monitor modules including the 3500/40M, 3500/42M, 3500/45, and 3500/46M. No recalibration of the monitor system is required when replacing a like-for-like probe at the same gap setting.

Q4: Can SMARTNEXMSK support long-term spare parts supply for this model?
Yes. SMARTNEXMSK maintains standing inventory of the 330101-00-66-20-02-CN and related 3300 XL Series components to support planned maintenance shutdowns, emergency replacements, and multi-unit project requirements. For facilities requiring guaranteed stock reservation or annual supply agreements, please contact our sales team to discuss framework supply arrangements that ensure parts availability without lead-time risk.
