Bently Nevada 330101-00-68-10-12-05 3300 XL Spare

Bently Nevada 330101-00-68-10-12-05 3300 XL Spare: Precision Replacement for Industrial Vibration Monitoring

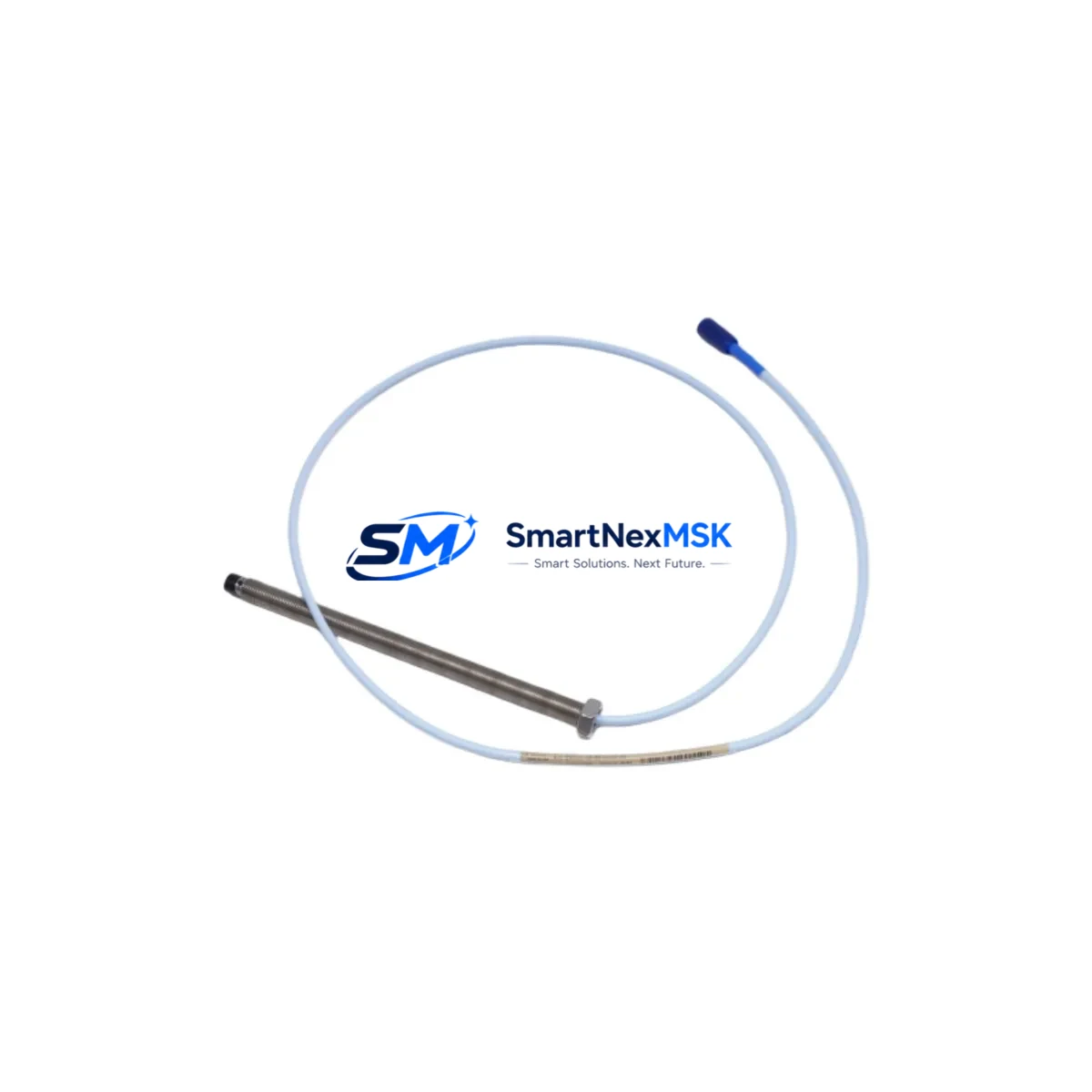

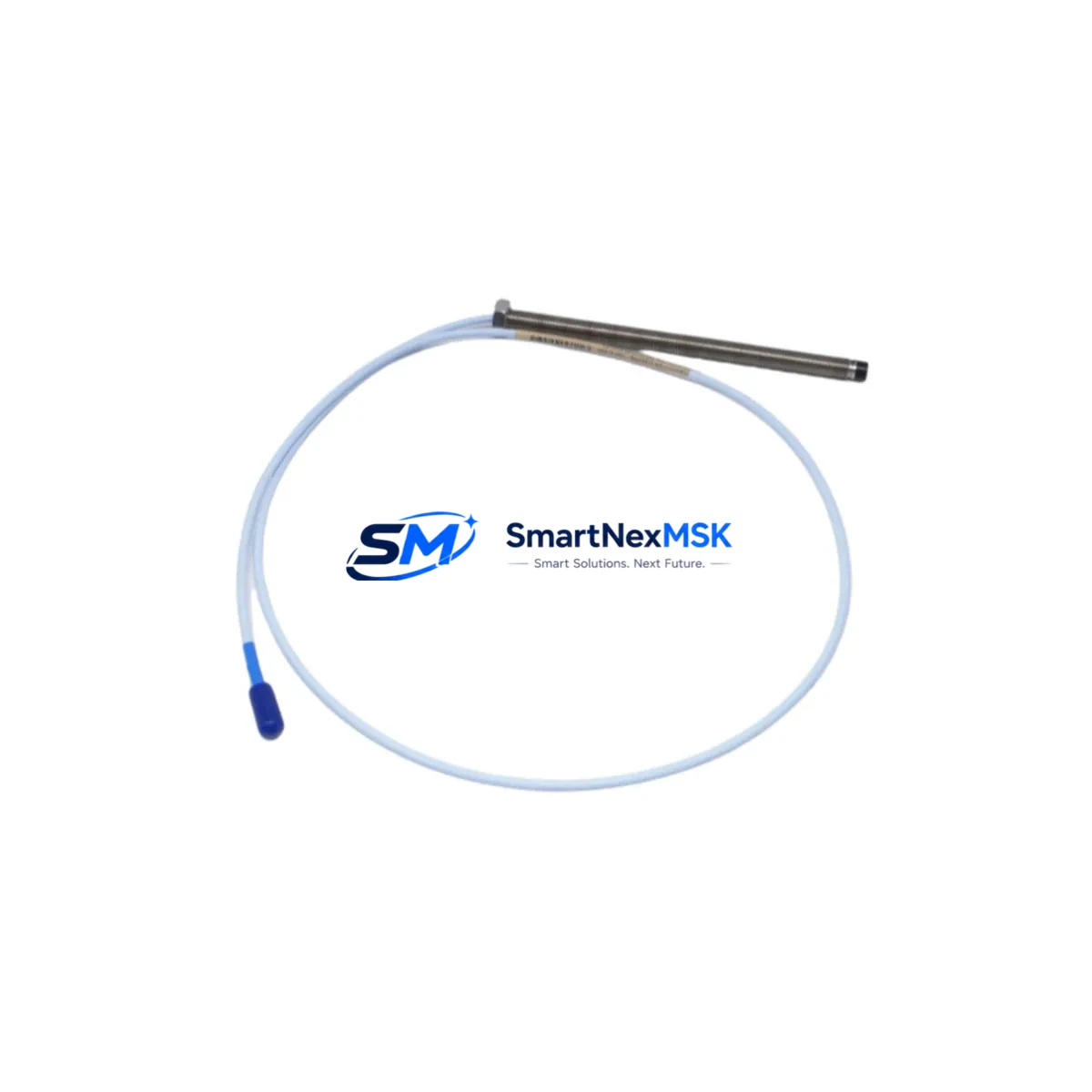

The Bently Nevada 330101-00-68-10-12-05 is an original 8mm eddy-current proximity transducer from the 3300 XL Series, engineered for continuous shaft vibration and position monitoring in rotating machinery. For maintenance engineers managing turbines, compressors, pumps, and critical rotating assets, this transducer is a front-line spare that directly impacts uptime. Unplanned downtime caused by a failed proximity transducer can cascade into full machinery trips, production loss, and costly emergency shutdowns. Stocking a verified original replacement eliminates that risk and enables rapid site restoration within a single maintenance window.

This unit is sourced as an original Bently Nevada component, tested prior to shipment, and backed by a 12-month warranty. It is compatible with the 3300 XL monitoring system architecture and integrates directly with standard Bently Nevada extension cables, proximitor sensors, and rack-mounted monitor modules without requiring system reconfiguration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-68-10-12-05 proximity transducer during a planned or emergency maintenance event, a disciplined scope-of-work approach prevents repeat failures and ensures the monitoring loop is fully restored. Maintenance engineers should treat this replacement as an opportunity to audit the entire vibration measurement chain.

Begin with the 3300 XL Proximitor Sensor (typically the 330180 series): verify the driver output voltage and confirm the gap voltage is within the linear range after probe installation. A degraded proximitor will produce erratic readings even with a new probe. Next, inspect the extension cable (such as the 330130 series armored extension) for jacket damage, connector corrosion, and continuity — cable faults are a leading cause of false vibration alarms and should be replaced as a matched set with the transducer where possible.

At the monitor rack, confirm the 3500/40M Proximitor Monitor or equivalent 3300 XL rack card is reading correctly and that channel OK status is restored after probe installation. If the system uses a 3500/22M Transient Data Interface, verify that the new transducer’s sensitivity constant is correctly entered in the configuration software to avoid scaling errors in the historian.

For the power supply side, check the 3500/15 Power Supply Module output voltage under load. A sagging -24 VDC rail will shift the transducer’s operating point and introduce measurement error. If the cabinet houses a 3500/20 Rack Interface Module, confirm communication with the DCS or safety system is intact after the maintenance window.

In multi-machine installations, also inspect nearby 330103 series thrust position transducers and 330106 series velocity transducers if they share the same wiring tray or terminal strip — mechanical disturbance during probe replacement can loosen adjacent connections. Terminal blocks and DIN rail-mounted signal isolators in the same cabinet should be visually inspected for loose terminations, especially in high-vibration environments.

For facilities running legacy 3300 Series (non-XL) monitors alongside newer 3500 racks, confirm that the 330101-00-68-10-12-05 is being installed in an XL-compatible channel. Mixed-generation systems require careful compatibility verification before energizing the new probe.

Stocking one spare 330101-00-68-10-12-05 per critical machine train, alongside a matched extension cable and a spare proximitor, is the recommended minimum inventory posture for facilities with no on-site repair capability. This three-component kit enables full loop restoration without waiting for procurement, reducing mean time to repair (MTTR) to under two hours in most field scenarios.

Site Replacement Workflow

Step 1 — Isolate and de-energize: Remove power from the proximitor driver circuit at the rack. Confirm the channel is in bypass or inhibit mode in the monitoring system to prevent spurious trips during the swap.

Step 2 — Remove the old transducer: Loosen the locknut and unthread the probe from the bracket. Note the installed gap (typically measured with a feeler gauge or by reading the gap voltage before removal) to use as a reference for the new installation.

Step 3 — Install the 330101-00-68-10-12-05: Thread the new probe into the bracket and adjust to achieve the target gap voltage (typically -10 to -12 VDC for mid-range linear operation). Tighten the locknut to the OEM-specified torque. Reconnect the extension cable and verify connector seating.

Step 4 — Restore power and verify: Re-energize the proximitor circuit and confirm the gap voltage is within the linear range. Check the monitor channel for OK status and verify that vibration readings are stable and within expected baseline values. Clear the inhibit/bypass and return the channel to normal monitoring.

Step 5 — Document and close out: Record the new gap voltage, installation date, and part number in the equipment maintenance log. Update the spare parts inventory to trigger replenishment of the consumed unit.

This workflow applies equally to planned turnaround replacements and emergency field swaps, and is compatible with both 3300 XL and 3500 Series monitoring architectures.

Spare Parts Support FAQ

Q: Is the 330101-00-68-10-12-05 compatible with both 3300 XL and 3500 Series monitors?
A: Yes. The 3300 XL 8mm transducer system is designed to interface with both 3300 XL Proximitor Sensors and 3500 Series rack monitors. Always verify the sensitivity constant (7.87 V/mm) is correctly configured in the monitor channel to ensure accurate measurement scaling.

Q: What is included in the 12-month warranty?
A: The 12-month warranty covers manufacturing defects and verified functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing. Warranty claims are supported with replacement or refund, subject to inspection of the returned unit.

Q: How should this transducer be stored as a long-term spare?
A: Store in the original packaging or an ESD-safe bag in a dry, temperature-controlled environment (10°C to 40°C). Avoid exposure to strong magnetic fields or mechanical shock. Inspect connector pins and probe tip for corrosion before installation if stored for more than 12 months.

Q: Can this unit replace older 330101 non-XL variants?
A: The 330101-00-68-10-12-05 is an XL-series part. Compatibility with non-XL 3300 Series systems depends on the specific proximitor model in use. Consult the Bently Nevada system compatibility matrix or contact our technical team to confirm interchangeability before installation in legacy systems.
