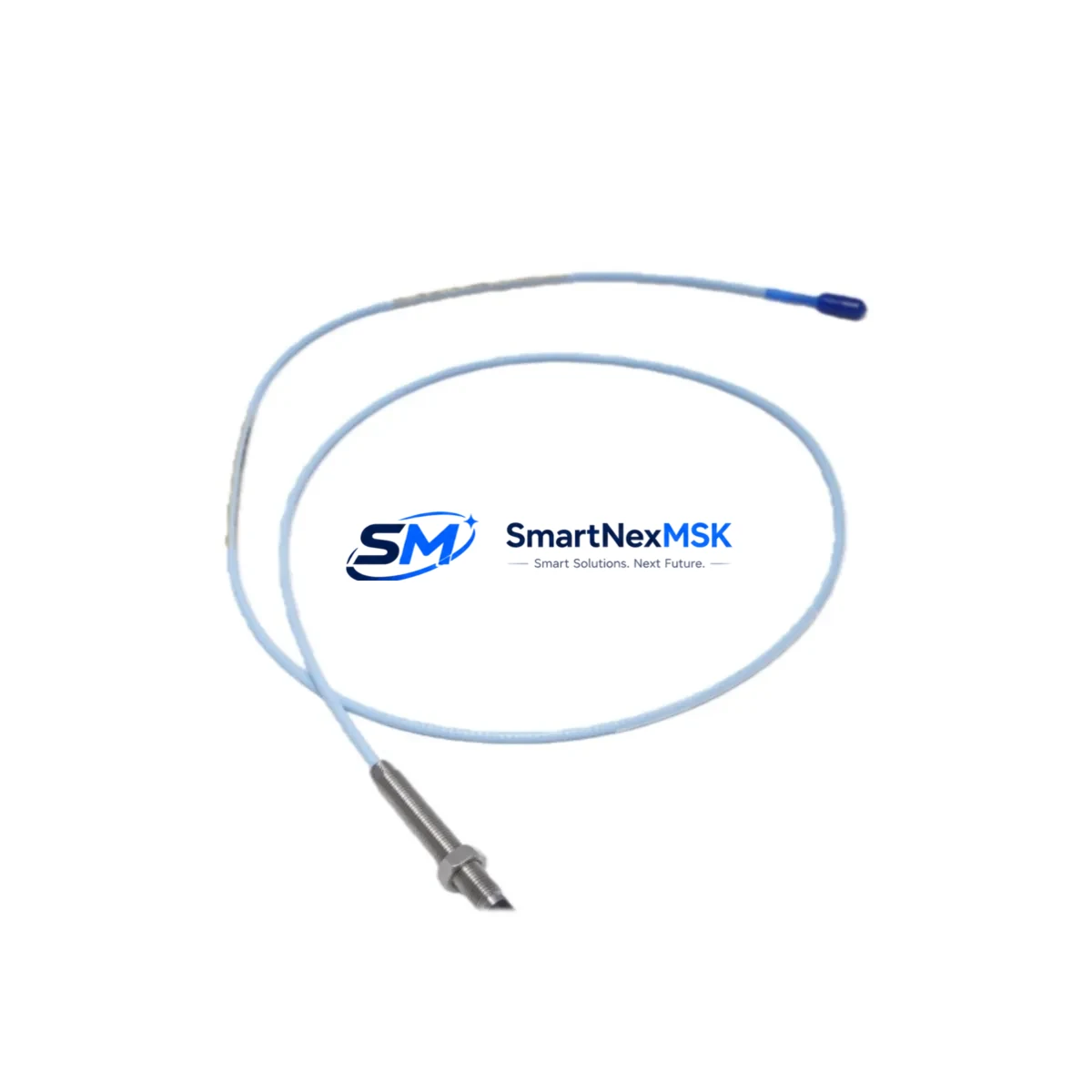

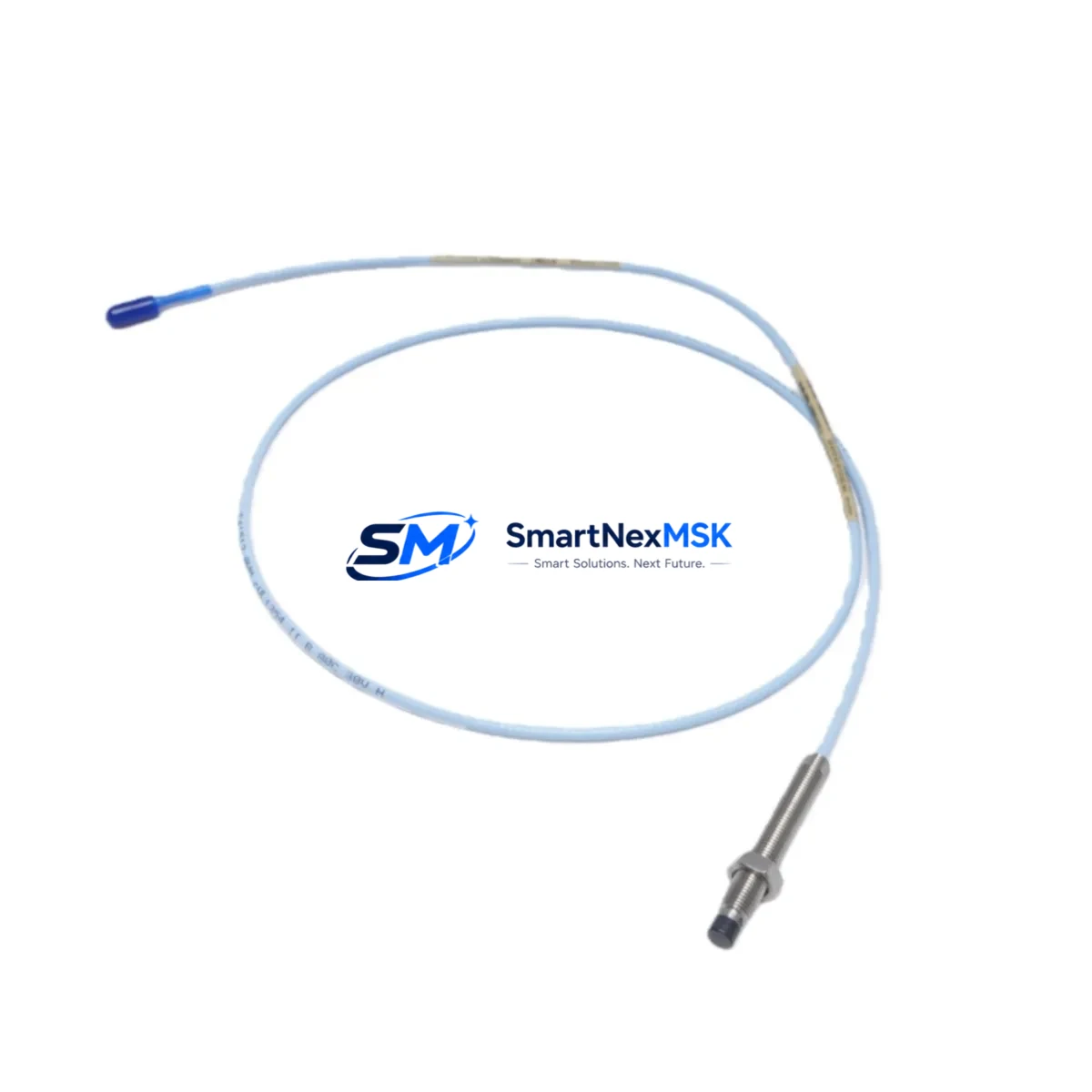

Bently Nevada 330101-00-72-20-02-CN Safety Proximity Probe

Bently Nevada 330101-00-72-20-02-CN Safety-Enhanced Proximity Probe for Harsh Industrial Sites

The Bently Nevada 330101-00-72-20-02-CN is an 8mm proximity probe from the 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably under high electromagnetic interference, extreme temperature cycling, and mechanical vibration, this probe is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, and heavy manufacturing facilities. When a critical machine trips or a vibration alarm activates, the integrity of the proximity probe is the first line of defense — and the 330101-00-72-20-02-CN is built to hold that line.

Maintenance engineers and reliability teams operating Bently Nevada 3300 Series monitoring systems understand that probe replacement is not simply a parts swap — it is a safety-critical intervention. The -CN suffix designation indicates a ruggedized cable configuration optimized for confined installations and high-vibration cable routing environments, making this probe particularly well-suited for turbine bearing housings, compressor pedestals, and pump seal monitoring points where cable management is constrained and signal integrity is non-negotiable.

Every unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification, including tip sensitivity check, cable continuity, and connector integrity inspection. Units are dispatched with full traceability documentation and backed by a 12-month warranty covering manufacturing defects and functional performance. Long-term supply continuity is maintained through established sourcing channels, ensuring that facilities running legacy 3300 XL systems can secure replacement probes without forced system upgrades.

Safety Reliability Table

Control Cabinet Protection Strategy

Replacing the 330101-00-72-20-02-CN in a live protection system requires a disciplined approach to control cabinet integrity. Maintenance engineers should treat this intervention as a full loop verification exercise, not a simple probe swap. Before and after replacement, the associated 3300 XL Proximitor Sensor — typically a 330180 or 330181 series unit — must be verified for correct bias voltage output and scale factor calibration. A drifting or failed Proximitor will produce erroneous gap readings even with a new probe installed, leading to nuisance trips or, more dangerously, missed alarm conditions.

The extension cable connecting the probe to the Proximitor, commonly a 330130 series cable in lengths from 5 to 9 meters, is a frequent source of signal degradation in high-vibration environments. Cable jacket abrasion, connector corrosion, and shield continuity breaks are all failure modes that should be inspected during any probe replacement. Similarly, the Proximitor power supply — typically a dedicated ±24 VDC rail within the 3500 or 3300 rack — should be checked for voltage stability and ripple, as power supply noise directly corrupts proximity signal quality.

Within the 3500 Series monitoring rack, the 3500/42M Proximitor/Seismic Monitor module processes signals from the 3300 XL probe system. After probe replacement, the channel should be re-zeroed and the gap voltage confirmed within the linear operating range before the machine is returned to service. The 3500/20 rack power supply and 3500/15 I/O module terminal connections should also be inspected for tightness and corrosion, particularly in humid or chemically aggressive environments.

For facilities using the System 1 condition monitoring platform, probe replacement events should be logged and the new baseline vibration signature captured immediately after startup. Any deviation from the pre-replacement trend should be investigated before assuming the new probe is performing correctly. Surge protection devices on the signal wiring, such as Bently Nevada’s own transient protection modules, should be checked for continuity as part of the cabinet inspection protocol.

Critical Industrial Safety Applications

The 330101-00-72-20-02-CN proximity probe is deployed across a wide range of safety-critical rotating machinery applications. In petrochemical and refinery environments, it monitors radial shaft vibration on centrifugal compressors, where an undetected bearing failure can escalate to a catastrophic seal breach and process gas release. The probe’s ability to maintain calibrated output across the full operating temperature range — from cold startup to sustained high-load operation — is essential for API 670 compliant machinery protection systems.

In power generation facilities, this probe is commonly installed on steam turbine bearing pedestals and generator shaft monitoring points. The continuous, non-contact measurement principle eliminates wear-related drift, providing a stable reference for the turbine protection system’s overspeed and high-vibration trip logic. Any interruption in probe signal — whether from cable damage, connector failure, or probe tip contamination — must be treated as a safety event requiring immediate investigation.

Mining and mineral processing operations rely on this probe series for monitoring large ball mill drives, crusher main shafts, and conveyor drive gearboxes. The ruggedized -CN cable configuration is particularly valued in these environments, where cable routing through cable trays shared with high-current motor feeders creates significant EMI exposure. Water treatment and desalination facilities use the 3300 XL system on high-speed pump trains, where the probe’s compact 8mm tip diameter allows installation in tight bearing housing access ports.

Metallurgical and steel mill applications present some of the harshest operating conditions for proximity probes — high ambient temperatures, airborne metallic particles, and intense electromagnetic fields from arc furnaces and induction heating systems. The 330101-00-72-20-02-CN’s shielded cable construction and robust tip assembly make it a reliable choice for continuous caster drive monitoring and rolling mill main drive shaft surveillance in these environments.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330101-00-72-20-02-CN?
The 12-month warranty covers all manufacturing defects and functional performance failures under normal operating conditions consistent with the 3300 XL system specification. This includes probe tip sensitivity, cable integrity, connector performance, and scale factor accuracy. Units that fail pre-shipment testing are not dispatched. If a warranty claim arises, SMARTNEXMSK provides replacement or full refund support with documented failure analysis upon request.

Q2: How is each unit tested before shipment?
Every 330101-00-72-20-02-CN unit undergoes a pre-shipment inspection protocol covering tip sensitivity verification, cable continuity and shield integrity check, connector condition assessment, and physical inspection for tip damage or cable jacket defects. Units are individually packaged with anti-static protection and shipped with traceability documentation. Test records are retained and available upon request for quality-critical procurement processes.

Q3: Is this probe compatible with existing 3300 XL extension cables and Proximitor sensors already installed on site?
Yes. The 330101-00-72-20-02-CN is fully compatible with the 3300 XL 8mm system architecture, including 330130 series extension cables and 330180/330181 series Proximitor sensors. The -CN cable configuration uses the standard coaxial connector interface. Before installation, confirm that the existing Proximitor bias voltage is within specification and that the extension cable shows no continuity or shield faults. No recalibration of the Proximitor is required if the replacement probe is the same model.

Q4: Can SMARTNEXMSK support long-term supply for facilities running legacy 3300 XL systems?
Yes. SMARTNEXMSK maintains ongoing sourcing for the full 3300 XL probe and transducer system product family, including probes, extension cables, and Proximitor sensors. For facilities managing planned maintenance schedules or building strategic spare parts inventories, volume procurement and reserved stock arrangements are available. Contact our technical sales team to discuss multi-unit pricing, lead times, and long-term supply agreements tailored to your maintenance planning cycle.
