Bently Nevada 330101-00-77-15-02-05 Safety Proximity Transducer

Bently Nevada 330101-00-77-15-02-05 Safety-Enhanced Proximity Transducer for Harsh Industrial Sites

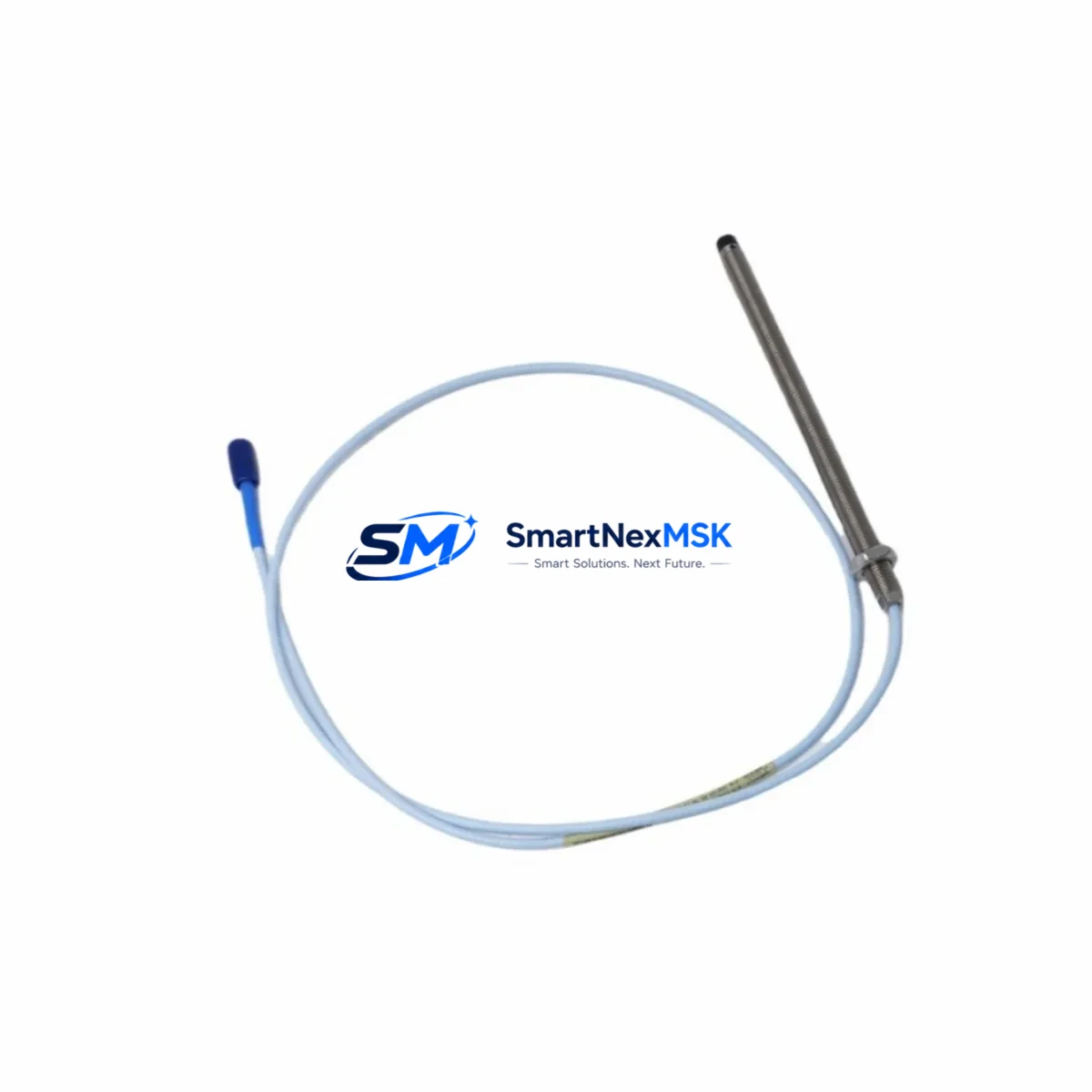

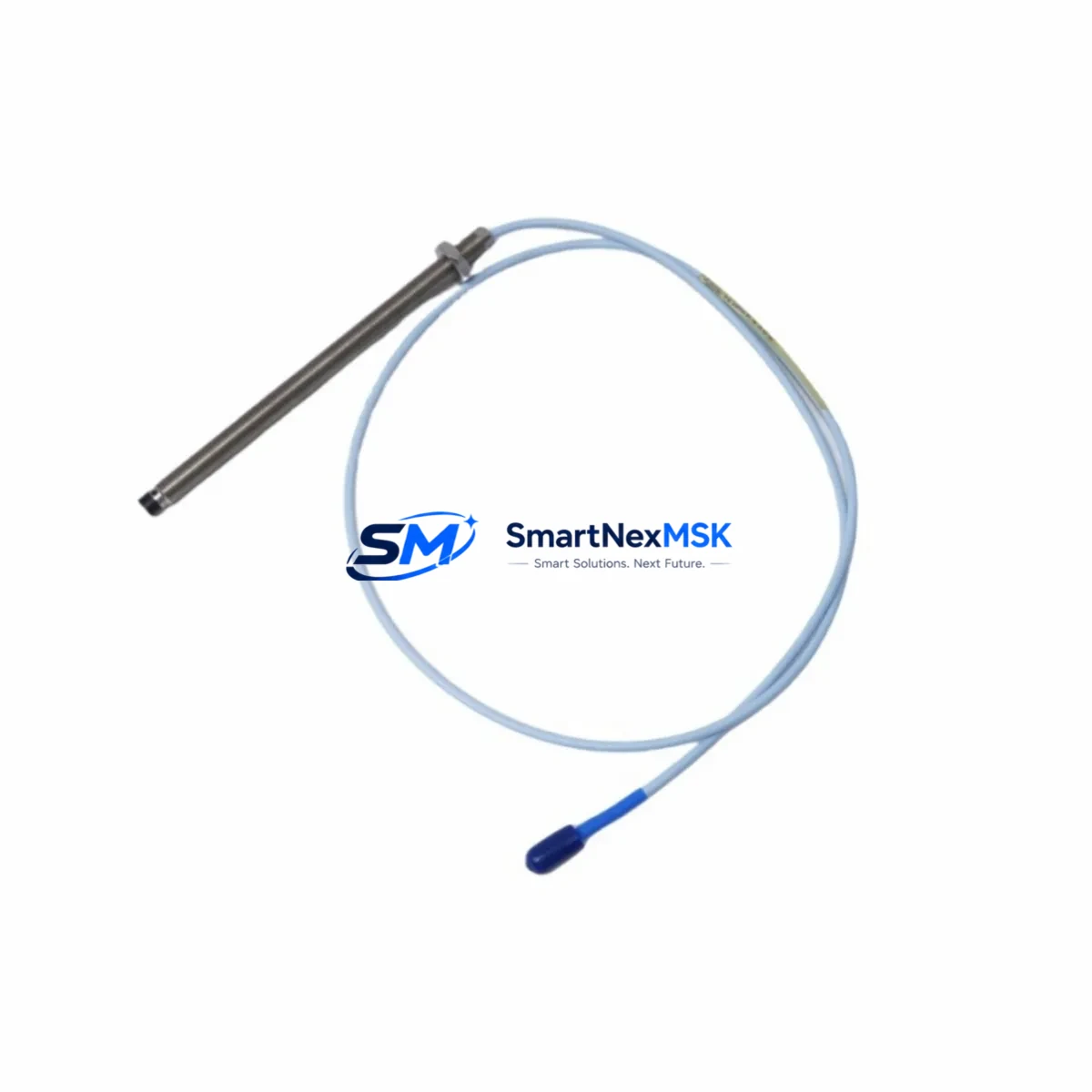

The Bently Nevada 330101-00-77-15-02-05 is an 8mm eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered to deliver continuous, high-integrity shaft vibration and position monitoring in the most demanding industrial environments. Whether deployed in rotating machinery protection systems at petrochemical complexes, power generation turbines, mining hoists, or metallurgical process lines, this transducer is a critical first line of defense against catastrophic mechanical failure. Its ruggedized construction and precision signal output make it indispensable in any control cabinet or safety interlock loop where measurement accuracy and uptime are non-negotiable.

In high-load, high-interference production environments, signal integrity is everything. The 330101-00-77-15-02-05 is designed to resist electromagnetic interference (EMI), radio-frequency interference (RFI), and ground loop noise — common threats in heavy industrial control cabinets housing variable frequency drives, contactors, and high-current bus bars. Its shielded cable assembly and precision-wound sensing coil maintain stable output even when installed adjacent to high-power switching equipment, dramatically reducing the risk of signal drift that could trigger false trips or, worse, mask genuine machinery faults.

Safety Reliability Table

Control Cabinet Protection Strategy

Reliable machinery protection is never the result of a single component — it is the outcome of a carefully integrated system. The 330101-00-77-15-02-05 proximity transducer operates as part of a broader Bently Nevada 3300 XL monitoring architecture, working in concert with the Bently Nevada 3300/16-24-01-01-00-00 dual-channel vibration monitor to process raw proximity signals into actionable trip and alarm outputs. The monitor’s relay outputs feed directly into the plant’s safety instrumented system (SIS) or emergency shutdown (ESD) logic, ensuring that abnormal shaft displacement triggers a controlled machine trip before bearing damage or seal failure can escalate to a process safety event.

Power supply stability is equally critical. Transducer signal chains are vulnerable to power rail noise and voltage sag. Pairing this transducer system with a Bently Nevada 3300/05-01-00-00 power supply module — or an equivalent redundant 24 VDC industrial power supply with low ripple output — ensures the driver electronics maintain consistent bias voltage, preventing false readings caused by supply fluctuation. In cabinets where multiple I/O modules share a common rail, installing a dedicated DC/DC isolation module upstream of the transducer driver is a recognized best practice for critical loop integrity.

For installations in hazardous classified areas (Zone 1 / Zone 2 or Class I Division 1 / Division 2), the transducer’s signal cable must be routed through Bently Nevada-approved intrinsic safety barriers or galvanic isolators before entering the safe-area control cabinet. Zener barriers or active isolators — such as those from the MTL 728x series or equivalent — limit fault energy in the field circuit, maintaining ATEX / IECEx compliance and protecting both personnel and equipment in the event of a cable fault or insulation breakdown.

Within the control cabinet, proper cable segregation is essential. The transducer’s low-level analog signal cable (typically operating at –24 VDC bias with millivolt-level AC vibration signals) must be physically separated from high-voltage AC power wiring and pulse-width modulated drive outputs. Using dedicated shielded cable trays and grounding the cable shield at a single point — typically at the 3300 XL monitor chassis — eliminates ground loops that would otherwise introduce 50/60 Hz hum into the vibration spectrum, corrupting diagnostic data and potentially masking real fault signatures.

For comprehensive rotating equipment protection, the 330101-00-77-15-02-05 is commonly deployed alongside Bently Nevada 330180-91-00 extension cables, 330130-045-00-00 proximitor sensors (driver electronics), and 3300 XL 11 mm proximity transducer assemblies for radial and axial measurement on the same shaft. Together, these components form a complete API 670-compliant vibration monitoring loop capable of detecting shaft imbalance, misalignment, oil whirl, rubs, and other mechanical anomalies before they progress to failure.

Critical Industrial Safety Applications

The 330101-00-77-15-02-05 proximity transducer is deployed across the full spectrum of heavy industry wherever rotating machinery protection is mandated by process safety standards or regulatory requirements.

In petrochemical and refinery environments, it monitors compressor and pump shaft vibration in API 670-compliant protection systems, providing the early warning necessary to prevent unplanned shutdowns that can cost tens of thousands of dollars per hour in lost production — or, in worst-case scenarios, trigger a process safety incident involving flammable or toxic media.

At power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the transducer is installed on turbine and generator shafts to detect sub-synchronous oscillations, bearing wear, and rotor eccentricity. Its wide frequency response (DC to 10 kHz) captures both slow-roll runout data during startup and high-frequency fault signatures during full-load operation, supporting both condition monitoring and hard-wired trip functions.

In mining and mineral processing operations, where equipment operates under extreme mechanical loads, high ambient vibration, and aggressive dust and moisture exposure, the IP67-rated stainless steel housing of the 330101-00-77-15-02-05 ensures reliable operation without sensor degradation. Hoist motors, ball mills, and crusher drives all benefit from continuous proximity monitoring to prevent catastrophic mechanical failure in remote or difficult-to-access locations.

For water and wastewater treatment facilities, the transducer supports pump and blower protection in critical process trains where unplanned downtime directly impacts public health compliance. Its compatibility with the 3300 XL monitor system allows integration with plant DCS platforms — including Emerson DeltaV and Honeywell Experion — via standard 4–20 mA or Modbus interfaces, enabling centralized condition monitoring without dedicated standalone systems.

In metallurgical and steel production plants, continuous casting machines, rolling mill drives, and induction furnace cooling pumps rely on proximity transducers to maintain process continuity. A single undetected bearing failure in a continuous caster can result in a breakout event with severe safety and financial consequences. The 330101-00-77-15-02-05, as part of a properly configured Bently Nevada protection system, provides the real-time shaft position data needed to prevent such events.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is it supported?
The 12-month warranty covers all defects in materials and workmanship from the date of shipment. If the unit fails under normal operating conditions within the warranty period, we will provide a replacement or full refund. Our technical team is available to assist with failure analysis documentation if required for your plant’s maintenance records or insurance purposes.

Q2: How is the 330101-00-77-15-02-05 tested before shipment?
Every unit undergoes pre-shipment functional verification, including bias voltage output check, sensitivity calibration confirmation, and cable continuity and insulation resistance testing. Units that do not meet Bently Nevada factory specifications are quarantined and not shipped. A test report is available upon request for critical applications requiring documented traceability.

Q3: Is this transducer compatible with existing Bently Nevada 3300 XL monitor systems in the field?
Yes. The 330101-00-77-15-02-05 is a direct form-fit-function replacement for all standard 8mm, 5m cable, 3300 XL Series proximity transducer assemblies. It is compatible with the full range of Bently Nevada 3300 XL monitors and proximitor drivers without requiring recalibration of the monitor system, provided the existing system is configured for the standard 7.87 V/mm sensitivity. Always verify your monitor’s input configuration before installation.

Q4: Can long-term supply be guaranteed for maintenance and spare parts programs?
We maintain standing inventory of the 330101-00-77-15-02-05 and related 3300 XL Series components to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. For plants operating under a critical spare parts program or turnaround maintenance schedule, we recommend contacting our sales team to discuss reserved stock arrangements and lead-time commitments tailored to your facility’s maintenance calendar.
