Bently Nevada 330101-00-77-15-02-CN: Retrofit-Ready 3300 XL Proximity Probe for Legacy Control System Upgrades

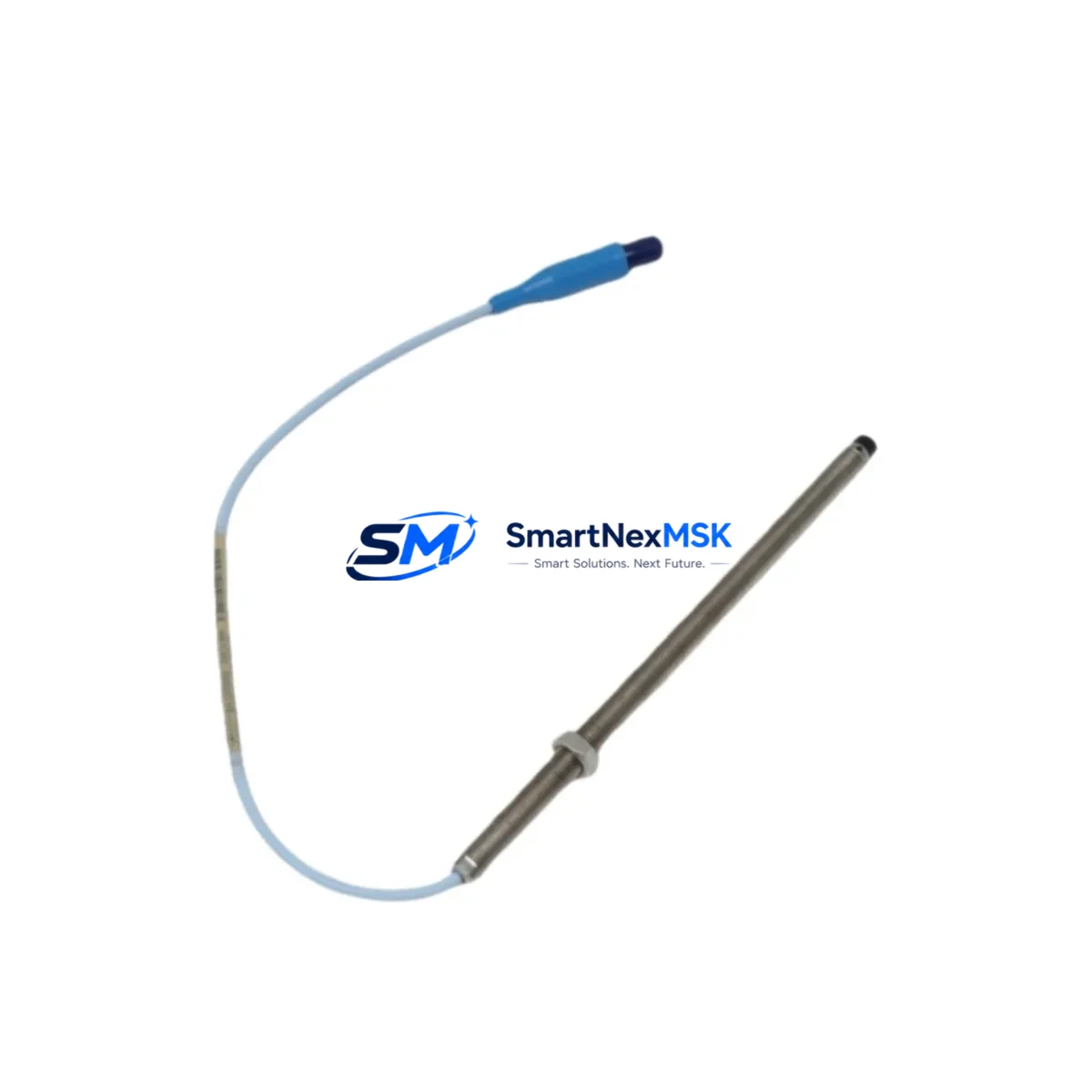

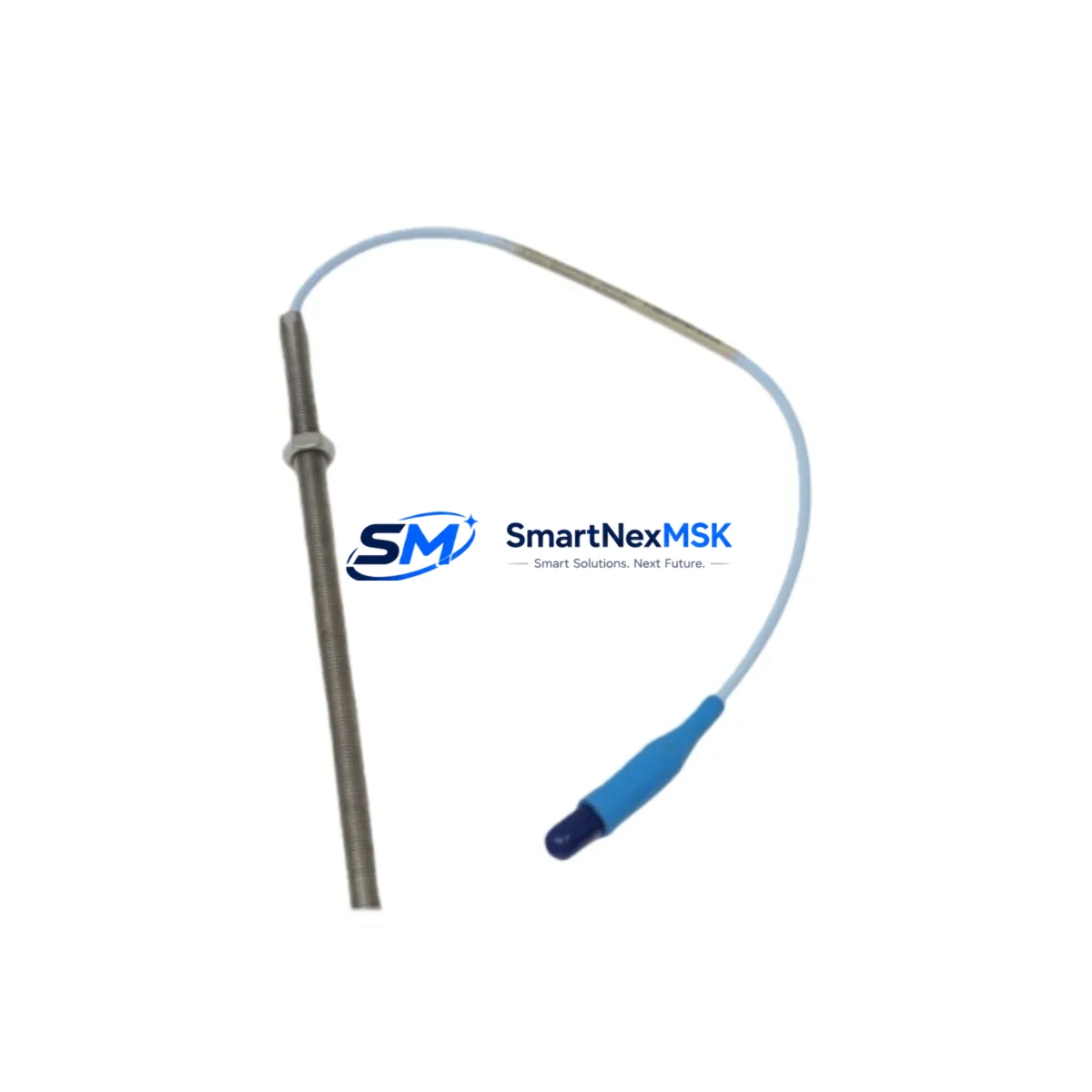

The Bently Nevada 330101-00-77-15-02-CN is an 8mm eddy-current proximity probe engineered for seamless integration into existing 3300 XL Series vibration monitoring systems. Whether you are replacing a failed sensor on a critical rotating machine, upgrading an aging condition monitoring network, or restoring a decommissioned turbine protection loop, this probe delivers the dimensional accuracy, signal linearity, and connector compatibility required for a drop-in retrofit without reprogramming the host monitor or rewiring the field junction box.
Industrial facilities running legacy Bently Nevada 3300 Series infrastructure frequently encounter obsolescence challenges: original probes wear out, spare parts inventories are depleted, and OEM lead times stretch beyond acceptable maintenance windows. The 330101-00-77-15-02-CN addresses this directly. Its 15 mm body length, 2-metre integral cable, and standard TNC connector match the mechanical and electrical footprint of the original factory-installed sensor, allowing maintenance teams to complete a like-for-like swap during a planned outage or emergency shutdown without modifying the 3300 XL proximitor driver, the 3500/42M machinery protection monitor rack, or the DCS historian tag configuration.
Before installation, engineers should verify the following parameters against the existing system documentation: supply voltage to the proximitor (typically –24 VDC from the 3500 rack power supply), the gap voltage calibration range (–10 VDC at 2.0 mm nominal gap for steel targets), the scale factor (7.87 V/mm for standard 3300 XL drivers), and the OK/Not-OK relay setpoints configured in the 3500/42M monitor card. If the machine train uses a 3300/16 proximitor or an earlier 3300/05 driver, confirm that the replacement probe’s sensitivity curve is compatible before closing the loop. In most cases, the 330101-00-77-15-02-CN is electrically interchangeable with probes used alongside the 3300/16-02-01-00 proximitor and the 3500/42M monitor without any firmware or calibration changes.
Upgrade Compatibility Table
| Parameter | 330101-00-77-15-02-CN | Retrofit Notes |
|---|---|---|
| Probe Diameter | 8 mm | Matches standard 3300 XL 8 mm probe bore; no re-machining required |
| Cable Length | 2 m (integral) | Pair with 330130-045-00-00 extension cable for longer runs |
| Connector Type | TNC (male) | Direct mate to 3300/16 and 3300/05 proximitor input; no adapter needed |
| Supply Voltage | –24 VDC | Sourced from 3500 rack 3500/15 power supply module; verify rail capacity |
| Scale Factor | 7.87 V/mm | Compatible with 3300 XL driver calibration; no re-scaling in 3500/42M |
| Target Material | Steel (AISI 4140 reference) | Confirm target material; non-standard alloys require gap recalibration |
| Monitor Compatibility | 3500/42M, 3500/40M | Verify I/O module slot address and channel assignment in rack configuration |
| Communication Protocol | Analogue (4–20 mA / voltage) | DCS integration via 3500 gateway; no protocol migration required |
| Installation Standard | API 670 compliant | Suitable for turbines, compressors, pumps, and gearboxes |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment functional test report |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the 330101-00-77-15-02-CN into an operating plant begins well before the maintenance window opens. Start by pulling the existing loop drawing to confirm the probe-to-proximitor cable routing, the junction box terminal block assignments, and the shield grounding scheme. The 3300 XL system uses a coaxial signal path: the centre conductor carries the oscillator signal from the 3300/16-02-01-00 proximitor driver, while the outer shield is grounded at the proximitor end only. Any ground loop introduced during re-cabling will corrupt the gap voltage reading and trigger nuisance trips on the 3500/42M monitor.
If the retrofit scope extends beyond a single probe replacement—for example, when upgrading an entire machine train from 3300 Series to a newer 3500 Series architecture—the planning checklist expands considerably. The 3500/20 rack must be sized to accommodate the required number of 3500/42M vibration monitor cards, the 3500/32 four-channel relay module for trip output, and the 3500/15 power supply with adequate current margin. Each 3500/42M card supports two probe channels, so a four-bearing machine train with X-Y proximity probes at each bearing requires four monitor cards plus one 3500/22M transient data interface card if waveform capture is needed for diagnostics.
For facilities migrating from a legacy DCS that communicated with the 3300 Series via hardwired 4–20 mA signals, the 3500 gateway module (3500/92) provides a Modbus TCP or OPC-DA interface to the new control platform, eliminating the need to rewire every analogue input card in the DCS cabinet. The HMI faceplate for vibration trending will need to be redrawn to reflect the new tag names and engineering unit scaling, but the underlying process variable—shaft displacement in micrometres—remains unchanged, simplifying operator retraining.
During the physical installation, torque the probe tip to the manufacturer’s specification and set the initial air gap to 2.0 mm using a non-ferrous feeler gauge before energising the proximitor. Connect the 330130-045-00-00 extension cable between the probe and the proximitor, verify the gap voltage reads between –9.5 VDC and –10.5 VDC at rest, then confirm the OK relay on the 3500/42M is energised before releasing the machine for run-up. If a 3500/93 communication gateway is installed, verify that the Modbus register map reflects the correct channel-to-tag mapping before the first start.
Downtime Control During System Migration
Minimising unplanned downtime during a proximity probe retrofit requires a structured hot-swap protocol. Where the process permits, bypass the trip function on the affected channel in the 3500/42M monitor before disconnecting the old probe—this prevents a spurious machine trip caused by the open-circuit condition during cable removal. Document the bypass action in the permit-to-work system and set a hard time limit for restoration.
Preserve the original program logic in the safety PLC or DCS controller by exporting a verified backup of the controller project—whether it resides in a Rockwell Automation ControlLogix L7x, a Siemens S7-400H, or an Emerson DeltaV MD-Plus controller—before any field wiring changes begin. This backup becomes the recovery baseline if a communication fault or I/O address conflict is introduced during the retrofit. For systems using a Profibus DP network to carry vibration status words from the 3500 gateway to the PLC, confirm that the GSD file version matches the firmware revision of the 3500/92 gateway after any rack reconfiguration.
Once the new 330101-00-77-15-02-CN probe is installed and the gap voltage is verified, perform a bump test by gently deflecting the shaft by a known amount and confirming that the 3500/42M channel responds with the correct displacement reading before removing the bypass. This single step validates the entire signal chain—probe, cable, proximitor, monitor card, and DCS input—without requiring a full machine run-up, keeping the restoration window as short as possible and protecting the original control logic from unverified changes.
Retrofit Support FAQ
Q1: Is the 330101-00-77-15-02-CN a direct replacement for the original Bently Nevada 330101-00-77-15-02 (without the CN suffix)?
A: Yes. The CN designation indicates country-of-origin documentation for customs compliance. The probe’s mechanical dimensions, electrical characteristics, scale factor, and connector type are identical to the standard 330101-00-77-15-02. It is a drop-in replacement for all 3300 XL Series applications without any modification to the proximitor driver or monitor card settings.
Q2: What wiring checks should be completed before powering up the new probe?
A: Verify that the coaxial cable shield is grounded at the proximitor end only, that the TNC connector is fully seated and finger-tight, and that the supply voltage at the proximitor input terminal measures –24 VDC ±1 VDC. Measure the gap voltage before machine start-up and confirm it falls within the –9.5 to –10.5 VDC window at the nominal 2.0 mm air gap. Any reading outside this range indicates a gap setting error, a target material mismatch, or a wiring fault that must be resolved before the bypass is removed.
Q3: Can this probe be used with a 3500/40M monitor card instead of the 3500/42M?
A: Yes. The 330101-00-77-15-02-CN is compatible with both the 3500/40M and 3500/42M monitor cards. Confirm the channel configuration in the 3500 Rack Configuration Software (RCS) to ensure the correct transducer type (8 mm, 7.87 V/mm) is selected for the channel. No hardware modification is required.
Q4: What does the 12-month warranty cover, and is a test report included?
A: The 12-month warranty covers all manufacturing defects in materials and workmanship from the date of shipment. Every unit undergoes a pre-shipment functional test verifying gap voltage linearity, OK threshold, and cable continuity. A test report is available upon request. Warranty claims are processed through SMARTNEXMSK; contact sales@smartnexmsk.com with the order number and a description of the fault.
