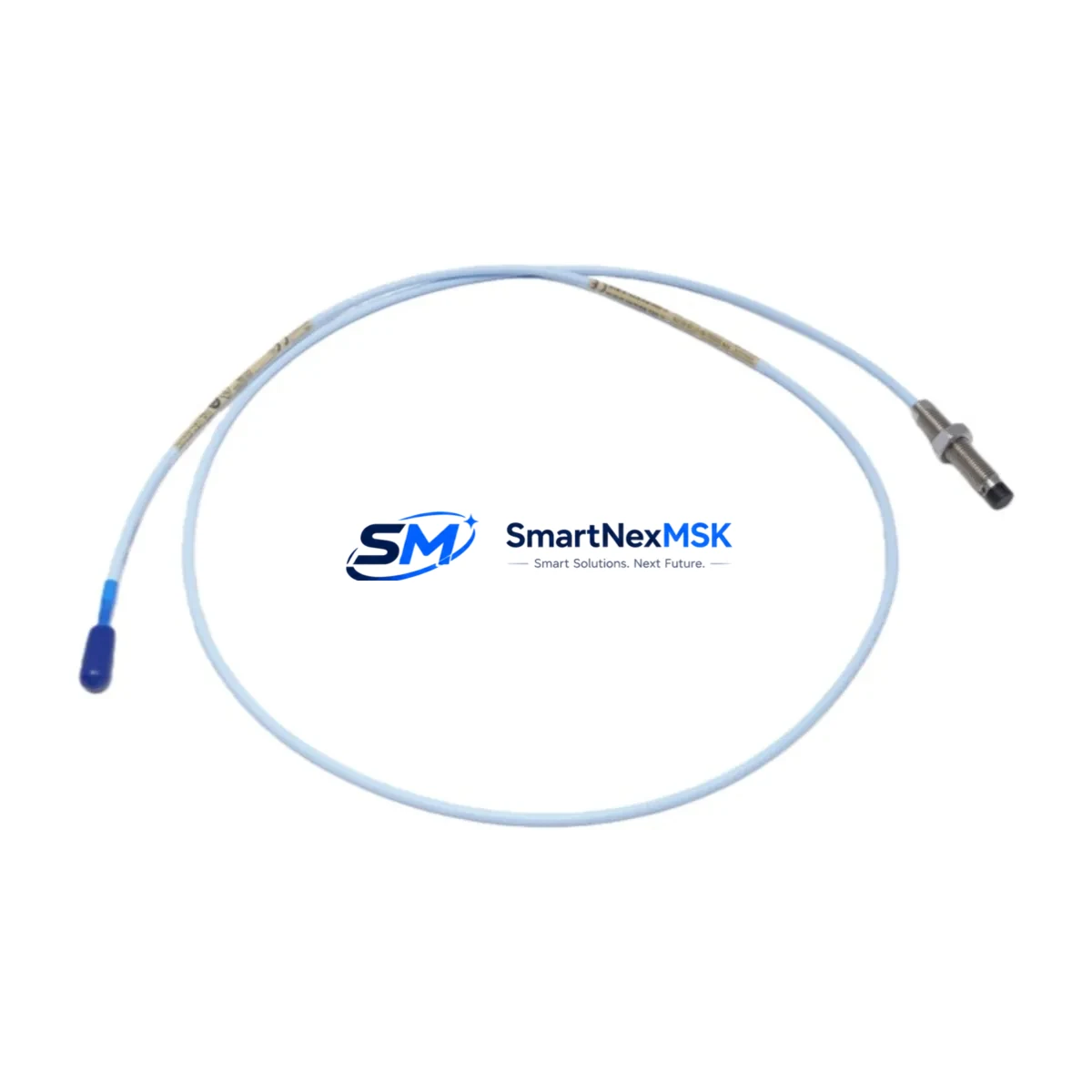

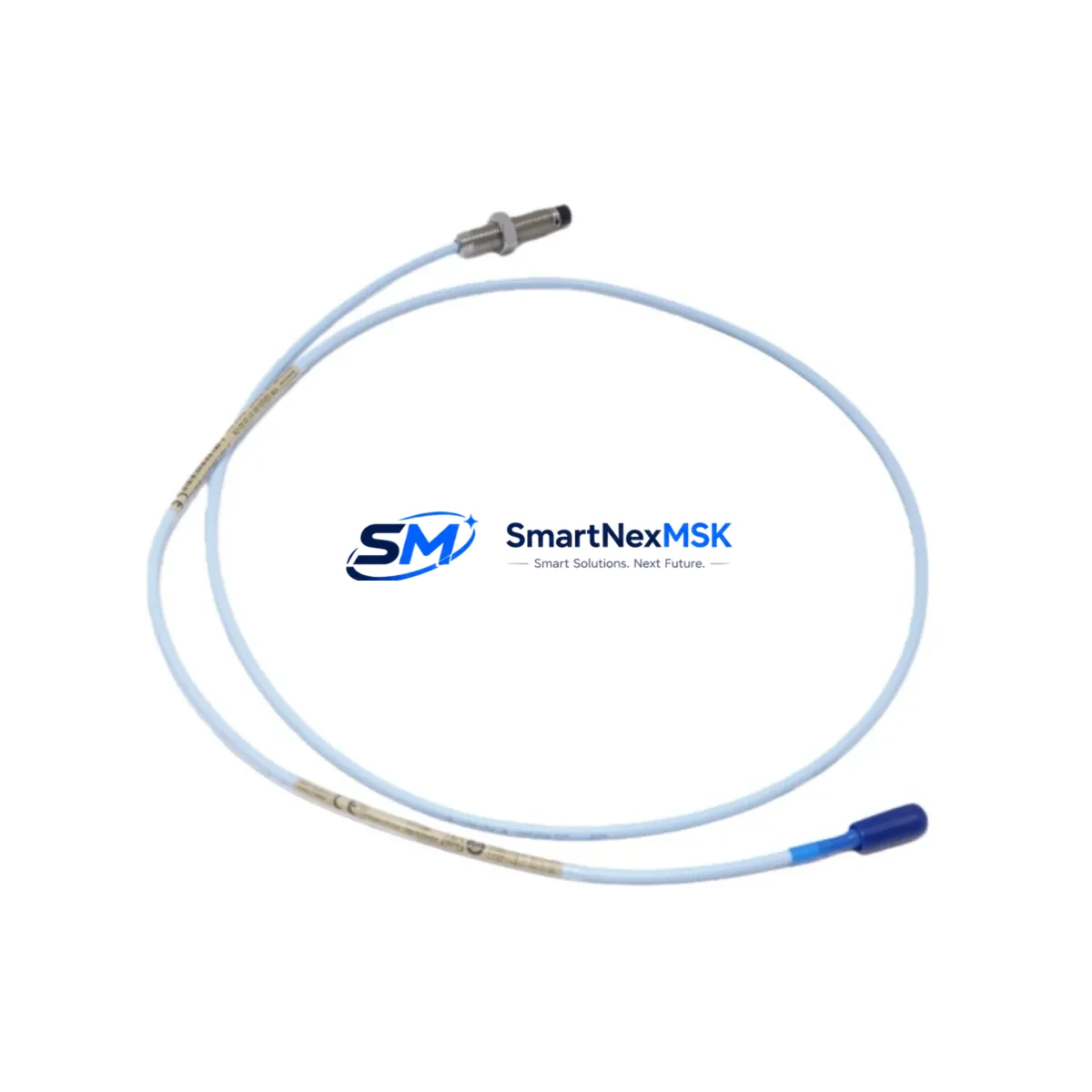

The Bently Nevada 330101-00-77-20-02-CN is an original 8mm proximity probe engineered for the 3300 XL Series continuous vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. For maintenance engineers managing turbines, compressors, pumps, and gearboxes, this probe is a critical field-replaceable unit. Its failure or degradation directly impacts the integrity of radial vibration, axial position, and differential expansion measurements that protect high-value rotating assets from catastrophic damage.

When a proximity probe in a 3300 XL system shows signal dropout, gap voltage drift, or erratic Keyphasor® readings, the fastest path to restoring machine protection is a verified OEM replacement. The 330101-00-77-20-02-CN is designed for direct installation into existing probe holders and conduit runs without modification, minimizing downtime during planned or emergency maintenance windows. Stocking this part as a ready spare in your maintenance inventory is a proven strategy for reducing mean time to repair (MTTR) on critical rotating machinery.

From a procurement standpoint, sourcing original Bently Nevada components ensures full compatibility with the 3300 XL signal conditioning chain — including the 330180-51-05 extension cable and the 330130-040-00-00 proximitor/driver module. Substituting non-OEM probes in this system risks calibration errors, false trips, and voided system certifications. Every unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification and is backed by a 12-month warranty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330101-00-77-20-02-CN probe in the field is rarely an isolated task. A disciplined maintenance engineer will use the opportunity to inspect and verify the condition of the entire signal chain and surrounding cabinet components. Begin with the 330180-51-05 extension cable — connector corrosion, jacket abrasion near conduit entry points, and shield continuity failures are common causes of intermittent gap voltage readings that are often misdiagnosed as probe failure.

Next, verify the 330130-040-00-00 proximitor/driver module seated in the 3300 XL rack. Check the OK relay output and confirm the gap voltage is within the −10 to −18 VDC window after probe installation. If the proximitor has accumulated more than 80,000 operating hours or shows signs of output drift, plan its replacement in the same maintenance cycle.

Inspect the 3300/16 or 3300/20 monitor card in the rack for alarm setpoint integrity and I/O wiring continuity. Loose terminal connections on the monitor card’s field wiring terminals are a frequent source of nuisance trips after probe replacement. While the cabinet is open, audit the 3300 XL power supply module — confirm the −24 VDC rail is within tolerance, as undervoltage will shift the probe’s linear range and produce false readings.

For facilities running Keyphasor® measurements, inspect the 330180 Keyphasor® extension cable and the dedicated Keyphasor® proximitor channel. A degraded Keyphasor® signal will corrupt phase and 1X amplitude data across all channels referencing that trigger. If the machine train includes a 3500/42M position monitor or 3500/45 position monitor, verify that axial position channel gap voltages are within the configured OK limits after any probe work on the same shaft.

In control cabinets housing both vibration monitoring and process I/O, also check signal isolators on any 4–20 mA outputs feeding the DCS — particularly if the cabinet shares a common ground bus. Ground loop interference introduced during probe replacement can affect analog output accuracy. Finally, confirm that terminal block torque values on the field wiring side meet the 3300 XL installation manual specifications before closing the cabinet.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Record the existing gap voltage and OK status from the 3300 XL monitor display or System 1 software before removing the probe. This baseline confirms whether the probe is the actual fault source or whether the issue lies upstream in the extension cable or proximitor.

Step 2 — Isolation and removal: Inhibit the monitor channel at the rack to prevent a false trip during probe removal. Disconnect the extension cable at the probe connector, unthread the probe from the holder, and inspect the holder threads and target area for contamination or mechanical damage.

Step 3 — Installation: Thread the 330101-00-77-20-02-CN into the probe holder to the manufacturer-specified gap (typically 1.0 mm / 40 mil for standard steel targets). Reconnect the 330180 extension cable. Restore monitor channel inhibit.

Step 4 — Gap voltage confirmation: Verify gap voltage at the proximitor output terminal reads within −10 to −18 VDC. Confirm the OK relay is energized. Log the as-left gap voltage in the maintenance record.

Step 5 — System validation: Run the machine at operating speed and confirm 1X vibration amplitude and phase readings are consistent with historical baseline data. If Keyphasor® is present, verify phase reference is stable. Clear any latched alarms and return the channel to normal monitoring mode.

This workflow applies equally to planned turnaround replacements and emergency unscheduled repairs. Using an OEM 330101-00-77-20-02-CN eliminates the recalibration step required when non-standard probes are installed, directly reducing total replacement time and the risk of commissioning errors.

Spare Parts Support FAQ

Q1: Is the 330101-00-77-20-02-CN a direct drop-in replacement for older 330101 series probes?
Yes. The 330101-00-77-20-02-CN is dimensionally and electrically compatible with earlier 330101 series 8mm probes used in 3300 XL systems. No modification to the probe holder, extension cable, or proximitor is required, provided the existing 330180 extension cable is in serviceable condition. Always verify gap voltage after installation.

Q2: What is the recommended spare parts stocking strategy for 3300 XL proximity probe systems?
Industry best practice for critical rotating machinery is to maintain a minimum of one probe-plus-extension-cable set per monitored measurement point as a ready spare. For facilities with multiple identical machines, a pooled spare of 2–3 probe sets per machine type is recommended. Probes stored in original packaging in a climate-controlled environment maintain full specification for up to 10 years.

Q3: How does SMARTNEXMSK verify the condition of spare probes before shipment?
Every 330101-00-77-20-02-CN unit undergoes pre-shipment inspection including visual examination of the probe tip, connector, and cable jacket, plus electrical verification of gap voltage output using a calibrated proximitor test fixture. Units that do not meet OEM specification are rejected. A test report is available upon request.

Q4: What warranty coverage applies to this part?
All units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment, covering manufacturing defects and electrical performance. Warranty claims are supported by our technical team with replacement dispatch within 5 business days of confirmed fault verification. Contact sales@smartnexmsk.com for warranty service.
