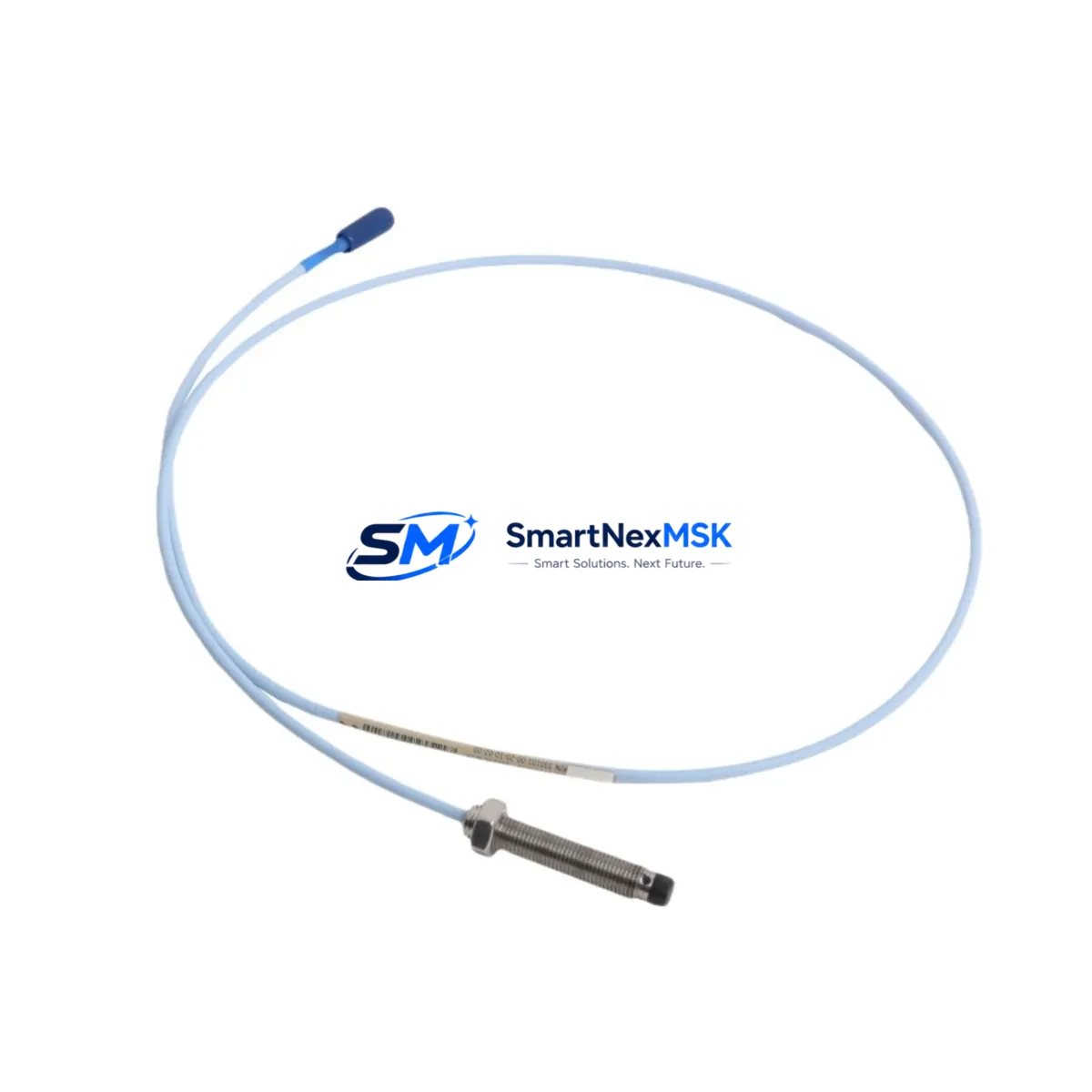

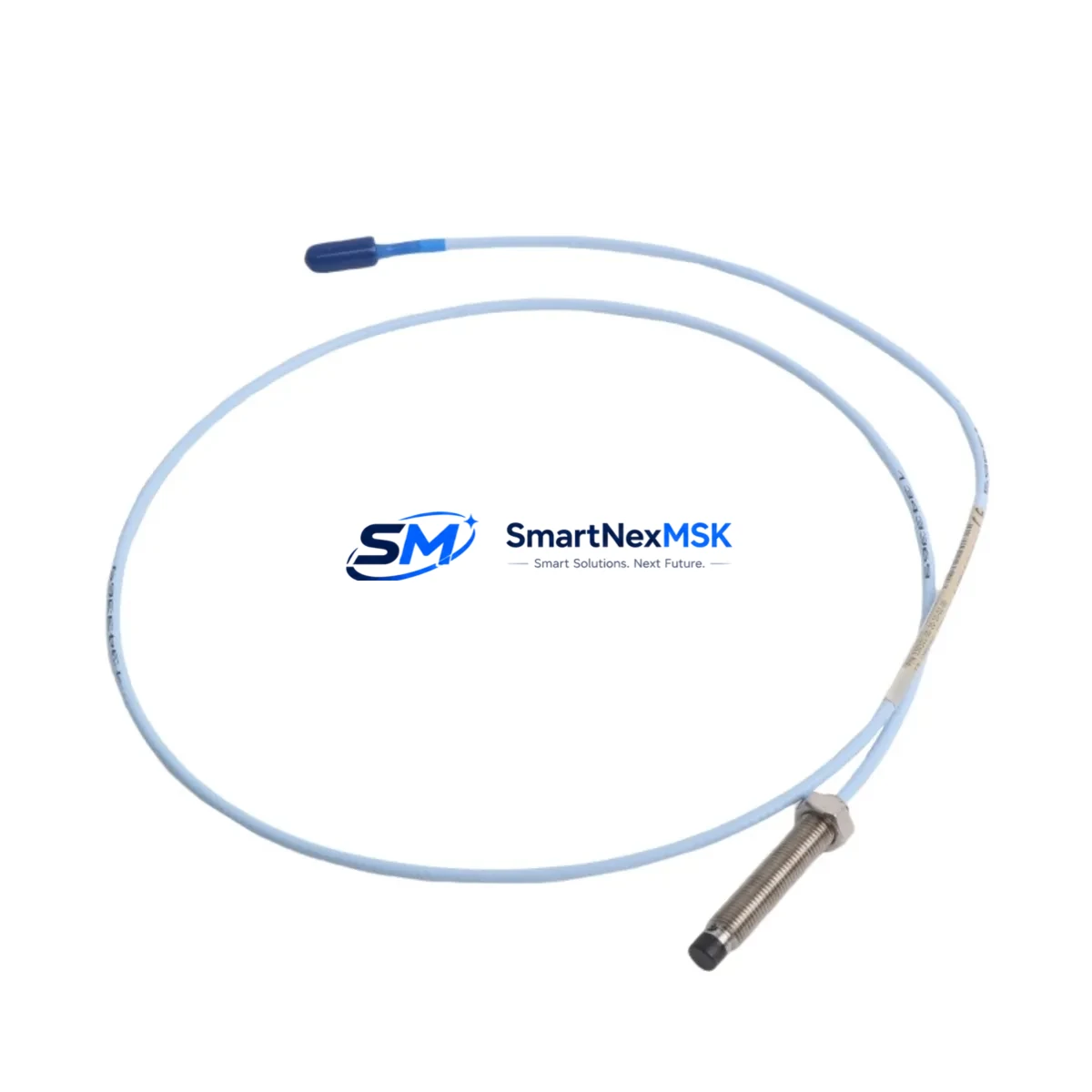

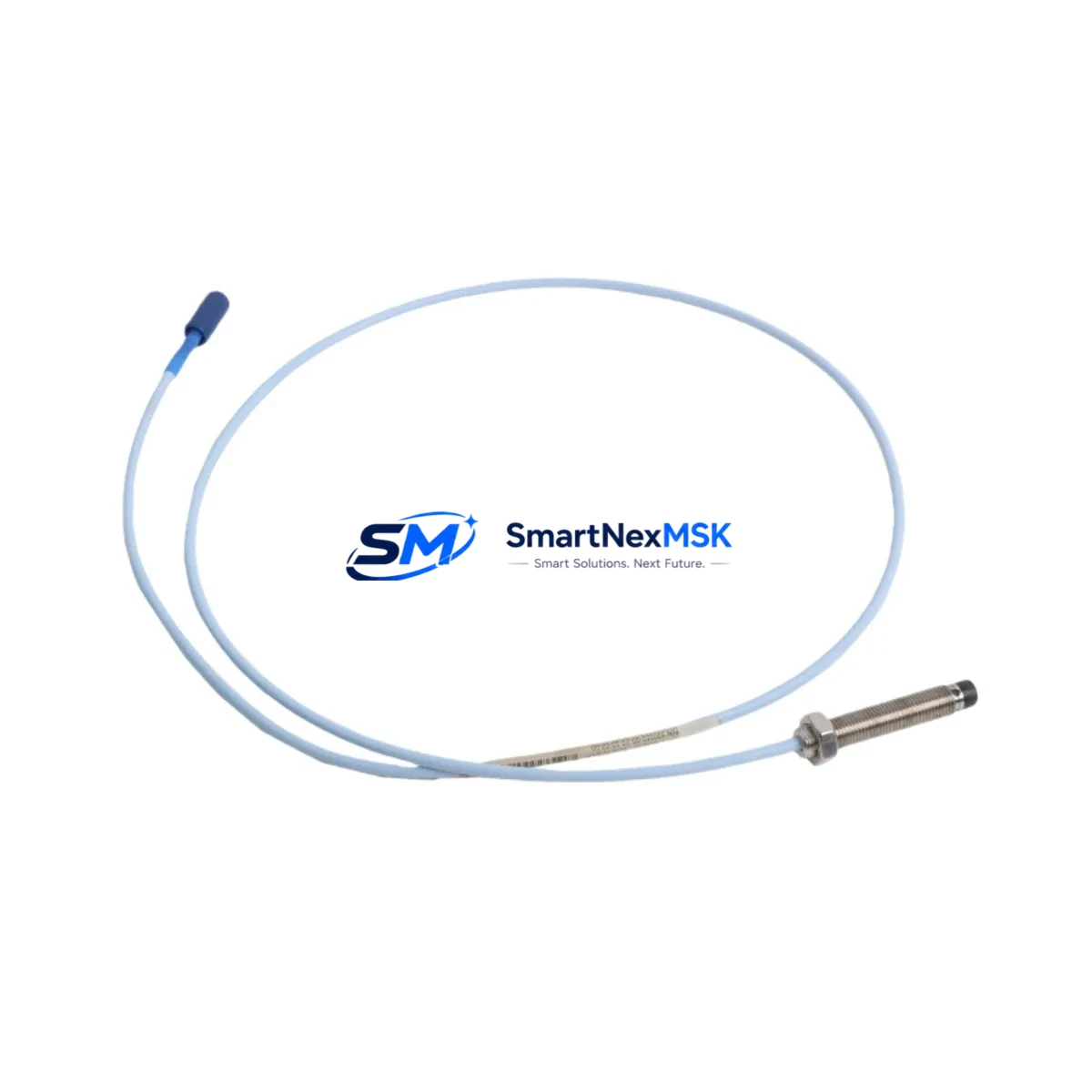

Bently Nevada 330101-00-85-05-01-05 Safety-Enhanced Proximity Probe for Harsh Industrial Sites
The Bently Nevada 330101-00-85-05-01-05 is an 8mm eddy-current proximity probe from the industry-leading 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high-temperature, high-vibration, and electromagnetically noisy conditions, this probe is a cornerstone component in rotating machinery protection systems across petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, port cranes, and continuous process manufacturing lines.
In safety-critical control architectures, signal integrity is non-negotiable. The 330101-00-85-05-01-05 delivers a stable, low-noise output signal that feeds directly into the Bently Nevada 3300 XL Proximitor® Sensor (e.g., 330180-X1-05), which conditions the raw eddy-current signal into a calibrated voltage proportional to gap distance. Together, this probe-and-proximitor pair forms the front-end sensing layer of a complete machinery protection loop — minimizing the risk of signal drift, false trips, and missed alarms that could lead to unplanned shutdowns or catastrophic equipment failure.
When integrated into a Bently Nevada 3500 Series Machinery Protection System, the 330101-00-85-05-01-05 provides the real-time shaft vibration and eccentricity data required by modules such as the 3500/42M Proximitor®/Seismic Monitor and the 3500/22M Transient Data Interface. These rack-mounted modules process the probe signal, apply alarm setpoints, and trigger relay outputs to the plant DCS or safety instrumented system (SIS) — ensuring that any abnormal shaft displacement event is captured and acted upon before mechanical damage propagates.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| SKU / Part Number | 330101-00-85-05-01-05 |
| Brand / Series | Bently Nevada / 3300 XL |
| Probe Type | Eddy-Current (Non-Contact) Proximity Probe |
| Probe Diameter | 8 mm |
| Cable Length | 5 m (integral armored cable) |
| Extension Cable Compatibility | 3300 XL Series Extension Cables (e.g., 330130-045-00-00) |
| Operating Temperature | -35°C to +177°C (probe tip) |
| EMI / RFI Resistance | High — shielded coaxial cable construction |
| Target Material | Steel, Stainless Steel, Inconel (ferromagnetic and non-ferromagnetic) |
| Linear Range | 0.25 mm to 2.54 mm (10 mil to 100 mil) |
| Scale Factor | 7.87 V/mm (200 mV/mil) nominal |
| Safety Application | Shaft radial vibration, axial position, differential expansion, eccentricity |
| Protection Rating | IP67 (probe body); suitable for oil mist, coolant splash, and high-humidity zones |
| Surge / Overvoltage Protection | Integral cable shielding; system-level protection via 3500 rack I/O modules |
| Interchangeability | Direct replacement for legacy 330101 series probes; backward compatible with 3300 and 3300 XL Proximitor® Sensors |
| Outgoing Test | 100% functional test prior to shipment; gap voltage and sensitivity verified |
| Warranty | 12 Months — covers manufacturing defects and functional failure under normal operating conditions |
| Origin | USA (Bently Nevada, a Baker Hughes company) |
| Stock Status | In Stock — available for immediate dispatch |
Control Cabinet Protection Strategy
A robust machinery protection architecture built around the 330101-00-85-05-01-05 extends well beyond the probe itself. In a typical heavy-industrial control cabinet or MCC room, this probe is paired with a Bently Nevada 330180-X1-05 Proximitor® Sensor mounted in a field junction box, which converts the probe’s impedance change into a clean ±24 VDC signal routed back to the control room. The signal cable runs through a dedicated shielded conduit to prevent interference from variable-frequency drives (VFDs), high-current bus bars, and switching power supplies commonly found in the same enclosure.
Within the 3500 protection rack, the signal is received by the 3500/42M Proximitor®/Seismic Monitor, which applies both alert and danger setpoints. The rack’s 3500/15 Power Supply Module provides regulated, redundant DC power to all I/O modules, ensuring that a single power rail fault does not compromise the entire protection system. For plants requiring SIL-rated interlock capability, the relay outputs from the 3500 rack are wired to a Triconex Tricon Safety Controller or equivalent SIS platform, where the vibration trip signal is logically combined with process variables such as lube oil pressure (monitored via a Rosemount 3051 Pressure Transmitter) and bearing temperature (via a Pt100 RTD with a Yokogawa YTA110 Temperature Transmitter) to form a comprehensive machinery trip interlock.
For communication and data historian integration, the 3500 rack’s 3500/92 Communication Gateway Module transmits real-time vibration vectors, gap voltages, and alarm states over Modbus TCP or OPC-DA to the plant DCS — typically a Honeywell Experion PKS or Emerson DeltaV system — where operators can trend shaft centerline plots and detect early-stage bearing wear before it escalates to a forced outage. This end-to-end architecture, anchored by the 330101-00-85-05-01-05 at the sensing layer, is the industry standard for protecting high-value rotating assets such as steam turbines, compressors, pumps, and fans operating in continuous-duty service.
Critical Industrial Safety Applications
The 330101-00-85-05-01-05 is deployed across a wide spectrum of safety-critical industrial sites where unplanned rotating equipment failure carries severe operational, financial, and safety consequences:
Petrochemical & Refinery: Installed on centrifugal compressors and boiler feed pumps in API 670-compliant machinery protection systems. The probe monitors shaft radial vibration continuously, providing the early-warning data needed to schedule predictive maintenance during planned turnarounds rather than emergency shutdowns. In hazardous area installations (Zone 1 / Zone 2), the probe is used in conjunction with Bently Nevada’s intrinsically safe barriers to maintain ATEX / IECEx compliance.
Power Generation: Used on steam turbine shaft trains at coal-fired, gas-fired, and combined-cycle power plants. The probe feeds vibration data to the turbine supervisory instrumentation (TSI) system, where it works alongside thrust position probes and speed sensors to protect the turbine from overspeeds, rubs, and critical resonance events during startup and load transients.
Mining & Mineral Processing: Applied to large SAG mill pinion drives, slurry pump motors, and conveyor head-end drives in underground and open-pit operations. The harsh environment — characterized by heavy dust, water ingress, and mechanical shock — demands the IP67-rated, armored cable construction of the 330101-00-85-05-01-05 to maintain reliable signal transmission over extended service intervals.
Water & Wastewater Treatment: Monitors high-speed centrifugal blowers and vertical turbine pumps in municipal and industrial water treatment facilities. Continuous vibration monitoring prevents bearing failures that would interrupt aeration or pumping processes, with direct consequences for regulatory compliance and public health.
Metallurgy & Steel: Deployed on rolling mill main drives, continuous caster pinch rolls, and blast furnace blower trains. The probe’s wide operating temperature range and resistance to oil mist and scale contamination make it suitable for the extreme thermal and particulate environment of a steel plant.
Port & Heavy Lifting: Used on gantry crane hoist motors and ship-loader conveyor drives where intermittent high-load cycles create vibration signatures that must be trended to predict gearbox and bearing degradation before a load-drop incident occurs.
Safety and Quality FAQ
Q1: What warranty coverage is provided for the 330101-00-85-05-01-05?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a replacement-first policy to minimize your downtime. Documentation including test records and shipment certificates is provided with every order.
Q2: How is each unit tested before shipment?
Every 330101-00-85-05-01-05 probe undergoes a 100% outgoing functional test prior to dispatch. Testing verifies gap voltage output, sensitivity (scale factor), cable continuity, and shield integrity against Bently Nevada factory specifications. A test report is available upon request for quality-assurance documentation purposes.
Q3: Is this probe compatible with existing 3300 and 3300 XL Proximitor® Sensors already installed in the field?
Yes. The 330101-00-85-05-01-05 is fully backward compatible with both the legacy 3300 Series and the current 3300 XL Series Proximitor® Sensors. It is a direct mechanical and electrical replacement for earlier 330101 variants, requiring no recalibration of the Proximitor® sensor or adjustment of the 3500 rack alarm setpoints when used with the same target material and gap distance.
Q4: Can long-term supply continuity be guaranteed for critical spare parts programs?
SMARTNEXMSK maintains dedicated stock of the 330101-00-85-05-01-05 and related 3300 XL Series components to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. For plants operating under a critical equipment spare parts strategy, we recommend establishing a blanket order or consignment stock arrangement to ensure zero lead-time availability when a probe replacement is required during a forced outage.
