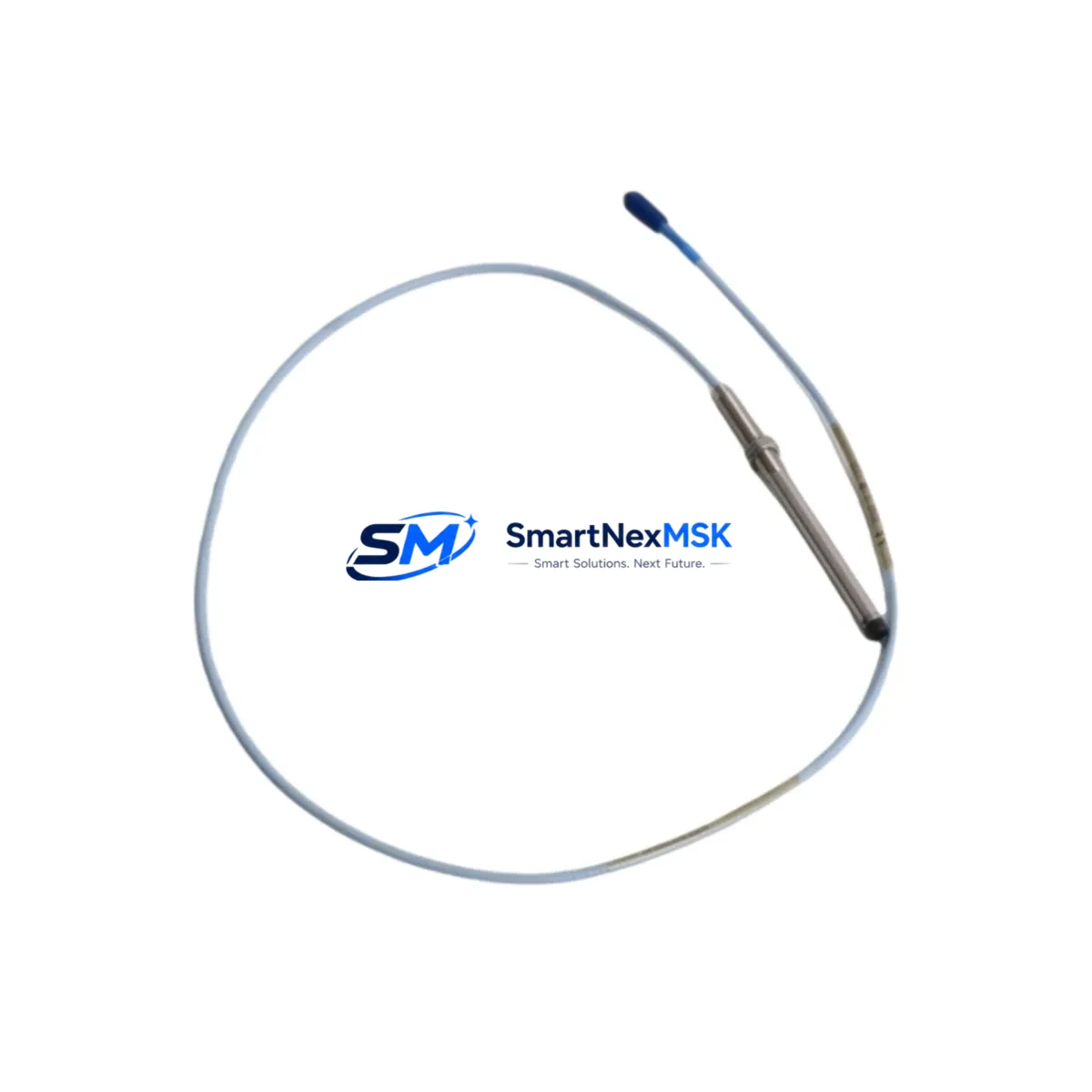

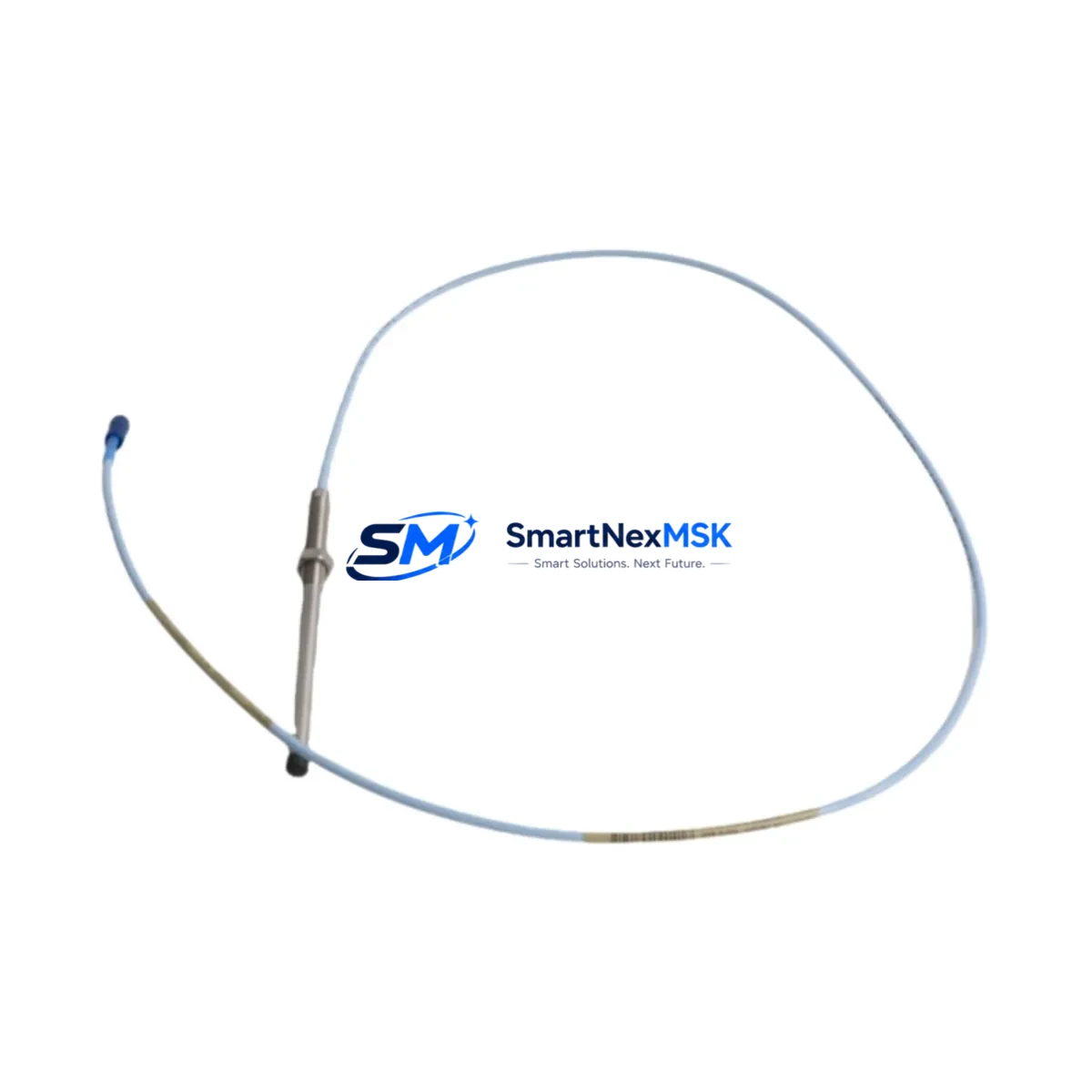

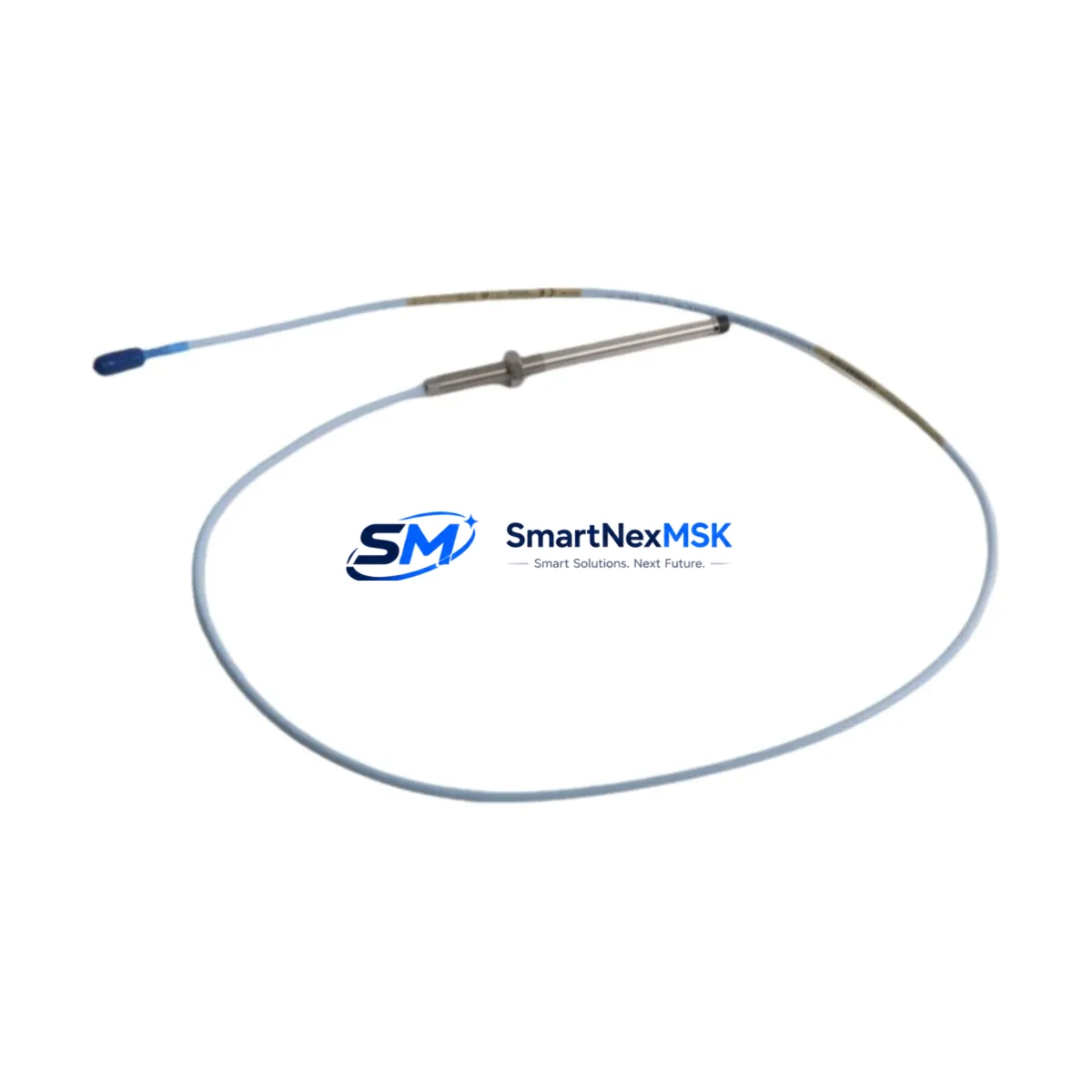

The Bently Nevada 330101-28-43-10-12-05 is a high-precision eddy current proximity probe engineered for seamless integration into 3300 XL Series vibration monitoring systems. As legacy machinery monitoring infrastructure ages across power generation, petrochemical, and rotating equipment facilities, this probe serves as a direct, drop-in replacement for discontinued or end-of-life units — enabling plant engineers to restore full system functionality without redesigning existing wiring harnesses, conduit runs, or monitor rack configurations.

This probe operates within the standard 3300 XL signal chain, interfacing directly with the 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor to deliver calibrated gap voltage output to the 3300/16 Monitor or 3300/20 Monitor installed in the existing rack. When replacing a failed or degraded probe, technicians should verify the installed extension cable length matches the original system calibration — typically 5m or 9m — since the Proximitor sensor, extension cable, and probe are calibrated as a matched set. Substituting only the probe without confirming cable compatibility can introduce measurement offset errors that trigger false alarms or mask genuine shaft displacement events.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting a 3300 XL proximity probe system requires a structured approach that accounts for the interdependencies between the probe, extension cable, Proximitor sensor, and monitor card. Before removing the failed 330101-28-43-10-12-05 probe, document the installed gap distance (typically 1.0–2.5 mm for 8mm probes), the OK relay status on the 3300/16 Monitor or 3300/20 Monitor, and the current gap voltage reading at the Proximitor output terminal.

In many retrofit scenarios, the 3300 XL Proximitor Sensor (330180-91-00) is also approaching end-of-life and should be evaluated for simultaneous replacement to avoid a second unplanned outage. Similarly, if the facility is migrating from a 3300 Series rack to a 3500 Series rack — for example, integrating a 3500/42M Proximitor I/O Module — the probe and extension cable assembly must be re-characterized against the new monitor’s input specifications. The 3500 Series uses a different rack backplane and I/O module addressing scheme, so the 3500/20 rack and associated 3500/42M cards require updated channel configuration in the System 1 software or Rack Configuration Software before the probe signal is accepted as valid.

For facilities running older DCS platforms that receive vibration data from the 3300 Series monitors via 4–20 mA analog output or Modbus RTU, the retrofit plan should include verification of the signal wiring from the monitor terminal block to the DCS analog input card. If the DCS is being upgraded concurrently — for example, migrating from a legacy Honeywell TDC 3000 or Foxboro I/A Series controller to a modern DCS — the analog signal range, scaling, and alarm setpoints must be reconfigured in the new controller’s engineering environment. A 3300 XL Termination Block and the associated field wiring should be inspected for insulation degradation, especially in high-temperature or high-vibration environments where cable jacket failure is common after 10–15 years of service.

All replacement probes are pre-tested prior to shipment. Stock is maintained for fast dispatch, supporting both emergency breakdown replacements and planned maintenance windows. 12-month warranty is included on all units.

Downtime Control During System Migration

Minimizing downtime during a proximity probe replacement on a live rotating machine requires pre-staging all replacement components — including the 330101-28-43-10-12-05 probe, the matched extension cable, and a verified Proximitor sensor — before initiating any shutdown sequence. Where the process allows, a hot-standby probe installation using a dual-probe bracket can maintain continuous shaft monitoring on the redundant channel while the primary channel is serviced.

Before disconnecting the existing probe, capture a screenshot or data export of the current vibration trend from System 1 or the local monitor display. This baseline allows the commissioning technician to confirm that the replacement probe is reading within expected range after installation. After re-gapping the new 330101-28-43-10-12-05 probe to the shaft, verify the Proximitor output voltage falls within the –10 VDC to –18 VDC OK window before re-enabling the monitor channel and restoring the OK relay to the DCS or safety system. If the facility uses a Safety Instrumented System (SIS) that receives the vibration OK signal, coordinate with the SIS engineer to bypass the relevant function during the probe swap and restore it only after commissioning is complete. This sequence protects the original program logic, preserves HMI alarm configurations, and ensures field control continuity throughout the migration.

Retrofit Support FAQ

Q: Is the 330101-28-43-10-12-05 a direct replacement for my existing 3300 XL probe?
A: Yes. This probe is a direct drop-in replacement for the original Bently Nevada 330101-28-43-10-12-05. Verify that your installed extension cable length and Proximitor sensor model match the original system calibration set before installation.

Q: Do I need to recalibrate the Proximitor sensor after replacing the probe?
A: If you are replacing only the probe with an identical SKU and the extension cable is unchanged, recalibration is typically not required. However, you must verify the gap voltage at the Proximitor output terminal after installation to confirm the probe is operating within the OK voltage window specified in the 3300 XL system documentation.

Q: Can this probe be used with a 3500 Series monitor rack?
A: The 330101-28-43-10-12-05 probe is designed for the 3300 XL system. Compatibility with 3500 Series racks (e.g., 3500/42M) depends on the specific Proximitor sensor and extension cable used. Consult the 3500 Series rack configuration documentation and verify signal scaling before integrating into a 3500 platform.

Q: What warranty is provided, and is pre-shipment testing performed?
A: All units carry a 12-month warranty covering manufacturing defects and functional performance. Each probe undergoes functional testing prior to shipment to ensure it meets OEM specifications for sensitivity, gap voltage output, and connector integrity.
