Bently Nevada 330101-30-60-90-02-00 Spare 3300 XL

Bently Nevada 330101-30-60-90-02-00 Maintenance-Ready Spare for 3300 XL Automation

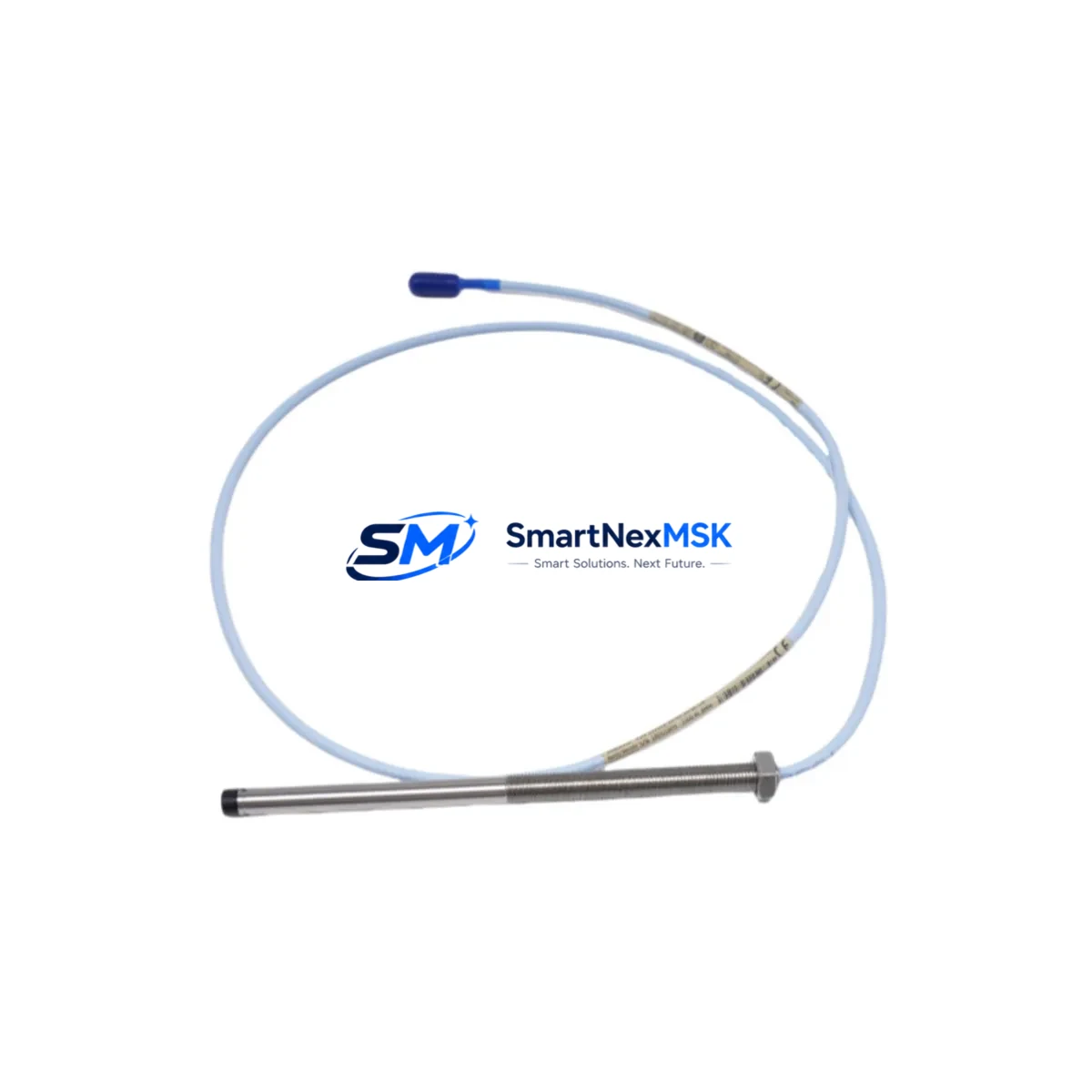

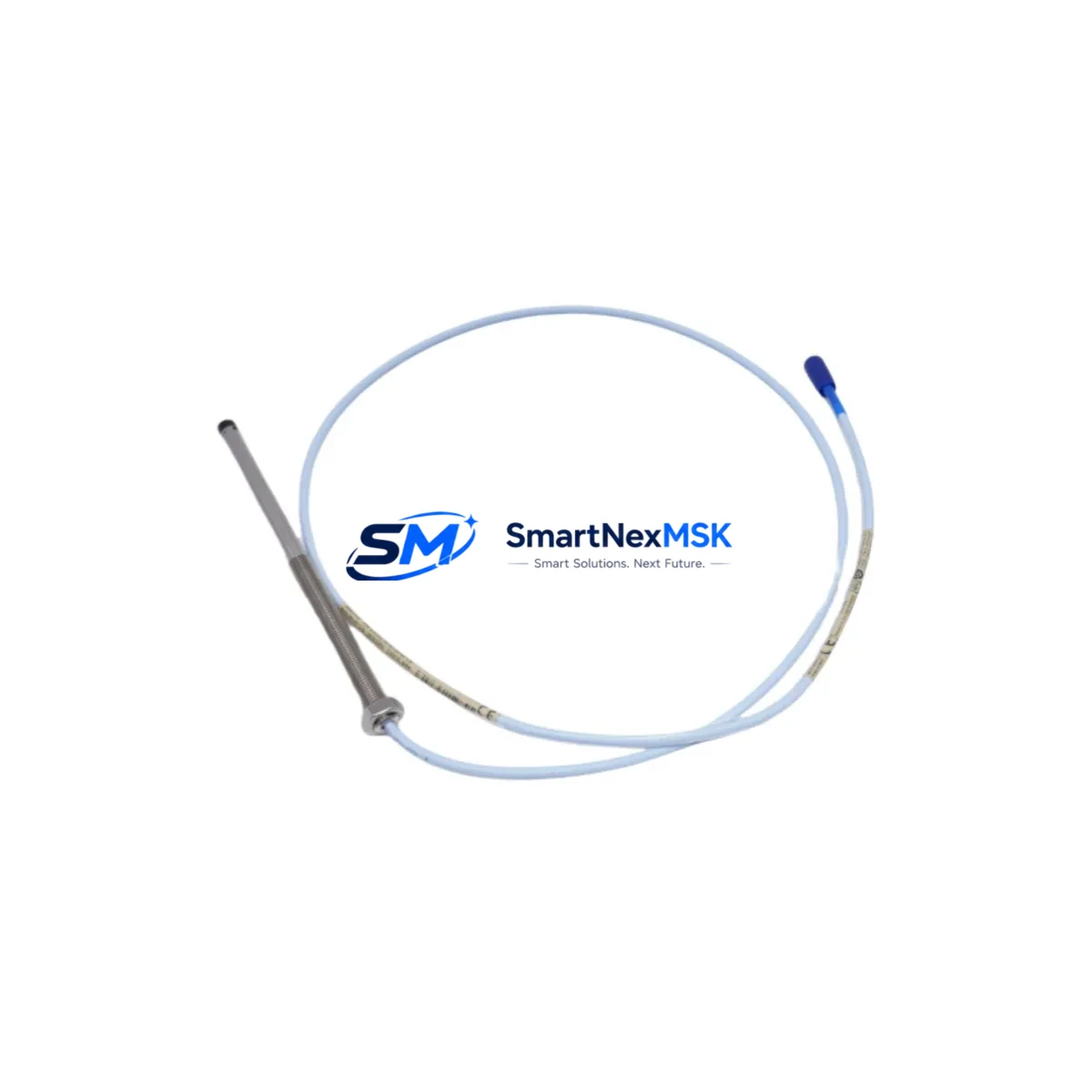

The Bently Nevada 330101-30-60-90-02-00 is an 8mm proximity transducer engineered for the 3300 XL Series continuous vibration monitoring system. In rotating machinery protection applications — turbines, compressors, pumps, and gearboxes — this transducer serves as the primary sensing element for radial shaft vibration, axial position, and differential expansion measurement. When a transducer fails or degrades, the entire protection loop is compromised, exposing critical assets to undetected mechanical faults and potential catastrophic failure. Maintaining a verified, tested spare of the 330101-30-60-90-02-00 in your parts inventory is a fundamental requirement for any facility operating Bently Nevada 3300 XL machinery protection systems.

This listing supplies an original, factory-specification 330101-30-60-90-02-00 proximity transducer, pre-tested prior to shipment, with a 12-month warranty covering manufacturing defects and functional performance. Each unit is verified for gap voltage linearity, sensitivity output (nominally 7.87 V/mm), and cable integrity before dispatch. Delivery is supported with full traceability documentation suitable for maintenance records and audit compliance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured maintenance plan for any 3300 XL monitoring loop extends well beyond the transducer itself. When replacing or inspecting the 330101-30-60-90-02-00, maintenance engineers should simultaneously verify the condition and calibration of the paired 3300 XL 8mm Proximitor® Sensor (driver module), since transducer and driver are a matched system — replacing one without verifying the other risks residual measurement error. The 3300 XL extension cable (5m or 9m, depending on installation geometry) should be inspected for jacket abrasion, connector corrosion, and continuity, as cable degradation is a leading cause of spurious high-vibration trips.

Within the monitoring rack, the 3500/42M Proximitor®/Seismic Monitor or equivalent 3500 Series I/O module processes the transducer signal. Verify that the monitor’s gap voltage reading falls within the linear range (typically -10 VDC ± 1 VDC at the nominal installation gap) after transducer replacement. If the facility uses a 3500/20 Rack Interface Module (RIM) for Modbus or Ethernet communication to the DCS or historian, confirm that the channel configuration and alert setpoints are intact post-replacement.

For facilities running older 3300 Series (non-XL) racks alongside 3300 XL hardware, ensure that the replacement transducer and driver are matched to the correct series — cross-series substitution will produce calibration offsets. Spare inventory should also include 3300 XL barrier assemblies for installations in hazardous areas (Zone 1/Division 1), as barrier failure can mimic transducer faults. Terminal blocks and DIN rail-mounted signal isolators in the field junction box should be inspected for loose terminations and insulation resistance, particularly in high-vibration or high-temperature environments.

Where the 3300 XL system interfaces with a Bently Nevada System 1® condition monitoring platform or a third-party DCS via 4–20 mA output, verify that the analog output scaling and engineering unit conversion remain correct after channel reconfiguration. Facilities using keyphasor® transducers for phase reference should also confirm keyphasor gap and signal integrity as part of the same planned maintenance window, since phase data quality directly affects vector-based diagnostics.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and isolate the monitoring channel at the 3500 rack. Place the affected channel in bypass mode to prevent spurious trips during transducer removal. Document the existing gap voltage and vibration baseline readings before disconnection.

Step 2 — Transducer Removal: Disconnect the extension cable at the field junction box. Unthread the 330101-30-60-90-02-00 from the mounting bracket using the M10 thread. Inspect the mounting bracket for wear, corrosion, or thread damage. Replace the bracket if necessary to ensure stable installation geometry.

Step 3 — Replacement Installation: Install the new 330101-30-60-90-02-00 and set the installation gap to the manufacturer-specified nominal (typically 1.0 mm / 40 mil for standard steel targets). Reconnect the extension cable and verify connector seating. Confirm that the cable routing avoids contact with hot surfaces or moving parts.

Step 4 — Calibration Verification: Restore the monitoring channel from bypass. Verify gap voltage at the Proximitor® driver output and at the 3500 rack monitor. Confirm that the reading falls within the linear range. Record the as-left gap voltage in the maintenance management system (CMMS).

Step 5 — Functional Test and Return to Service: Perform a functional test by observing vibration readings during machine startup. Confirm that readings are consistent with historical baseline and that no alert or danger setpoints are triggered spuriously. Close the work permit and update the spare parts inventory record.

Spare Parts Support FAQ

Q1: Is the 330101-30-60-90-02-00 compatible with both 3300 and 3300 XL systems?
The 330101-30-60-90-02-00 is designed for the 3300 XL 8mm system. While the physical thread and cable connector may appear similar to earlier 3300 Series components, the sensitivity calibration and driver matching are specific to the XL platform. Always verify the Proximitor® driver part number before substitution to avoid measurement offset errors.

Q2: What pre-shipment testing is performed on each unit?
Each 330101-30-60-90-02-00 supplied by SMARTNEXMSK is tested for gap voltage linearity across the full linear range, output sensitivity (7.87 V/mm nominal), cable continuity, and connector integrity. A test report is available upon request. Units that do not meet factory specification are not dispatched.

Q3: How should this transducer be stored as a long-term spare?
Store in the original packaging or an ESD-safe, moisture-controlled environment at 15–35°C. Avoid storage near strong magnetic fields or corrosive atmospheres. Inspect the connector and cable jacket annually. Recommended maximum storage period before re-testing is 3 years for critical protection applications.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, functional performance deviations from published specifications, and premature failure under normal operating conditions. It does not cover damage resulting from incorrect installation gap, mechanical impact, or use outside the specified temperature and environmental ratings. Warranty claims are processed with return of the defective unit and provision of installation records.
