Bently Nevada 330101-33-52-10-12-05 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330101-33-52-10-12-05 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

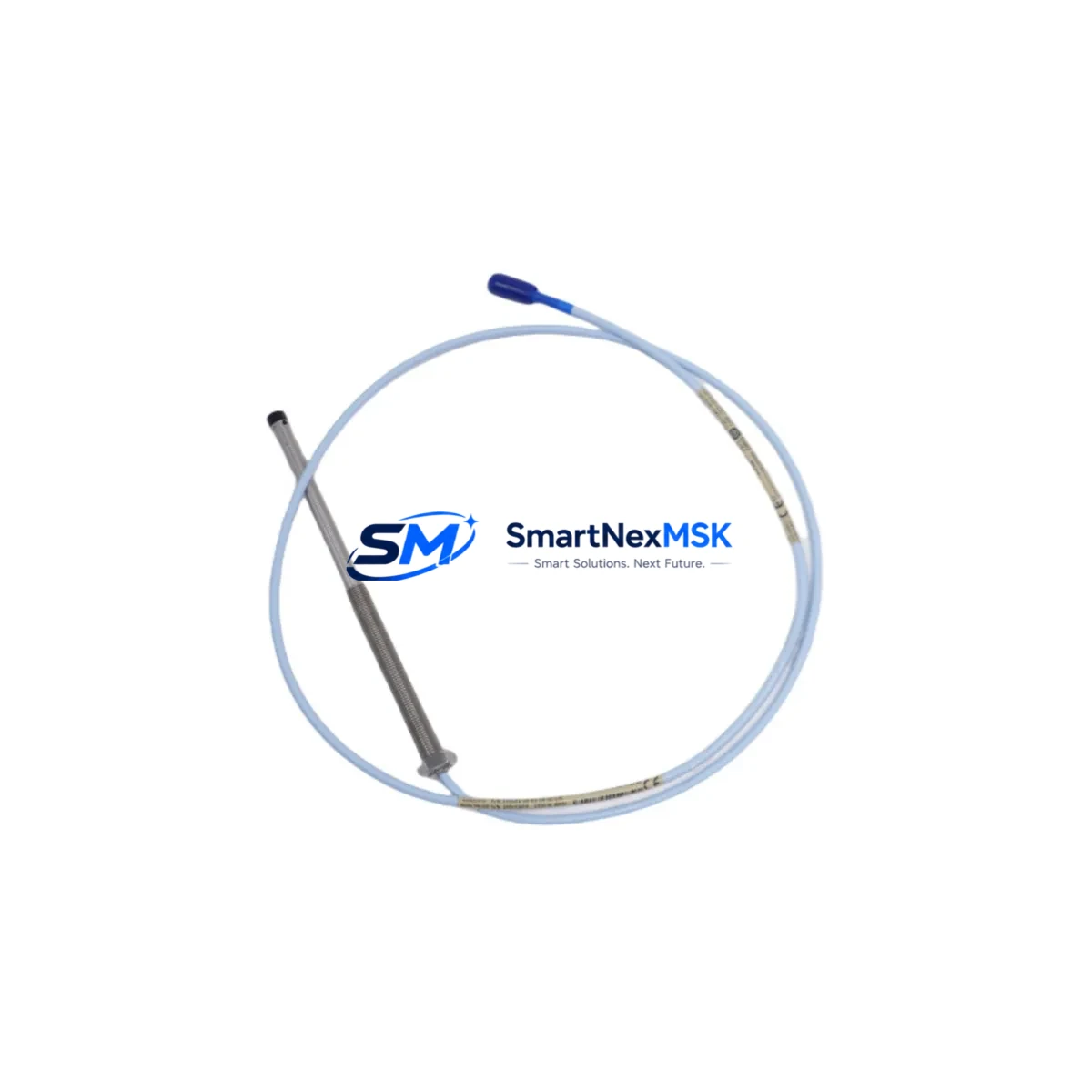

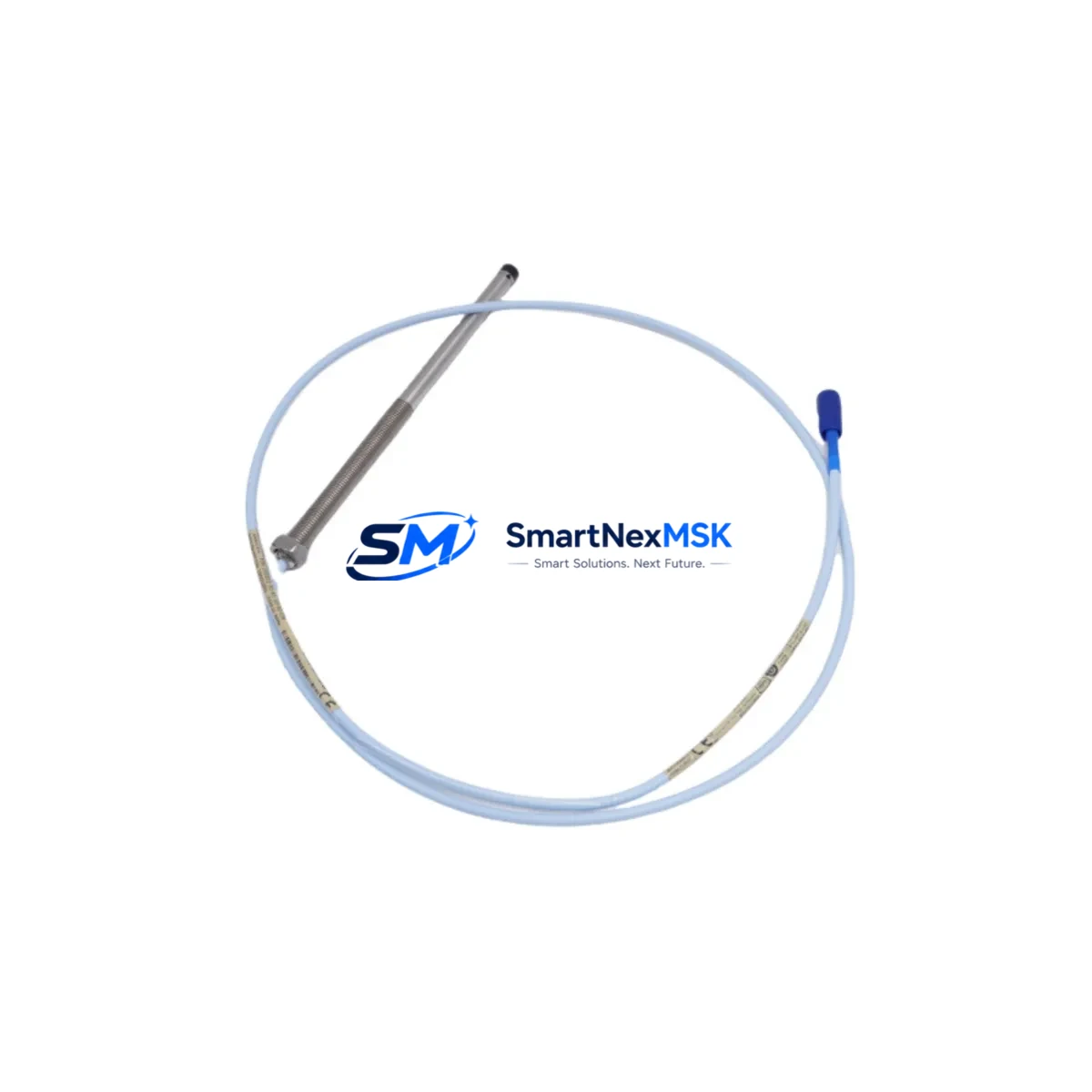

The Bently Nevada 330101-33-52-10-12-05 is an 8mm proximity probe with a 52-inch (1.3 m) armored cable, engineered for direct drop-in replacement within the 3300 XL Series vibration monitoring platform. As legacy Bently Nevada 3300 Series installations reach end-of-service milestones, plant engineers and reliability teams increasingly require verified, in-stock alternatives that preserve existing wiring infrastructure, maintain signal chain integrity, and eliminate the need for full system overhauls. This probe is stocked and tested to meet those demands, with a 12-month warranty and pre-shipment functional verification on every unit.

Whether you are restoring a tripped channel on a critical rotating machine, replacing a damaged probe after a mechanical event, or executing a planned upgrade from the legacy 3300 Series to the 3300 XL architecture, the 330101-33-52-10-12-05 integrates directly with existing Bently Nevada 3300 XL proximitor/seismics, junction boxes, and field wiring without requiring re-termination or cable extension. The probe’s 8mm tip diameter and standard Bently Nevada thread pattern ensure mechanical compatibility with existing probe holders and guide bushings already installed in the machine casing.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-33-52-10-12-05 begins well before the probe reaches the machine. During the planning phase, engineers should pull the existing loop drawing to confirm the proximitor model installed in the field — typically a Bently Nevada 330180 or 330181 8mm Proximitor/Seismic — and verify that the extension cable, usually a Bently Nevada 330130 series armored extension, is undamaged and correctly terminated at the junction box. The probe connector and extension cable connector must be inspected for corrosion, especially in high-humidity or outdoor installations.

For installations where the 3300 XL rack monitors multiple channels — for example, a four-channel radial vibration rack using Bently Nevada 3300/16-channel monitor cards — it is important to confirm that the replacement probe’s sensitivity (nominally 200 mV/mil) matches the channel configuration stored in the monitor. If the plant has migrated any channels to the Bently Nevada 3500 Series rack, a signal conditioning interface or direct 3500/42M Proximitor I/O Module may be required to bridge the legacy probe output to the newer rack’s input requirements.

Wiring adaptation is straightforward in most 3300 XL installations. The probe cable terminates at a Bently Nevada field junction box, and the three-wire shielded cable (drive, return, and shield) connects to the proximitor using standard Bently Nevada color-coded terminations. No re-termination is required when replacing a 330101-33-52-10-12-05 with an identical SKU. However, if the original probe was from the older 3300 (non-XL) family, technicians should verify the connector type — some early 3300 Series probes used a different locking collar — and confirm that the Bently Nevada 3300 XL Proximitor/Seismic accepts the replacement probe’s connector without an adapter.

For plants running a Bently Nevada System 1 condition monitoring software platform, the channel tag, alert setpoints, and danger setpoints stored in the System 1 database do not need to be modified when performing a like-for-like probe replacement. The gap voltage should be re-verified after installation using a calibrated voltmeter at the proximitor output terminals, and the reading should fall within the –10 to –18 VDC window specified in the 3300 XL installation manual. Any deviation outside this range indicates a probe-to-target gap adjustment is required at the machine.

Plants executing a broader migration from the 3300 Series to the 3500 Series architecture should plan for the replacement of the entire measurement chain: probe, extension cable, proximitor, and rack monitor card. In this scenario, the 330101-33-52-10-12-05 probe can serve as an interim solution to restore a failed channel while the full 3500 Series upgrade is planned and budgeted. The probe’s compatibility with the 3300 XL Proximitor/Seismic ensures that the existing rack infrastructure remains operational during the transition period, minimizing unplanned downtime on critical assets such as compressors, turbines, and pumps.

Downtime Control During System Migration

Minimizing downtime during a proximity probe replacement or system migration requires a structured pre-outage checklist and a clear understanding of the control system’s response to a channel fault. In most 3300 XL installations, a failed probe channel will trigger a Not OK (NOK) status on the monitor, which may initiate an alarm or trip depending on the voting logic configured in the rack. Before removing the failed probe, the technician should place the affected channel in bypass mode using the Bently Nevada rack front-panel keyswitch or through the System 1 software interface, preventing a spurious trip during the replacement procedure.

The physical replacement of the 330101-33-52-10-12-05 probe typically takes 15 to 30 minutes on an accessible machine, assuming the probe holder is not seized and the extension cable connector is in good condition. After installation, the gap voltage must be set before the channel is taken out of bypass. This is accomplished by adjusting the probe-to-target gap at the machine until the proximitor output reads within the specified range, then locking the probe in position with the locknut. The channel can then be returned to normal monitoring mode, and the System 1 trend data should be reviewed to confirm that the vibration reading is stable and consistent with pre-failure baseline values.

For plants with redundant monitoring architectures — for example, a dual-probe XY configuration on a radial bearing — the replacement can often be performed on one channel while the second channel remains in service, further reducing risk. The Bently Nevada 3300 XL rack’s channel-independent architecture supports this approach, allowing one channel to be bypassed and serviced without affecting adjacent channels or the overall rack health status. This is particularly valuable on continuously operating assets where a full shutdown is not feasible.

Retrofit Support FAQ

Q1: Is the 330101-33-52-10-12-05 a direct replacement for older 3300 Series 8mm probes?
In most cases, yes. The 330101-33-52-10-12-05 is mechanically and electrically compatible with the 3300 XL 8mm Proximitor/Seismic and uses the same probe holder thread pattern as the legacy 3300 Series. However, early 3300 Series installations may use a different connector locking collar. Verify the connector type before ordering if you are unsure of the original probe generation.

Q2: What commissioning steps are required after installation?
After mechanical installation, verify the gap voltage at the proximitor output terminals using a calibrated voltmeter. The reading should fall within –10 to –18 VDC. Adjust the probe-to-target gap as needed, then lock the probe in position. Return the channel from bypass to normal monitoring mode and confirm stable vibration readings in the System 1 or local monitor display.

Q3: Can this probe be used with a Bently Nevada 3500 Series rack?
The 330101-33-52-10-12-05 is designed for the 3300 XL platform. Use with a 3500 Series rack requires a compatible 3500/42M Proximitor I/O Module or equivalent signal conditioning interface. Consult the 3500 Series installation manual or contact our technical team to confirm compatibility for your specific rack configuration.

Q4: What does the 12-month warranty cover?
Every unit is functionally tested prior to shipment, including output signal verification and cable continuity checks. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units damaged by incorrect installation, overvoltage, or mechanical impact are not covered. Warranty claims are processed promptly with replacement units dispatched within 3 business days of claim approval.
