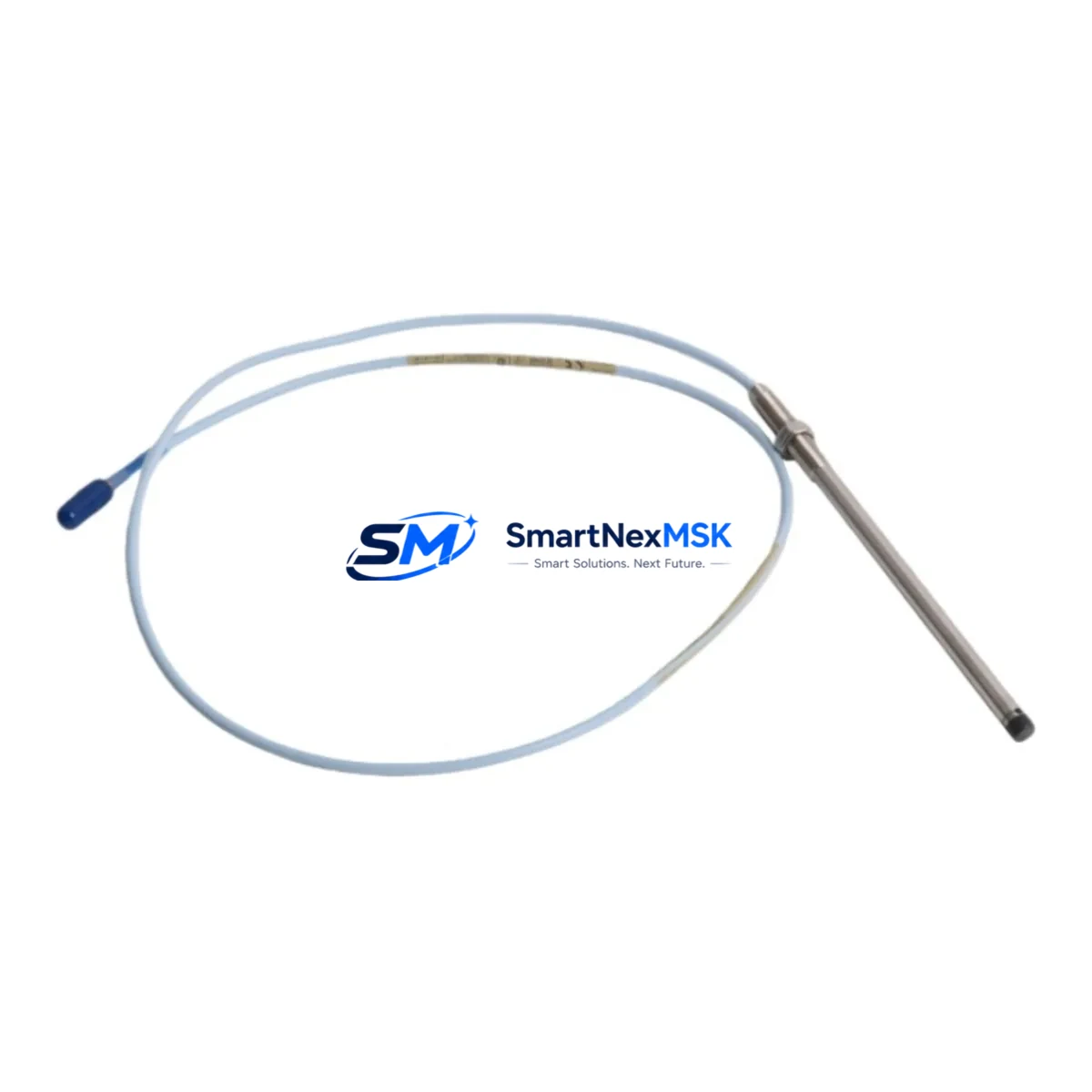

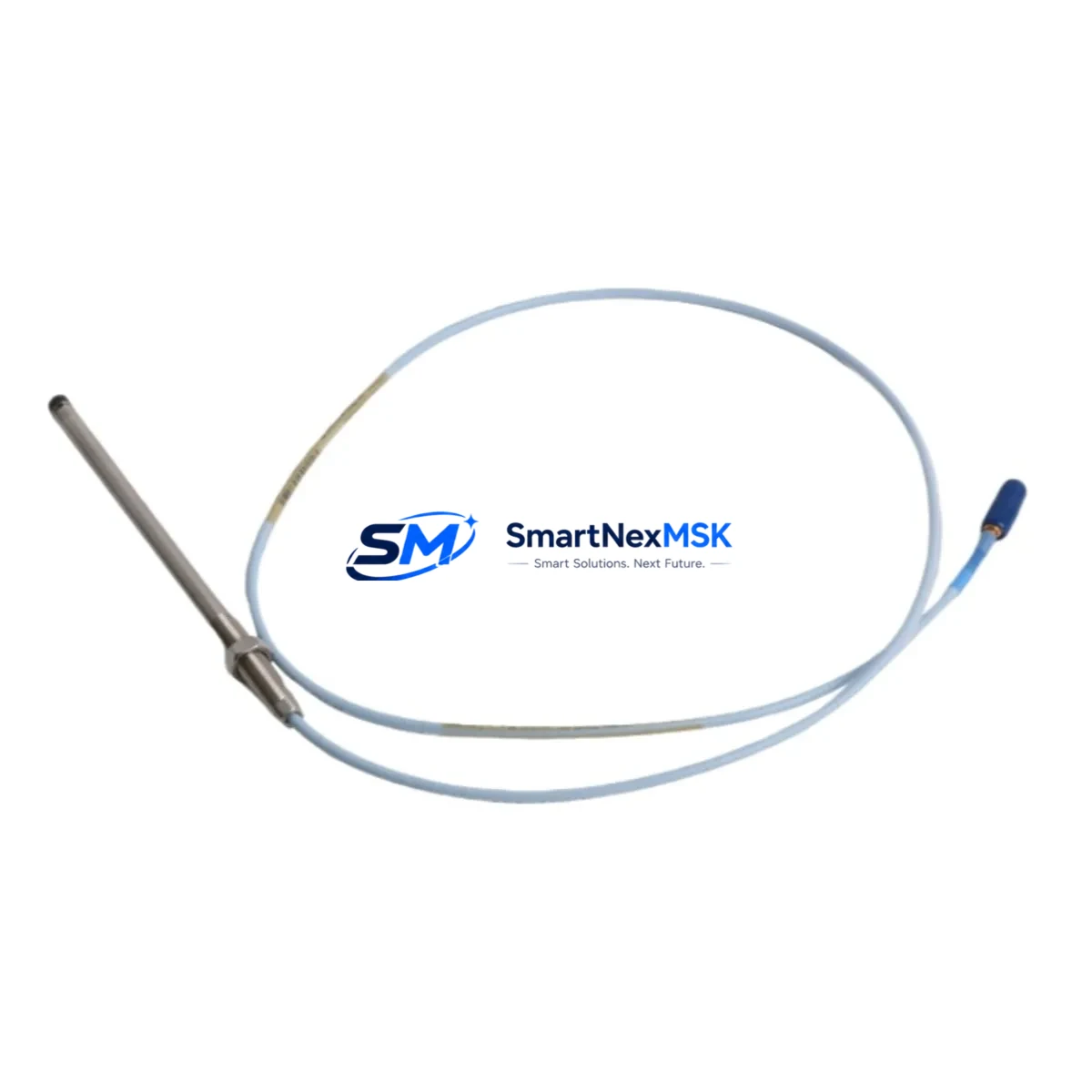

Bently Nevada 330101-48-71-20-02-CN Safety-Enhanced Proximity Probe

Bently Nevada 330101-48-71-20-02-CN Safety-Enhanced Proximity Probe for Harsh Industrial Sites

The Bently Nevada 330101-48-71-20-02-CN is an 8mm eddy-current proximity probe from the industry-trusted 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high-temperature, high-vibration, and chemically aggressive conditions, this probe is a cornerstone component in machinery protection systems across petrochemical, power generation, mining, metallurgical, and continuous manufacturing facilities worldwide.

In safety-critical control architectures, signal integrity is non-negotiable. The 330101-48-71-20-02-CN delivers stable, low-noise output across its full operating range, minimizing the risk of signal drift that could trigger false shutdowns or — more dangerously — mask genuine machinery faults. Its ruggedized construction resists electromagnetic interference (EMI) from variable-frequency drives, high-current bus bars, and adjacent motor starters, ensuring that the vibration data reaching your 3300 XL proximitor/seismic transducer and downstream safety logic controllers remains accurate and actionable at all times.

When integrated into a complete machinery protection loop alongside the Bently Nevada 3300/16-14-01-01-00-00-00 proximitor and the 3500/42M proximitor I/O module, this probe forms a tightly coupled sensing chain that feeds real-time shaft displacement data to the 3500 Series machinery protection system. The 3500 rack, in turn, interfaces with plant-level safety PLCs and DCS platforms — including Emerson DeltaV SIS and Honeywell Safety Manager — to execute automatic trip logic before catastrophic bearing or seal failure can occur. Reliable probe performance at this stage is the first line of defense in any Safety Instrumented Function (SIF) targeting rotating equipment protection.

The probe’s 8mm sensing tip and optimized gap voltage characteristics make it directly interchangeable within existing 3300 XL installations, reducing retrofit risk and eliminating the need for recalibration of the full measurement chain. This is particularly valuable during planned maintenance windows in continuous-process plants where downtime is measured in tens of thousands of dollars per hour. Paired with Bently Nevada 330130-040-00-00 extension cables and 330180-X1-05 armored cable assemblies, the complete probe-to-proximitor assembly maintains signal fidelity over long cable runs through congested, high-interference control cabinet environments.

For facilities operating under IEC 61511 or API 670 machinery protection standards, the 330101-48-71-20-02-CN supports compliance by providing the measurement accuracy and environmental robustness required for safety loop validation. Its stainless-steel housing and PTFE-jacketed cable resist hydrocarbon exposure, steam ingress, and mechanical abrasion — common failure modes in refinery, compressor station, and turbine hall installations. The probe is also compatible with Bently Nevada 3300 XL 8mm reverse-mount probe systems used in tight-clearance bearing housings where standard forward-mount configurations are impractical.

In power plant and heavy industrial applications, this probe is routinely deployed to monitor journal bearing radial vibration, thrust position, differential expansion, and eccentricity on steam turbines, gas compressors, centrifugal pumps, and large induction motors. When combined with Bently Nevada 3500/25 keyphasor modules and 3500/15 power supply modules, the system provides synchronized, phase-referenced vibration analysis that enables predictive maintenance teams to detect rotor imbalance, misalignment, and oil whirl months before they escalate to unplanned outages.

Every unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification including gap voltage linearity check, insulation resistance test, and cable continuity inspection. Stock is maintained in climate-controlled storage to preserve calibration integrity. All units are covered by a 12-month warranty against manufacturing defects and performance deviation, with rapid replacement support to minimize your mean time to repair (MTTR).

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection architecture built around the 330101-48-71-20-02-CN extends well beyond the probe itself. In a typical heavy-industrial control cabinet, the probe signal is conditioned by the Bently Nevada 3300 XL proximitor before being routed to a 3500/42M proximitor I/O module housed in a 3500 Series rack. The rack’s 3500/15 power supply module provides regulated, isolated DC power to all monitoring channels, eliminating the risk of power-rail noise corrupting vibration measurements during load transients or upstream switching events.

To protect the measurement chain from surge events — common in facilities with large motor starts or lightning-prone outdoor installations — Bently Nevada 3300 XL surge protection barriers are installed at the cabinet entry point. For installations in hazardous areas classified under IEC 60079 (Zone 1 or Zone 2), Bently Nevada 3300 XL intrinsically safe barriers or approved Zener barriers from the MTL 700 Series are used to limit energy in the probe circuit to safe levels, preventing ignition of flammable atmospheres.

Communication from the 3500 rack to the plant DCS or safety PLC is typically handled via Modbus RTU or Ethernet/IP interface modules, with redundant communication paths ensuring that a single network fault does not blind the control room to machinery health status. In critical applications, a dedicated Bently Nevada System 1 condition monitoring software node aggregates data from multiple 3500 racks, providing trend analysis and alarm management that complements the hard-wired trip logic. This layered architecture — from the 330101-48-71-20-02-CN probe at the machine to the System 1 historian in the control room — represents best practice for continuous-process machinery protection.

Critical Industrial Safety Applications

The 330101-48-71-20-02-CN is deployed across a wide spectrum of safety-critical industrial applications:

Petrochemical & Refinery: Monitoring radial vibration and axial position on centrifugal compressors, reactor feed pumps, and crude distillation column overhead compressors. In these environments, an undetected bearing failure can result in process release, fire, or explosion — making reliable proximity probe performance a direct safety requirement under API 670 and IEC 61511 SIL 2 loop designs.

Power Generation: Tracking shaft eccentricity and differential expansion on steam turbine-generator sets during startup and load cycling. The probe’s wide frequency response and DC-coupled output make it suitable for both slow-roll monitoring during turbine warm-up and full-speed vibration surveillance at rated load.

Mining & Minerals Processing: Protecting large SAG mill pinion bearings, slurry pump shafts, and conveyor drive gearboxes in dusty, wet, and vibration-intensive environments. The stainless-steel housing and PTFE cable jacket provide the chemical and abrasion resistance needed for reliable long-term service in these conditions.

Water & Wastewater Treatment: Monitoring vertical turbine pumps and blower shafts in pump stations where continuous availability is essential for regulatory compliance and public health protection. The probe’s non-contact sensing principle eliminates wear-related drift, reducing maintenance intervention frequency.

Metallurgy & Steel: Measuring radial vibration on rolling mill drive motors, continuous caster pinch roll drives, and blast furnace top gas compressors — applications characterized by extreme thermal cycling, heavy electrical interference, and aggressive process atmospheres that challenge conventional sensing technologies.

Port & Heavy Lifting: Protecting crane hoist motor bearings and gantry drive gearboxes where sudden mechanical failure poses direct risk to personnel and cargo. Integration with the 3500 Series rack enables automatic load shedding or hoist lockout when vibration thresholds are exceeded.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330101-48-71-20-02-CN?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering functional performance, scale factor accuracy, and cable integrity. In the event of a verified defect within the warranty period, we provide rapid replacement to minimize your plant downtime. Warranty claims are processed within 3 business days of fault confirmation.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-48-71-20-02-CN undergoes a structured pre-shipment inspection protocol including: gap voltage linearity verification across the full linear range, insulation resistance measurement between the coaxial shield and center conductor, cable continuity and connector integrity check, and visual inspection of the probe tip and housing for mechanical damage. Test records are available upon request for quality-critical procurement processes.

Q3: Is this probe directly compatible with existing Bently Nevada 3300 XL installations?
Yes. The 330101-48-71-20-02-CN is a direct form-fit-function replacement for other 3300 XL 8mm probe assemblies with equivalent cable length and connector configuration. It is fully compatible with the 3300 XL proximitor/seismic transducer and the 3500 Series I/O modules without requiring recalibration of the measurement chain, provided the gap is set correctly per the installation manual.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
SMARTNEXMSK maintains dedicated stock of the 330101-48-71-20-02-CN to support planned maintenance, emergency replacement, and multi-unit procurement programs. We work with industrial facilities operating long equipment lifecycles and can provide supply commitment letters for critical spare parts programs. Contact our technical sales team to discuss volume pricing, consignment stock arrangements, or scheduled delivery programs tailored to your plant maintenance calendar.
